Электросхемы ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ Lexus GS 300 2000

ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ

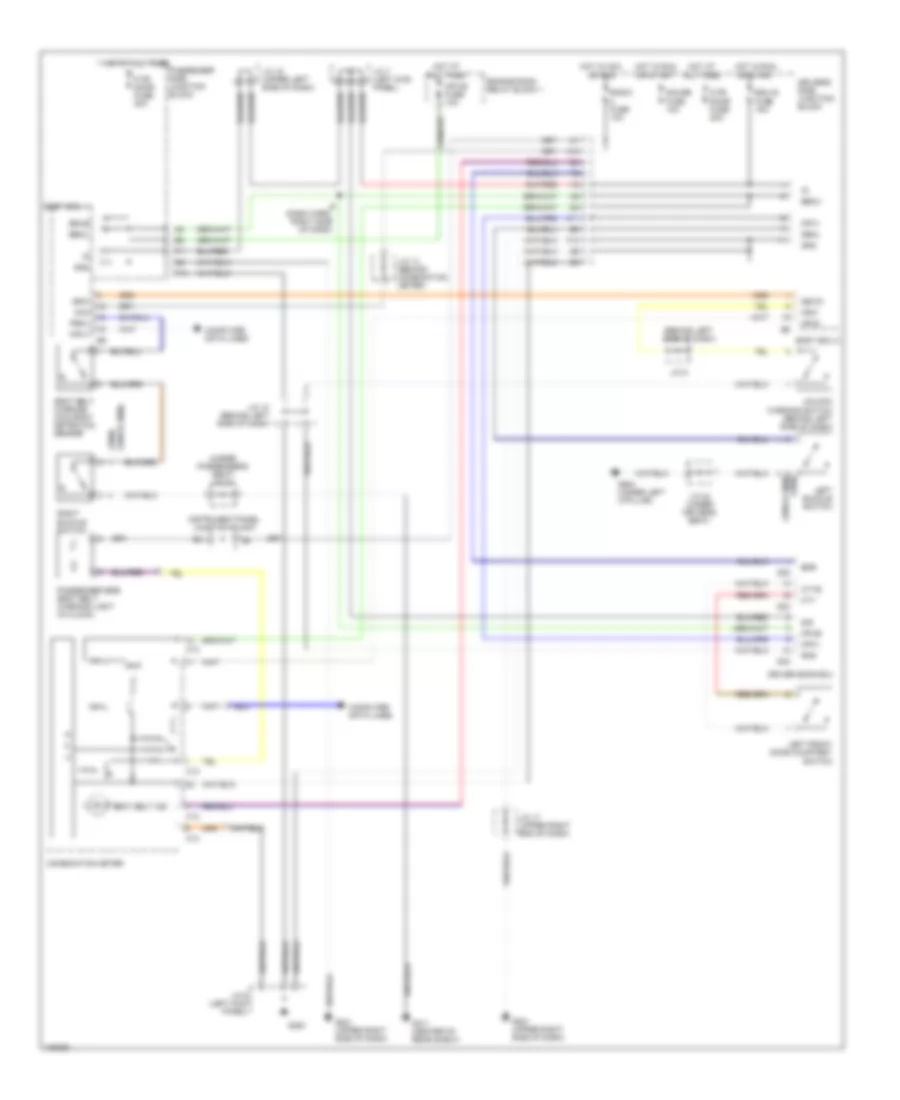

Электросхема предупреждающей системы для Lexus GS 300 2000

Электросхема предупреждающей системы для Lexus GS 300 2000 - Список элементов:

• (1998) (1999 & 2000)
• (behind left side of dash)
• (under passenger's seat) j/c 24
• Acc
• Bdr
• Becu
• Body ecu 1
• Body ecu 2
• Bsub
• C p u
• C12
• C13
• Combination meter
• Computer data lines
• Cpub
• Cty
• Ctye
• D fr door fuse 20a
• D22
• D23
• D24
• Dbkl
• Driver door ecu
• Driver's side junction block
• Ecu-ig fuse 15a
• Engine room relay block 1
• F11
• F13
• G200
• G201 (upper right side of dash)
• G311 (center of rear shelf)
• G904 (under left c-pillar)
• Gauge fuse 10a
• Gnd
• Gsw
• Gswo
• H10
• H11
• Hot at all times
• Hot in acc or run
• Hot in run or start
• I6 (dash harn, right side of dash)
• Instrument panel junction block
• J/c 10 (behind left side of dash)
• J/c 13 (behind combination meter)
• J/c 15 (upper left side of dash)
• J/c 17 (upper right end of dash)
• J/c 23 (under driver's seat)
• J/c 6 (left kick panel)
• J/c 7 (left kick panel)
• J/c 9
• Ksw
• Left buckle switch
• Left front door courtesy switch
• Mpx-b fuse 10a
• Mpx1
• Mpx2
• P fr door fuse 20a
• Passenger side junction block
• Passenger side seat belt warning light (in clock)
• Pbkl
• Radio fuse 10a
• Right buckle switch
• Seat belt ind
• Seat belt warning occupant detection sensor
• Sig
• Unlock warning switch (behind left side of dash)
