Электросхемы Противоугонная система Сигнализация Lexus GS 300 2000

Противоугонная система Сигнализация

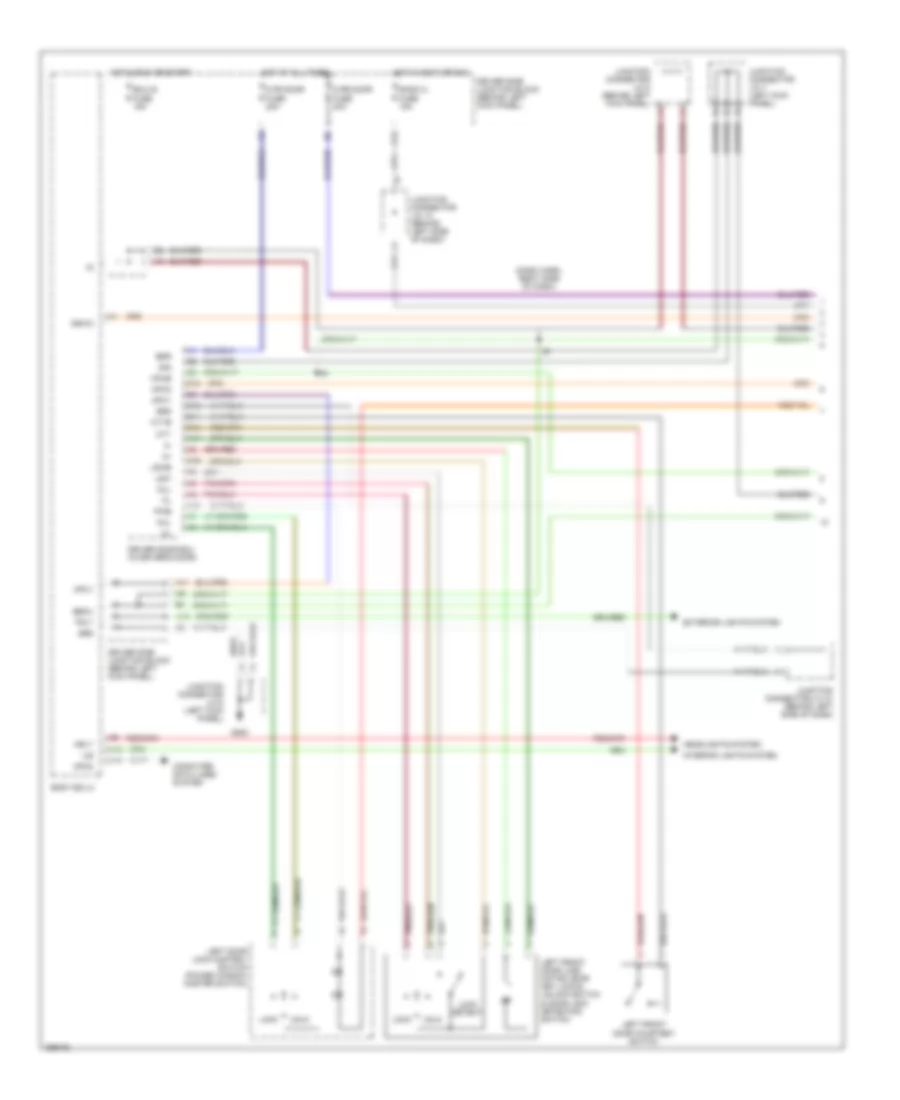

Электросхема противоугонной сигнализации (1 из 3) для Lexus GS 300 2000

Электросхема противоугонной сигнализации (1 из 3) для Lexus GS 300 2000 - Список элементов:

• (dash harn, right side of dash)
• A13
• A15
• A17
• A19
• B14
• B15
• Bdr
• Becu
• Body ecu 2
• C12
• C18
• Computer data lines system
• Cpub
• Cty
• Ctye
• D fr door fuse 20a
• D rr door fuse 20a
• Driver door ecu (in driver's door)
• Driver side junction block (behind left kick panel)
• Ecu-ig fuse 15a
• Exterior lights system
• G200
• Grd
• Gswo
• H10
• H11
• H13
• Headlights system
• Hot at all times
• Hot in accy or run
• Hot in run or start
• Hrly
• Ile
• Interior lights system
• Junction connector j/c 10 (behind left side of dash)
• Junction connector j/c 13 (behind left side of dash)
• Junction connector j/c 6 (left kick panel)
• Junction connector j/c 7 (left kick panel)
• Junction connector j/c 8 (behind left kick panel)
• Kul
• Left door lock control switch (power window master switch)
• Left front door courtesy switch
• Left front door lock motor, door key lock & unlock switch & door lock detection switch
• Lock
• Lock detect
• Lsw
• Lswe
• Mpx1
• Mpx2
• Mul
• Pwe
• Radio 2 fuse 15a
• Sig
• Trly
• Unlk

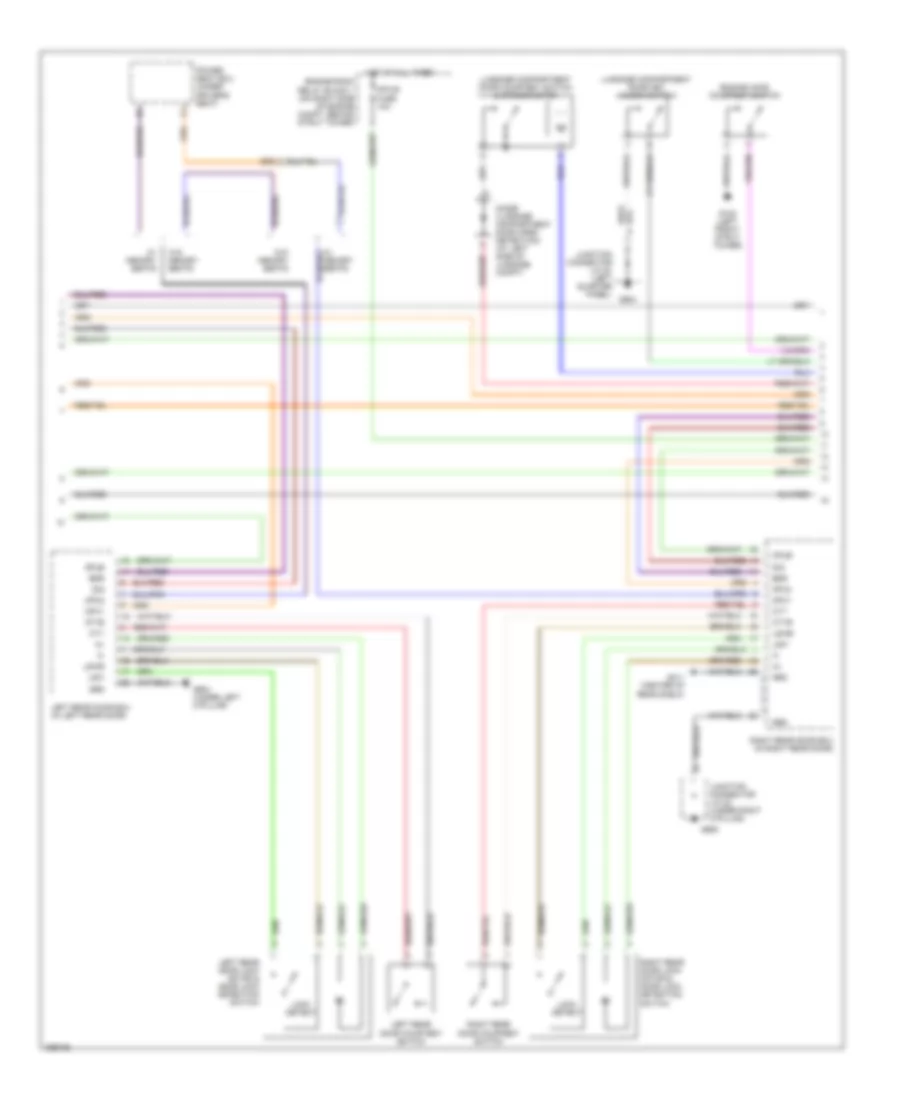

Электросхема противоугонной сигнализации (2 из 3) для Lexus GS 300 2000

Электросхема противоугонной сигнализации (2 из 3) для Lexus GS 300 2000 - Список элементов:

• Bdr
• Cpub
• Cty
• Ctye
• Diode (luggage compartment door open detection) (at left side of luggage compt)
• Engine hood courtesy switch
• Engine room relay block 1 (on right side of engine compt, behind strut tower)
• G102 (left front strut tower)
• G311 (center of rear shelf)
• G904
• G904 (under left c-pillar)
• G905
• Grd
• Hot at all times
• Junction connector j/c 20 (left quarter panel)
• Junction connector j/c 22 (under right c-pillar)
• Left rear door courtesy switch
• Left rear door ecu (in left rear door)
• Left rear door lock motor & door lock detection switch
• Lock detect
• Lsw
• Lswe
• Luggage compartment door courtesy switch & opener motor
• Luggage compartment door key unlock switch
• Mpx-b fuse 10a
• Mpx1
• Mpx2
• Power seat ecu (under driver's seat)
• Right rear door courtesy switch
• Right rear door ecu (in right rear door)
• Right rear door lock motor & door lock detection switch
• Sig
• W/ memory seats
• W/o memory seats

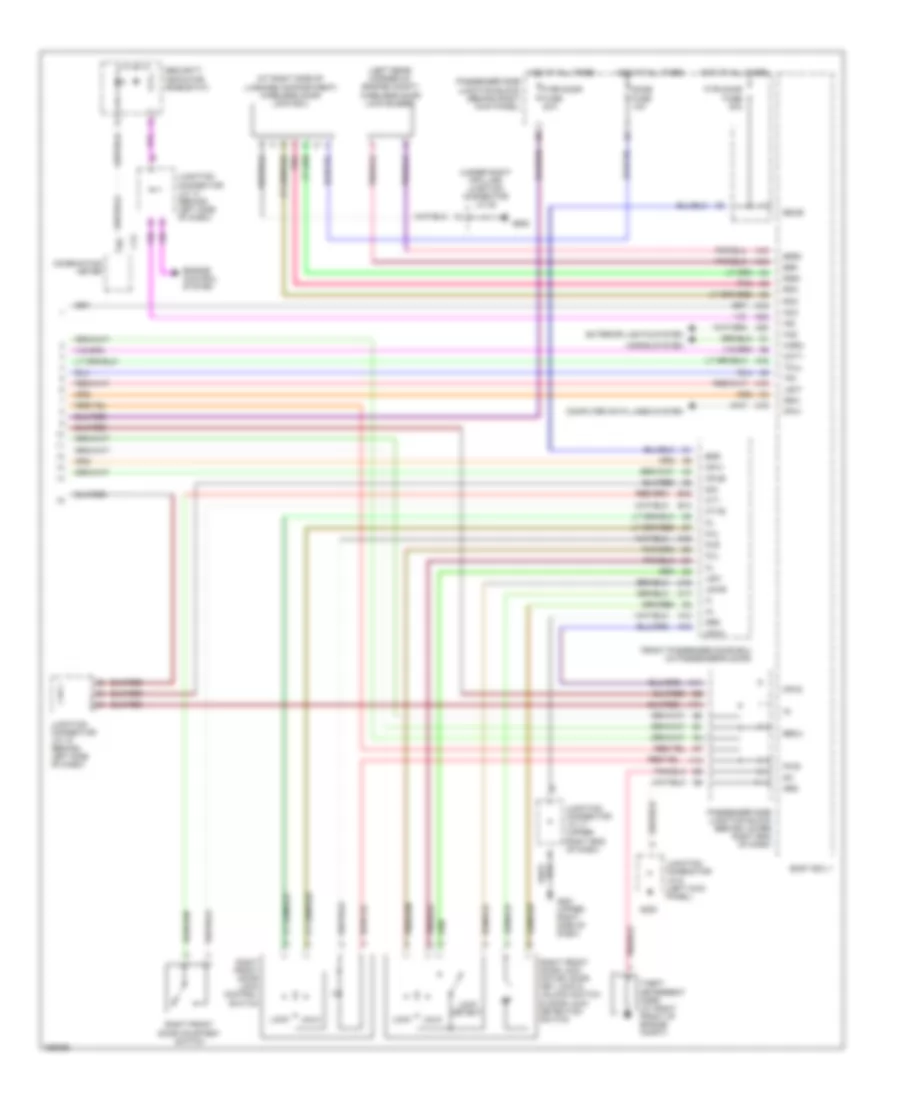

Электросхема противоугонной сигнализации (3 из 3) для Lexus GS 300 2000

Электросхема противоугонной сигнализации (3 из 3) для Lexus GS 300 2000 - Список элементов:

• (at right side of luggage compartment) wireless door lock ecu
• (left rear corner of engine compt) wireless door lock buzzer
• (under right c-pillar) junction connector j/c 22
• A10
• A12
• A13
• A15
• A16
• A18
• A19
• A22
• A25
• Acc
• B14
• B15
• Bdr
• Becu
• Body ecu 1
• Bsub
• Bzr
• Bzr2
• C12
• C15
• C16
• C17
• Combination meter
• Computer data lines system
• Cpub
• Cty
• Ctye
• Dle
• Dome fuse 10a
• Engine control system
• Exterior lights system
• F11
• Front passenger door ecu (in passenger's door)
• G200
• G201 (upper right side of dash)
• G905
• Grd
• Gsw
• H11
• H13
• Haz
• Hcty
• Horn
• Horns system
• Hot at all times
• Ind
• Junction conenctor j/c 6 (left kick panel)
• Junction connector j/c 14 (behind left side of dash)
• Junction connector j/c 15 (behind left side of dash)
• Junction connector j/c 17 (upper right end of dash)
• Kul
• Lgcy
• Lock
• Lock detect
• Lsw
• Lswe
• Mpx1
• Mpx2
• Mul
• P fr door fuse 20a
• P rr door fuse 20a
• Passenger side junction block (behind lower right end of dash)
• Passenger side junction block (behind right kick panel)
• Pnk
• Pws
• Rco
• Rda
• Right front door courtesy switch
• Right front door lock control switch
• Right front door lock motor, door key lock & unlock switch & door lock detection switch
• Rssi
• Security indicator (rheostat)
• Sig
• Theft deterrent horn (at right front of engine compt)
• Tkul
• Tr+
• Unlk
