Электросхемы СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS Lexus GS 300 2000

СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS

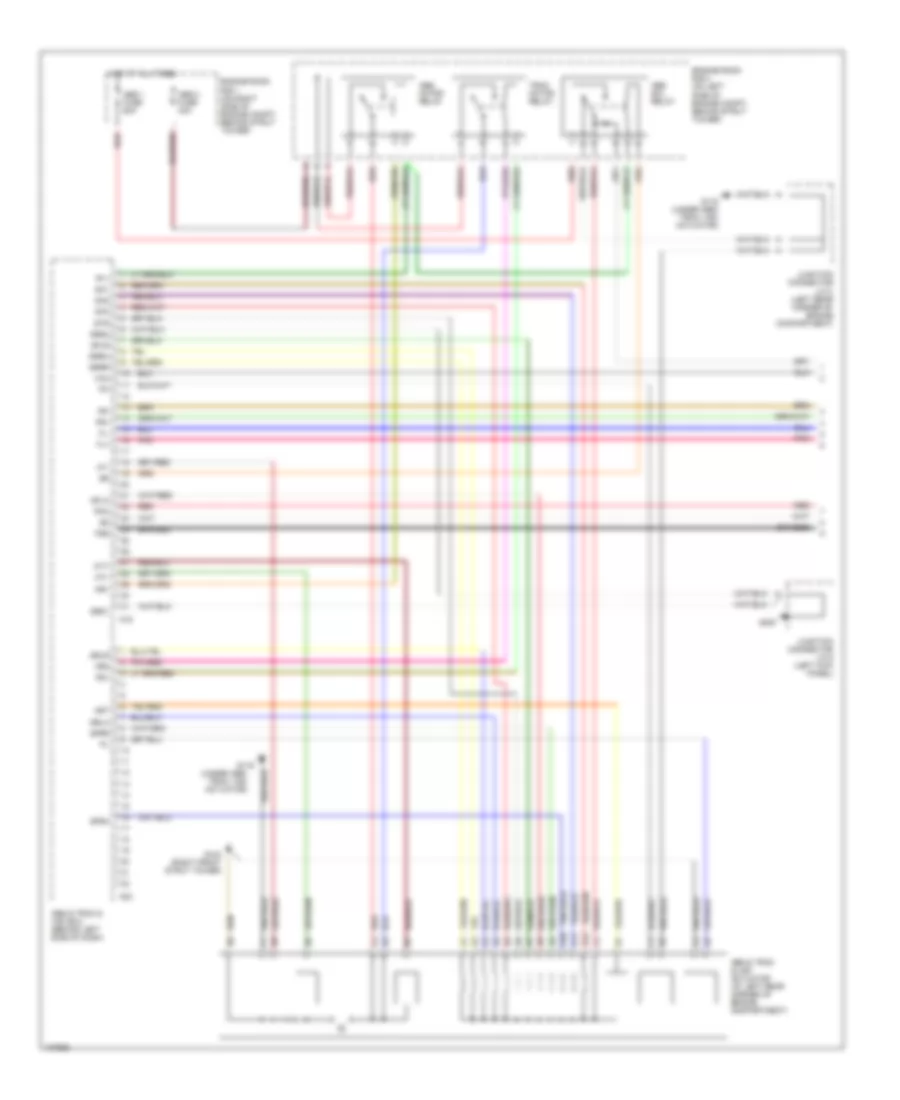

Электросхема антиблокировочной тормозной системы АБС (ABS) (1 из 3) для Lexus GS 300 2000

Электросхема антиблокировочной тормозной системы АБС (ABS) (1 из 3) для Lexus GS 300 2000 - Список элементов:

• (under abs/ trac/ vsc actuator)
• A10
• A11
• A12
• A19
• A22
• Abs & trac & vsc actuator (at left rear corner of engine compartment)
• Abs & trac & vsc ecu (behind left side of dash)
• Abs 1 fuse 60a
• Abs 2 fuse 40a
• Abs motor relay
• Abs sol relay
• Ast
• Braided
• Engine room r/b 1 (on right side of engine compt, behind strut tower)
• Engine room r/b 2 (on left side of engine compt, behind strut tower)
• Fl+
• Fl-
• Fr+
• Fr-
• Fss
• G103 (right front strut tower)
• G116
• G116 (under abs/ trac/ vsc actuator)
• G200
• Grd1
• Grd2
• Hot at all times
• Junction connector j/c 5 (left rear corner of engine compartment)
• Junction connector j/c 6 (left kick panel)
• Mr1
• Mr2
• Mt+
• Mt-
• Mtt
• Pmc
• Pnk
• R1+
• R2+
• Red
• Sa1
• Sa2
• Sa3
• Sflh
• Sflr
• Sfrh
• Sfrr
• Srlh
• Srlr
• Srrh
• Srrr
• Str
• Trac motor relay
• Vcm

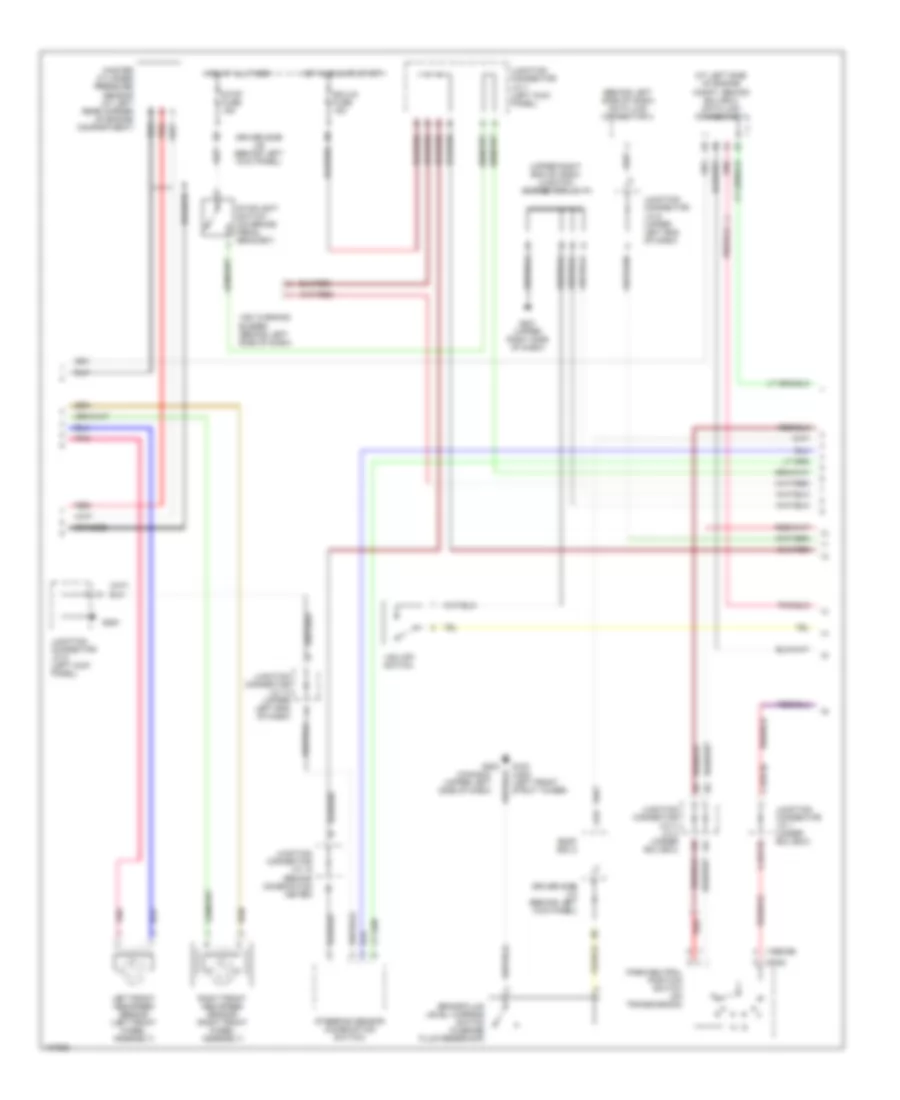

Электросхема антиблокировочной тормозной системы АБС (ABS) (2 из 3) для Lexus GS 300 2000

Электросхема антиблокировочной тормозной системы АБС (ABS) (2 из 3) для Lexus GS 300 2000 - Список элементов:

• (1998-99)
• (2000)
• (at left side of engine compt, behind ecu box) data link connector 1
• (behind left side of dash) data link connector 3
• (upper right end of dash) junction connector j/c 17
• A19
• Body ecu 2
• Braided
• Brake fluid level warning switch (in brake fluid reservoir)
• C (or b)
• Driver side j/b (behind left kick panel)
• Driver side j/c (behind left kick panel)
• Ecu-ig fuse 15a
• G102 (usa) (left front strut tower)
• G200
• G201 (upper right side of dash)
• G202
• Hot at all times
• Hot in run or start
• Junction connector j/c 1 (under ecu box)
• Junction connector j/c 10 (upper left end of dash)
• Junction connector j/c 15 (behind combination meter)
• Junction connector j/c 3, j/c 4 (under ecu box)
• Junction connector j/c 6 (left kick panel)
• Junction connector j/c 7 (left kick panel)
• Junction connector j/c 9 (upper left end of dash)
• Left front abs speed sensor (left front wheel assembly)
• Master cylinder pressure sensor (at left rear corner of engine compartment)
• Park/neutral position switch (on transmission)
• Pnk
• Red
• Right front abs speed sensor (right front wheel assembly)
• Steering sensor (combination switch)
• Stop fuse 15a
• Stoplight switch (on brake pedal bracket)
• Vsc off switch
• Vsc warning buzzer (behind left side of dash)

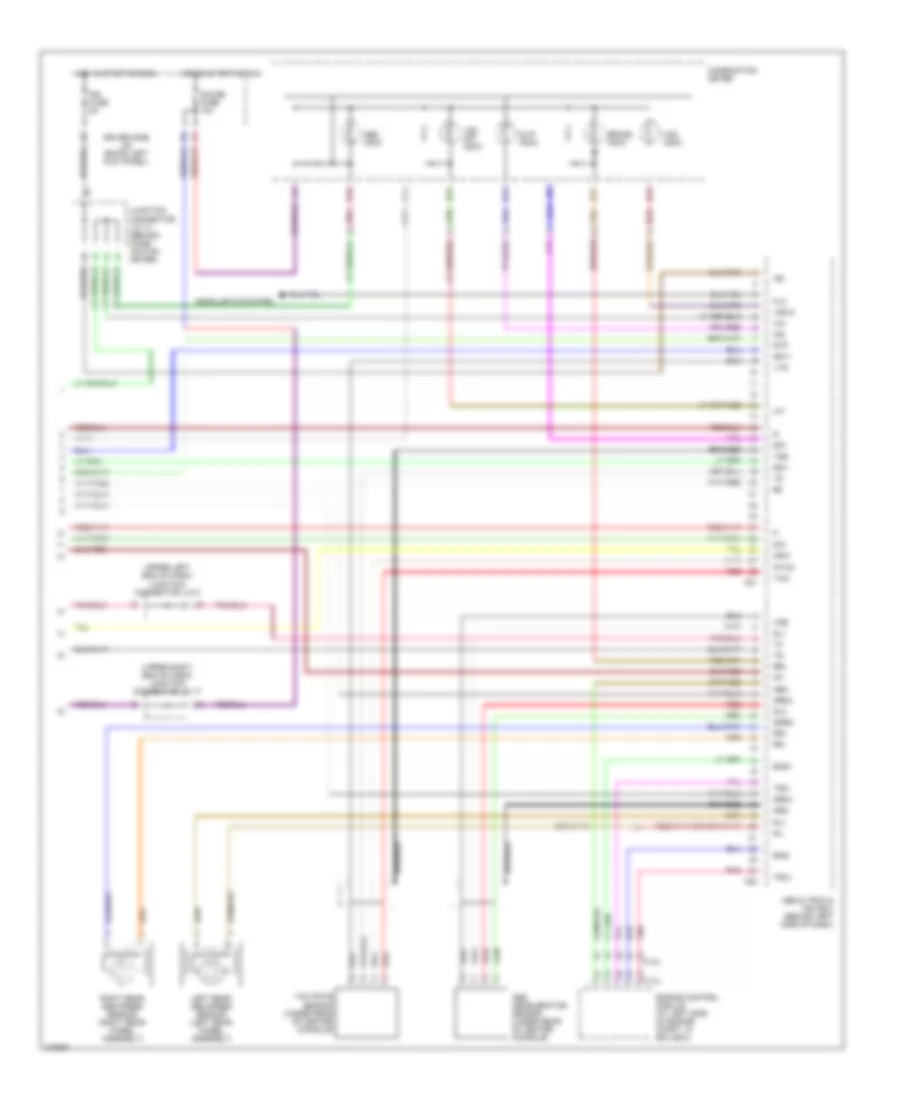

Электросхема антиблокировочной тормозной системы АБС (ABS) (3 из 3) для Lexus GS 300 2000

Электросхема антиблокировочной тормозной системы АБС (ABS) (3 из 3) для Lexus GS 300 2000 - Список элементов:

• (3.0l)
• (4.0l)
• (upper left end of dash) junction connector j/c 9
• (upper right end of dash) junction connector j/c 17
• A20
• A21
• Abs & trac & vsc ecu (behind left side of dash)
• Abs deceleration sensor (under rear of center console)
• Abs indic
• B11
• B13
• B14
• B15
• B16
• B17
• Braided
• Brake indic
• Brl
• Combination meter
• Csw
• D/g
• Driver side j/b (bhind left kick panel)
• Eng+
• Eng-
• Engine control module (at left side of engine compt, in ecu box)
• Flo
• Gauge fuse 10a
• Ggrd
• Gl1
• Gl2
• Grd3
• Grd4
• Gss
• Gyaw
• Headlights system
• Hot in start or run
• Ig1
• Ig2
• Ign fuse 5a
• Ind
• Junction connector j/c 14 (behind comb- ination meter)
• Left rear abs speed sensor (left rear wheel assembly)
• Neo
• Pnk
• Red
• Right rear abs speed sensor (right rear wheel assembly)
• Rl+
• Rl-
• Rr+
• Rr-
• Slip indic
• Sp1
• Ss1+
• Ss1-
• Stp
• Trc+
• Trc-
• Vgs
• Vsc indic
• Vsc off indic
• Vscw
• Vys
• Yaw
• Yaw rate sensor (under rear of center console)
• Yss
