Электросхемы СИСТЕМА КОНДИЦИОНЕРА Lexus RX 300 1999

СИСТЕМА КОНДИЦИОНЕРА

Электросхема кондиционера (1 из 2) для Lexus RX 300 1999

Электросхема кондиционера (1 из 2) для Lexus RX 300 1999 - Список элементов:

• (a/c sub 2 wire harness, behind right center of dash)
• (a/c sub 2 wire harness, behind right center of dash) i10
• (behind upper center of dash) j/b 3
• (right instrument panel brace) g201
• A/c ambient temperature sensor (behind left front grille)
• A/c ecu (combination meter) ecu
• A/c evaporator temperature sensor (behind right side of dash)
• A/c room temperature sensor (behind left side of dash)
• A/c solar sensor (top left side of dash)
• A10
• A11
• A12
• A13
• A14
• A15
• A16
• A17
• A18
• Abs ind
• Acc
• Aif
• Air
• Air inlet control servo motor (behind right side of dash)
• Air mix control servo motor (behind right center of dash)
• Air vent mode control servo motor (behind right center of dash)
• Amc
• Amh
• Aod
• Aof
• B1+
• B10
• B11
• B12
• B13
• B14
• B15
• B16
• Blw
• C10
• C11
• C12
• C13
• C14
• C15
• C16
• C17
• C18
• C19
• C20
• C21
• C22
• Cds fuse 40a
• Cellular phones system instrument cluster system
• Comb mtr input
• Computer data lines system
• Cruise ind
• E10
• Fusible link block (in engine room j/b)
• Gauge fuse 7.5a
• Gnd
• Gnd1
• Heater fuse 15a
• Heater fuse 50a
• High beam
• High beam ind
• Hot at all times
• Hot in acc or on
• Hot in on or start
• I10
• I11
• Ig+
• Instrument cluster system
• Instrument control panel
• Instrument panel j/b (behind left side of dash)
• Interior lights system
• J/b 3 (behind upper center of dash)
• J/c 6 (top left side of dash)
• K10
• K13
• Mal ind
• Mpx+
• Mpx-
• Multi display
• O/d off ind
• Power
• Radio 2 fuse 7.5a
• Rdi fuse 40a
• Red
• S5-1
• S5-2
• S5-3
• Sg-1
• Sg-2
• Sg-3
• Sg-5
• Srs ind
• Tam
• Tel1
• Tpi
• Tpo
• Trac ind
• Trac off ind
• Turn left sig
• Turn right sig
• Tx+
• Tx-

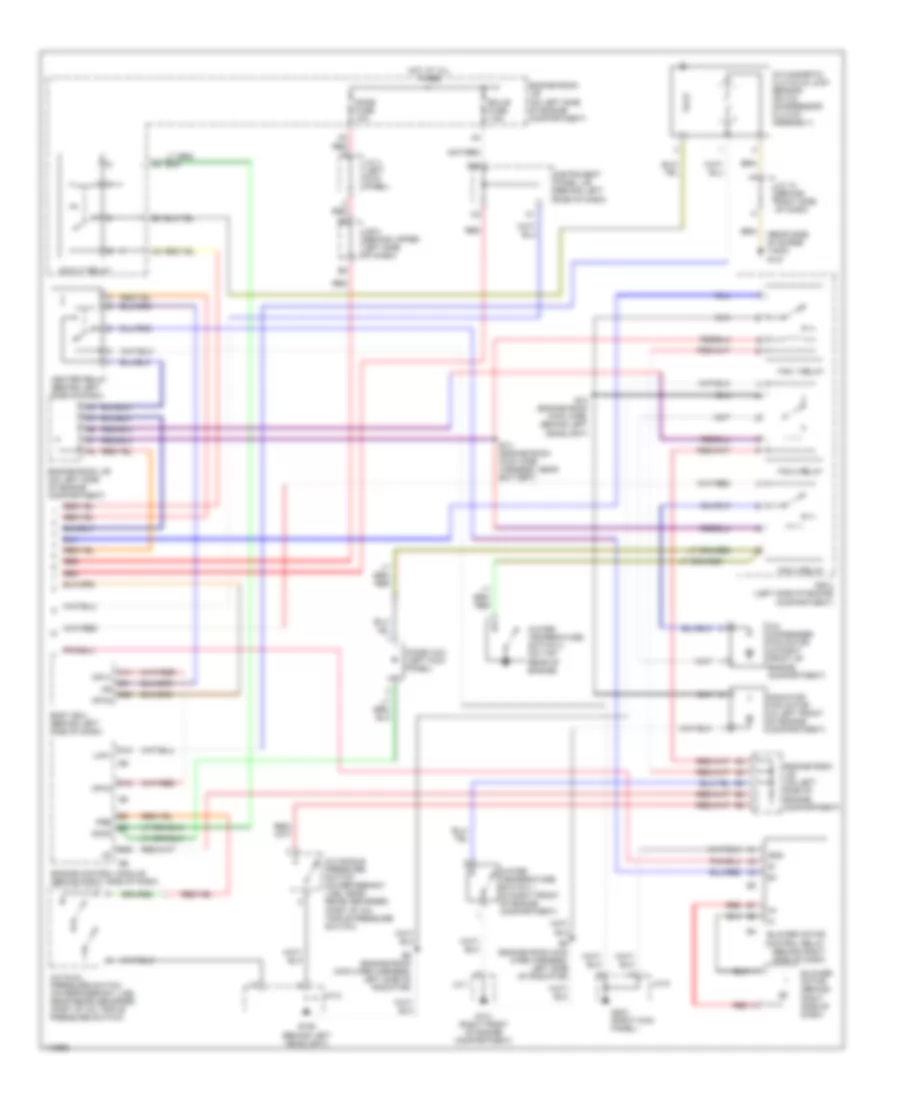

Электросхема кондиционера (2 из 2) для Lexus RX 300 1999

Электросхема кондиционера (2 из 2) для Lexus RX 300 1999 - Список элементов:

• (rear side of surge tank) g121
• A/c condenser fan motor (in right front of engine compartment)
• A/c dual pressure switch (on refrigerant line, near receiver-drier) (part of a/c triple pressure switch)
• A/c magnetic clutch & lock sensor (on a/c compressor clutch assembly)
• A/c single pressure switch (on refigerant line, near receiver-drier) (part of a/c triple pressure switch)
• A10
• A11
• Acmg
• Blower motor (behind right side of dash)
• Blower motor control relay (behind right side of dash)
• Body ecu (behind left side of dash)
• C red
• D18
• D20
• Diode (a/c) (left kick panel)
• Dome fuse 10a
• E10 (engine room main wire, behind left headlight)
• E13 (engine room main wire harness, near battery)
• E26
• E9 (engine room main wire harness, left side of radiator)
• Ecu-b fuse 7.5a
• Engine control module (behind right side of dash)
• Engine room j/b (on left side of engine compartment)
• Fan 1 relay
• Fan 2 relay
• Fan 3 relay
• G10
• G101 (right front of engine compartment)
• G106 (behind left headlight)
• G203 (right kick panel)
• Gnd
• Heater relay (behind left side of dash)
• Hot at all times
• Instrument panel j/b (behind left side of dash)
• J/b 5 (behind upper left side of dash)
• J/c 1
• J/c 10 (behind right side of dash)
• J/c 2
• J/c 4 (left kick panel)
• J/c 9
• Lck1
• Mg clt relay
• Mpx1
• Mpx2
• Pre
• R/b 2 (left side of engine compartment)
• Radiator fan motor (in left front of engine compartment)
• Red
• Red c
• Water temperature switch 1 (in right front of engine compartment)
• Water temperature switch 2 (on top rear of engine)
