Электросхемы СИСТЕМА ОХЛАЖДЕНИЯ Lexus GS 300 2000

СИСТЕМА ОХЛАЖДЕНИЯ

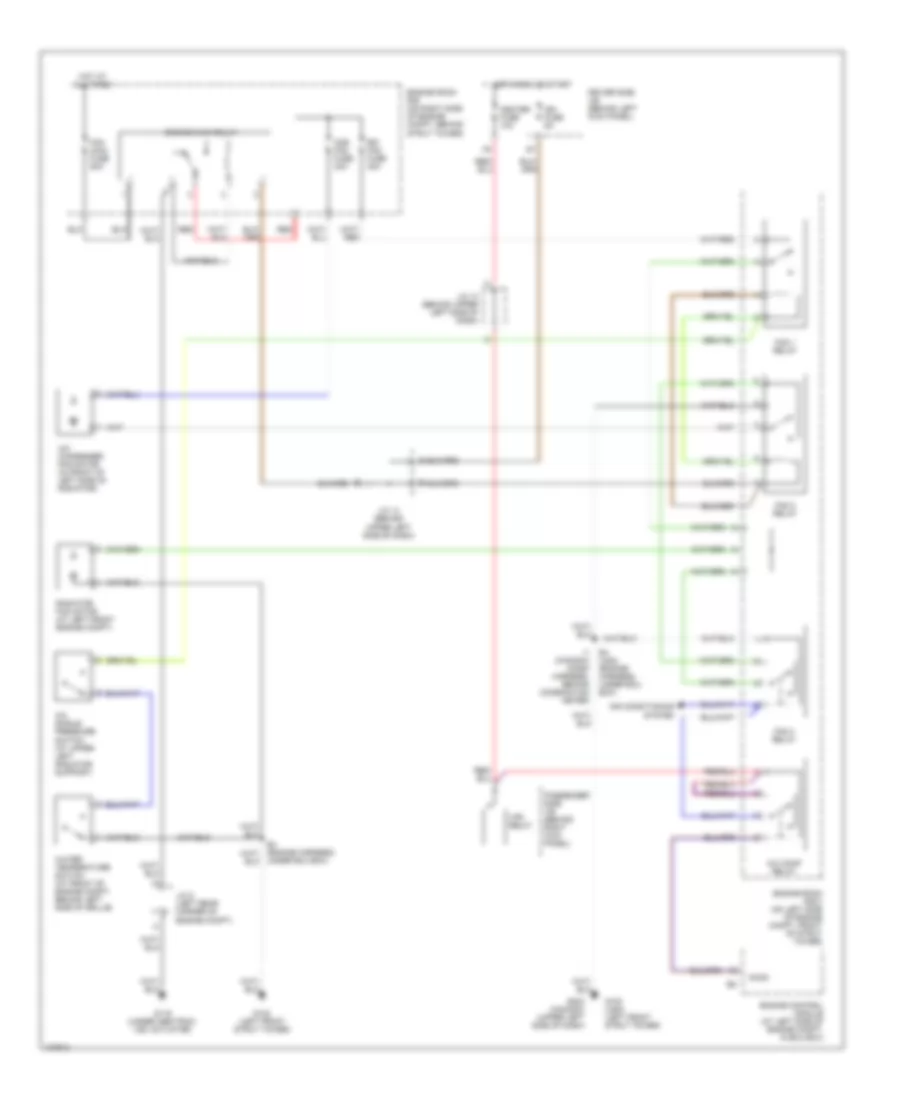

Электросхема системы охлаждения для Lexus GS 300 2000

Электросхема системы охлаждения для Lexus GS 300 2000 - Список элементов:

• A/c comp relay
• A/c condenser fan motor (in front of left side of radiator)
• A/c single pressure switch (at upper left radiator support)
• Acmg
• Air conditioning system
• Cds fan fuse 30a
• Driver side j/b (behind left kick panel)
• E4 (usa) (engine harness, under ecu box)
• Engine control module (at left side of engine compt, in ecu box)
• Engine main relay
• Engine room r/b (on right side of engine compt, behind strut tower)
• Engine room r/b 3 (on left side of engine compt, front of strut tower)
• Fan 1 relay
• Fan 2 relay
• Fan 3 relay
• Fan main fuse 50a
• G102 (left front strut tower)
• G102 (usa) (left front strut tower)
• G116 (under abs/trac/ vsc actuator)
• G202 (canada) (upper left side of dash)
• Heater fuse 10a
• Hot at all times
• Hot in run or start
• Htr relay
• I1 (canada) (dash harness, behind combination meter)
• Ign fuse 5a
• J/c 13 (behind upper left side of dash)
• J/c 14 (behind upper left side of dash)
• J/c 5 (left rear corner of engine compt)
• Passenger side j/b (behind right kick panel)
• Radiator fan motor (at left front engine compt)
• Rdi fan fuse 30a
• Red
• Under ecu box)
• Water temperature switch (at front of engine compt, behind left side of grille)
