Электросхемы СИСТЕМА ПЕРЕДАЧИ ДАННЫХ Lexus GS 300 2000

СИСТЕМА ПЕРЕДАЧИ ДАННЫХ

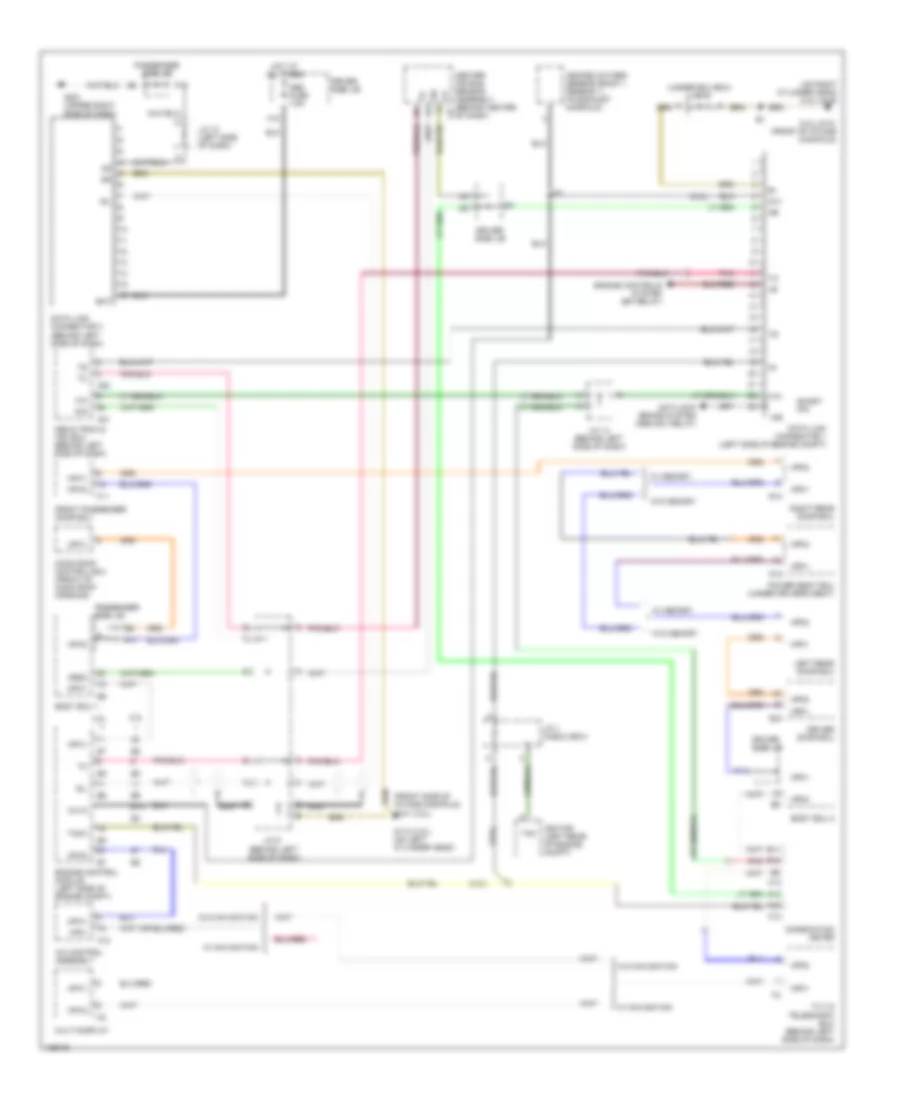

Электросхема компьютерной линии передачи данных CAN для Lexus GS 300 2000

Электросхема компьютерной линии передачи данных CAN для Lexus GS 300 2000 - Список элементов:

• (3.0l)
• (3.0l) g131 (front of intake manifold)
• (4.0l)
• (front side of intake manifold) g131 (3.0l)
• (on right cylinder head) (4.0l) g120
• (under ecu box) j/c 2
• 3.0l
• 4.0l
• A/c control assembly
• A12
• A13
• A16
• A20
• A21
• Abs & trac & vsc ecu (behind left side of dash)
• Anti-lock brake system (abs sol relay)
• B11
• B12
• B16
• Bat
• Body ecu 1
• Body ecu 2
• C12
• C13
• Center air bag sensor assembly (behind center of dash)
• Combination meter
• D/g
• D24
• Data link connector 1 (left side of engine compt)
• Data link connector 3 (behind left side of dash)
• Driver door ecu
• Driver side j/b
• Engine control module (left side of engine compt)
• Engine controls system (efi relay)
• F11
• F13
• Front passenger door ecu
• G112 (4.0l) (on left cylinder head)
• G201 (upper right side of dash)
• H11
• H12
• Heated oxygen sensor (bank 1, sensor 1) (in exhaust manifold)
• Hot at all times
• Ig-
• Ignitor (left rear of engine compt)
• J/c 1 (in ecu box)
• J/c 10 (left side of dash)
• J/c 14 (behind left side of dash)
• J/c 9 (behind left side of dash)
• Left rear door ecu
• Moon roof control ecu (front of moon roof opening)
• Mpx+
• Mpx-
• Mpx1
• Mpx2
• Multi-display
• Nca
• Obd fuse 7.5a
• Obd2
• Ox1
• Ox1a
• P19
• Passenger side j/b
• Pnk
• Power seat ecu (under driver's seat)
• R13
• Right rear door ecu
• Short pin
• Sil
• Tac
• Tach
• Tilt & telescopic ecu (behind left side of dash)
• W/ memory
• W/ navigation
• W/o memory
• W/o navigation
