Электросхемы СИСТЕМЫ ПАМЯТИ Lexus GS 300 2000

СИСТЕМЫ ПАМЯТИ

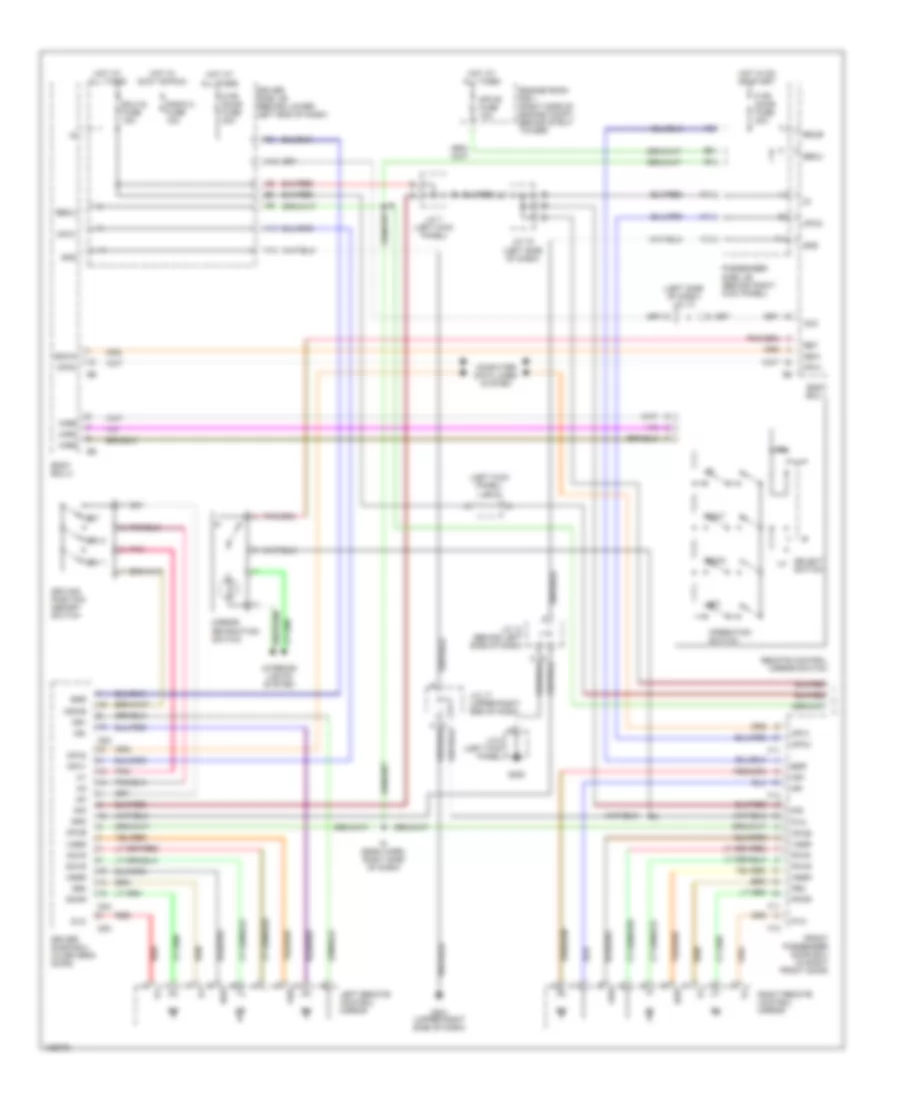

Электросхема памяти (1 из 2) для Lexus GS 300 2000

Электросхема памяти (1 из 2) для Lexus GS 300 2000 - Список элементов:

• (left kick panel) j/c 8
• (left side of dash) j/c 13
• Acc
• Bdr
• Becu
• Body ecu 1
• Body ecu 2
• Bsub
• Computer data lines system
• Cpub
• D fr door fuse 20a
• D22
• D23
• D24
• De2
• Dm+r
• Dmhr
• Dmvr
• Down
• Driver door ecu (in driver's door)
• Driver side j/b (behind lower left end of dash)
• Driving position memory switch
• Dvc
• Ecu-ig fuse 15a
• Engine room r/b 1 (right side of engine compt, behind strut tower)
• F11
• F12
• F13
• Front passenger door ecu (in right front door)
• G200
• G201 (upper right side of dash)
• Gnd
• Gsw
• Gswo
• H10
• H11
• Hot at all times
• Hot in accy or run
• Hot in on or start
• Hsr
• Hssr
• I6 (dash harn, right side of dash)
• Interior lights system
• J/c 10 (behind left side of dash)
• J/c 15 (left side of dash)
• J/c 17 (upper right end of dash)
• J/c 6 (left kick panel)
• J/c 7 (left kick panel)
• Left
• Left remote control mirror
• Mem 1
• Mem 2
• Mirb
• Mire
• Mirror retraction switch
• Mirs
• Mpx-b fuse 10a
• Mpx1
• Mpx2
• Mr+
• Mr-
• Mswe
• Operation switch
• P fr door fuse 20a
• Passenger side j/b (behind right kick panel)
• Pe2
• Pm+r
• Pmhr
• Pmvr
• Pnk
• Pvc
• Radio 2 fuse 15a
• Red
• Remote control mirror switch
• Ret
• Right
• Right remote control mirror
• Select switch
• Set
• Sig
• Vsr
• Vssr

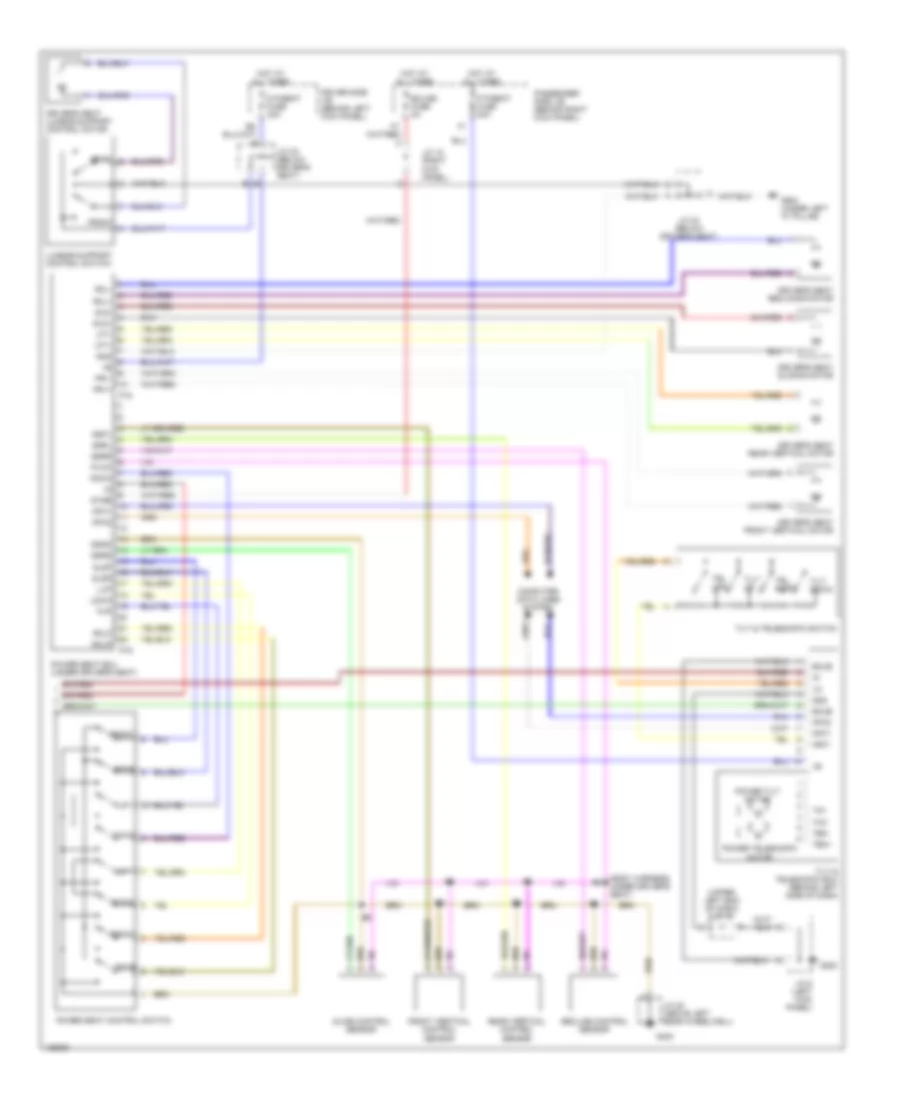

Электросхема памяти (2 из 2) для Lexus GS 300 2000

Электросхема памяти (2 из 2) для Lexus GS 300 2000 - Список элементов:

• (body harness, under driver's seat)
• (upper left end of dash) j/c 10
• Computer data lines system
• D p/seat fuse 30a
• Down
• Driver side j/b (behind left kick panel)
• Driver's seat front vertical motor
• Driver's seat lumbar support control motor
• Driver's seat rear vertical motor
• Driver's seat reclining motor
• Driver's seat sliding motor
• Ecu-b2 fuse 5a
• Ecub
• Ecue
• Fdwn
• Front
• Front vertical control sensor
• Frv+
• Frv-
• Fup
• G200
• G402
• G904 (under left "c" pillar)
• Gnd
• Hot at all times
• J/c 18 (right kick panel)
• J/c 20 (above left rear wheelwell)
• J/c 23 (below driver's seat)
• J/c 6 (left kick panel)
• Ldwn
• Lft+
• Lft-
• Lumbar support control switch
• Lup
• Mpx1
• Mpx2
• Msw
• P p/seat fuse 30a
• P18
• P19
• Passenger side j/b (behind right kick panel)
• Power seat control switch
• Power seat ecu (under driver's seat)
• Power telescopic motor
• Power tilt motor
• Pvcc
• Rcl+
• Rcl-
• Rclf
• Rclr
• Rear
• Rear vertical control sensor
• Recline control sensor
• Sgnd
• Sld+
• Sld-
• Sldf
• Sldr
• Slide control sensor
• Ssfv
• Ssrl
• Ssrr
• Ssrs
• Sysb
• Tel lng
• Tel shrt
• Tem+
• Tem-
• Tilt & telescopic ecu (behind left side of dash)
• Tilt & telescopic switch
• Tilt down
• Tilt up
• Tim+
• Tim-
