Электросхемы СИСТЕМЫ СИДЕНИЙ Lexus RX 300 1999

СИСТЕМЫ СИДЕНИЙ

Электросхема подогрева сидений для Lexus RX 300 1999

Электросхема подогрева сидений для Lexus RX 300 1999 - Список элементов:

• (right dash brace) g206
• (top center of dash) g206
• (under left center pillar) g308
• B11
• Driver's seat heater
• Engine main relay
• Front passenger's seat heater
• G201
• G404
• Gauge fuse 7.5a
• Hot at all times
• Hot in on or start
• I9 (dash harness, left side of dash)
• Instrument panel j/b (behind left side of dash)
• J/b 3 (behind upper center of dash)
• J/b 5 (behind upper left side of dash)
• J/c 15 (in left side of cargo area)
• J/c 17 (under driver's seat)
• J/c 18 (under passenger's seat)
• J/c 9 (right end of dash)
• L-r
• R/b 1 (behind left side of dash)
• Red
• Seat heater relay
• Seat heater switch
• Seat htr fuse 15a

Электросхема привода сидений для Lexus RX 300 1999

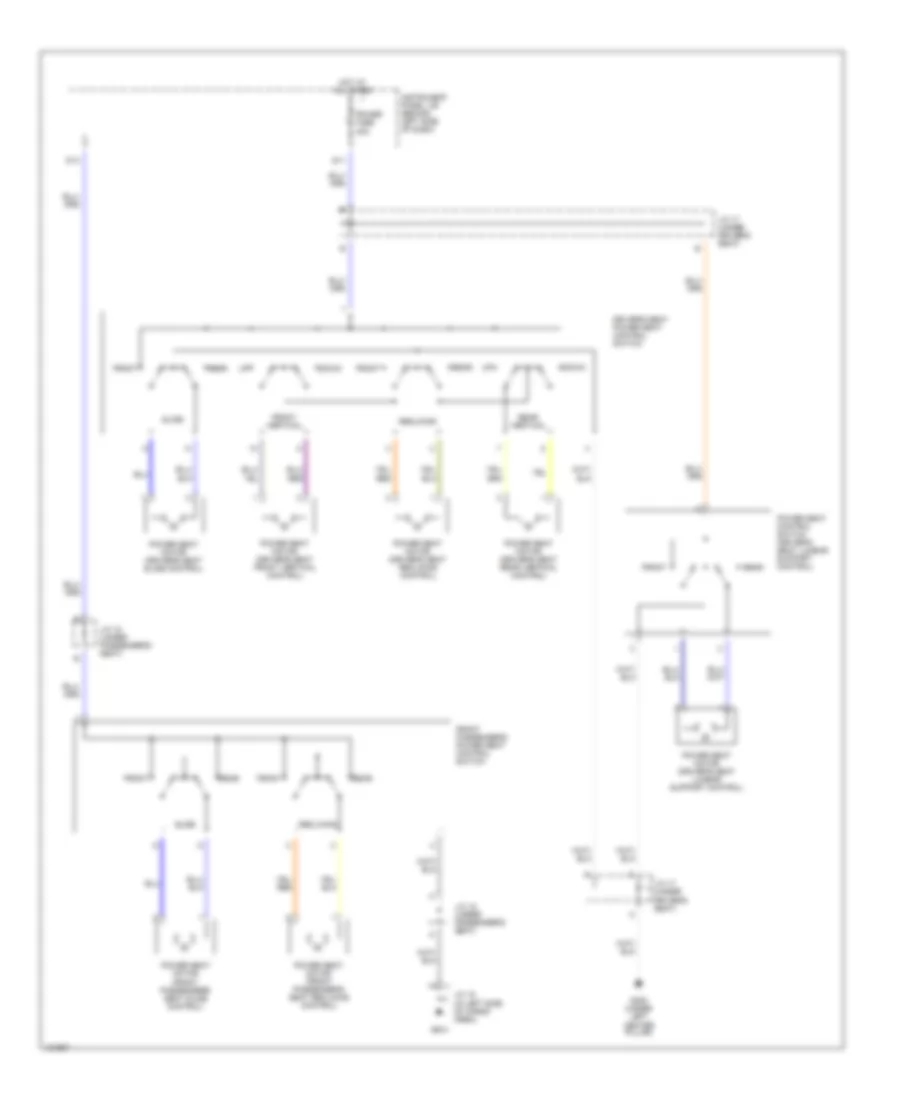

Электросхема привода сидений для Lexus RX 300 1999 - Список элементов:

• D13
• Down
• Driver's seat power seat control switch
• Front
• Front passenger's power seat control switch
• Front vertical
• G11
• G308 (under left center pillar)
• G404
• Hot at all times
• Instrument panel j/b (behind left side of dash)
• J/c 15 (in left side of cargo area)
• J/c 17 (under driver's seat)
• J/c 18 (under passenger's seat)
• Power fuse 30a
• Power seat control switch (driver's seat lumbar support control)
• Power seat motor (driver's seat front vertical control)
• Power seat motor (driver's seat lumbar support control)
• Power seat motor (driver's seat rear vertical control)
• Power seat motor (driver's seat reclining control)
• Power seat motor (driver's seat slide control)
• Power seat motor (front passenger's seat reclining control)
• Power seat motor (front passenger's seat slide control)
• Rear
• Rear vertical
• Reclining
• Slide
