Электросхемы Стартер Генератор Lexus GS 300 2000

Стартер Генератор

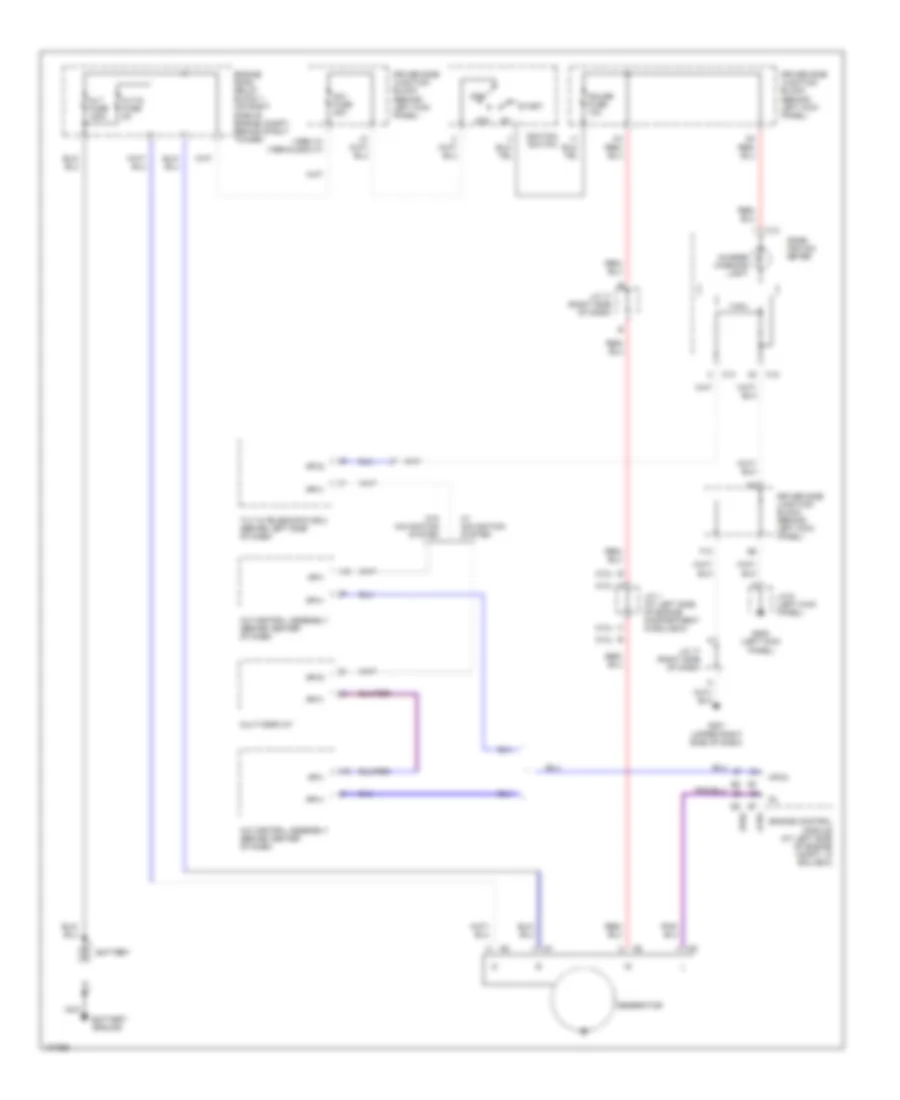

Электросхема Генератора для Lexus GS 300 2000

Электросхема Генератора для Lexus GS 300 2000 - Список элементов:

• (1998) (1999 & 2000)
• (3.0l)
• (4.0l)
• A/c control assembly (behind center of dash)
• A1 k1
• Acc
• Alt fuse 120a
• Alt-s fuse 5a
• Am1 fuse 40a
• Battery
• Battery ground
• C12
• C13
• Charge warning light
• Comb- ination meter
• Driver side junction block (behind left kick panel)
• E2 (3.0l)
• E7 (4.0l)
• Engine control module (at left side of engine compt, in ecu box)
• Engine room relay block 1 (on right side of engine compt, behind strut tower)
• F13
• G200 (left kick panel)
• G201 (upper right side of dash)
• Gauge fuse 10a
• Generator
• Ignition switch
• J/c 1 (at left side of engine compartment in ecu box)
• J/c 17 (right side of dash)
• J/c 6 (left kick panel)
• Mpx+
• Mpx-
• Mpx1
• Mpx2
• Multi-display
• Nca
• Off
• Start
• Tilt & telescopic ecu (behind left side of dash)
• W/ navigation system
• W/o navigation system

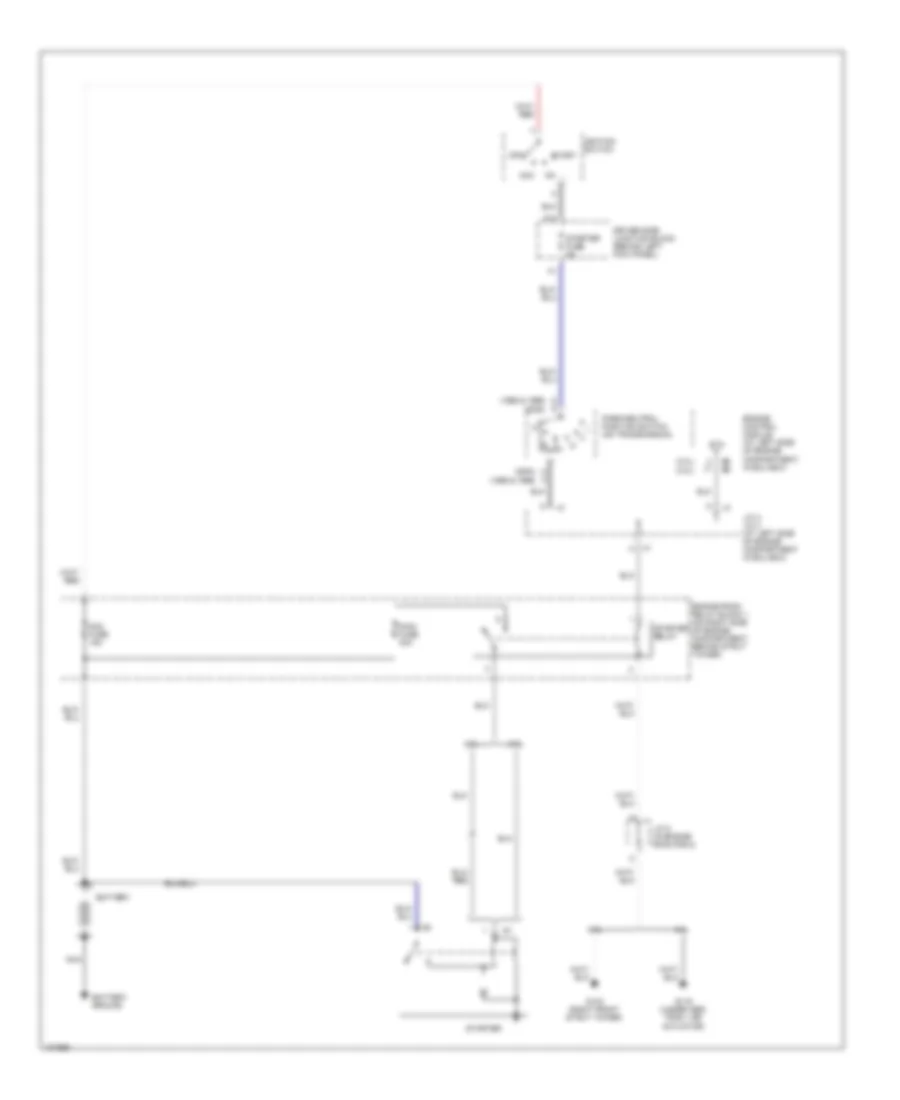

Электросхема стартера для Lexus GS 300 2000

Электросхема стартера для Lexus GS 300 2000 - Список элементов:

• (1998 & 1999) (2000)
• (2000) (1998 & 1999)
• (3.0l) (4.0l)
• 3.0l
• 4.0l
• Acc
• Am2 fuse 15a
• Battery
• Battery ground
• Driver side junction block (behind left kick panel)
• E5 e5
• Engine control module (at left side of engine compartment, in ecu box)
• Engine room relay block 1 (on right side of engine compartment, behind strut tower)
• F10
• G103 (right front strut tower)
• G116 (under abs/ trac/ vsc actuator)
• Ignition switch
• J/c 3, j/c 4 (at left side of engine compartment in ecu box)
• J/c 5 (in engine room r/b 2)
• J4 a
• Main fuse 40a
• Nca
• Off
• Park/neutral position switch (on transmission)
• Sta
• Start
• Starter
• Starter fuse 5a
• Starter relay
