Электросхемы Стеклоочистители и Стеклоомыватели Дворники Lexus GS 300 2000

Стеклоочистители и Стеклоомыватели Дворники

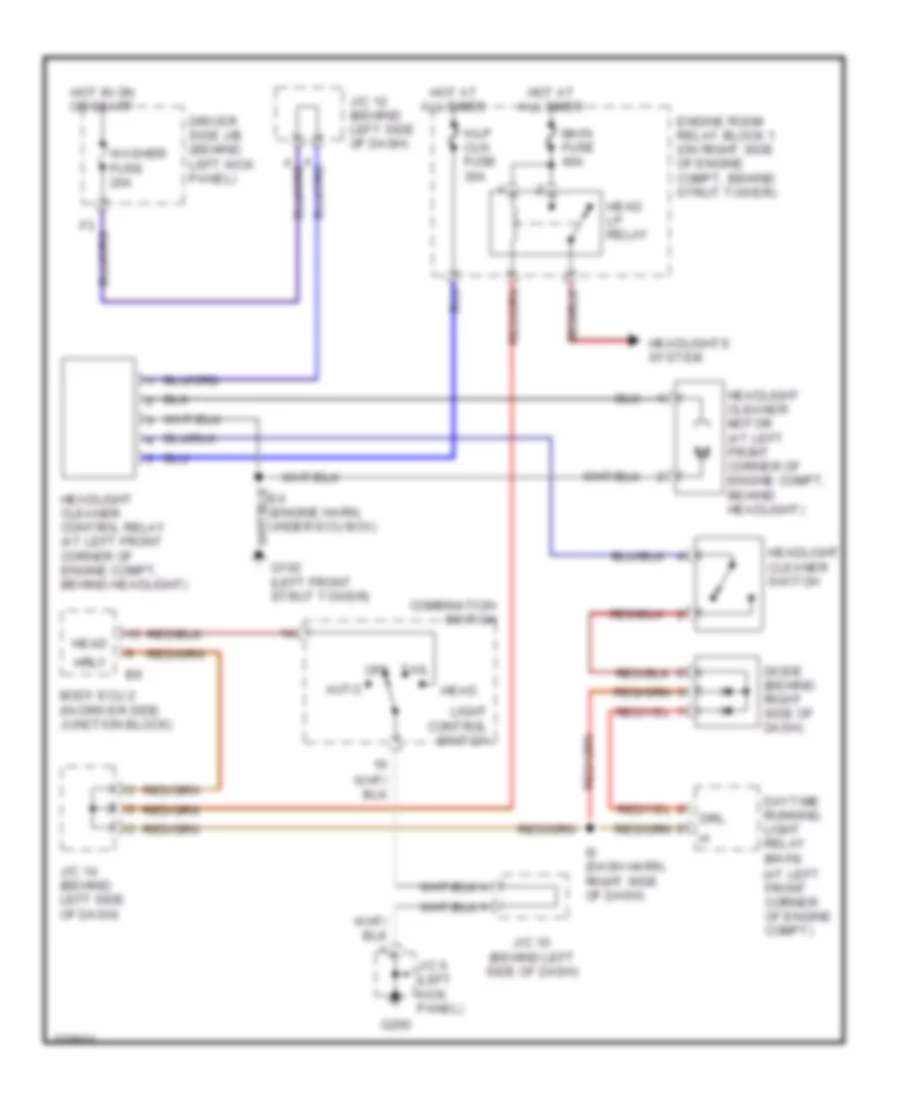

схема шайбы фары для Lexus GS 300 2000

схема шайбы фары для Lexus GS 300 2000 - Список элементов:

• (at left front corner of engine compt)
• Auto
• Body ecu 2 (in driver side junction block)
• Combination switch
• Daytime running light relay (main)
• Diode (behind right side of dash)
• Driver side j/b (behind left kick panel)
• Drl
• E4 (engine harn, under ecu box)
• Engine room relay block 1 (on right side of engine compt, behind strut tower)
• G102 (left front strut tower)
• G200
• H-lp cln fuse 30a
• Head
• Head lp relay
• Headlight cleaner control relay (at left front corner of engine compt, behind headlight)
• Headlight cleaner motor (at left front corner of engine compt, behind headlight)
• Headlight cleaner switch
• Headlights system
• Hot at all times
• Hot in on or start
• Hrly
• I6 (dash harn, right side of dash)
• J/c 10 (behind left side of dash)
• J/c 12 (behind left side of dash)
• J/c 14 (behind left side of dash)
• J/c 6 (left kick panel)
• Light control switch
• Main fuse 40a
• Tail off
• Washer fuse 20a

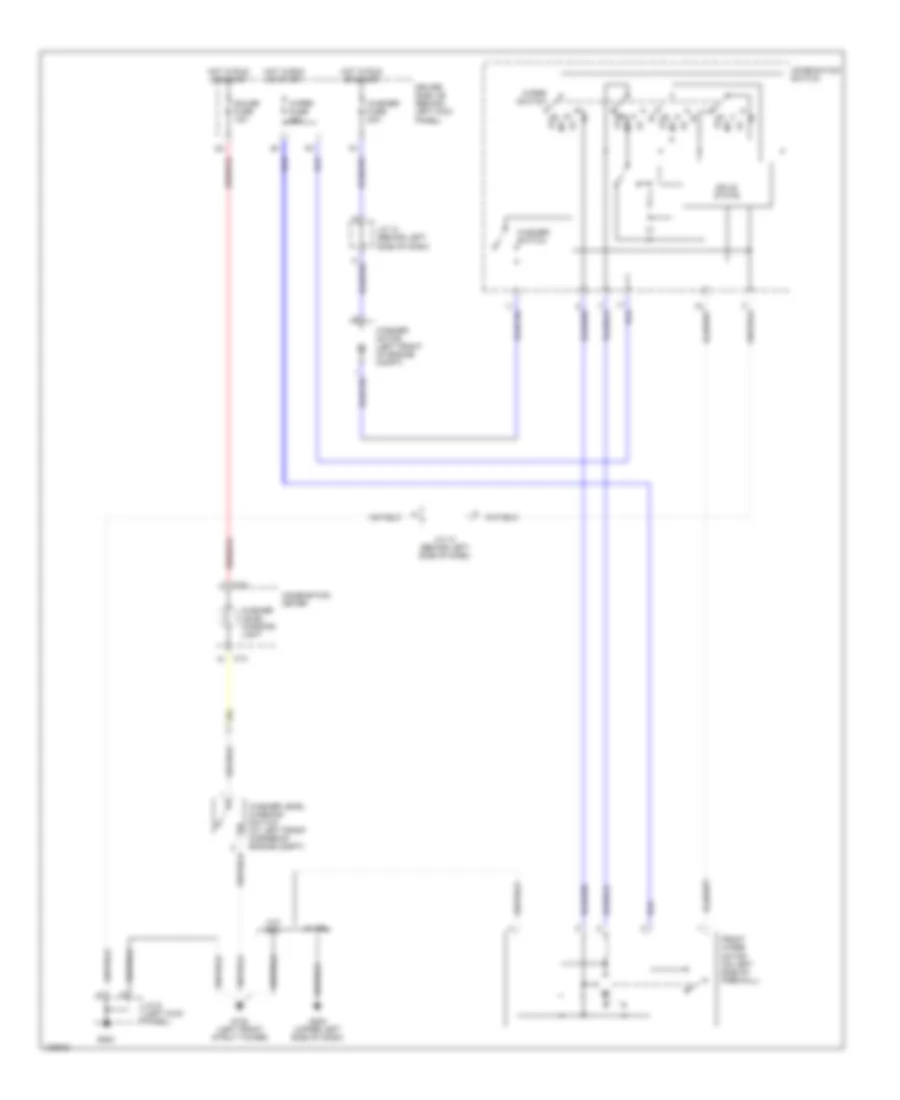

Электросхема стеклоочистителя, дворников и омывателя для Lexus GS 300 2000

Электросхема стеклоочистителя, дворников и омывателя для Lexus GS 300 2000 - Список элементов:

• C12
• C13
• Combination meter
• Combination switch
• Driver side j/b (behind left kick panel)
• Front wiper motor (on left side of firewall)
• G102 (left front strut tower)
• G200
• G202 (upper left side of dash)
• Gauge fuse 10a
• Hot in run or start
• Int
• J/c 10 (behind left side of dash)
• J/c 12 (behind left side of dash)
• J/c 6 (left kick panel)
• Off
• Solid state
• W/ drl
• W/o drl
• Washer fuse 20a
• Washer level warning light
• Washer level warning switch (at left front corner of engine compt)
• Washer motor (left front of engine compt)
• Washer switch
• Wiper fuse 25a
• Wiper switch
