Электросхемы Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала Ford Ranger 2007

Автомтическая коробка Передач (АКПП) Полная привод (4WD) Блокировка Дифференциала

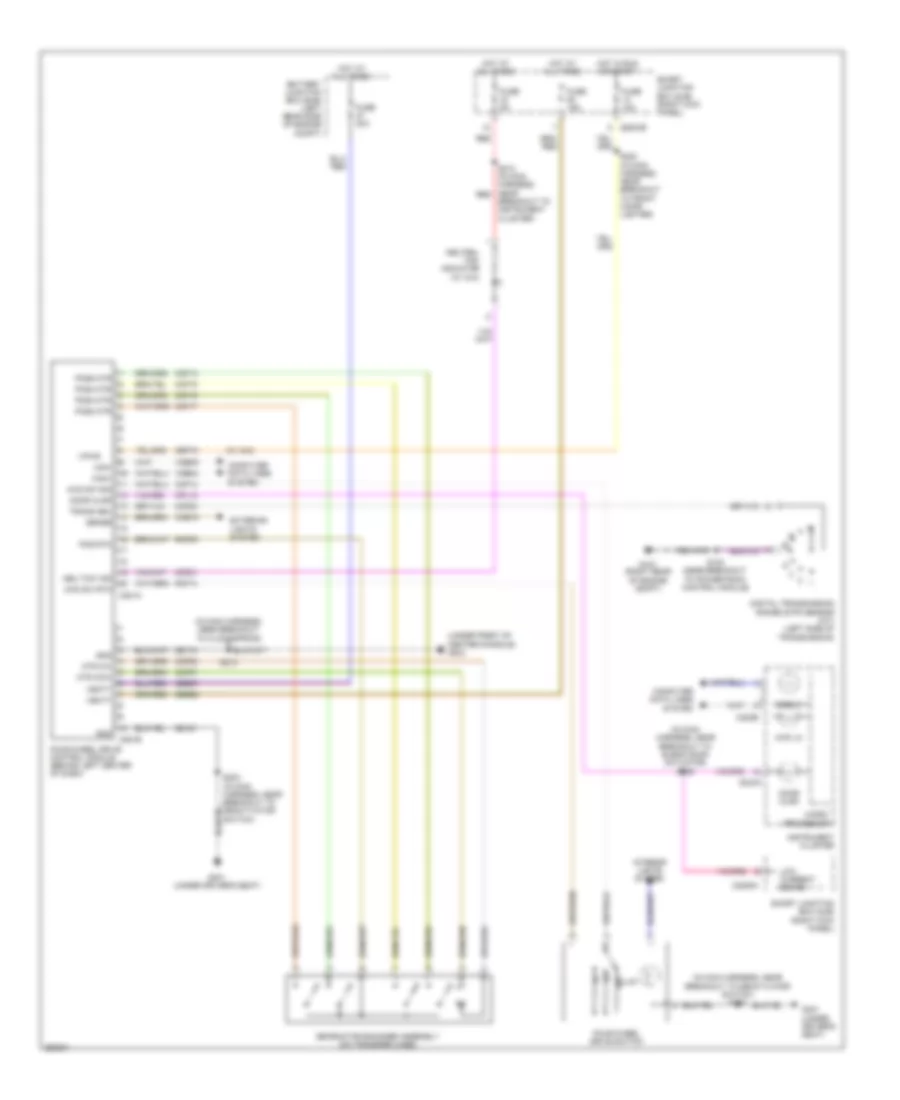

Электросхема Полного привода 4WD для Ford Ranger 2007

Электросхема Полного привода 4WD для Ford Ranger 2007 - Список элементов:

• (in main harness, near breakout to blend door actuator) s228
• (in main harness, near breakout to clockspring)
• (in main harness, near breakout to deactivator switch) s203
• (under front of center console) g204
• (w/ 4x4)
• 4wd hi
• 4wd lo
• 4wd sw rtn
• 4wd sw sig
• Battery junction box (bjb) (left rear side of engine compt)
• Breakout to instrument cluster)
• C220a
• C220b
• C2280b
• C2280c
• C281a
• C281b
• Can+
• Can-
• Cbp10
• Ccb15
• Ccf07
• Ccf08
• Ccf13
• Ccf14
• Ccf15
• Ccf16
• Ccf17
• Ccf20
• Ccf21
• Computer data lines system
• Cpl12
• Digital transmission range (dtr) sensor (a/t) (left side of transmission)
• Door ajar
• Exterior
• Four-wheel drive control module (behind left center of dash)
• Four-wheel drive switch
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fuse 5a
• G107 (right rear of engine compt)
• G301 (under driver's seat)
• Gd161
• Gd174
• Gearmotor encoder assembly (on transfer case)
• Gnd
• Hot at all times
• Hot in run or start
• Illum
• Instrument cluster
• Interior lights system
• Lights system
• Low current board
• Micro- processor
• Mtr ccw
• Mtr cw
• Neu tow ind
• Neutral tow indicator (w/ 4x4)
• Off
• Pos rtn
• Pos2 mtr
• Pos3 mtr
• Pos4 mtr
• Pos5 mtr
• Rcf09
• Rcf13
• Red
• S100 (near breakout to powertrain control module)
• S203 (in main harness, near breakout to deactivator switch)
• S212 (in main harness, near red
• S214
• S223 (in main harness, near breakout to front cigar lighter)
• Sbb27
• Sbb28
• Sense
• Smart junction box (sjb) (right kick panel)
• Trans neu
• Vbatt
• Vdb04
• Vdb05
• Vpwr

2.3L

2.3L, Электросхема автоматической коробки передач АКПП (1 из 2) для Ford Ranger 2007

2.3L, Электросхема автоматической коробки передач АКПП (1 из 2) для Ford Ranger 2007 - Список элементов:

• (in engine control sensor & fuel charge harness, near breakout to fuel injector 4)
• (in engine control sensor & fuel charge harness, near breakout to heated oxygen sensor 11)
• (near breakout to g106)
• 5r44e transmission (left side of transmission)
• Anti-lock brakes system
• Battery junction box (bjb) (left rear side of engine compt)
• Bpp
• Brake pedal position switch (behind left side of dash, on brake pedal support)
• C175b
• C175e
• C175t
• C220b
• C2280a
• C2280b
• C2280c
• Can+
• Can-
• Cbb39
• Ccb15
• Cdb08
• Ce116
• Cet05
• Cet06
• Cet07
• Cet18
• Cet19
• Cet34
• Cet44
• Check engine ind
• Cht
• Computer data lines system
• Engine controls system
• Epc
• Feps
• Fuse 10a
• Fuse 15a
• Fuse 30a
• Fuse 5a
• G106 (top rear of engine compt)
• G107 (right rear of engine compt)
• G301 (under driver's seat)
• Gd108
• Ground
• Harness, near breakout to instrument cluster)
• Hot at all times
• Hot in run
• Hot in run or start
• Hot in start or run
• Instrument cluster
• Iss
• Junction harness, near breakout to abs control module)
• Le423
• Micro-
• Nca
• O/d off ind
• Oss
• Pcm power diode
• Power
• Powertrain control module (pcm) (right rear of engine compt)
• Prndl
• Processor
• Ptc 1a
• Re405
• Re406
• Ret04
• S100 (in engine control sensor & fuel charge harness, near breakout to powertrain control module)
• S102
• S105
• S109 (near breakout to c133)
• S112
• S123 (near breakout to battery junction box)
• S220 (in main harness, near breakout to front cigar lighter)
• Sbb21
• Sig rtn
• Smart junction box (sjb) (right kick panel)
• Ss a
• Ss b
• Ss c
• Ss d
• Ssa
• Ssb
• Ssc
• Ssd
• Tcc
• Tcs
• Tft
• Tps
• Tr1
• Tr2
• Tr3a
• Tr4
• Transmission control switch (tcs) (on steering column)
• Tss
• Vbatt
• Vdb04
• Vdb05
• Ve739
• Ve819
• Vet27
• Vet28
• Vet29
• Vet30
• Vet31
• Vet33
• Vpwr
• Vref

2.3L, Электросхема автоматической коробки передач АКПП (2 из 2) для Ford Ranger 2007

2.3L, Электросхема автоматической коробки передач АКПП (2 из 2) для Ford Ranger 2007 - Список элементов:

• (in engine control sensor & fuel charge harness, near breakout to g106)
• (in engine control sensor & fuel charge harness, near breakout to manifold absolute pressure sensor)
• (left side of engine compt) g103
• Battery junction box (bjb) (left rear side of engine compt)
• Cylinder head temperature sensor (right side of cylinder head)
• Digital transmission range (dtr) sensor (left side of transmission)
• Engine controls system
• Fuel pump relay
• Intermediate shaft speed (iss) sensor (left side of transmission)
• N r
• Output shaft speed (oss) sensor (left rear of transmission)
• Pcm power relay
• S101
• S102
• S103
• Throttle position (tp) sensor (top right side of engine, on throttle body)

3.0L

3.0L, Электросхема автоматической коробки передач АКПП (1 из 2) для Ford Ranger 2007

3.0L, Электросхема автоматической коробки передач АКПП (1 из 2) для Ford Ranger 2007 - Список элементов:

• (in engine control sensor & fuel charge harness, near breakout to c110)
• (in engine control sensor & fuel charge harness, near breakout to camshaft position sensor)
• (near breakout to g106)
• 5r44e transmission
• Anti-lock brakes system
• Battery junction box (bjb) (left rear side of engine compt)
• Bpp
• Brake pedal position switch (behind left side of dash, on brake pedal support)
• C175b
• C175e
• C175t
• C220b
• C2280a
• C2280b
• C2280c
• Can+
• Can-
• Cbb39
• Ccb15
• Cdb08
• Cet05
• Cet06
• Cet07
• Cet18
• Cet19
• Cet34
• Cet44
• Check engine ind
• Computer data lines system
• Ect
• Engine controls system
• Epc
• Feps
• Fuse 10a
• Fuse 15a
• Fuse 30a
• Fuse 5a
• G106 (top rear of engine compt)
• G107 (right rear of engine compt)
• G301 (under driver's seat)
• Gd108
• Ground
• Harness, near breakout to instrument cluster)
• Hot at all times
• Hot in run
• Hot in run or start
• Hot in start or run
• Instrument cluster
• Iss
• Junction harness, near breakout to abs control module)
• Le423
• Micro-
• Nca
• O/d off ind
• Oss
• Pcm power diode
• Power
• Powertrain control module (pcm) (right rear of engine compt)
• Prndl
• Processor
• Ptc 1a
• Re405
• Re406
• Ret04
• S100 (near breakout to powertrain control module)
• S102
• S105
• S109 (near breakout to c133)
• S112
• S123 (near breakout to battery junction box)
• S220 (in main harness, near breakout to front cigar lighter)
• Sbb21
• Sig rtn
• Smart junction box (sjb) (right kick panel)
• Ss a
• Ss b
• Ss c
• Ss d
• Ssa
• Ssb
• Ssc
• Ssd
• Tcc
• Tcs
• Tft
• Tps
• Tr1
• Tr2
• Tr3a
• Tr4
• Transmission control switch (tcs) (on steering column)
• Tss
• Vbatt
• Vdb04
• Vdb05
• Ve716
• Ve739
• Ve819
• Vet27
• Vet28
• Vet29
• Vet30
• Vet31
• Vet33
• Vpwr
• Vref

3.0L, Электросхема автоматической коробки передач АКПП (2 из 2) для Ford Ranger 2007

3.0L, Электросхема автоматической коробки передач АКПП (2 из 2) для Ford Ranger 2007 - Список элементов:

• (in engine control sensor & fuel charge harness, near breakout to g110)
• (near breakout to fuel injector 5)
• Battery junction box (bjb) (left rear side of engine compt)
• Digital transmission range (dtr) sensor (left side of transmission)
• Engine controls system
• Engine coolant temperature (ect) sensor (top front of engine)
• Fuel pump relay
• G103 (left side of engine compt)
• Intermediate shaft speed (iss) sensor (left side of transmission)
• N r
• Output shaft speed (oss) sensor (left rear of transmission)
• Pcm power relay
• S101
• S102
• S103
• Throttle position (tp) sensor (top left front of engine, on throttle body)

4.0L

4.0L, Электросхема автоматической коробки передач АКПП (1 из 2) для Ford Ranger 2007

4.0L, Электросхема автоматической коробки передач АКПП (1 из 2) для Ford Ranger 2007 - Список элементов:

• (in engine control sensor & fuel charge harness, near breakout to c110)
• (in engine control sensor & fuel charge harness, near breakout to heated oxygen sensor 21)
• (near breakout to g106)
• 5r55e transmission (left side of transmission)
• Anti-lock brakes system
• Battery junction box (bjb) (left rear side of engine compt)
• Bpp
• Brake pedal position switch (behind left side of dash, on brake pedal support)
• C175b
• C175e
• C175t
• C220b
• C2280a
• C2280b
• C2280c
• Can+
• Can-
• Cbb39
• Ccb15
• Cet05
• Cet06
• Cet07
• Cet18
• Cet19
• Cet34
• Cet44
• Check engine ind
• Computer data lines system
• Ect
• Epc
• Fuse 10a
• Fuse 15a
• Fuse 30a
• Fuse 5a
• G106 (top rear of engine compt)
• G107 (right rear of engine compt)
• G301 (under driver's seat)
• Gd108
• Gnd
• Harness, near breakout to instrument cluster)
• Hot at all times
• Hot in run
• Hot in run or start
• Hot in start or run
• Instrument cluster
• Iss
• Junction harness, near breakout to abs control module)
• Kapwr
• Le423
• Micro-
• Nca
• O/d off ind
• Oss
• Pcm power diode
• Powertrain control module (pcm) (right rear of engine compt)
• Prndl
• Processor
• Ptc 1a
• Re405
• Re406
• Ret04
• S100 (in engine control sensor & fuel charge harness, near breakout to powertrain control module)
• S102
• S105
• S109 (near breakout to fuel injector 6)
• S112
• S123 (near breakout to battery junction box)
• Sbb21
• Sig rtn
• Smart junction box (sjb) (right kick panel)
• Ss a
• Ssa
• Ssb
• Ssc
• Ssd
• Tcc
• Tcs
• Tft
• Tps
• Tr1
• Tr2
• Tr3a
• Tr4
• Transmission control switch (tcs) (on steering column)
• Tss
• Vdb04
• Vdb05
• Ve716
• Ve819
• Vet27
• Vet28
• Vet29
• Vet30
• Vet31
• Vet33
• Vet39
• Vpwr
• Vref

4.0L, Электросхема автоматической коробки передач АКПП (2 из 2) для Ford Ranger 2007

4.0L, Электросхема автоматической коробки передач АКПП (2 из 2) для Ford Ranger 2007 - Список элементов:

• (in engine control sensor & fuel charge harness, near breakout to fuel injector 5)
• (in engine control sensor & fuel charge harness, near breakout to g106) s102
• Battery junction box (bjb) (left rear side of engine compt)
• Digital transmission range (dtr) sensor (left side of transmission)
• Engine controls system
• Engine coolant temperature (ect) sensor (top right front of engine)
• Fuel pump relay
• G103 (left side of engine compt)
• Intermediate shaft speed (iss) sensor (left side of transmission)
• N r
• Output shaft speed (oss) sensor (left rear of transmission)
• Pcm power relay
• S101 (in engine control sensor & fuel charge harness, near breakout to g106)
• S103
• Throttle position (tps) sensor (top front of engine, on throttle body)
