Электросхемы БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА Ford Crown Victoria Police Interceptor 2005

БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА

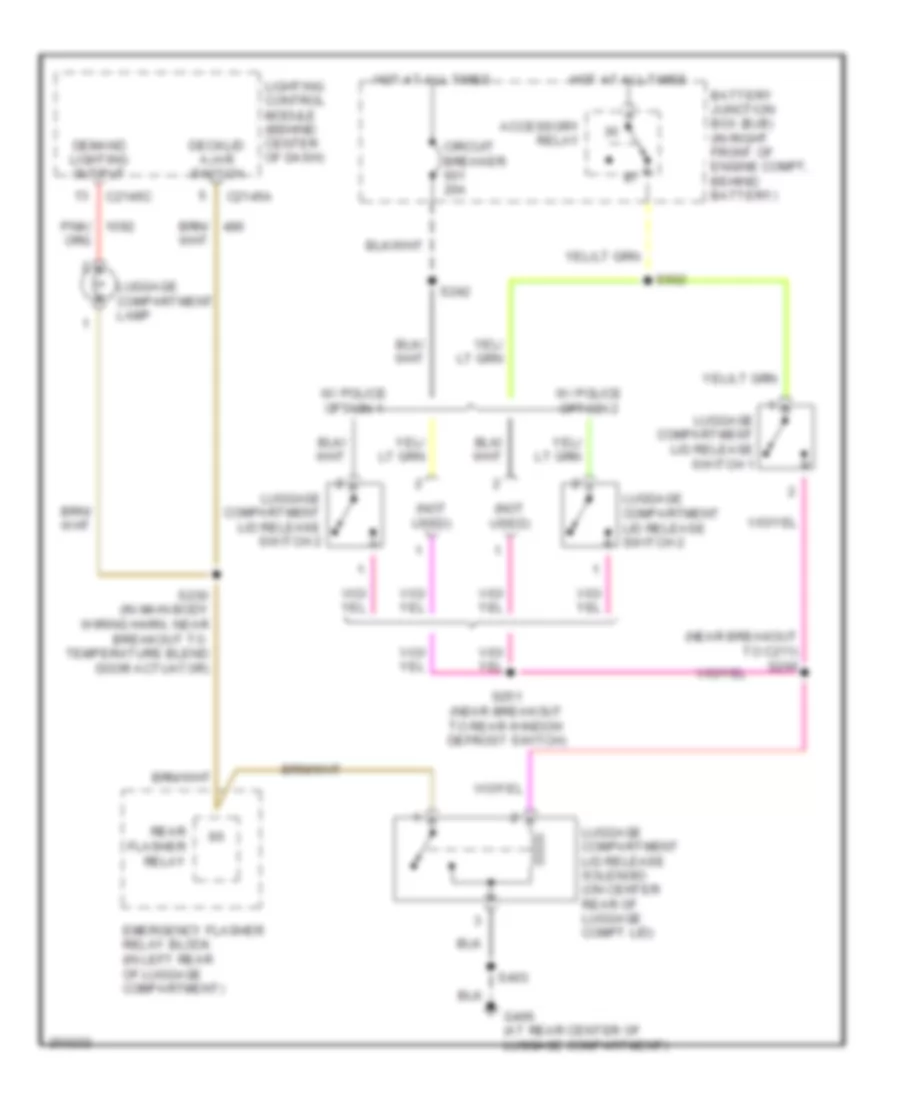

Электросхема открывания багажника, полицейский выбор для Ford Crown Victoria Police Interceptor 2005

Электросхема открывания багажника, полицейский выбор для Ford Crown Victoria Police Interceptor 2005 - Список элементов:

• (near breakout to c211) s266
• (not used)
• Accessory relay
• Battery junction box (bjb) (in right front of engine compt, behind battery)
• C2145a
• C2145c
• Circuit breaker 20a
• Decklid ajar switch
• Demand lighting output
• Emergency flasher relay block (in left rear of luggage compartment)
• G406 (at rear center of luggage compartment)
• Hot at all times
• Lighting control module (behind center of dash)
• Luggage compartment lamp
• Luggage compartment lid release solenoid (on center rear of luggage compt lid)
• Luggage compartment lid release switch 1
• Luggage compartment lid release switch 2
• Pnk/
• Rear flasher relay
• S230 (in main body wiring harn, near breakout to temperature blend door actuator)
• S242
• S251 (near breakout to rear window defrost switch)
• S403
• S502
• W/ police option 1
• W/ police option 2

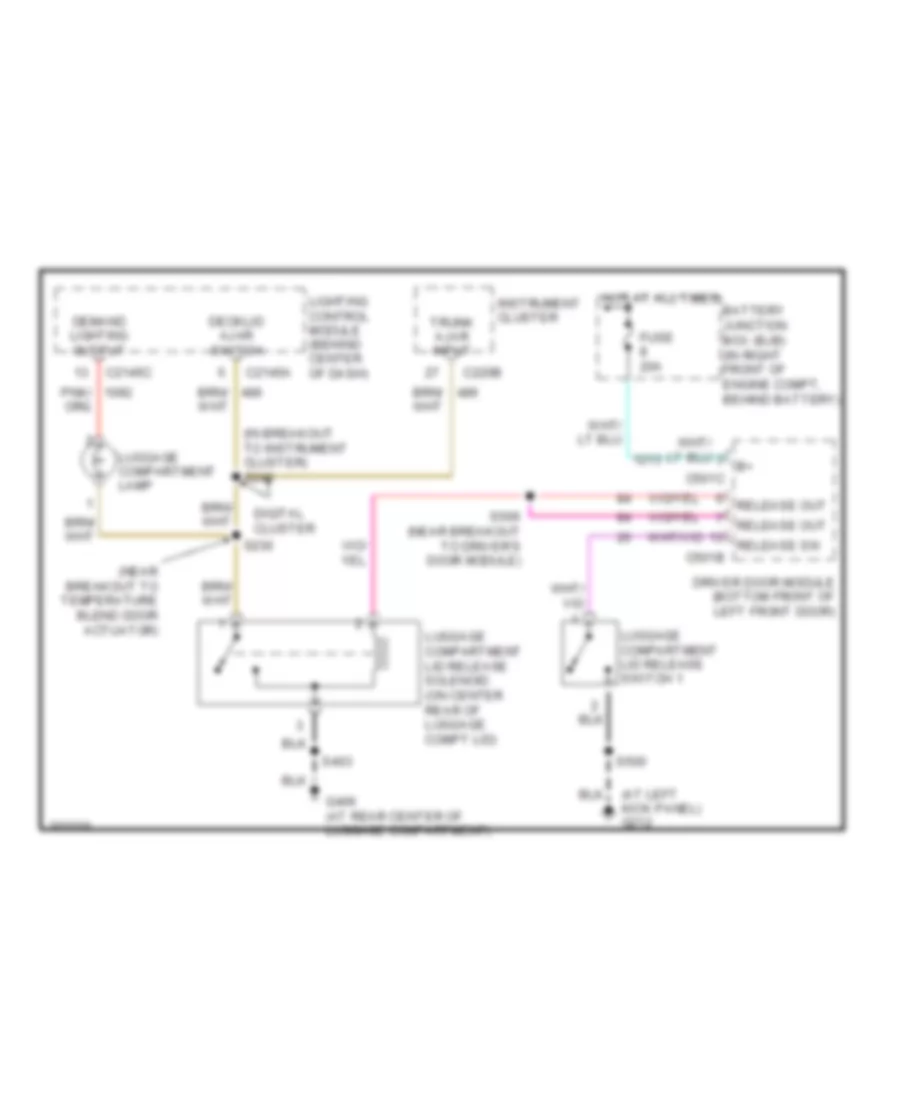

Электросхема открывания багажника, С Вход Без ключа для Ford Crown Victoria Police Interceptor 2005

Электросхема открывания багажника, С Вход Без ключа для Ford Crown Victoria Police Interceptor 2005 - Список элементов:

• (at left kick panel) g212
• (in breakout to instrument cluster) s240
• (near breakout to temperature blend door actuator)
• Battery junction box (bjb) (in right front of engine compt, behind battery)
• C2145a
• C2145c
• C220b
• C501b
• C501c
• Decklid ajar switch
• Demand lighting output
• Digital cluster
• Driver door module (bottom front of left front door)
• Fuse 20a
• G406 (at rear center of luggage compartment)
• Hot at all times
• Instrument cluster
• Lighting control module (behind center of dash)
• Luggage compartment lamp
• Luggage compartment lid release solenoid (on center rear of luggage compt lid)
• Luggage compartment lid release switch 1
• Pnk/
• Release out
• Release sw
• S230
• S403
• S500
• S506 (near breakout to driver's door module)
• Trunk ajar input

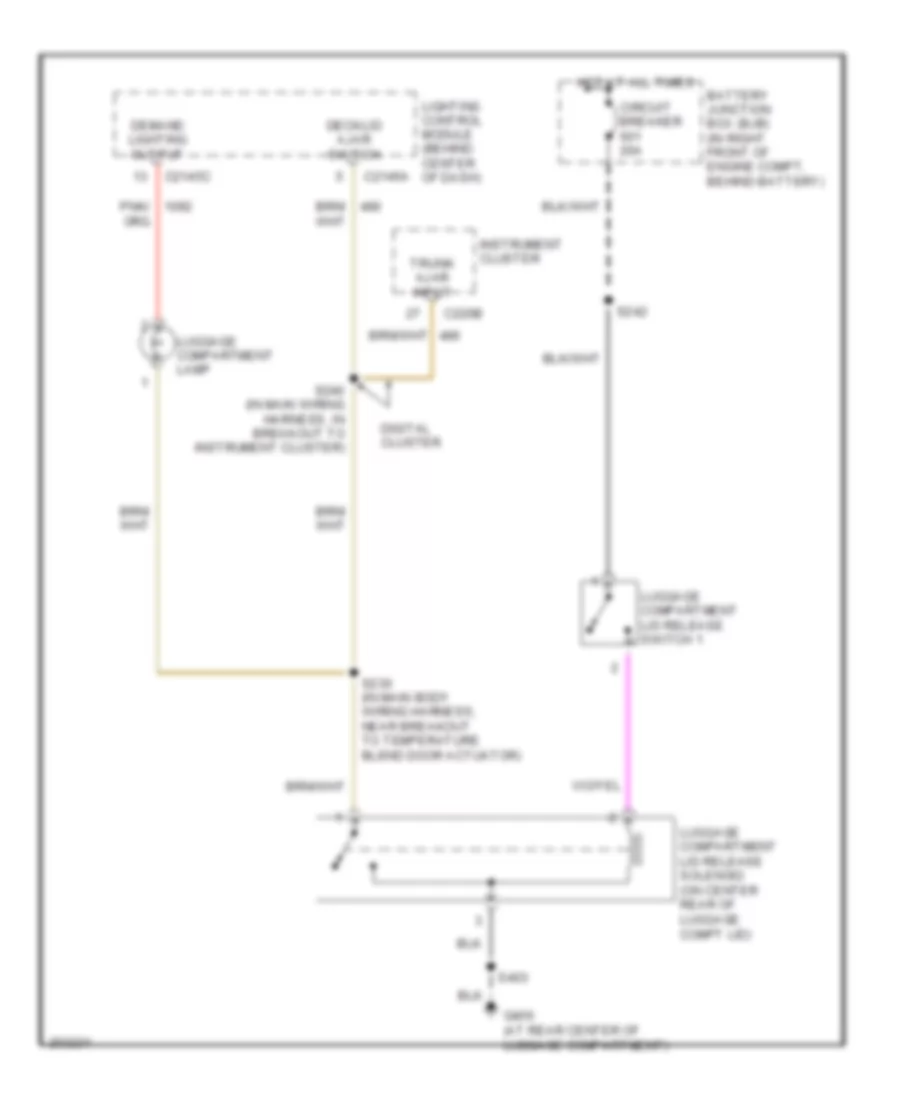

Электросхема открывания багажника, без Вход Без ключа для Ford Crown Victoria Police Interceptor 2005

Электросхема открывания багажника, без Вход Без ключа для Ford Crown Victoria Police Interceptor 2005 - Список элементов:

• Battery junction box (bjb) (in right front of engine compt, behind battery)
• C2145a
• C2145c
• C220b
• Circuit breaker 20a
• Decklid ajar switch
• Demand lighting output
• Digital cluster
• G406 (at rear center of luggage compartment)
• Hot at all times
• Instrument cluster
• Lighting control module (behind center of dash)
• Luggage compartment lamp
• Luggage compartment lid release solenoid (on center rear of luggage compt lid)
• Luggage compartment lid release switch 1
• Pnk/
• S230 (in main body wiring harness, near breakout to temperature blend door actuator)
• S240 (in main wiring harness, in breakout to instrument cluster)
• S242
• S403
• Trunk ajar input
