Электросхемы БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА Ford Explorer XLT 2013

БАГАЖНИК ЗАДНЯЯ ДВЕРЬ ЛЮЧОК ТОПЛИВНОГО БАКА

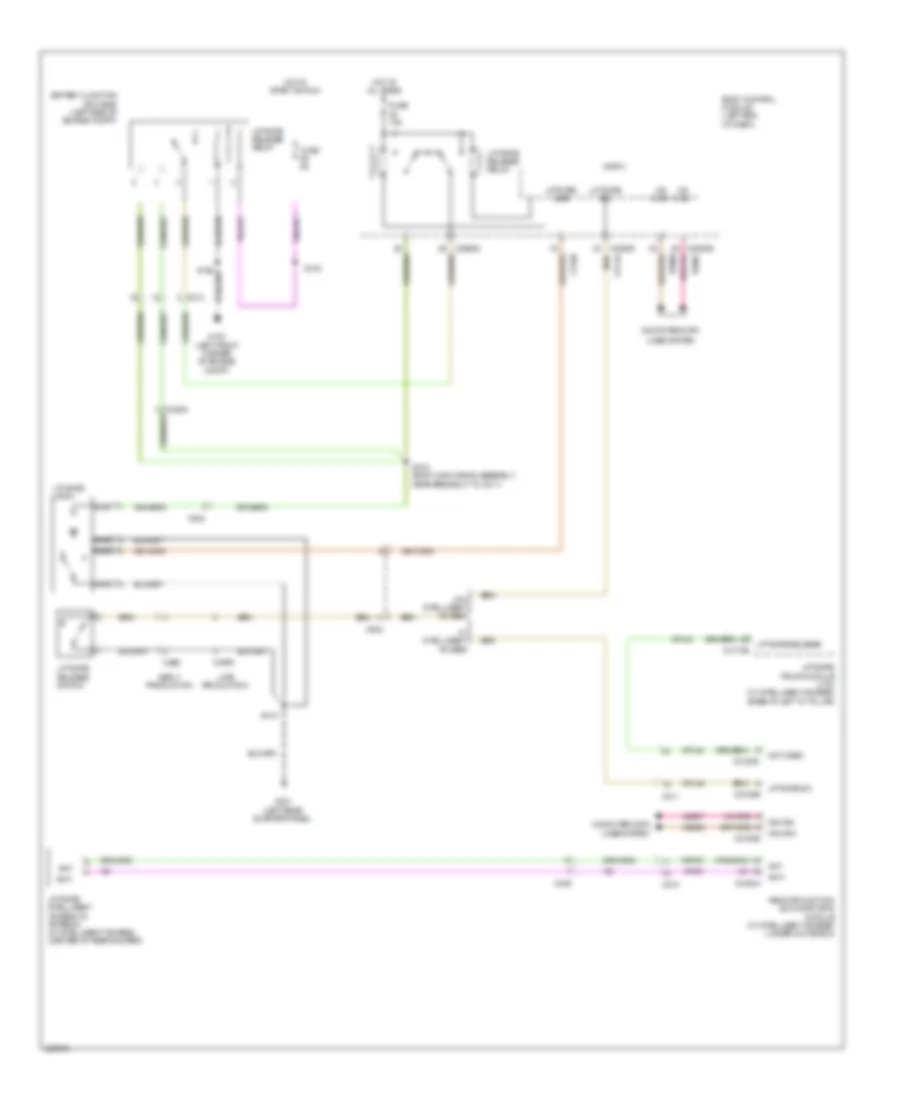

Электросхема открывания багажника, кроме полиции для Ford Explorer XLT 2013

Электросхема открывания багажника, кроме полиции для Ford Explorer XLT 2013 - Список элементов:

• (left rear quarter panel) g301
• (not used)
• Ant+
• Ant-
• Body control module (bcm) (left end of dash)
• C210
• C211
• C2153a
• C2153b
• C2153e
• C2280b
• C2280c
• C2280d
• C406
• C432
• C4818
• C934
• Computer data
• Cpl45
• Cpl58
• Early production
• Fuse 15a
• Hot at all times
• Late production
• Liftgate ajar
• Liftgate latch
• Liftgate release relay
• Liftgate release switch
• Liftgate sw
• Liftgate/ intelligent access (ia) antenna (w/ intelligent access) (center of rear bumper)
• Lines system
• Micro
• Ms can+
• Ms can-
• Nca
• Remote function actuator (rfa) module (under glove box)
• Rpk07
• S410
• Vdb06
• Vdb07
• Vpk07
• W/ intelligent access
• W/o intelligent access

Электросхема открывания багажника, полиция для Ford Explorer XLT 2013

Электросхема открывания багажника, полиция для Ford Explorer XLT 2013 - Список элементов:

• Ant+
• Ant-
• Battery junction box (bjb) (left side of engine compt)
• Body control module (left end of dash)
• C210
• C211
• C213
• C2153a
• C2153b
• C2153d
• C2153e
• C2280b
• C2280c
• C2280d
• C3205
• C406
• C4174b
• C432
• C4818
• C934
• Computer data
• Cpl45
• Cpl58
• Cpl84
• Early production
• Fuse 15a
• Fuse 5a
• G103 (left front corner of engine compt)
• G301 (left rear quarter panel)
• Hot at all times
• Hot in start or run
• Late production
• Liftgate ajar
• Liftgate latch
• Liftgate release
• Liftgate release relay
• Liftgate release switch
• Liftgate sw
• Liftgate/ intelligent access (ia) antenna (w/ intelligent access) (center of rear bumper)
• Liftgate/ trunk module (ltm) (w/ intelligent access) (base of left "d" pillar)
• Lines system
• Micro
• Ms can+
• Ms can-
• Nca
• Not used
• Remote function actuator (rfa) module (w/ intelligent access) (under glove box)
• Rpk07
• S123
• S372 (body main wiring assembly, near breakout to c211)
• S410
• Vdb06
• Vdb07
• Vpk07
• W/ intelligent access
• W/o intelligent access

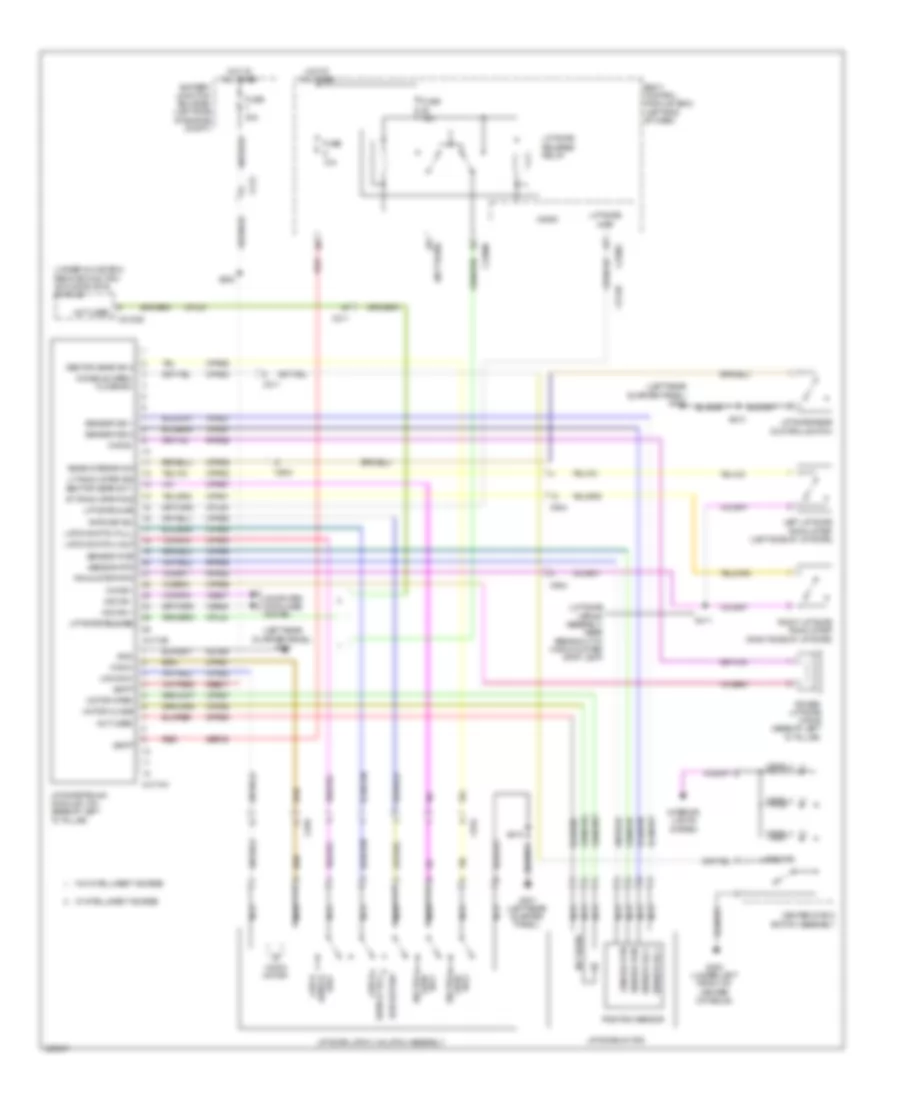

Электросхема привода багажника для Ford Explorer XLT 2013

Электросхема привода багажника для Ford Explorer XLT 2013 - Список элементов:

• (left rear quarter panel) g301
• (liftgate wiring assembly, near breakout to high mounted stop lamp)
• (not used)
• (under glove box) remote function actuator (rfa) module
• 10a
• 30a
• Battery junction box (bjb) (left side of engine compt)
• Body control module (bcm) (left end of dash)
• C211
• C213
• C2153d
• C2280c
• C2280d
• C4174a
• C4174b
• C934
• C935
• Center stack switch assembly
• Chime +
• Chime -
• Cinch
• Cinch motor
• Computer data lines system
• Console open/ close sw
• Cpl58
• Cpl84
• Cpr51
• Cpr52
• Cpr55
• Cpr56
• Cpr57
• Cpr58
• Cpr61
• Cpr62
• Cpr63
• Cpr64
• Cpr65
• Cpr66
• Cpr67
• Cpr68
• Cpr89
• Dpr58
• Fuse
• Fuse 15a
• G200 (under left front of center console)
• G301 (left rear quarter panel)
• Gd349
• Gnd
• Half switch latch
• Hot at all times
• Interior lights system
• Latch switch full
• Latch switch half
• Left liftgate pinch strip (left side of liftgate)
• Lift gate
• Liftgate ajar
• Liftgate latch/ unlatch assembly
• Liftgate motor
• Liftgate rear control switch
• Liftgate release
• Liftgate release relay
• Liftgate/trunk module (ltm) (base of left "d" pillar)
• Lt pinch strip sig
• Micro
• Motor close
• Motor open
• Ms can +
• Ms can -
• Nca
• Not used
• Pinch strip rtn
• Position sensor
• Power liftgate chime (base of left "d" pillar)
• Ratchet sw
• Rear interior sw
• Red
• Right liftgate pinch strip (right side of liftgate)
• Rpr52
• Rpr55
• Rpr56
• Rt pinch strip sig
• S300
• S410
• S411
• Sbb07
• Sbp09
• Sector gear sw 1
• Sector gear sw 2
• Sensor pwr
• Sensor rtn
• Sensor sig 1
• Sensor sig 2
• Sw 1 gear sector
• Sw 2 gear sector
• Switch full latch
• Uncinch
• Vbatt
• Vdb06
• Vdb07
• Vpr53
• Vpr54
• W/ intelligent access
• W/o intelligent access
