Электросхемы БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ Ford Explorer 1997

БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ

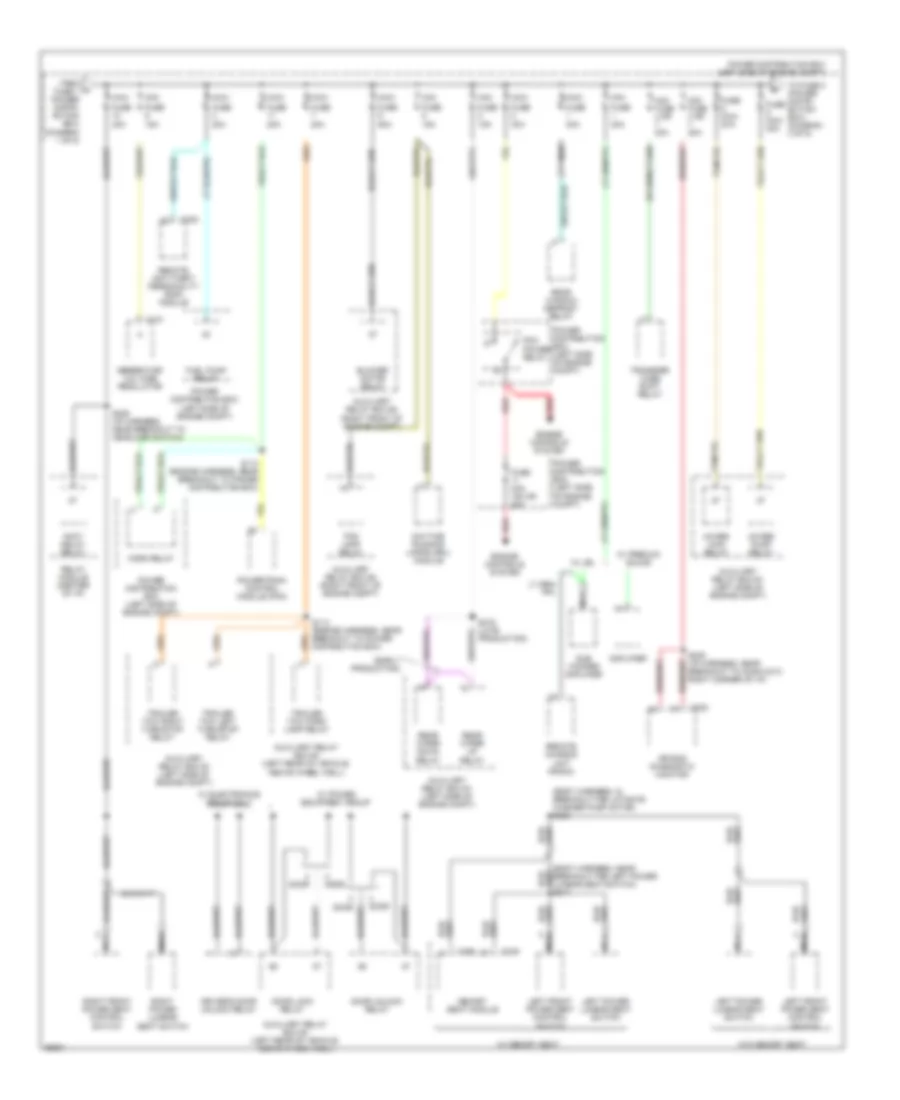

Электросхема блока предохранителей и реле (1 из 5) для Ford Explorer 1997

Электросхема блока предохранителей и реле (1 из 5) для Ford Explorer 1997 - Список элементов:

• (early prod.)
• (eatc)
• (engine harness, near breakout for for fuel injector #3) s118
• (engine harness, near breakout to 4wabs control module) s115
• (engine harness, near breakout to conn c123, behind battery) s134
• (engine harness, near breakout to conn c146, left rear of engine compt) s116
• (i/p harness, in breakout to headlamp switch) s162
• (i/p harness, in breakout to ignition switch) s204
• (i/p harness, near breakout to i/p)
• (i/p harness, near breakout to i/p) s213
• (interior fuse panel)
• (late prod.)
• (late production) (early production)
• (not used)
• 4.0l & 5.0l
• 4wabs control module
• 4wabs main relay
• 5.0l
• A/t w/o dtr
• A1 (not used)
• Acc
• Air bag diagnostic monitor
• Air bag diagnostic monitor (eatc only)
• Air bag diagnostic monitor (w/o eatc)
• Automatic ride control module
• Auxiliary relay box #1 (left side of engine compt)
• Auxiliary relay box #2 (right front of engine compt)
• Backup lamp switch
• Battery
• Blend door actuator
• Blower motor relay
• Brake fluid level warning switch
• Brake pressure switch
• C122
• C2001
• C2008
• C231
• C232
• C233
• C283
• C286
• C287
• C288
• C297
• C332
• Compass/ outside air temperature module
• Day/night mirror/ autolamp sensor
• Daytime running lamps (drl) module
• Digital transmission range sensor
• Dimmer relay
• Electronic automatic temperature control (eatc) module module (eatc)
• Fuse 10a
• Fuse 15a
• Fuse 25a
• Fuse 7.5a
• Fuse maxi 60a
• Generator/ voltage regulator
• Generic electronic module (gem)
• Heater-a/c control assembly
• Ignition coil
• Ignition switch
• Instrument cluster
• Interior fuse panel (left side of i/p)
• Lamp out warning module
• Lock
• M/t
• Message center
• Off
• Pcm power diode
• Pcm power relay
• Pnk
• Power distribution box (left side of engine compt)
• Radio noise capacitor
• Rear blower motor relay
• Rear integrated control panel (ricp)
• Rear window defrost relay
• Red
• Relay module (center of i/p)
• Run
• S141
• S211
• S240 (body harness, in breakout to conn c323, left rear door jamb)
• S241
• Shift lock actuator
• Speed control servo/ amplifier assembly
• Start
• Starter motor
• Starter relay
• Steering sensor
• To fuse 20 (diagram 4 of 5)
• To fuse 24 (diagram 4 of 5)
• To fuse 5 (power distribution box) diagram 2 of 5)
• Transmission control switch (tcs)
• Transmission range (tr) sensor
• Turn/ hazard flasher
• W/ eatc
• W/o eatc

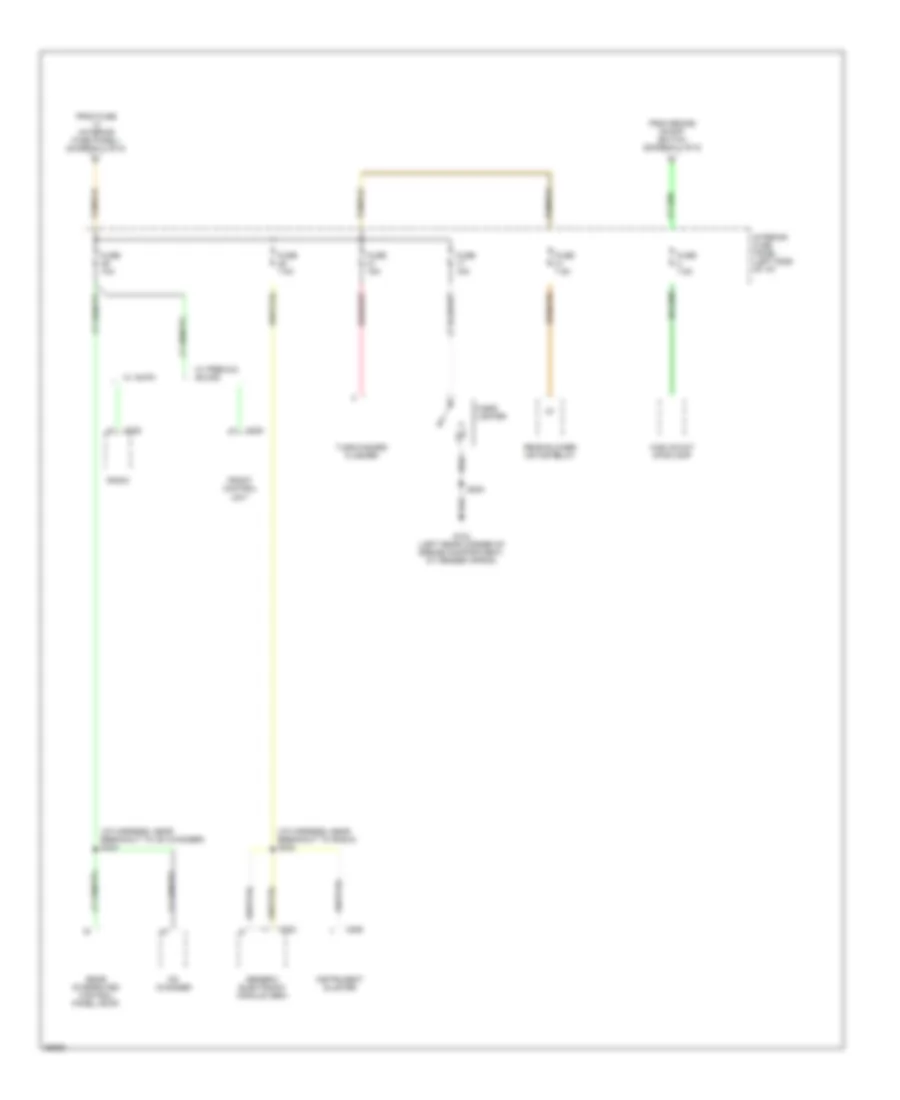

Электросхема блока предохранителей и реле (2 из 5) для Ford Explorer 1997

Электросхема блока предохранителей и реле (2 из 5) для Ford Explorer 1997 - Список элементов:

• (body harness, in breakout for liftgate washer pump motor) s303
• (early production)
• 15a
• 20a
• 30a
• 4wabs main relay
• 4wabs pump relay
• 50a
• Accy delay relay
• Air bag diagnostic monitor
• Amplifier
• Auxiliary relay box #1 (left side of engine compt)
• Auxiliary relay box #2 (right front of engine compt)
• Auxiliary relay box #4 (left rear of vehicle, above wheel well)
• Blower motor relay
• C121
• C232
• C335
• C338
• C350
• Daytime running lamps (drl) module
• Door
• Door lock relay
• Door unlock relay
• Driver's door unlock relay
• Engine controls system
• Fog lamp relay
• From a fuse 1 (power distri- bution box) (diagram 1 of 5)
• Fuel pump relay
• Fuse
• Fuse maxi 30a
• Fuse mini 15a or 20a
• Generator/ voltage regulator
• Horn relay
• Left front power seat control switch
• Left power lumbar seat switch
• Maxi
• Memory seat module
• Mini
• Mini fuse 4 or 20a
• Nca
• Pcm power relay
• Power distribution box (left side of engine compt)
• Powertrain control module (pcm)
• Rear window defrost relay
• Rear wiper down relay
• Rear wiper up relay
• Red
• Relay module (center of i/p)
• Remote anti-theft personality (rap) module
• Remote chassis unit (radio)
• Right front power seat control switch
• Right power lumbar seat switch
• S113 (engine harness, near breakout to power distribution box)
• S114 (engine harness, near breakout to power distribution box)
• S219 (late production)
• S236 (i/p harness, near breakout to headlamp switch)
• S239 (i/p harness, near breakout to conn c213, right corner of i/p)
• S317
• Sub woofer amplifier
• To fuse 8 (power distri- bution box) (diagram 3 of 5)
• Trailer tow left turn/stop relay
• Trailer tow park lamp relay
• Trailer tow right turn/stop relay
• Transfer case shift relay
• W/ electronics group only
• W/ jbl
• W/ memory seat
• W/ power equipment group
• W/ premium sound
• W/o memory seat

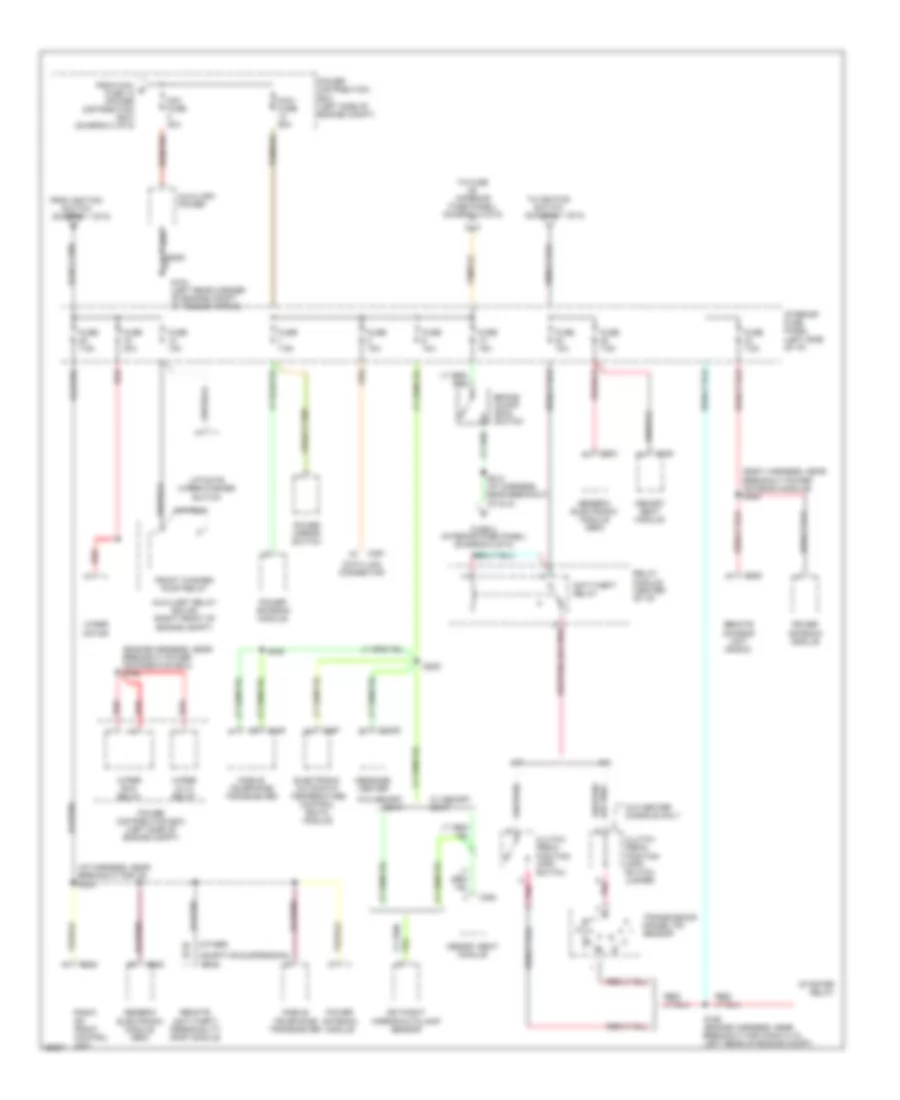

Электросхема блока предохранителей и реле (3 из 5) для Ford Explorer 1997

Электросхема блока предохранителей и реле (3 из 5) для Ford Explorer 1997 - Список элементов:

• (body harness, in breakout to conn c267, left "a" pillar) s334
• (diagram 2 of 5)
• (i/p harness, near breakout for i/p) s246
• (i/p harness, near breakout to conn c291, left side of i/p) s237
• (i/p harness, near breakout to g204) s322
• (i/p harness, near breakout to relay module) s238
• 15a
• 20a
• 30a
• 50a
• Accy delay relay
• Automatic ride control (arc) off/on switch
• Automatic ride control relay
• Auxiliary relay box #1 (left side of engine compt)
• Auxiliary relay box #3 (left rear of engine compt)
• Auxiliary relay box #4 (left rear of vehicle, above wheel well)
• Battery saver relay
• C280
• Compass/ outside air temperature module
• Defogger system
• Dimmer module
• Dimmer relay
• Dimmer switch
• Exterior lights system
• Flash- to-pass switch
• From maxi d fuse 5 (power distribution box)
• Fuse 10a
• Fuse 15a
• Fuse 1oa
• Fuse 7.5a
• Generic electronic module (gem)
• Glove box lamp & switch
• Head
• Head- lamp switch
• Headlamp relay (w/ autolamps)
• Headlamp switch
• Headlights system
• Interior fuse panel (left side of i/p)
• Interior lamp relay
• Left vanity mirror lamp
• Low
• Map lamp
• Maxi fuse
• Mini fuse
• Multi- function switch
• Nca
• Off
• Park
• Park lamp relay
• Pass
• Pnk
• Power distribution box (left side of engine compt)
• Rear map lamp
• Rear wiper down relay
• Rear wiper up relay
• Relay module (center of i/p)
• Right vanity mirror lamp
• S266 (i/p harness, near breakout to headlamp switch)
• To maxi fuse 3 (power distribution box) (diagram 4 of 5)
• Transfer case shift relay
• Underhood lamp
• W/o overhead console

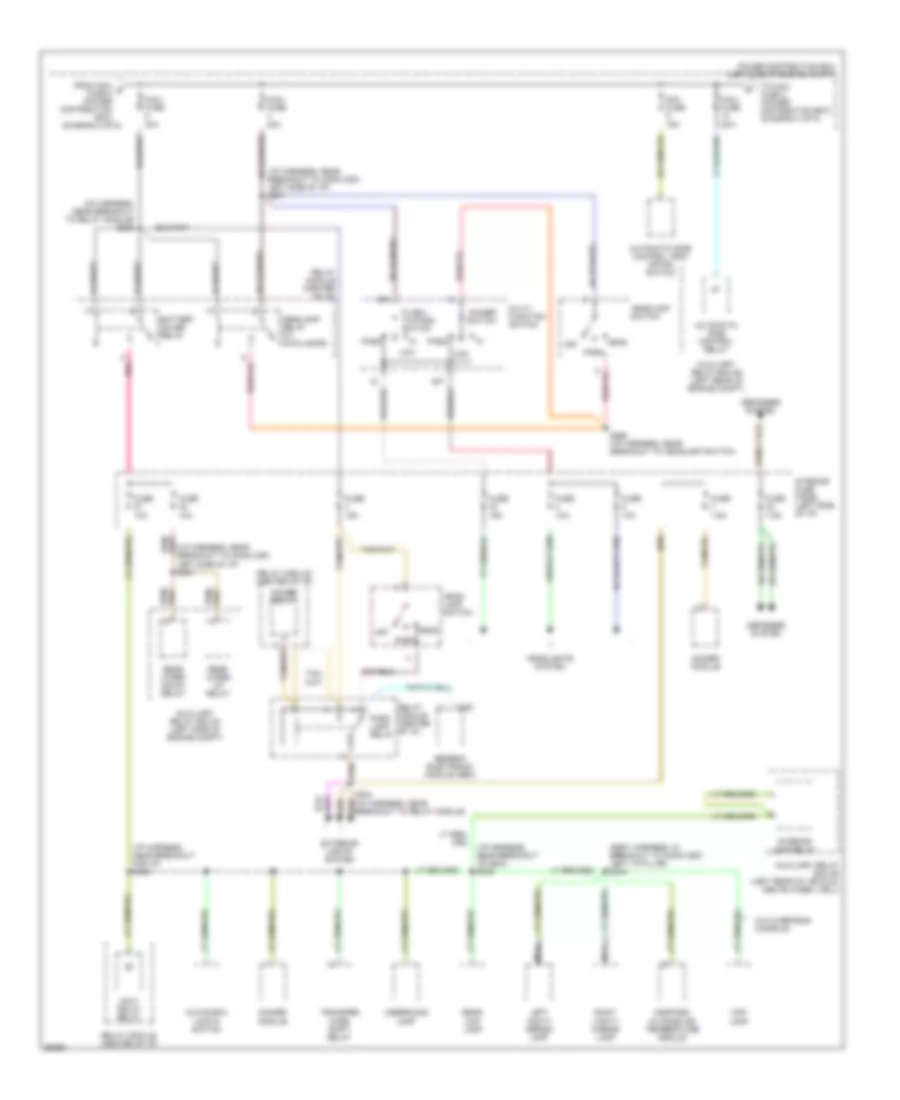

Электросхема блока предохранителей и реле (4 из 5) для Ford Explorer 1997

Электросхема блока предохранителей и реле (4 из 5) для Ford Explorer 1997 - Список элементов:

• (adaptive suspension)
• (body harness, near breakout power antenna module) s355
• (diagram 1 of 5)
• (engine harness, near breakout power distribution box) s163
• (i/p harness, near breakout for i/p) s245
• (other)
• A/t
• Anti-theft relay
• Auxiliary power
• Auxiliary relay box #2 (right front of engine compt)
• Brake on/off (boo) switch
• C2009
• C228
• C283
• C291
• C297
• C335
• C336
• C350
• C364
• C435
• Clutch pedal position (cpp) switch
• Clutch pedal position (cpp) switch jumper
• Data link connector
• Day/night mirror/autolamp sensor
• Electronic automatic temperature control (eatc) module
• From ignition switch
• From maxi e fuse 12 (power distribution box) (diagram 3 of 5)
• Front washer pump relay
• Fuse 10a
• Fuse 15a
• Fuse 2 (interior fuse panel) (diagram 5 of 5)
• Fuse 30a
• Fuse 7.5a
• G104 (left rear corner of engine compt. at fender apron)
• Generic electronic module (gem)
• Interior fuse panel (left side of i/p)
• Liftgate wiper/washer switch
• M/t
• Maxi fuse 60a
• Memory seat module
• Message center
• Mini fuse 30a
• Mobile telephone transceiver
• Pnk
• Power antenna module
• Power distribution box (left side of engine compt)
• Power mirror switch
• Radio or front control unit
• Red
• Relay module (center of i/p)
• Remote anti-theft/ personality (rap) module
• Remote chassis unit (radio)
• S165 (engine harness, near breakout for conn c115, left rear of engine compt)
• S200
• S209
• S212 (i/p harness, near breakout to dlc)
• S408
• Starter relay
• To fuse (interior fuse panel) (diagram 5 of 5)
• To ignition switch
• Transmission range (tr) sensor
• W/ memory seat
• W/o center console only
• W/o memory seat
• Wiper hi-lo relay
• Wiper motor
• Wiper run relay

Электросхема блока предохранителей и реле (5 из 5) для Ford Explorer 1997

Электросхема блока предохранителей и реле (5 из 5) для Ford Explorer 1997 - Список элементов:

• (i/p harness, near breakout to cd changer) s243
• (i/p harness, near breakout to radio) s242
• C228
• C283
• C288
• Cd changer
• Cigar lighter
• From brake on/off switch (diagram 4 of 5)
• From fuse (interior fuse panel) (diagram 4 of 5)
• Front control unit
• Fuse 10a
• Fuse 15a
• Fuse 7.5a
• G104 (left rear corner of engine compartment, at fender apron)
• Generic electronic module (gem)
• High mount stoplamp
• Instrument cluster
• Interior fuse panel (left side of i/p)
• Radio
• Rear blower motor relay
• Rear integrated control panel (ricp)
• S200
• Turn/hazard flasher
• W/ am/fm
• W/ premium sound
