ЦЕНТРАЛЬНЫЙ ЗАМОК

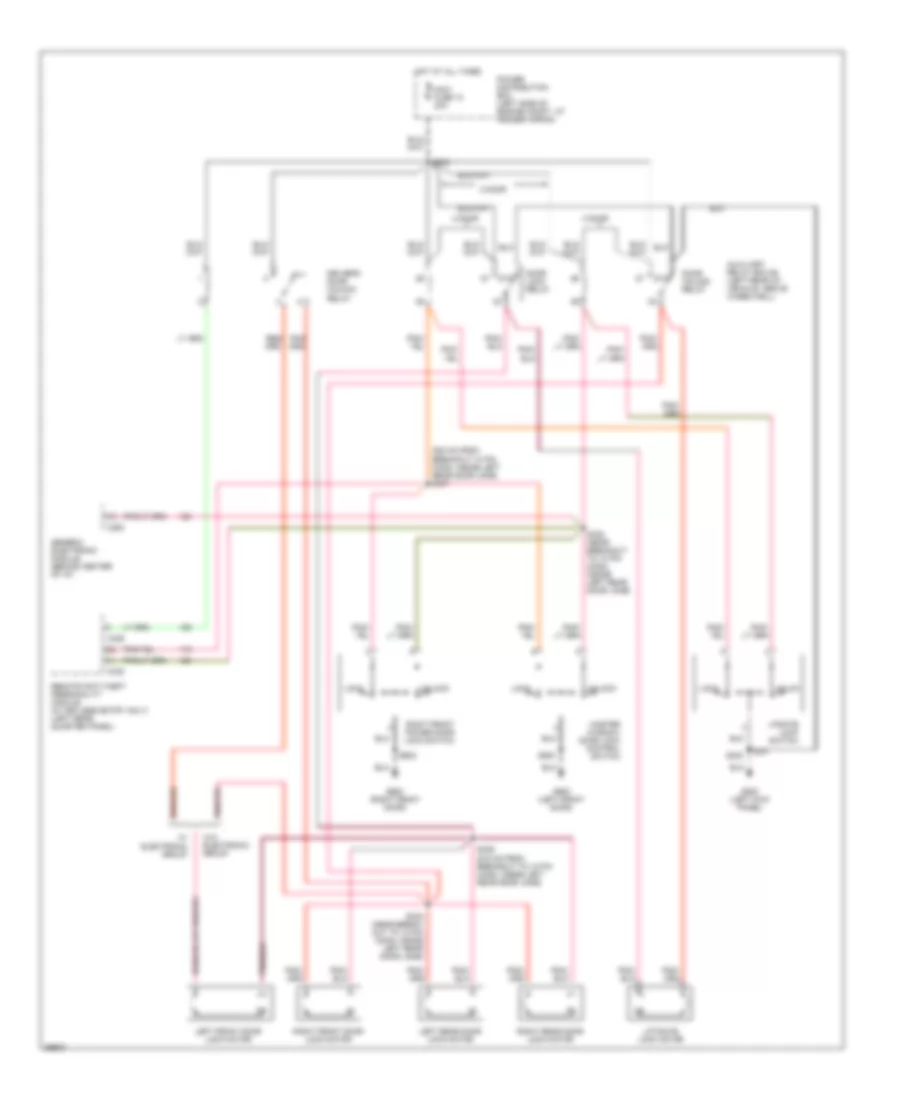

Электросхема центрального замка для Ford Explorer 1997

Электросхема центрального замка для Ford Explorer 1997 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема центрального замка для Ford Explorer 1997 - Список элементов:

  • (520 mm from breakout 10 pin conn, inside left rear door jamb) s337
  • 2 door
  • 4 door
  • 87a
  • Auxiliary relay box #4 (left rear of vehicle, above wheelwell)
  • C280
  • C336
  • C338
  • Door lock relay
  • Door unlock relay
  • Driver's door unlock relay
  • G200 (left kick panel)
  • G500 (left front door)
  • G600 (right front door)
  • Generic electronic module (behind center of i/p)
  • Hot at all times
  • Left front door lock motor
  • Left rear door lock motor
  • Lifgate lock switch
  • Liftgate lock motor
  • Lock
  • Master window/ door lock control switch
  • Maxi fuse 10 30a
  • Power distribution box (left side of engine compt, at fender apron)
  • Remote anti-theft personality module (w/ keyless entry only) (left rear quarter panel)
  • Right front door lock motor
  • Right front power door lock switch
  • Right rear door lock motor
  • S302
  • S303
  • S338 (near breakout to 10 pin conn, inside left rear door jamb)
  • S339 (510 mm from breakout to 10 pin conn, inside left rear door jamb)
  • S340 (near break- out to 10 pin conn, inside left rear door jamb)
  • S500
  • S602
  • Unlck
  • Unlock
  • W/ electronic group
  • W/o electronic group
