ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG

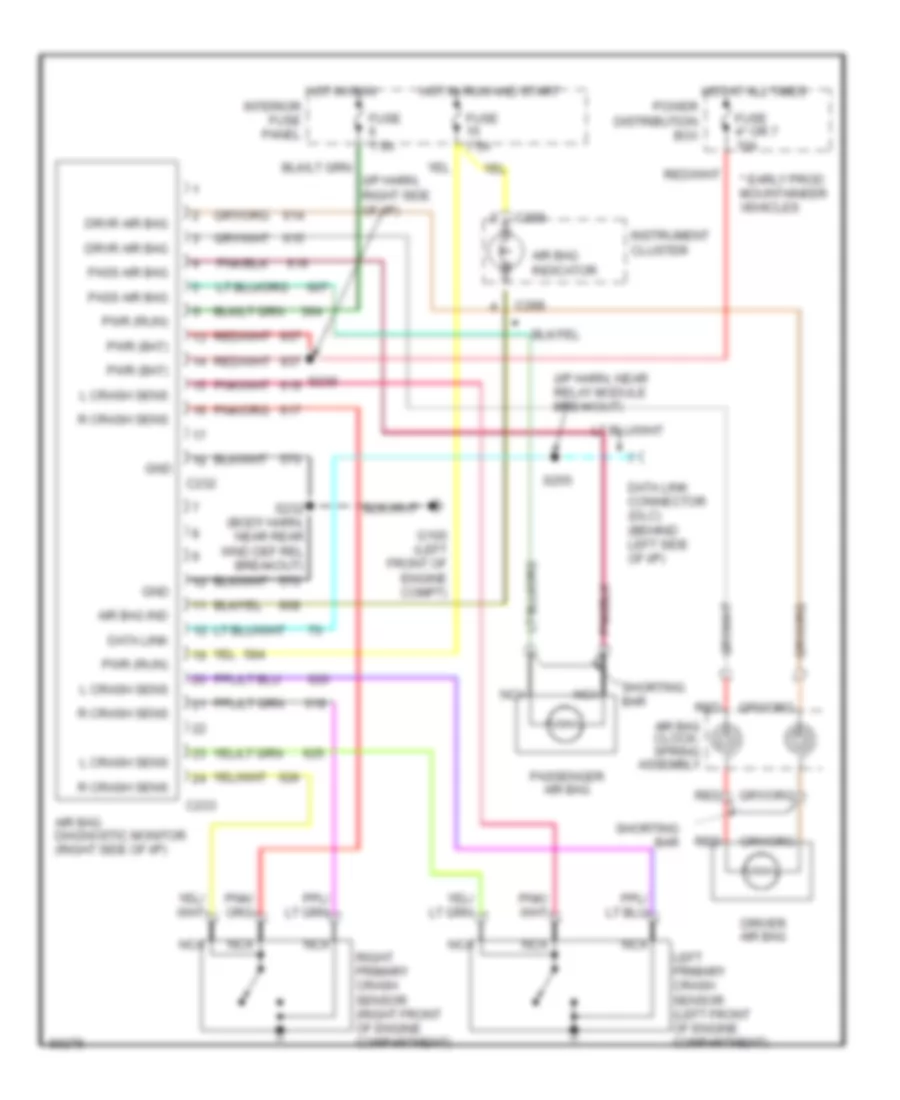

Электросхема подушек безопасности SRS AirBag для Ford Explorer 1997

Электросхема подушек безопасности SRS AirBag для Ford Explorer 1997 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема подушек безопасности SRS AirBag для Ford Explorer 1997 - Список элементов:

  • (i/p harn, near relay module breakout)
  • (i/p harn, right side of i/p)
  • * early prod mountaineer vehicles
  • Air bag clock- spring assembly
  • Air bag diagnostic monitor (right side of i/p)
  • Air bag ind
  • Air bag indicator
  • C232
  • C233
  • C288
  • Data link
  • Data link connector (dlc) (behind left side of i/p)
  • Driver air bag
  • Drvr air bag
  • Fuse 4* or 7 10a
  • Fuse 7.5a
  • G100 (left front of engine compt)
  • Gnd
  • Hot at all times
  • Hot in run
  • Hot in run and start
  • Instrument cluster
  • Interior fuse panel
  • L crash sens
  • Left primary crash sensor (left front of engine compartment)
  • Nca
  • Pass air bag
  • Passenger air bag
  • Power distribution box
  • Pwr (bat)
  • Pwr (run)
  • R crash sens
  • Red
  • Right primary crash sensor (right front of engine compartment)
  • S232 (body harn, near rear wnd def rel breakout)
  • S239
  • S255
  • Shorting bar
