ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG

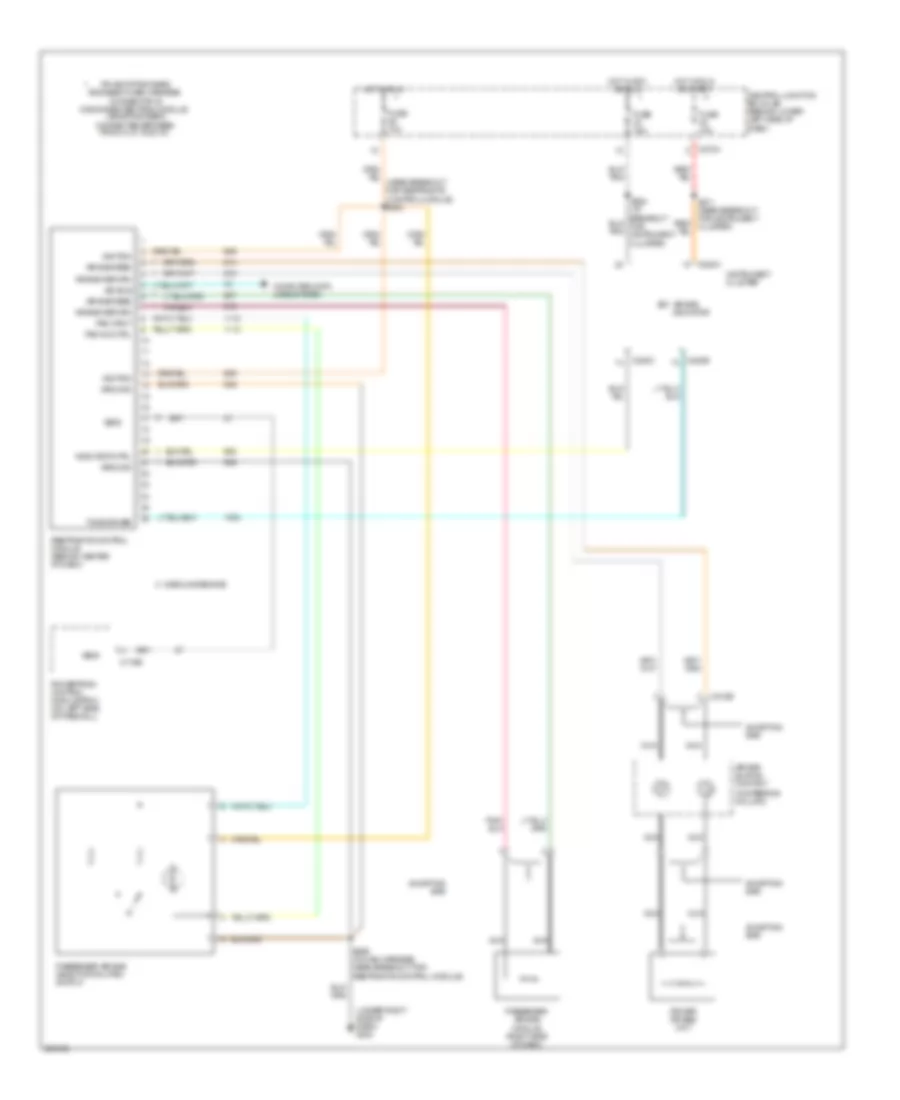

Электросхема подушек безопасности SRS AirBag для Ford F550 Super Duty 2005

Электросхема подушек безопасности SRS AirBag для Ford F550 Super Duty 2005 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема подушек безопасности SRS AirBag для Ford F550 Super Duty 2005 - Список элементов:

  • (in steering column)
  • (under right side of dash) g203
  • Air bag feed
  • Air bag indicator
  • Air bag return
  • Air bag sliding contact
  • C175b
  • C218b
  • C220a
  • C220b
  • C220c
  • C270a
  • Central junction box (cjb) (behind lower left side of dash)
  • Computer data lines system
  • Driver air bag unit
  • Fuse 10a
  • Fuse 15a
  • Gasoline engine
  • Ground
  • Hot in acc or run
  • Hot in run
  • Hot in run or start
  • Ignition
  • Indicator ctrl
  • Instrument cluster
  • Iso bus
  • Nca
  • Pad ind ctrl
  • Pad input
  • Passenger air bag deactivation (pad) switch
  • Passenger air bag module (right side of dash)
  • Pin shorting bars engaged when harness connector is disconnected from module: (shorting bars connected between pins 3-4, 6-7 & 20-21)
  • Powertrain control module(pcm) (on left side of firewall)
  • Restraints control module (behind center of dash)
  • S299 (in main harness, near breakout for restraints control module)
  • Shorting bar
  • Tone driver
  • Vems
