Электросхемы ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ Ford F-350 Super Duty XL 2013

ПРЕДУПРЕЖДАЮЩИЕ СИСТЕМЫ

Электросхема сигнала для Ford F-350 Super Duty XL 2013

Электросхема сигнала для Ford F-350 Super Duty XL 2013 - Список элементов:

• (body main wiring harness, in breakout to left end of dash) s304
• Auto
• Auto lamp on
• Body control module (right kick panel)
• Brake fluid level switch (brake fluid reservoir)
• Brk fluid sw
• Brk fluid sw rtn
• C2280a
• C2280b
• C2280c
• C2280f
• C2414a
• C310b
• C311
• C555
• C655
• C755
• C756
• C855
• C856
• Cdc30
• Clf19
• Clf23
• Clf24
• Clf34
• Cmc19
• Cmc25
• Computer data lines system
• Cpl26
• Cpl31
• Cpl36
• Cpl39
• Cr201
• Crew cab
• Customer access taped to harness near c210
• Driv buckle sw
• Driver safety belt buckle switch/pretensioner
• Driver side front door ajar switch (driver's door)
• Driver side rear door ajar switch (super cab & crew cab) (left rear door)
• Equipment
• Fuse 15a
• G104 (left rear of engine compt)
• G201 (center of dash)
• G300 (left kick panel)
• G302 (right kick panel)
• Head
• Headlamp off
• Headlamp on
• Headlamp switch
• Hot at all times
• Hs can +
• Hs can -
• Hs can+
• Hs can-
• Ignition switch
• Instrument panel cluster (ipc)
• Key in
• Key in ignition
• Lf door ajar
• Lr door ajar
• Multi-function switch
• Nca
• Off
• Park
• Park brake
• Park lamp on
• Parking brake switch
• Passenger side front door ajar switch (front passenger's door)
• Passenger side rear door ajar switch (super cab & crew cab) (right rear door)
• Restraints control module (under center console)
• Rf door ajar
• Rmc19
• Rr door ajar
• S505
• S638
• S700
• S802
• Shorting bar
• Steering column control module (top of steering column)
• Super cab
• Vdb04
• Vdb05
• W/ power equipment
• W/ rear heated seats
• W/o power equipment
• W/o rear heated seats

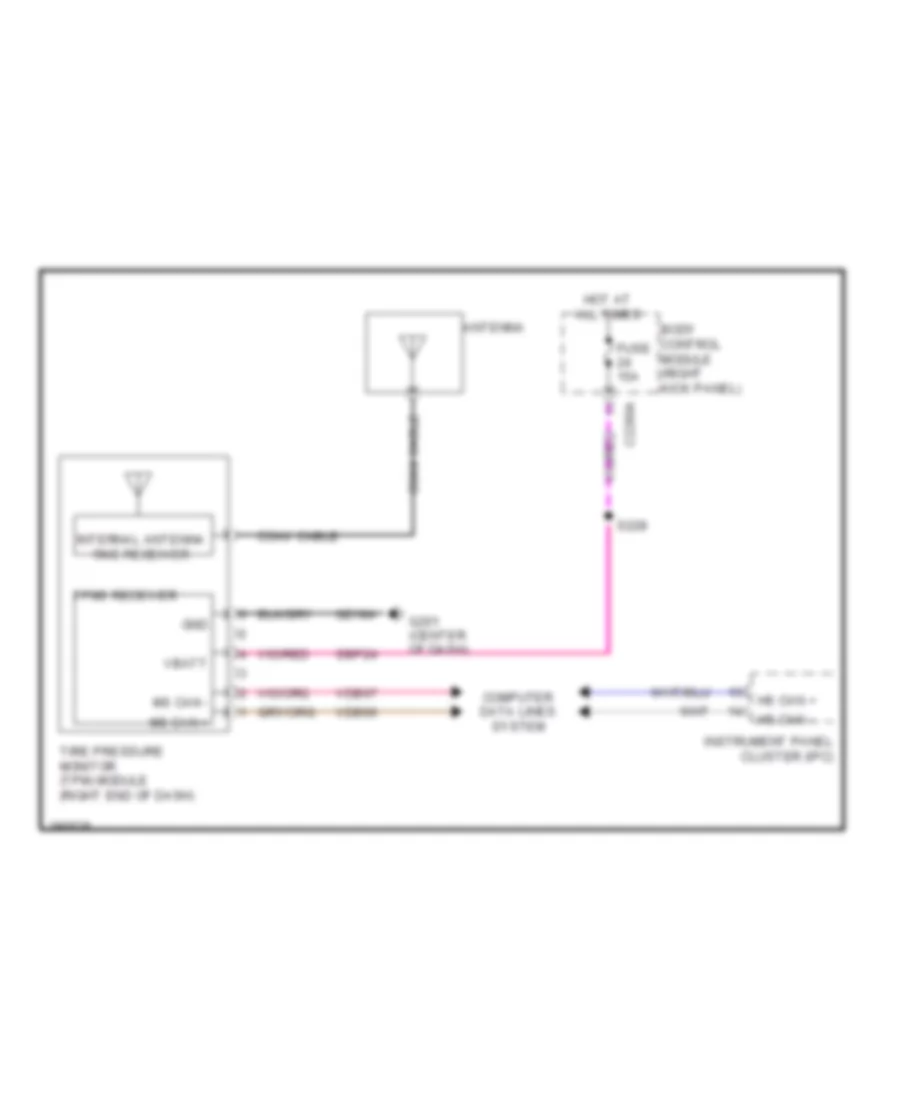

Электросхема системы контроля давления в шинах для Ford F-350 Super Duty XL 2013

Электросхема системы контроля давления в шинах для Ford F-350 Super Duty XL 2013 - Список элементов:

• Antenna
• Body control module (right kick panel)
• C2280a
• Coax cable
• Computer data lines system
• Fuse 15a
• G201 (center of dash)
• Gd184
• Gnd
• Hot at all times
• Hs can +
• Hs can -
• Instrument panel cluster (ipc)
• Internal antenna rke receiver
• Ms can +
• Ms can -
• S228
• Sbp24
• Tire pressure monitor (tpm) module (right end of dash)
• Tpms receiver
• Vbatt
• Vdb06
• Vdb07
