Электросхемы ПРИБОРНАЯ ПАНЕЛЬ Ford Contour SE 1996

ПРИБОРНАЯ ПАНЕЛЬ

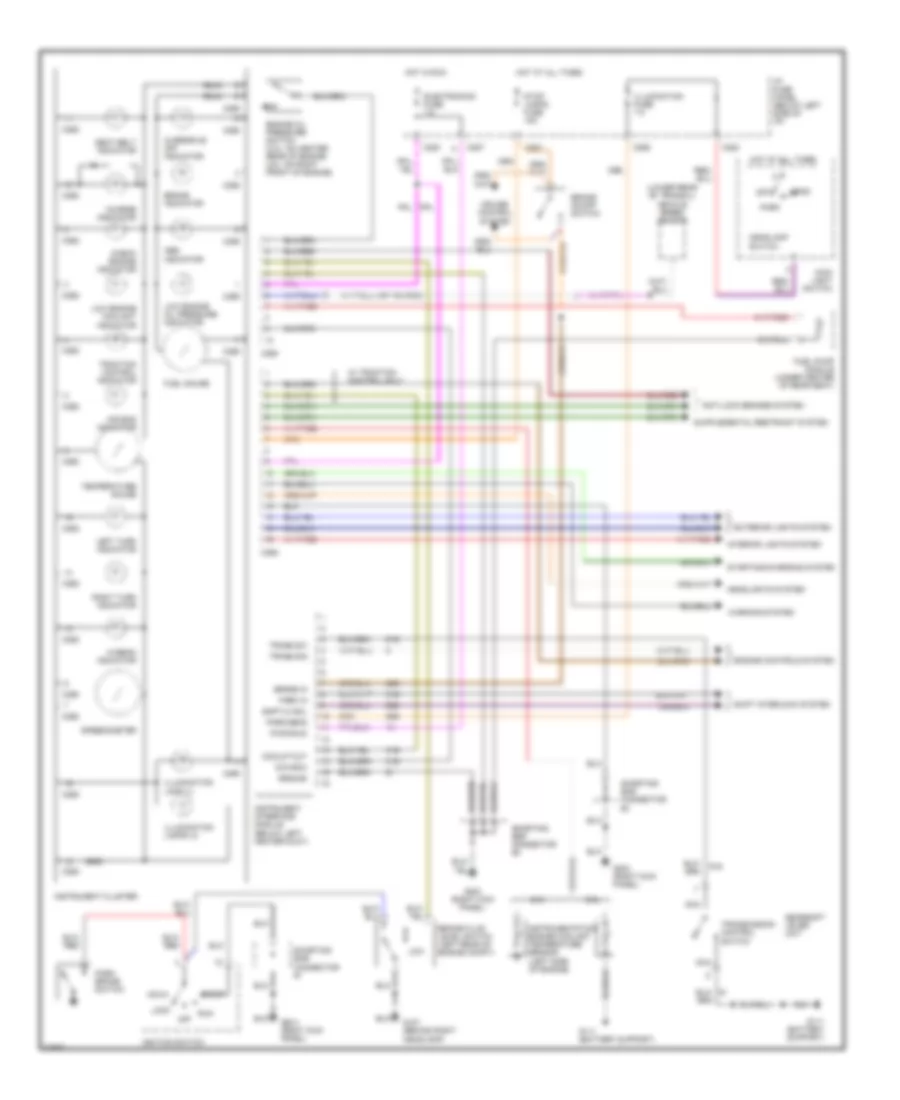

Электросхема панели приборов, С тахометр для Ford Contour SE 1996

Электросхема панели приборов, С тахометр для Ford Contour SE 1996 - Список элементов:

• (2.5l only)
• (gnd)
• (lower rear of transxl) vehicle speed sensor
• (run)
• 2.0l
• 2.5l
• 29s
• 31s
• 91s
• Abs indicator
• Acc
• Air bag indicator
• Anti-lock brakes system
• Brake fluid level switch (left rear of engine compt)
• Brake in
• Brake indicator
• Brake on/off switch
• C201
• C262
• C282
• C283
• C287
• C290
• C298
• Charge indicator
• Check engine indicator
• Coolnt in
• Coolnt out
• Cruise control system
• Electronics fuse 7.5
• Engine controls system
• Engine oil pressure switch (2.0l: on center rear of engine 2.5l: on right front of engine)
• Exterior lights system
• Fuel gauge
• Fuel pump module (under center of rear seat)
• G107 (behind right headlamp)
• G111 (battery support)
• G203 (right kick panel)
• Gearshift lever unit
• Ground
• Head
• Headlamp switch
• Headlights system
• Hi-beam indicator
• Hot at all times
• Hot in run
• I/p fuse panel (below left side of i/p)
• Ignition switch
• Illumination fuse 7.5
• Illumination lamp (1)
• Illumination lamps (4)
• Instrument cluster
• Instrument interface module (below left heater duct)
• Instrumentation engine coolant temperature sensor (left side of engine)
• Interior lights system
• Left turn indicator
• Lock
• Low
• Low engine coolant indicator
• Low engine coolant switch (right front corner of engine compt)
• Low engine oil pressure indicator
• Main light switch
• Nca
• O/d indic
• Off
• Overdrive off indicator
• Park
• Park brake switch
• Park in
• Park/head
• Pwr (run)
• Right turn indicator
• Run
• Seat belt indicator
• Shift interlock system
• Shiftlk sol
• Shorting bar connector #1
• Shorting bar connector #2
• Shorting bar connector #3
• Speedometer
• Start
• Starting/charging system
• Stop lamps fuse 15a
• Tachometer
• Temperature gauge
• Traction control indicator
• Trans sig
• Trans sw
• Transmission control switch
• W/ traction control only
• Warning system

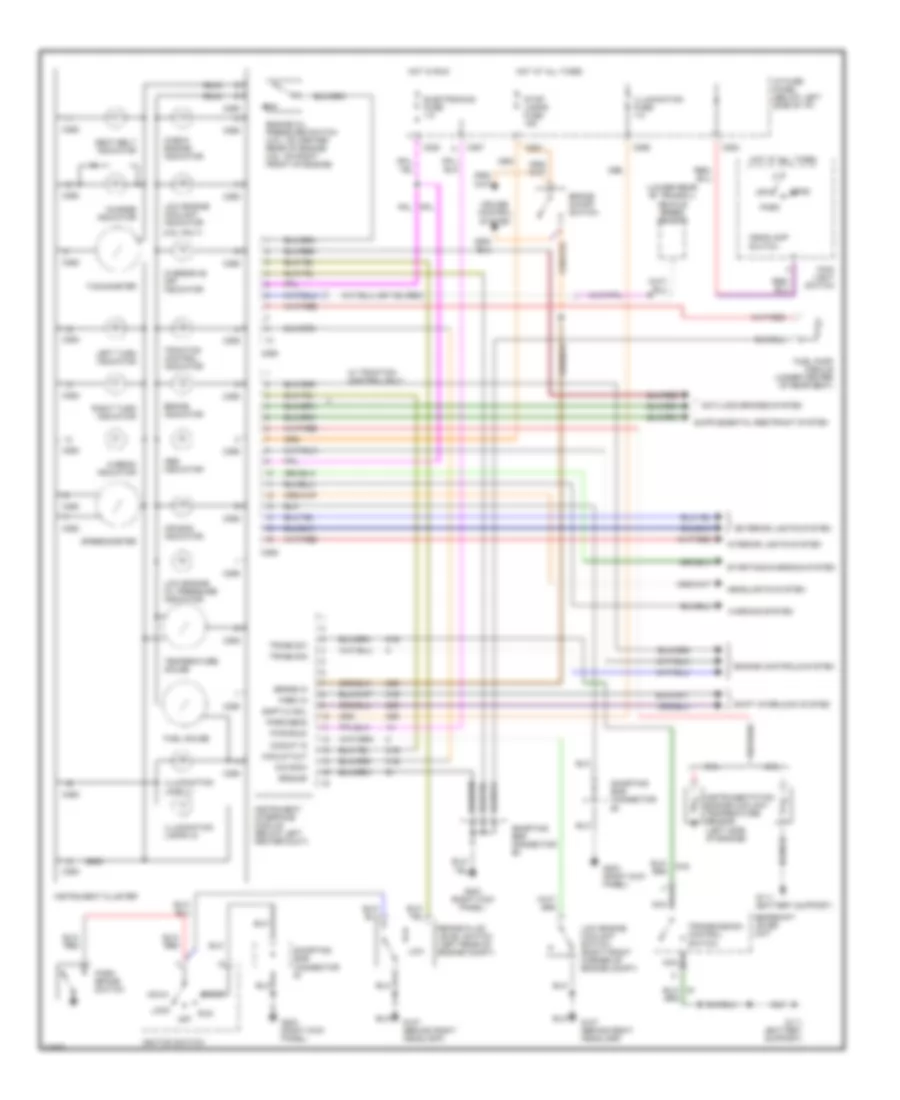

Электросхема панели приборов, без тахометр для Ford Contour SE 1996

Электросхема панели приборов, без тахометр для Ford Contour SE 1996 - Список элементов:

• (gnd)
• (lower rear of transxl) vehicle speed sensor
• (run)
• 2.0l
• 2.5l
• 29s
• 31s
• 91s
• Abs indicator
• Acc
• Air bag indicator
• Anti-lock brakes system
• Brake fluid level switch (left rear of engine compt)
• Brake in
• Brake indicator
• Brake on/off switch
• C201
• C262
• C282
• C283
• C287
• C290
• C298
• Charge indicator
• Check engine indicator
• Coolnt out
• Cruise control system
• Electronics fuse 7.5
• Engine controls system
• Engine oil pressure switch (2.0l: on center rear of engine 2.5l: on right front of engine)
• Exterior lights system
• Fuel gauge
• Fuel pump module (under center of rear seat)
• G107 (behind right headlamp)
• G111 (battery support)
• G203 (right kick panel)
• Gearshift lever unit
• Ground
• Head
• Headlamp switch
• Headlights system
• Hi-beam indicator
• Hot at all times
• Hot in run
• I/p fuse panel (below left side of i/p)
• Ignition switch
• Illumination fuse 7.5
• Illumination lamp (1)
• Illumination lamps (4)
• Instrument cluster
• Instrument interface module (below left heater duct)
• Instrumentation engine coolant temperature sensor (left side of engine)
• Interior lights system
• Left turn indicator
• Lock
• Low
• Low engine coolant indicator
• Low engine oil pressure indicator
• Main light switch
• Nca
• O/d indic
• Off
• Overdrive off indicator
• Park
• Park brake switch
• Park in
• Park/head
• Pwr (run)
• Right turn indicator
• Run
• Seat belt indicator
• Shift interlock system
• Shiftlk sol
• Shorting bar connector #1
• Shorting bar connector #2
• Shorting bar connector #3
• Speedometer
• Start
• Starting/charging system
• Stop lamps fuse 15a
• Temperature gauge
• Traction control indicator
• Trans sig
• Trans sw
• Transmission control switch
• W/ traction control only
• Warning system
