Электросхемы ПРИБОРНАЯ ПАНЕЛЬ Ford Ranger 2000

ПРИБОРНАЯ ПАНЕЛЬ

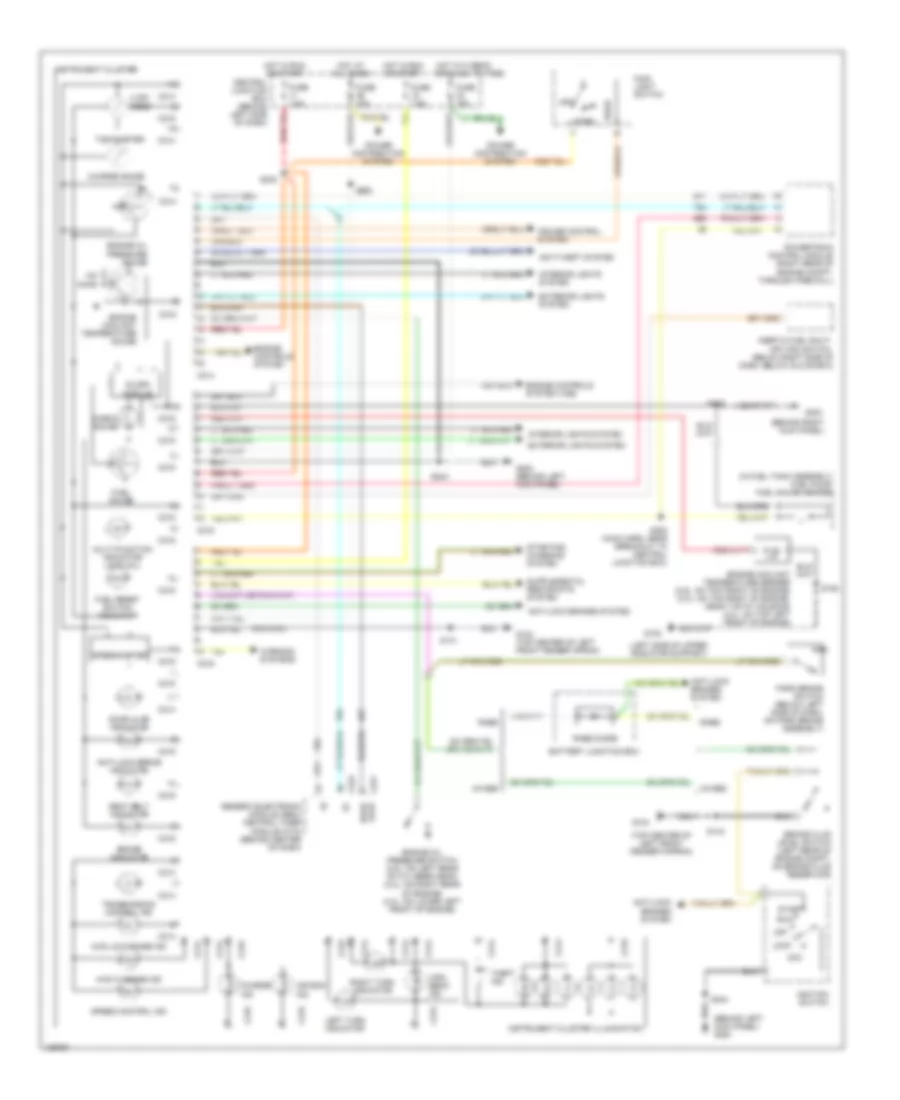

Электросхема панели приборов для Ford Ranger 2000

Электросхема панели приборов для Ford Ranger 2000 - Список элементов:

• (3.0l/4.0l)
• (behind left kick panel) g200
• (behind right kick panel)
• (in fuel tank assembly) fuel pump/ fuel gauge sender
• (left side of upper radiator support)
• (top center of left front fender fapron)
• 4.32k ohms
• 4wabs
• 4wd hi range ind
• 4wd low range ind
• Acc
• Air bag ind
• Anti-lock brake indicator
• Anti-lock brakes system
• Anti-theft system
• Battery junction box
• Brake fluid level switch (left rear of engine compt, on brake fluid reservoir)
• Brake indicator
• C214
• C215
• C216
• C221
• C223
• Central junction box (behind left side of dash)
• Charge gauge
• Charge ind
• Check gauge
• Cruise control system
• Door ajar
• Door ajar indicator
• Engine controls system
• Engine controls system (vss)
• Engine coolant temperature gauge
• Engine coolant temperature sender (2.5l: on top front of engine) (3.0l: on top right of engine, near t-stat housing) (4.0l: on top left front of engine)
• Engine oil pressure gauge
• Engine oil pressure switch (2.5l: on left rear of cylinder head) (3.0l: on right rear of engine) (4.0l: on lower left front of engine)
• Exterior lights system
• Fuel gauge
• Fuel reset switch indicator
• Fuse 10a
• Fuse 15a
• Fuse 7.5a
• G104
• G104 (top center of left front fender apron)
• G108
• G200 (behind left kick panel)
• G203
• Generic electronic module (gem)/ central timer module (ctm) (behind center of dash)
• Head
• High beam ind
• Hot at all times
• Hot in hi beam or flash to pass
• Hot in run or start
• Ignition switch
• Inertia fuel shut- off (ifs) switch (below right side of dash, below glove box)
• Instrument cluster
• Instrument cluster illumination
• Interior lights system
• Left turn indicator
• Lock
• Main light switch
• Multi-function indicator lamp (mil)
• Off
• Ohms
• Park
• Park brake switch (below left side of dash, on park brake assembly)
• Power distribution system
• Powertrain control module (right rear of engine compt, through firewall)
• Rabs
• Rabs diode
• Right turn indicator
• Run
• S106
• S131
• S143
• S205
• S240
• S244
• S253 (main harn, near breakout to central junction box)
• S260
• Seat belt indicator
• Slosh module
• Speed control ind
• Speedometer
• Start
• Starting/ charging system
• Tachometer
• Theft ind
• Transmission control ind
• Warning systems
