Электросхемы ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Ford Explorer 1997

ПРИВОД СТЕКЛОПОДЪЕМНИКОВ

Электросхема стеклоподъемников, 2 двери для Ford Explorer 1997

Электросхема стеклоподъемников, 2 двери для Ford Explorer 1997 - Список элементов:

• (i/p harn, near break- out to relay module) s259
• (near breakout to left power mirror) s504
• (near breakout to radio) s271
• (near breakout to radio) s272
• Accessory delay relay (in relay module)
• Accy delay
• Batt saver
• Battery saver relay (in relay module)
• C283
• Current hi
• Current low
• Down input
• Fuse 10a
• G500 (left front door)
• G600 (right front door)
• Generic elec- tronic module (behind center of i/p)
• Hot at all times
• Interior fuse panel
• Interior lights system
• Left front power window motor
• Left front power window switch
• Left front switch
• M m
• Maxi fuse 10 30a
• Maxi fuse 8 30a
• One touch dn
• One touch down relay (in relay module)
• Pnk
• Power distribution box (left side of engine compt, at fender apron)
• Power tops system
• Red
• Resistance wire (0.015 +/- 0.001 ohm)
• Right front power window motor
• Right front power window switch
• Right front switch
• S237
• S238
• S246
• S260 (near break- out to park brake switch)
• S270 (i/p harn, near breakout to relay module)
• S500
• S602
• Transmissions system
• Up input

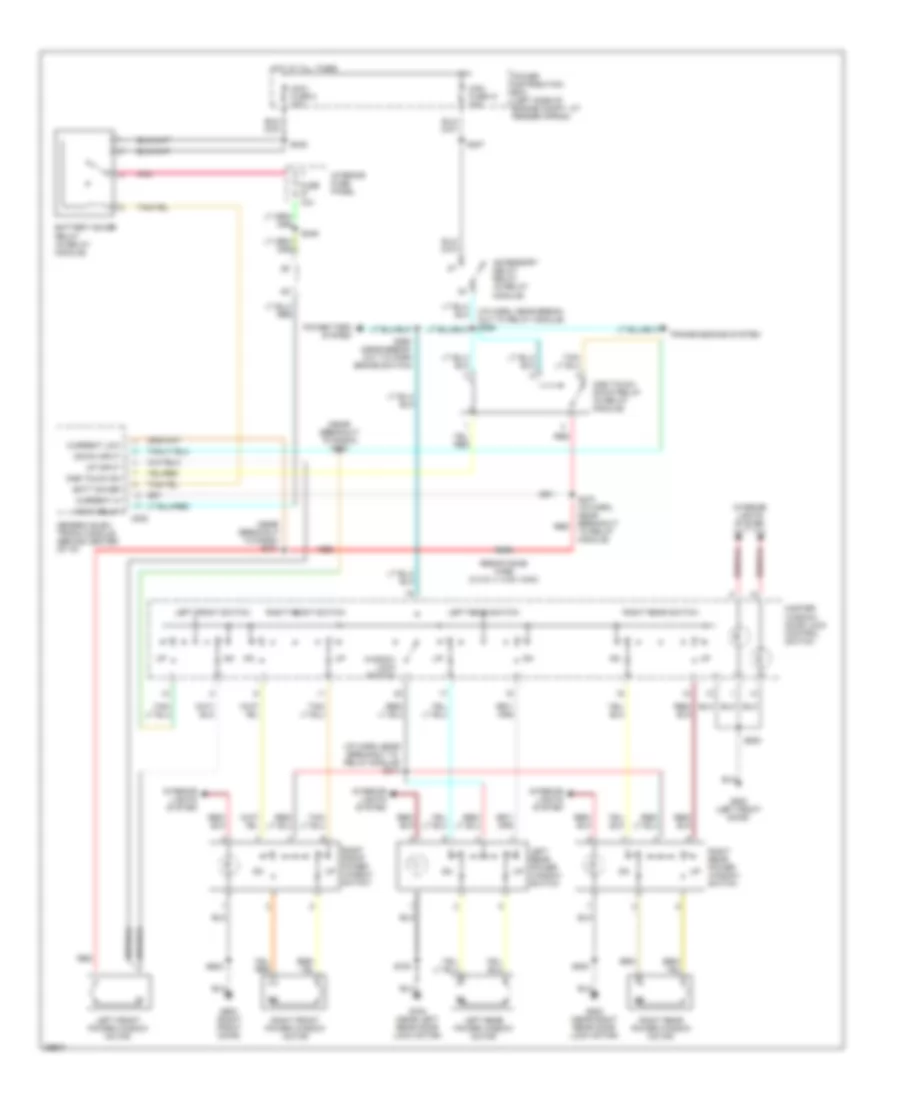

Электросхема стеклоподъемников, 4 двери для Ford Explorer 1997

Электросхема стеклоподъемников, 4 двери для Ford Explorer 1997 - Список элементов:

• (i/p harn, near break- out to relay module) s259
• (i/p harn, near breakout to relay module) s314
• (near breakout to radio) s271
• (near breakout to radio) s272
• Accessory delay relay (in relay module)
• Accy delay
• Batt saver
• Battery saver relay (in relay module)
• C283
• Current hi
• Current low
• Down input
• Fuse 10a
• G500 (left front door)
• G600 (right front door)
• G700 (near left rear door lock motor)
• G800 (near right rear door lock motor)
• Generic elec- tronic module (behind center of i/p)
• Hot at all times
• Interior fuse panel
• Interior lights system
• Left front power window motor
• Left front switch
• Left rear power window motor
• Left rear power window switch
• Left rear switch
• Master window/ door lock control switch
• Maxi fuse 10 30a
• Maxi fuse 8 30a
• One touch dn
• One touch down relay (in relay module)
• Pnk
• Power distribution box (left side of engine compt, at fender apron)
• Power tops system
• Red
• Resistance wire (0.015 +/- 0.001 ohm)
• Right front power window motor
• Right front power window switch
• Right front switch
• Right rear power window motor
• Right rear power window switch
• Right rear switch
• S237
• S238
• S246
• S260 (near break- out to park brake switch)
• S270 (i/p harn, near breakout to relay module)
• S500
• S602
• S700
• S800
• Transmissions system
• Up input
• Window lock switch
