Электросхемы ПРИВОД СТЕКЛОПОДЪЕМНИКОВ Ford F550 Super Duty 2005

ПРИВОД СТЕКЛОПОДЪЕМНИКОВ

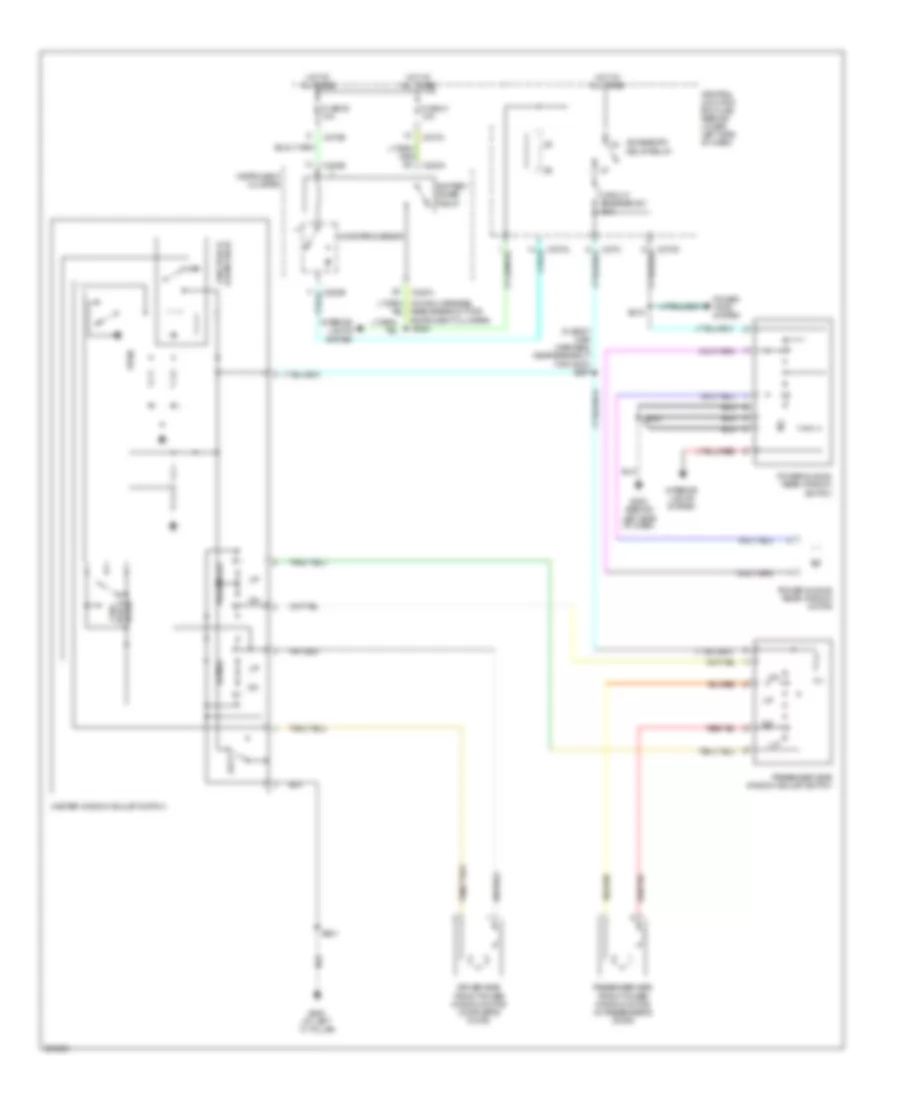

Электросхема стеклоподъемников, двойная кабина (1 из 2) для Ford F550 Super Duty 2005

Электросхема стеклоподъемников, двойная кабина (1 из 2) для Ford F550 Super Duty 2005 - Список элементов:

• (near breakout for instrument cluster)
• Accessory delay relay
• Battery saver relay
• C220a
• C220b
• C270a
• C270b
• C270d
• C270i
• C504a
• C504b
• Central junction box (cjb) (behind lower left side of dash)
• Circuit breaker 601 30a
• Driver
• Driver side front power window motor (in driver's door)
• Fuse 35 10a
• Fuse 41 10a
• G900 (at left ``c" pillar)
• Hot at all times
• Instrument cluster
• Interior lights system
• Left rear
• Lock
• Master window adjust switch
• Microprocessor
• One- touch down
• One-touch down relay
• Passenger
• Power tops system
• Right rear
• S219
• S229
• S501
• Vpwr

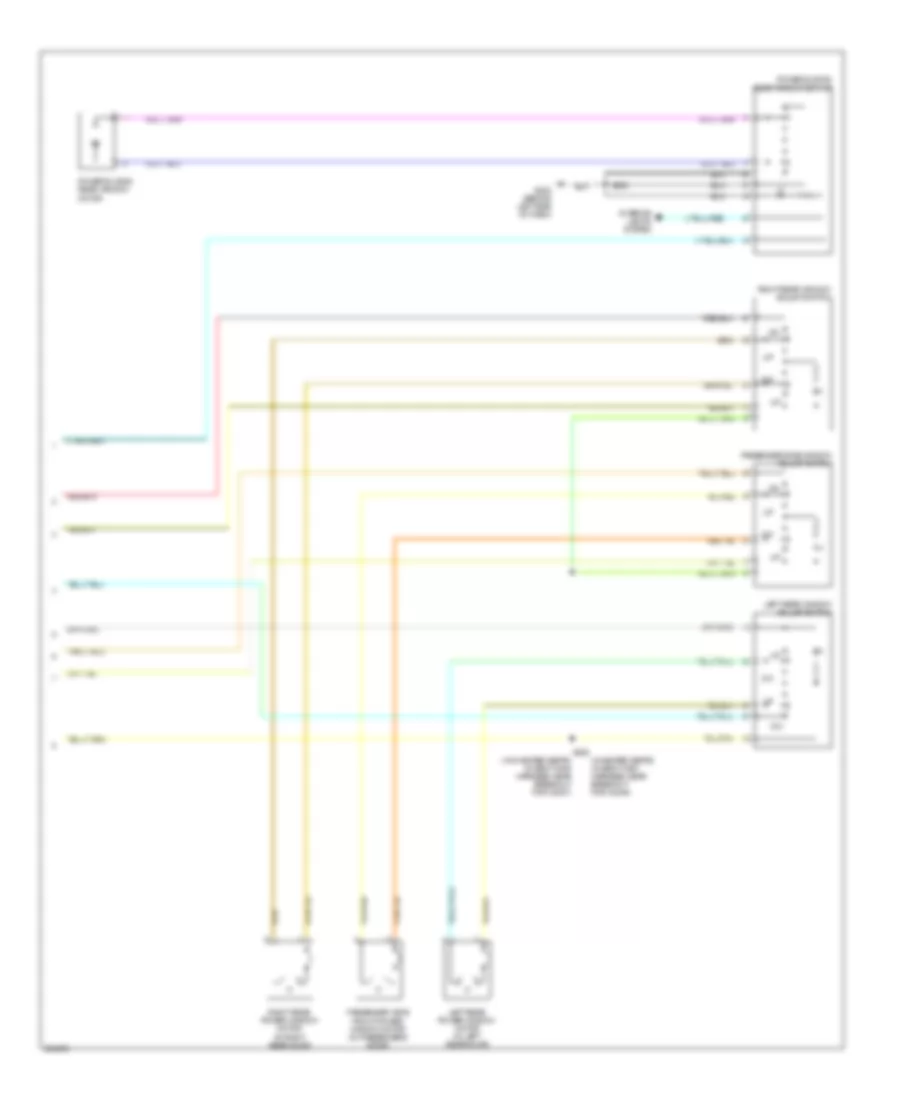

Электросхема стеклоподъемников, двойная кабина (2 из 2) для Ford F550 Super Duty 2005

Электросхема стеклоподъемников, двойная кабина (2 из 2) для Ford F550 Super Duty 2005 - Список элементов:

• (w/heated seats) (in body main harness, near breakout for c3049)
• G202 (behind left side of dash)
• Interior lights system
• Left rear power window motor (in left rear door)
• Left rear window adjust switch
• Passenger side front power window motor (in passenger's door)
• Passenger side window adjust switch
• Power sliding rear window motor
• Power sliding rear window switch
• Right rear power window motor (in right rear door)
• Right rear window adjust switch
• S232
• S328 (w/o heated seats) (in body main harness, near breakout for c3007)

Электросхема стеклоподъемников, кроме двойной кабины для Ford F550 Super Duty 2005

Электросхема стеклоподъемников, кроме двойной кабины для Ford F550 Super Duty 2005 - Список элементов:

• (in body main harness, near breakout for g300) s297
• Accessory delay relay
• Battery saver relay
• C220a
• C220b
• C270a
• C270b
• C270d
• C270i
• Central junction box (cjb) (behind lower left side of dash)
• Circuit breaker 601 30a
• Driver
• Driver side front power window motor (in driver's door)
• Fuse 35 10a
• Fuse 41 10a
• G202 (behind left side of dash)
• G900 (at left ``c" pillar)
• Hot at all times
• Instrument cluster
• Interior lights system
• Lock
• Master window adjust switch
• Microprocessor
• One- touch down
• One-touch down relay
• Passenger
• Passenger side front power window motor (in passenger's door)
• Passenger side window adjust switch
• Power sliding rear window motor
• Power sliding rear window switch
• Power tops system
• S219
• S229
• S232
• S501
• Vpwr
