Электросхемы Противоугонная система Сигнализация Ford Crown Victoria Police Interceptor 2005

Противоугонная система Сигнализация

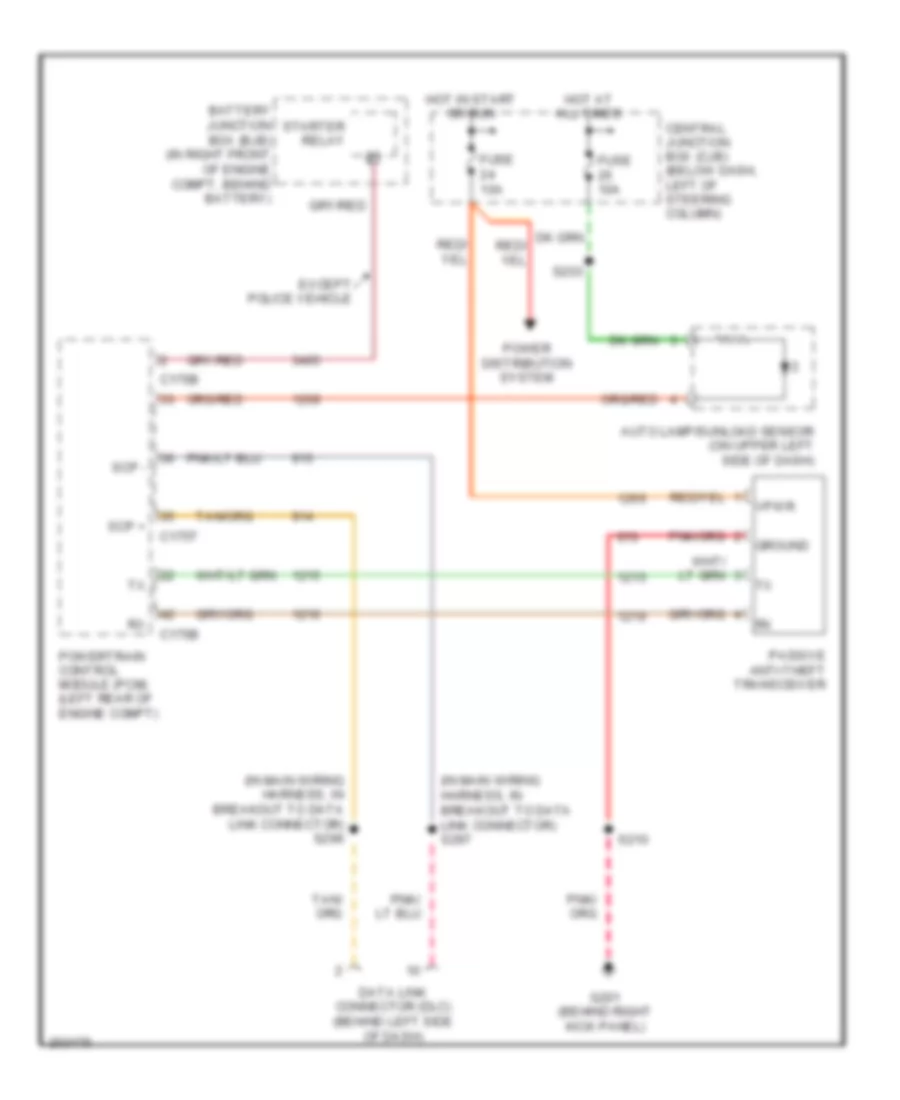

Электросхема противоугонной сигнализации для Ford Crown Victoria Police Interceptor 2005

Электросхема противоугонной сигнализации для Ford Crown Victoria Police Interceptor 2005 - Список элементов:

• (in main wiring harness, in breakout to data link connector) s296
• (in main wiring harness, in breakout to data link connector) s297
• Auto lamp/sunload sensor (on upper left side of dash)
• Battery junction box (bjb) (in right front of engine compt, behind battery)
• C175b
• C175t
• Central junction box (cjb) (below dash, left of steering column)
• Data link connector (dlc) (behind left side of dash)
• Except police vehicle
• Fuse 10a
• G201 (behind right kick panel)
• Ground
• Hot at all times
• Hot in start or run
• Passive anti-theft transceiver
• Power distribution system
• Powertrain control module (pcm) (left rear of engine compt)
• S203
• S210
• Scp +
• Scp -
• Starter relay
• Vpwr
