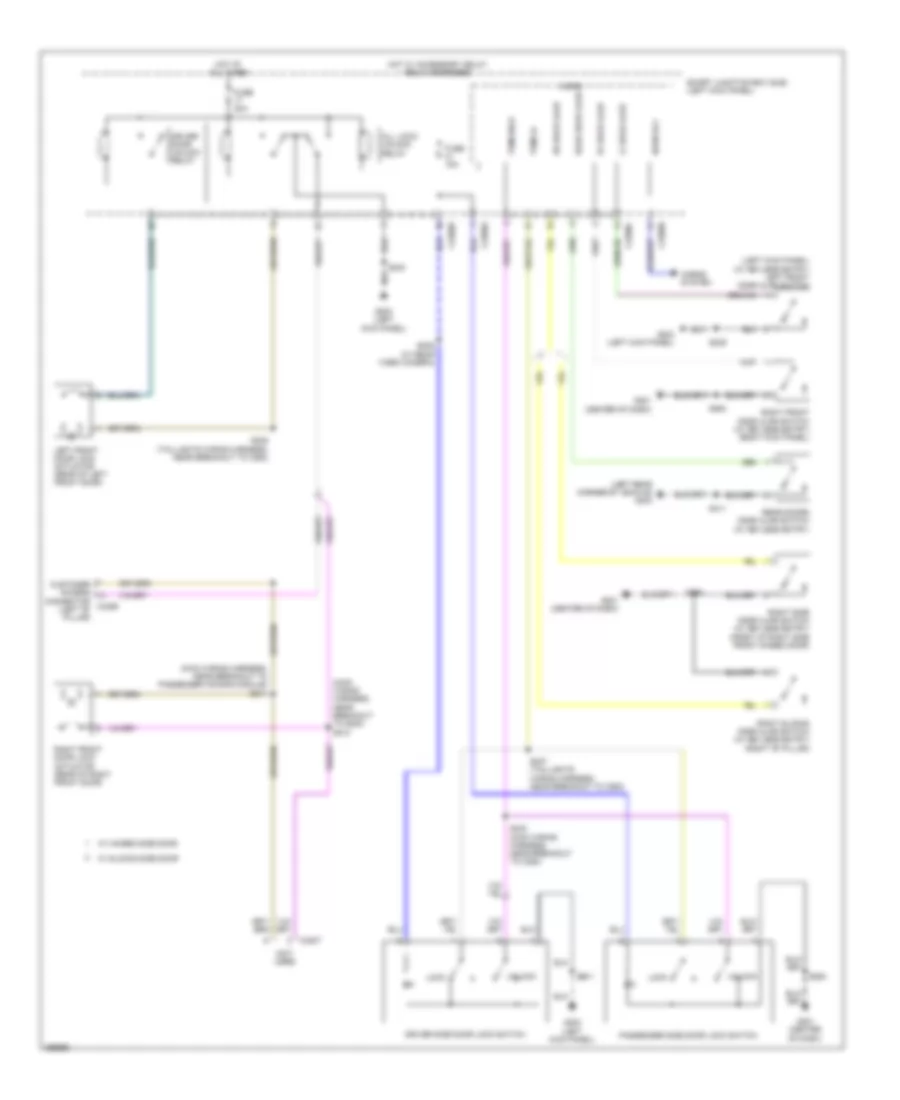

Электросхема открывания авто, С визитка для Ford Cutaway E350 Super Duty 2009
https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html
Automotive Electricians Portal FZCO
Automotive Electricians Portal FZCO Электросхема открывания авто, С визитка для Ford Cutaway E350 Super Duty 2009 - Список элементов:
- (left kick panel) (w/ keyless entry) left front door ajar switch
- (left rear corner of vehicle) g403
- (main wiring harness, near breakout to g200) s210
- (main wiring harness, near breakout to passenger air bag module) s211
- (not used)
- All lock/ unlock relay
- C2280a
- C2280b
- C2280c
- C2280d
- C3007
- Connector c3359 (left "b" pillar)
- Customer access
- Driver door unlock relay
- Driver side door lock switch
- Fuse 15a
- Fuse 20a
- G201 (center of dash)
- G203 (left kick panel)
- Horn rly
- Horns system
- Hot at all times
- Hot w/ accessory delay relay energized
- Left front door lock actuator (rear of left front door)
- Lf door ajar
- Lock
- Micro
- Passenger side door lock switch
- Rear door ajar
- Rear doors door ajar switch (w/ keyless entry)
- Rf door ajar
- Right front door ajar switch (w/ keyless entry) (right kick panel)
- Right front door lock actuator (rear of right front door)
- Right side door ajar switch (w/ keyless entry) (front of right side front hinged door)
- Right sliding door ajar switch (w/ keyless entry) (right "b" pillar)
- Rr door ajar
- S233 (main wiring harness, near breakout to c264)
- S236 (w/ rear video camera)
- S237 (taillights wiring harness, near breakout to c263)
- S238 (taillights wiring harness, near breakout to c263)
- S239
- S240
- S264
- S411
- S501
- Smart junction box (sjb) (left kick panel)
- Trim lk
- Trim unlk
- Unlock
- W/ hinged side door
- W/ sliding side door
Электросхема открывания авто, без визитка для Ford Cutaway E350 Super Duty 2009
Электросхема открывания авто, без визитка для Ford Cutaway E350 Super Duty 2009 - Список элементов:
- (hinged: rear of right side front hinged door) (sliding: front of right side sliding door) right side door lock actuator
- (left kick panel) (w/ keyless entry) left front door ajar switch
- (left rear corner of vehicle) g403
- (main wiring harness, near breakout to g200) s210
- (main wiring harness, near breakout to passenger air bag module) s211
- (taillights
- (w/ rear video camera) s236
- All lock/ unlock relay
- C2280a
- C2280b
- C2280c
- C2280d
- C3235
- C807
- Driver door unlock relay
- Driver side door lock switch
- Fuse 15a
- Fuse 20a
- G201 (center of dash)
- G203 (left kick panel)
- Horn rly
- Horns system
- Hot at all times
- Hot w/ accessory delay relay energized
- Left front door lock actuator (rear of left front door)
- Lf door ajar
- Lock
- Micro
- Passenger side door lock switch
- Rear door ajar
- Rear doors door ajar switch (w/ keyless entry)
- Rear doors door lock actuator (left side of right rear door)
- Rear doors door lock switch (right rear door)
- Rf door ajar
- Right front door ajar switch (w/ keyless entry) (right kick panel)
- Right front door lock actuator (rear of right front door)
- Right side door ajar switch (w/ keyless entry) (front of right side front hinged door)
- Right sliding door ajar switch (w/ keyless entry) (right "b" pillar)
- Right sliding door contact switch (right side of sliding side door)
- Rr door ajar
- S237
- S238 (taillights wiring harness, near breakout to c263)
- S239
- S240
- S264
- S405
- S411
- S501
- Smart junction box (sjb) (except stripped chassis: left kick panel) (stripped chassis: left side of dash)
- To c263)
- Trim lk
- Trim unlk
- Unlock
- W/ hinged side door
- W/ sliding side door
- Wiring harness, near breakout
пассивная Электросхема противоугонной сигнализации для Ford Cutaway E350 Super Duty 2009
пассивная Электросхема противоугонной сигнализации для Ford Cutaway E350 Super Duty 2009 - Список элементов:
- (right rear of engine compt) powertrain control module (pcm)
- C175b
- C2280b
- Cbp36
- Computer data lines system
- Fuse 5a
- G202 (except stripped chassis) (left side of dash)
- Gd114
- Ground
- Hot in run or start
- Hs can +
- Hs can -
- Instrument panel cluster (ipc)
- Passive anti-theft transceiver (top center of dash)
- Power
- S263
- Smart junction box (sjb) (stripped chassis: left side of dash) (except stripped chassis: left kick panel)
- Vdb04
- Vdb05
- Vrt23
- Vrt24
