Электросхемы Противоугонная система Сигнализация Ford F-350 Super Duty XL 2013

Противоугонная система Сигнализация

Электросхема открывания авто (1 из 2) для Ford F-350 Super Duty XL 2013

Электросхема открывания авто (1 из 2) для Ford F-350 Super Duty XL 2013 - Список элементов:

• (body main wiring harness, near breakout to c312) (crew cab) s382
• (body main wiring harness, near breakout to c312) s302
• (body main wiring harness, near breakout to c312) s305
• Accessory delay relay
• All lock/ unlock relay
• Body control module (right kick panel)
• C2280c
• C2280d
• C555
• C655
• C755
• C855
• Computer data lines system
• Cpk19
• Cpk23
• Door lock
• Door unlock
• Driver door unlock relay
• Driver side door lock switch
• Fuse 15a
• Fuse 20a
• G300 (left kick panel)
• G302 (right kick panel)
• Hot at all times
• Internal ant rke receiver
• Left front door lock actuator
• Left rear door lock actuator (crew cab)
• Lock
• Micro
• Ms can +
• Ms can -
• Passenger side door lock switch
• Right front door lock actuator
• Right rear door lock actuator (crew cab)
• S306 (body main wiring harness, near breakout to c312)
• S314
• S505 (w/ power equipment)
• S638 (w/ power equipment)
• Tire pressure monitor module (right end of dash)
• Unlock
• Vdb06
• Vdb07

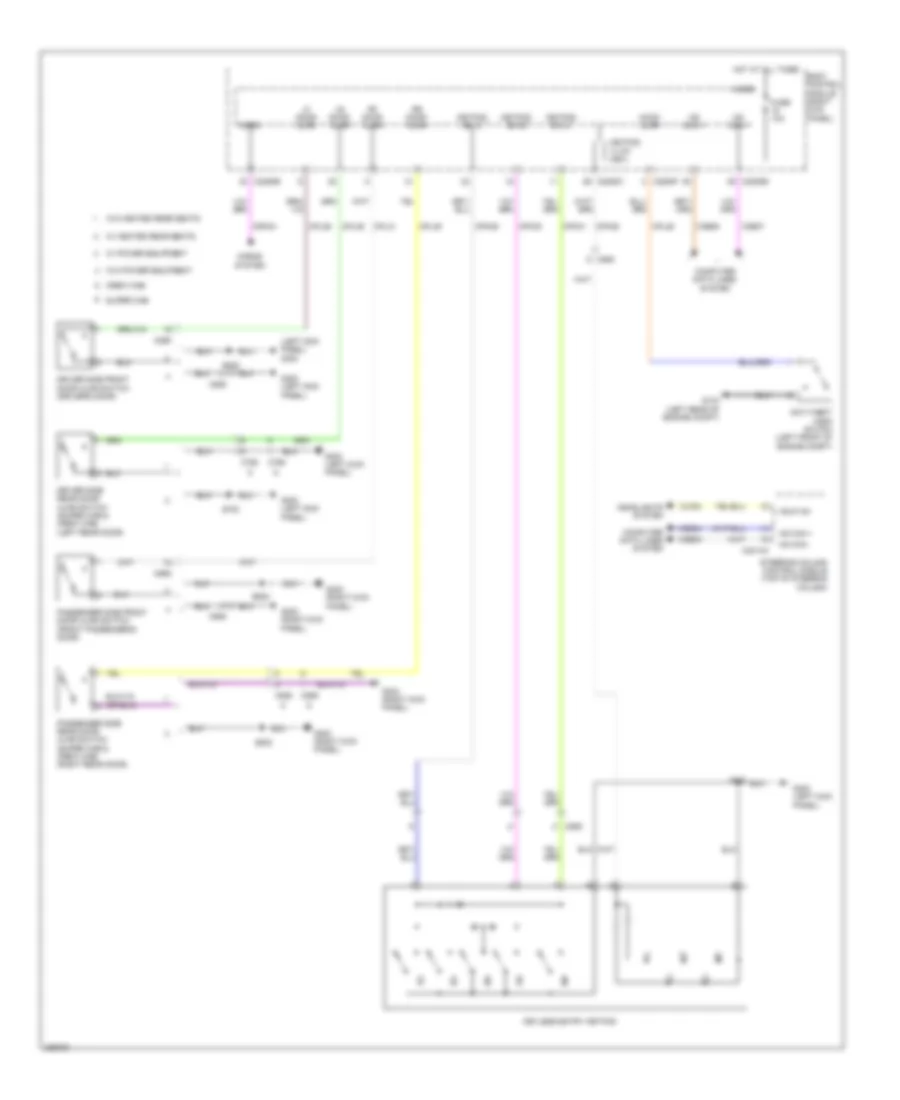

Электросхема открывания авто (2 из 2) для Ford F-350 Super Duty XL 2013

Электросхема открывания авто (2 из 2) для Ford F-350 Super Duty XL 2013 - Список элементов:

• (left kick panel) g300
• 1/2
• 3/4
• 5/6
• 7/8
• 9/0
• Anti-theft hood switch (left front of engine compt)
• Body control module (right kick panel)
• C2280b
• C2280c
• C2280f
• C2414a
• C555
• C655
• C755
• C756
• C855
• C856
• Clf24
• Computer data lines system
• Cpk28
• Cpk29
• Cpk30
• Cpk31
• Cpl25
• Cpl26
• Cpl31
• Cpl36
• Cpl39
• Crew cab
• Crh04
• Driver side front door ajar switch (driver's door)
• Driver side rear door ajar switch (super cab & crew cab) (left rear door)
• Fuse 10a
• G104 (left rear of engine compt)
• G300 (left kick panel)
• G302 (right kick panel)
• Hdlp on
• Headlights system
• Hood ajar
• Horn
• Horns system
• Hot at all times
• Hs can +
• Hs can -
• Keyless entry keypad
• Keypad illum (fet)
• Keypad sw a
• Keypad sw b
• Keypad sw c
• Lf door ajar
• Lr door ajar
• Micro
• Ms can +
• Ms can -
• Passenger side front door ajar switch (front passenger's door)
• Passenger side rear door ajar switch (super cab & crew cab) (right rear door)
• Rf door ajar
• Rr door ajar
• S505
• S638
• S700
• S802
• Steering column control module (top of steering column)
• Super cab
• Vdb04
• Vdb05
• Vdb06
• Vdb07
• W/ heated rear seats
• W/ power equipment
• W/o heated rear seats
• W/o power equipment

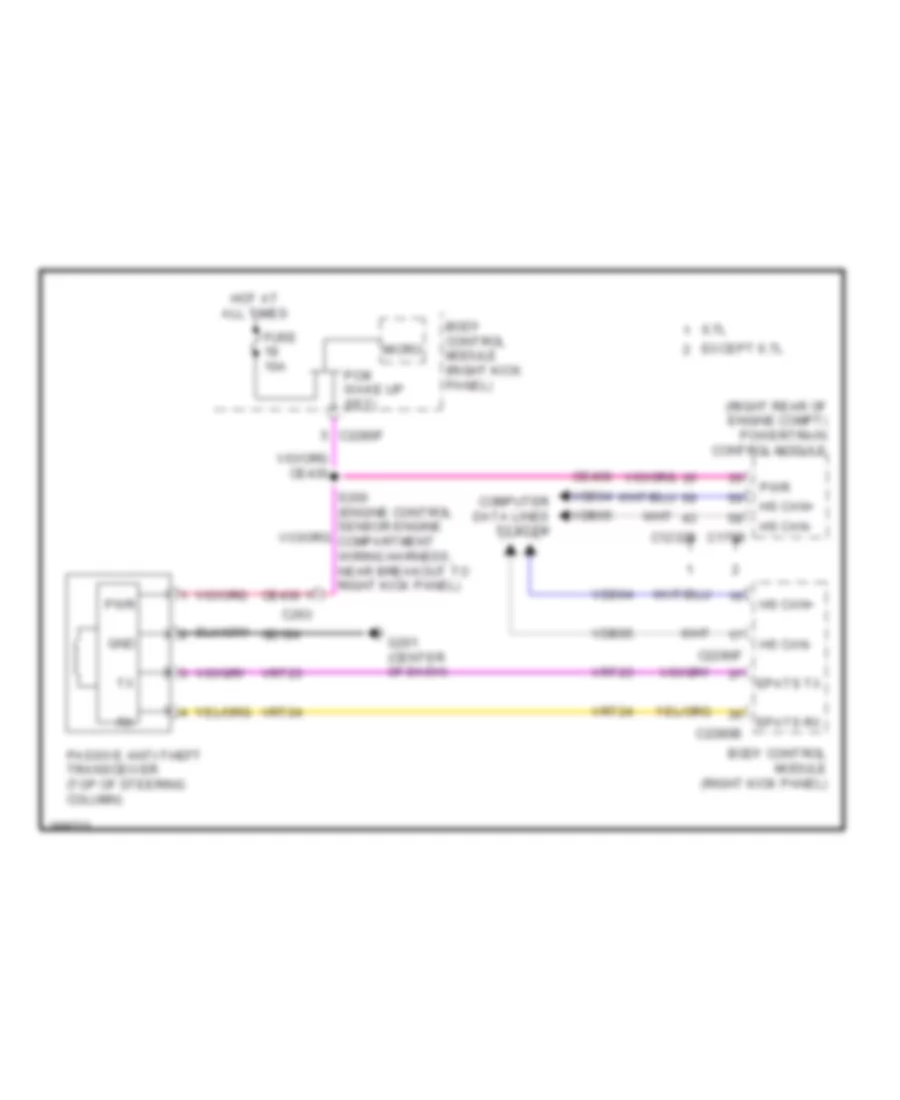

пассивная Электросхема противоугонной сигнализации для Ford F-350 Super Duty XL 2013

пассивная Электросхема противоугонной сигнализации для Ford F-350 Super Duty XL 2013 - Список элементов:

• (right rear of engine compt) powertrain control module
• 6.7l
• Body control module (right kick panel)
• C1232b
• C175b
• C2280b
• C2280f
• C263
• Ce436
• Computer data lines system
• Epats rx
• Epats tx
• Except 6.7l
• Fuse 10a
• G201 (center of dash)
• Gd184
• Gnd
• Hot at all times
• Hs can+
• Hs can-
• Micro
• Passive anti-theft transceiver (top of steering column)
• Pcm wake up (fet)
• Pwr
• Vdb04
• Vdb05
• Vrt23
• Vrt24
