Электросхемы СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS Ford Focus ZX3 S 2006

СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS

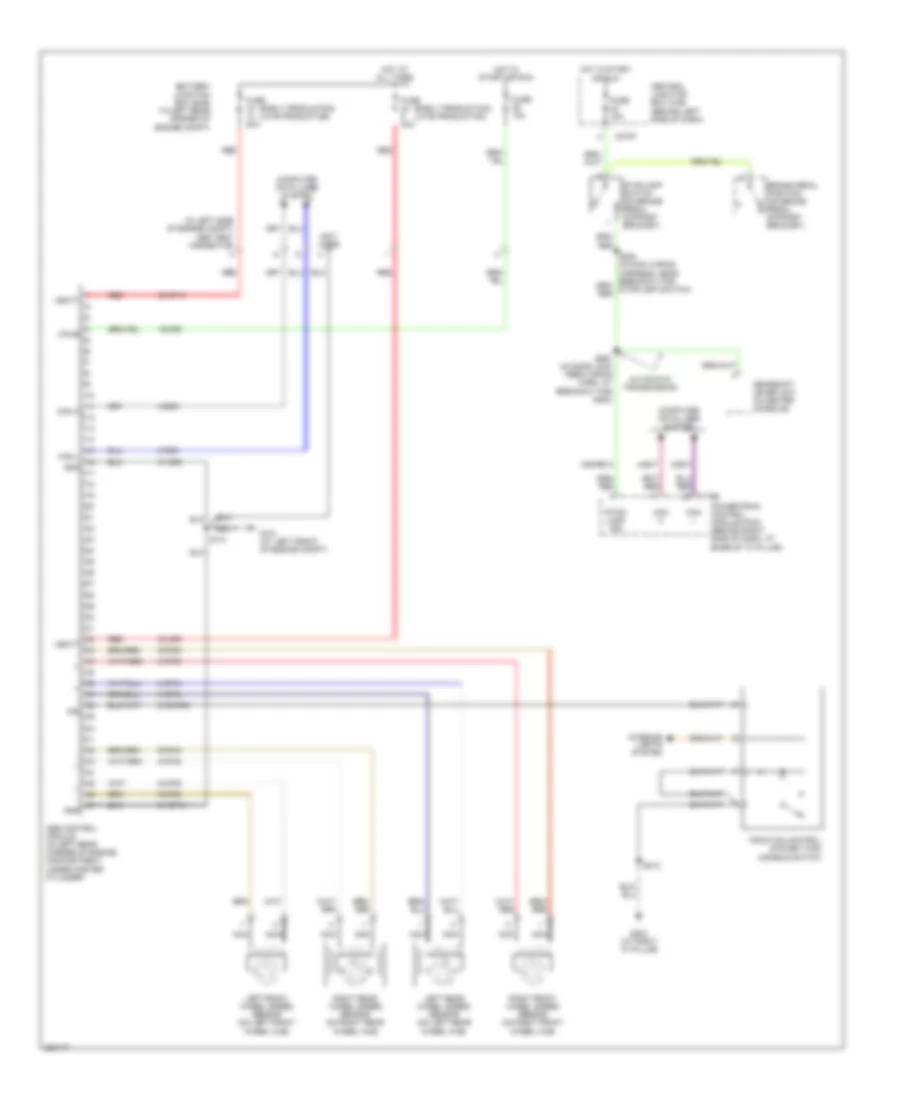

Электросхема антиблокировочной тормозной системы АБС (ABS), С Регулирование тягового усилия для Ford Focus ZX3 S 2006

Электросхема антиблокировочной тормозной системы АБС (ABS), С Регулирование тягового усилия для Ford Focus ZX3 S 2006 - Список элементов:

• (early production) (late production)
• (in left side of engine compt)
• (not used)
• 15-cf6
• 15s-re13
• 30-cf13
• 30-cf6
• 31-cf13
• 31-cf6
• 4-ec7
• 4-ec9
• 5-ec7
• 5-ec9
• 8-cf32
• 8-cf34
• 8-cf38
• 8-cf40
• 9-cf32
• 9-cf34
• 9-cf38
• 9-cf40
• 91s-cf54
• Abs control module (in left rear corner of engine compartment, under master cylinder)
• Abs test connector
• Automatic transmission
• Battery junction box (bjb) (in left rear corner of engine compt)
• Brake pedal position (on brake pedal support bracket)
• C175b
• C270f
• Can h
• Can l
• Central junction box (cjb) (behind left side of dash)
• Computer data lines system
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fuse 30a
• G101 (at left front of engine compt)
• G203 (at right "a" pillar)
• Gearshift lever unit (in center console)
• Gnd
• Hot at all times
• Hot in start or run
• Interior lights system
• Left front wheel speed sensor (on left front wheel hub)
• Left rear wheel speed sensor (on left rear wheel hub)
• Nca
• Powertrain control module (pcm) (behind right side of dash, at base of "a" pillar)
• Red
• Right front wheel speed sensor (on right front wheel hub)
• Right rear wheel speed sensor (on right rear wheel hub)
• S141
• S212
• S267 (in door lock feed wiring harn, at breakout for g200)
• Sig
• Stop- lamp sig
• Stoplamp switch (on brake pedal support bracket)
• Traction control system (tcs) disable switch
• Vbatt
• Vpwr

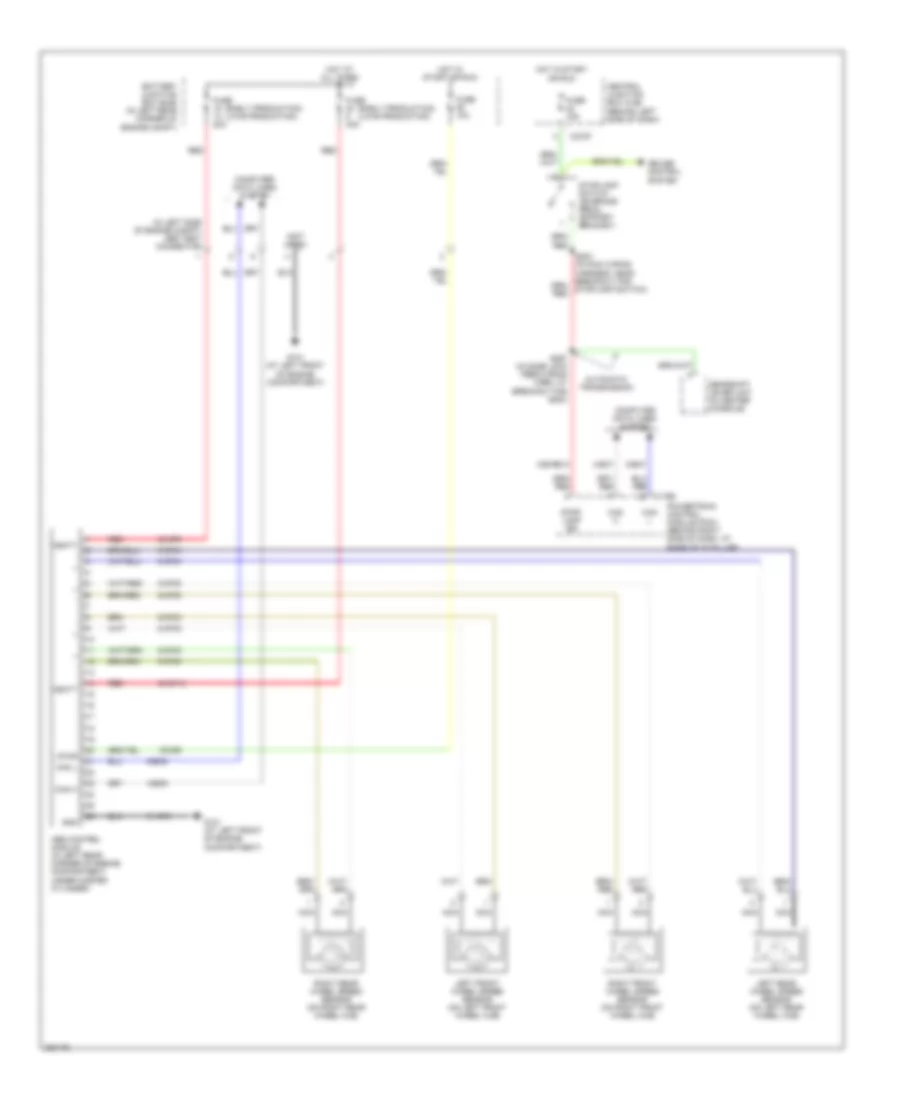

Электросхема антиблокировочной тормозной системы АБС (ABS), без Регулирование тягового усилия для Ford Focus ZX3 S 2006

Электросхема антиблокировочной тормозной системы АБС (ABS), без Регулирование тягового усилия для Ford Focus ZX3 S 2006 - Список элементов:

• (early production) (late production)
• (in left side of engine compt) abs test connector
• (not used)
• 15-cf6
• 15s-re13
• 30-cf13
• 30-cf6
• 31-cf6
• 4-ec7
• 4-ec9
• 5-ec7
• 5-ec9
• 8-cf32
• 8-cf34
• 8-cf38
• 8-cf40
• 9-cf32
• 9-cf34
• 9-cf38
• 9-cf40
• Abs control module (in left rear corner of engine compartment, under master cylinder)
• Automatic transmission
• Battery junction box (bjb) (in left rear corner of engine compt)
• C175b
• C270f
• Can h
• Can l
• Central junction box (cjb) (behind left side of dash)
• Computer data lines system
• Cruise control system
• Fuse 10a
• Fuse 15a
• Fuse 20a
• Fuse 30a
• G101 (at left front of engine compartment)
• Gearshift lever unit (in center console)
• Gnd
• Hot at all times
• Hot in start or run
• Left front wheel speed sensor (on left front wheel hub)
• Left rear wheel speed sensor (on left rear wheel hub)
• Nca
• Powertrain control module (pcm) (behind right side of dash, at base of "a" pillar)
• Red
• Right front wheel speed sensor (on right front wheel hub)
• Right rear wheel speed sensor (on right rear wheel hub)
• S267 (in door lock feed wiring harn, at breakout for g200)
• Stop- lamp sig
• Stoplamp switch (on brake pedal support bracket)
• Vbatt
• Vpwr
