Электросхемы СИСТЕМА КОНДИЦИОНЕРА Ford F550 Super Duty 2005

СИСТЕМА КОНДИЦИОНЕРА

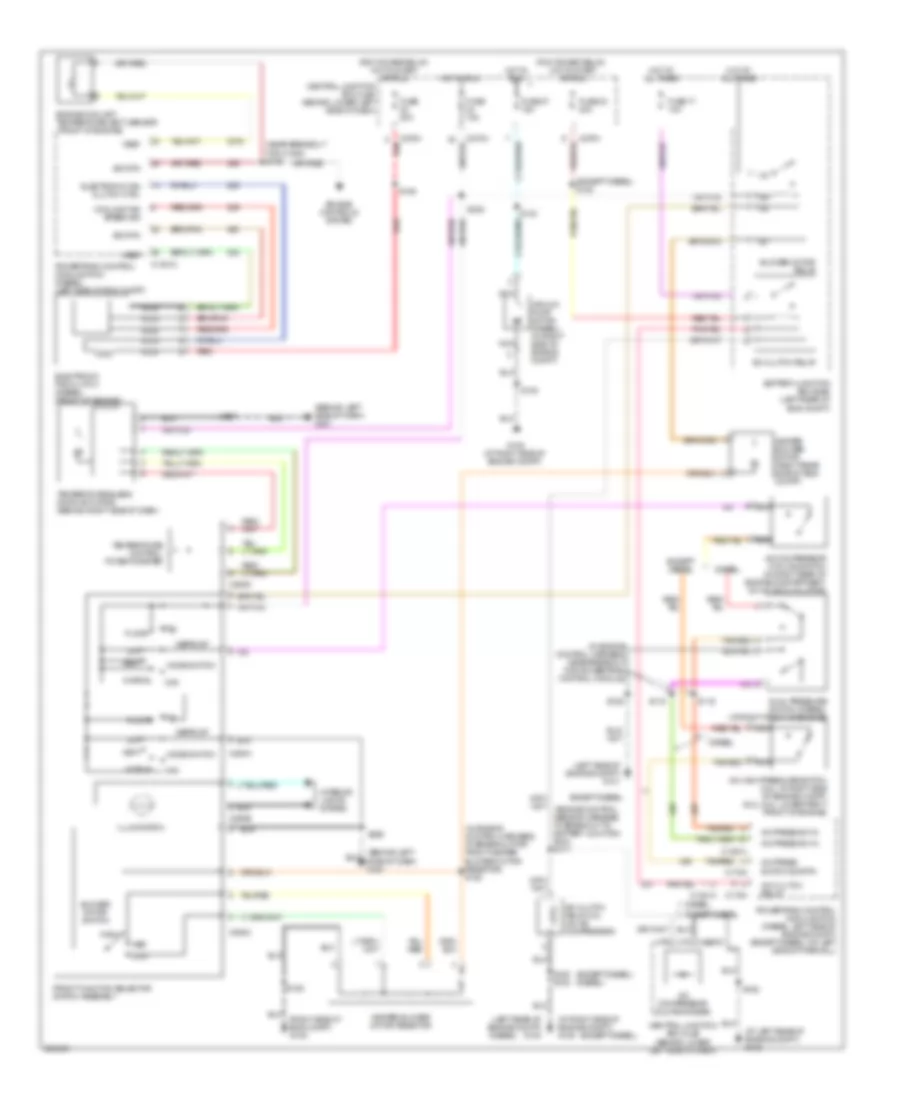

Электросхема кондиционера (1 из 2) для Ford F550 Super Duty 2005

Электросхема кондиционера (1 из 2) для Ford F550 Super Duty 2005 - Список элементов:

• A/c demand sig
• Air bag sliding contact (in steering column)
• Air temp dr sense +
• Air temp dr signal -
• Ambient air temperature sensor (on left front of engine compt)
• Ambient temp
• Batt
• Blend door actuator +
• Blend door actuator -
• Blend door monitor
• Blower motor high
• Blower mtr rly ctrl
• Blower speed control signal return
• C218a
• C228a
• C228b
• C270a
• Central junction box (cjb) (behind lower left side of dash)
• Computer data lines system
• Electronic automatic temperature control (eatc) module (behind center of dash)
• Fan speed (+)
• Fan speed (-)
• Fuse 10a
• Fuse 15a
• G202 (behind left side of dash)
• G300 (on floor, in left front footwell)
• Hot at all times
• Hot in run
• Ign
• Illumination
• In veh temp sensor
• In-vehicle temperature sensor (behind left side of dash)
• Interior lights system
• Logic gnd
• Nca
• Remote solenoid assembly (center of dash)
• Rest
• S148 (in main harness, near breakout to c1445)
• S201
• S208
• S218
• S235
• Sensor return
• Solenoid 1 ctrl
• Solenoid 2 ctrl
• Solenoid 3 ctrl
• Solenoid 4 ctrl
• Solenoid 5 ctrl
• Solenoid assembly
• Speed controller
• Steering wheel controls
• Steering wheel radio switch
• Sunload sensor sig
• Temp (+)
• Temp (-)
• Temperature blend door actuator (behind right side of dash)
• Ubp diag

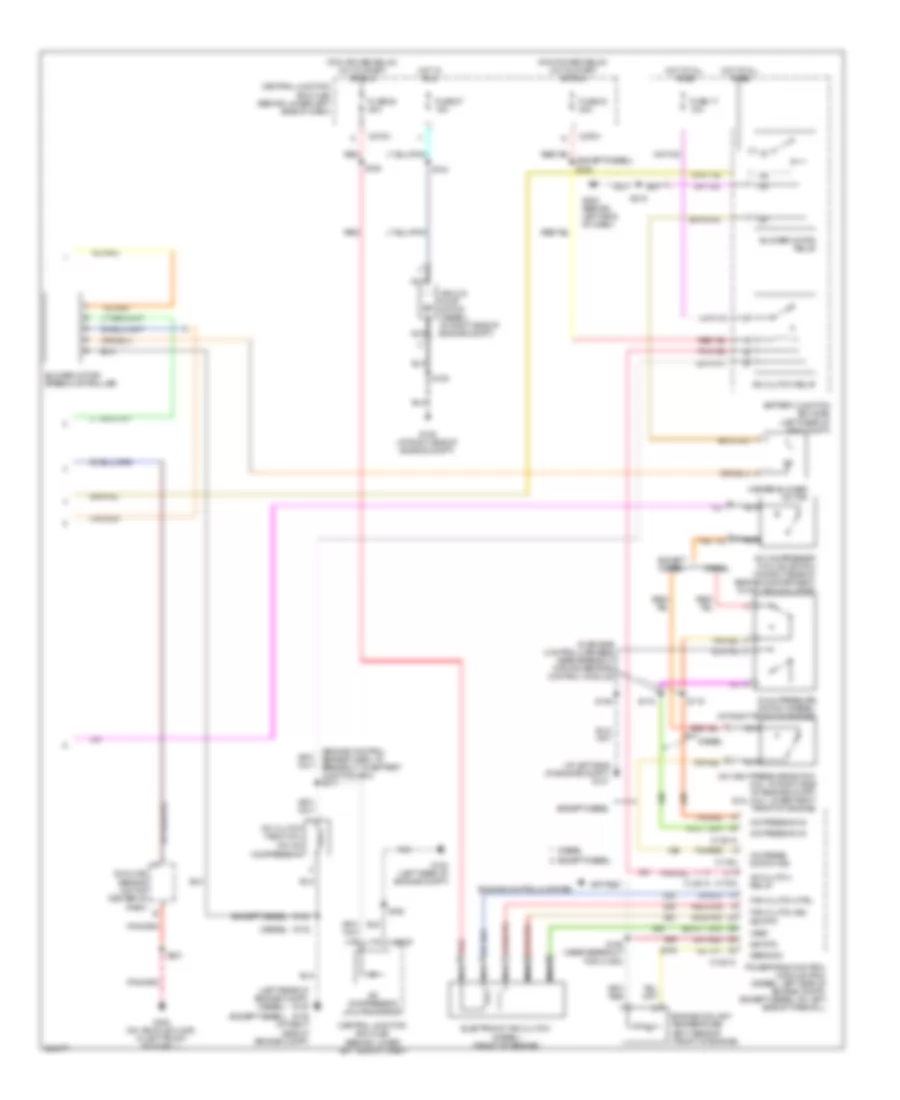

Электросхема кондиционера (2 из 2) для Ford F550 Super Duty 2005

Электросхема кондиционера (2 из 2) для Ford F550 Super Duty 2005 - Список элементов:

• (at left side of engine compt) g101
• (diesel)
• (engine control sensor harn, at breakout to battery junction box) s171
• (except diesel)
• (except diesel) s122
• (in engine control harness, near breakout for powertrain control module)
• (left rear of engine compt) g100
• (on a/c compressor)
• (pcm power relay) hot in start or run
• A/c clutch field coil
• A/c clutch relay
• A/c compressor clutch diode
• A/c compressor cycling switch (in right rear of engine compartment, on a/c accumulator)
• A/c high pressure switch (5.4l: in right side of engine compt) (6.0l, 6.8l: lower right front of engine)
• A/c press sw in
• A/c press switch sig
• Battery junction box (bjb) (left rear of eng compt)
• Blower motor relay
• Blower motor speed controller
• C1381a
• C1381c
• C175a
• C270f
• C270h
• Central junction box (cjb) (behind lower left side of dash)
• Diesel
• Dual pressure switch (diesel) (at right front of engine)
• Electronic fan clutch (diesel) (front of engine)
• Engine controls system
• Engine coolant temperature (ect) sensor (front of engine)
• Except diesel
• Fan clutch ctrl
• Fan clutch sig
• Fuse 17 10a
• Fuse 22 20a
• Fuse 23 20a
• Fuse 27 15a
• G100 (left rear of engine compt)
• G108 (at right side of engine compt)
• G202 (behind left side of dash)
• G300 (on vehicle floor, in left front footwell)
• Heater blower motor
• Hot at all times
• Hot in run
• Nca
• Powertrain control module (pcm) (diesel: left side of engine compt) (except diesel: on left side of firewall)
• Red
• S102
• S106
• S116
• S119
• S124
• S162
• S180
• S192 (near breakout for c1064)
• S193
• S201
• S218
• Sens sig
• Sig rtn
• Sunload sensor (on top center of dash)
• Tan/red
• Vacuum pump motor (diesel) (in right side of engine compt)
• Vref

Электросхема кондиционера с ручный управлением для Ford F550 Super Duty 2005

Электросхема кондиционера с ручный управлением для Ford F550 Super Duty 2005 - Список элементов:

• (at left rear of engine compt) g100
• (at right side of engine compt) g108
• (behind left side of dash) g201
• (diesel)
• (except diesel)
• (except diesel) (diesel)
• (except diesel) s122
• (in engine control harness, at breakout for front heater blower motor resistor) s152
• (in engine control harness, near breakout for powertrain control module)
• (left rear of engine compt) g100
• (left side of engine compt) g101
• (near breakout for c1064) s192
• (pcm power relay) hot in start or run
• (right side of eng compt) g108
• A/c clutch field coil (on a/c compressor)
• A/c clutch relay
• A/c compressor clutch diode
• A/c compressor cycling switch (in right rear of engine compartment, on a/c accumulator)
• A/c high pressure switch (5.4l: in right side of engine compt) (6.0l, 6.8l: lower right front of engine)
• A/c press sw in
• A/c press switch sig rtn
• Battery junction box (bjb) (left rear of eng compt)
• Blower motor relay
• Blower motor switch
• C1381a
• C1381c
• C175a
• C270a
• C270f
• C270h
• C294a
• C294b
• C294c
• C294d
• Central junction box (cjb) (behind lower left side of dash)
• Cooling fan speed sig
• Defrost
• Diesel
• Dual pressure switch (diesel) (at right front of engine)
• Electronic fan clutch (diesel) (front of engine)
• Electronic fan clutch ctrl
• Engine controls system
• Engine coolant temperature (ect) sensor (front of engine)
• Except diesel
• Floor
• Front function selector switch assembly
• Fuse 15a
• Fuse 17 10a
• Fuse 20a
• Fuse 23 20a
• Fuse 27 15a
• G108 (at right side of engine compt)
• Heater blower motor (right rear side of eng compt)
• Heater blower motor resistor
• High
• Hot at all times
• Hot in run
• Illumination
• Interior lights system
• Low
• Max
• Med
• Mix
• Mode switch
• Nca
• Normal
• Off
• Powertrain control module (pcm) (diesel) (left side of eng compt)
• Powertrain control module (pcm) (diesel: left side of engine compt) (except diesel: on left side of firewall)
• Red
• S106
• S116
• S119
• S124
• S162
• S180
• S180 s102
• S193
• S235
• S257
• S290
• Sig rtn
• Tan/red
• Temperature blend door actuator (behind right side of dash)
• Temperature control potentiometer
• Vacuum pump motor (diesel) (in right side of engine compt)
• Vent
• Vref
