Электросхемы СИСТЕМА ОХЛАЖДЕНИЯ Ford Contour SE 1996

СИСТЕМА ОХЛАЖДЕНИЯ

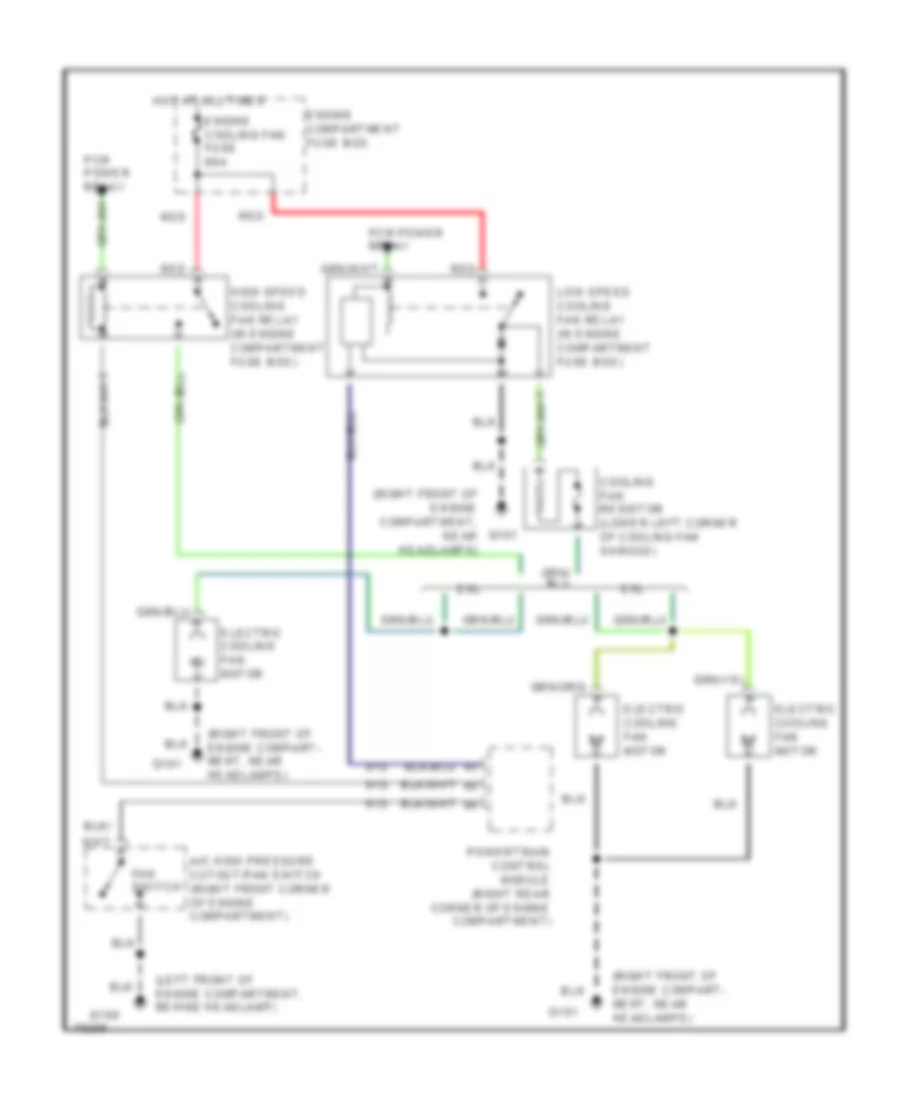

Электросхема системы охлаждения для Ford Contour SE 1996

Электросхема системы охлаждения для Ford Contour SE 1996 - Список элементов:

• (left front of engine compartment, behind headlamp)
• (right front of engine compart- ment, near headlamps)
• (right front of engine compartment, near headlamps)
• 2.0l
• 2.5l
• 91s
• A/c high pressure cutout/fan switch (right front corner of engine compartment)
• Cooling fan resistor (lower left corner of cooling fan shroud)
• Electric cooling fan motor
• Engine compartment fuse box
• Engine cooling fan fuse 60a
• Fan switch
• G100
• G101
• High speed cooling fan relay (in engine compartment fuse box)
• Hot at all times
• Low speed cooling fan relay (in engine compartment fuse box)
• Pcm power relay
• Powertrain control module (right rear corner of engine compartment)
• Red
