Электросхемы СИСТЕМЫ ПАМЯТИ Ford F-350 Super Duty XL 2013

СИСТЕМЫ ПАМЯТИ

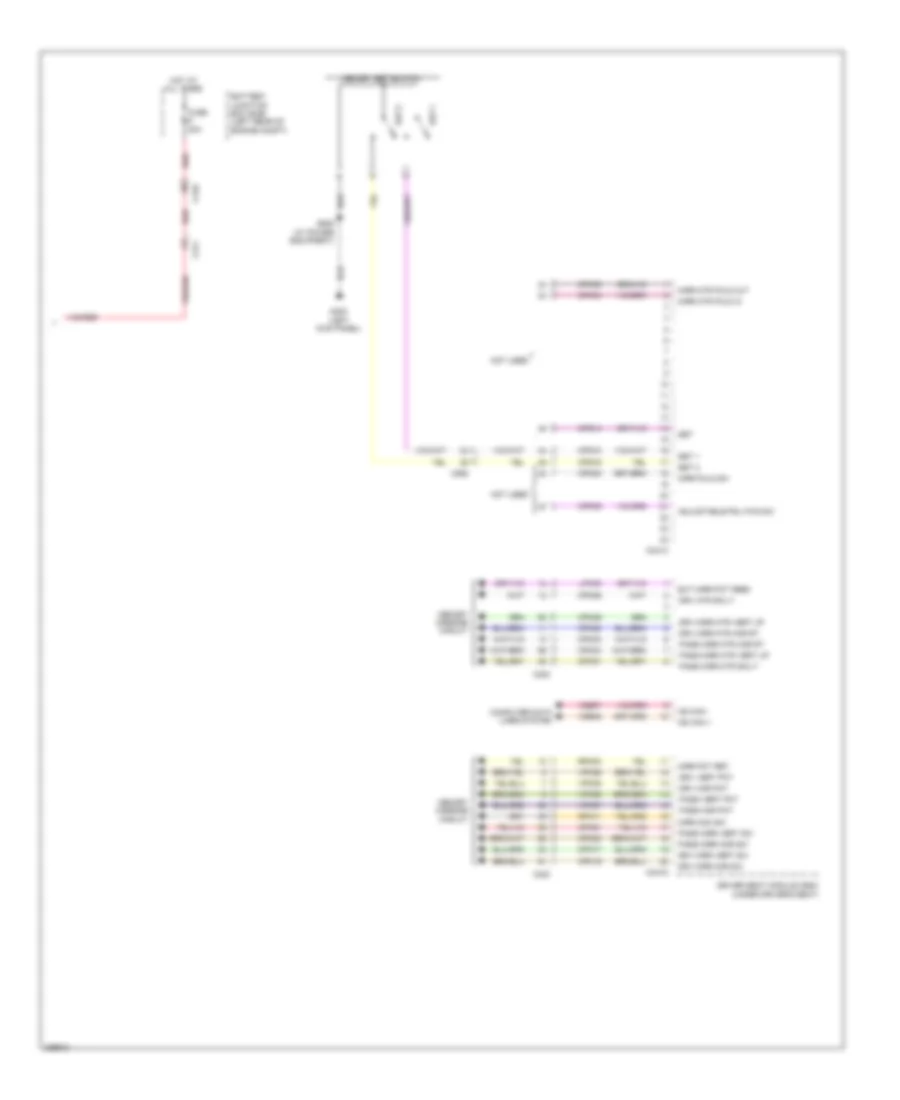

Электросхема регулировки положения педалей для Ford F-350 Super Duty XL 2013

Электросхема регулировки положения педалей для Ford F-350 Super Duty XL 2013 - Список элементов:

• (left side of dash) g202
• Adjustable pedal motor (left side of dash)
• Adjustable pedal switch
• Body control module (right kick panel)
• C212
• C2280a
• C2414a
• C2414b
• C2414c
• C300
• C341c
• C341d
• C555
• Com mtr pdl/col
• Computer data lines system
• Cpp01
• Cpp02
• Cps15
• Cps16
• Driver seat module (dsm) (under driver's seat)
• Fuse 15a
• G300 (left kick panel)
• Gd185
• Gnd
• Hall sns rtn
• Hot at all times
• Hs can +
• Hs can -
• Lpp06
• Memory set switch
• Ms can +
• Ms can -
• Pdl hall sns sig
• Pedal mtr fwd
• Rpp06
• S228
• S239
• S505 (w/ power equipment)
• Sbp24
• Set 1
• Set 2
• Steering column control module (top of steering column)
• Vbatt
• Vdb04
• Vdb05
• Vdb06
• Vdb07

Электросхема памяти водительского сиденья (1 из 2) для Ford F-350 Super Duty XL 2013

Электросхема памяти водительского сиденья (1 из 2) для Ford F-350 Super Duty XL 2013 - Список элементов:

• Aft
• Base backward
• Base forward
• Body control module (right kick panel)
• C2280d
• C300
• C3050
• C311
• C341a
• C341b
• Cbx03
• Cbx05
• Cps01
• Cps02
• Cps03
• Cps04
• Cps05
• Cps06
• Cps07
• Cps08
• Cps23
• Cps24
• Cps25
• Cps26
• Cps27
• Cps28
• Cps29
• Cps30
• Deflate
• Driver seat front height motor
• Driver seat horizontal motor
• Driver seat lumbar motor
• Driver seat module (dsm) (under driver's seat)
• Driver seat rear height motor
• Driver seat recliner motor
• Driver side front seat control switch
• Forward
• Front dn
• Front height
• Front up
• Fuse 5a
• Fuse 7.5a
• Fwd
• G300 (left kick panel)
• Gd905
• Gd906
• Hall effect rtn
• Hall effect sns
• Height rear
• Horizontal
• Hot at all times
• Incline
• Inflate
• Logic gnd
• Lumbar
• Pwr gnd
• Rear dn
• Rear up
• Recline
• Rps13
• S368 (driver cushion wiring harness, near breakout to c3050)
• Vbatt
• Vps09
• Vps10
• Vps11
• Vps12

Электросхема памяти водительского сиденья (2 из 2) для Ford F-350 Super Duty XL 2013

Электросхема памяти водительского сиденья (2 из 2) для Ford F-350 Super Duty XL 2013 - Список элементов:

• Adjustable pdl fwd sw
• Battery junction box (bjb) (left rear of engine compt)
• C210
• C300
• C311
• C341c
• C341d
• C555
• Computer data lines system
• Cpm04
• Cpm16
• Cpm17
• Cpm20
• Cpm21
• Cpm22
• Cpm26
• Cpm28
• Cpm29
• Cpm31
• Cpm33
• Cpm34
• Cpm39
• Cpp09
• Cps14
• Cps15
• Cps16
• Driver seat module (dsm) (under driver's seat)
• Drv hor pot
• Drv mirr hor sw
• Drv mirr mtr hor rt
• Drv mirr mtr vert up
• Drv mirr vert sw
• Drv mtr dn/lt
• Drv vert pot
• Ext mirr pot feed
• Fuse 30a
• G300 (left kick panel)
• Hot at all times
• Lpm30
• Memory mirrors circuit
• Memory set switch
• Mirr com sw
• Mirr fold sw
• Mirr mtr fold in
• Mirr mtr fold out
• Mirr pot ret
• Ms can +
• Ms can -
• Not used
• Pass hor pot
• Pass mirr hor sw
• Pass mirr mtr dn/lt
• Pass mirr mtr hor rt
• Pass mirr mtr vert up
• Pass mirr vert sw
• Pass vert pot
• Red
• Rpm11
• Rpm30
• S505 (w/ power equipment)
• Set
• Set 1
• Set 2
• Vdb06
• Vdb07
• Vpm35
• Vpm36
• Vpm37
• Vpm38

Электросхем памяти регулировки зеркал заднего вида для Ford F-350 Super Duty XL 2013

Электросхем памяти регулировки зеркал заднего вида для Ford F-350 Super Duty XL 2013 - Список элементов:

• (body main wiring harness, near breakout to c311)
• (left front door window regulator wiring harness, in driver's door)
• (right front door jumper wiring harness, in passenger's door)
• Battery junction box (bjb) (left rear of engine compt)
• Body control module (right kick panel)
• C210
• C2280d
• C300
• C311
• C341a
• C341b
• C341c
• C341d
• C555
• C655
• Cbx03
• Cbx05
• Computer data lines system
• Cpm16
• Cpm17
• Cpm20
• Cpm21
• Cpm26
• Cpm28
• Cpm29
• Cpm31
• Cpm33
• Cpm34
• Cps15
• Cps16
• Defogger system
• Driver seat module (dsm) (under driver's seat)
• Driver side exterior rear view mirror
• Drv mirr hor pot
• Drv mirr hor sw
• Drv mirr vert pot
• Drv mirr vert sw
• Drv mtr dn/lt
• Drv mtr hor rt
• Drv mtr vert up
• Ext mirr pot feed
• Exterior lights system
• Exterior rear view mirror switch
• Fuse 10a
• Fuse 30a
• Fuse 5a
• G300 (left kick panel)
• G302 (right kick panel)
• Gd906
• Hot at all times
• Left/right
• Lpm30
• Memory set switch
• Mirr com sw
• Mirr pot rtn
• Mirror heated
• Mirrors system
• Ms can +
• Ms can -
• Nca
• Park
• Pass hor pot
• Pass mirr hor sw
• Pass mirr vert sw
• Pass mtr dn/lt
• Pass mtr hor rt
• Pass mtr vert up
• Pass vert pot
• Passenger side exterior rear view mirror
• Pwr gnd
• Red
• Rpm11
• Rpm30
• S318
• S336 (near breakout to center of cab floor)
• S501
• S505
• S513
• S609
• S639
• Set 1
• Set 2
• Turn
• Up/dn
• Vbatt
• Vdb06
• Vdb07
• Vpm35
• Vpm36
• Vpm37
• Vpm38
