ВНЕШНЕЕ ОСВЕЩЕНИЕ

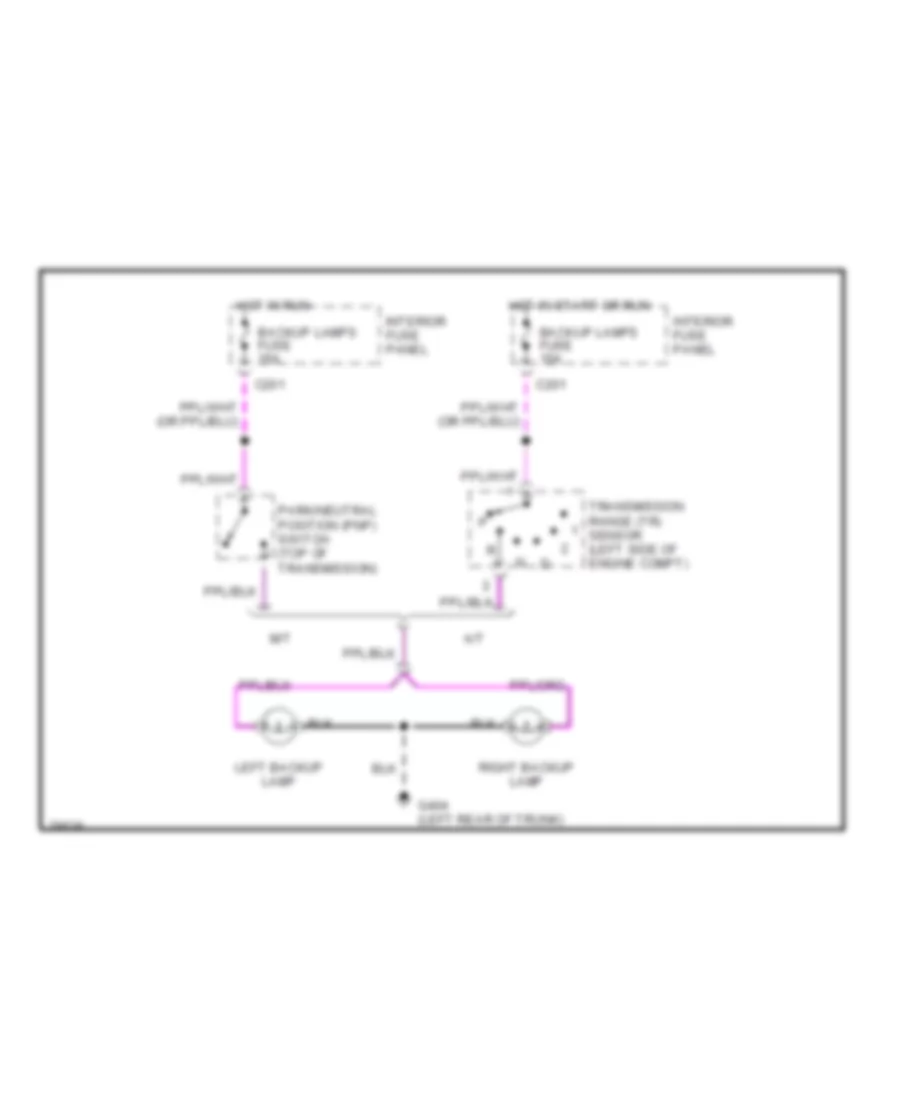

Электросхема заднего хода для Ford Contour SE 1996
Электросхема заднего хода для Ford Contour SE 1996 - Список элементов:
- A/t
- Backup lamps fuse 15a
- C201
- G404 (left rear of trunk)
- Hot in run
- Hot in start or run
- Interior fuse panel
- Left backup lamp
- M/t
- Park/neutral position (pnp) switch (top of transmission)
- Right backup lamp
- Transmission range (tr) sensor (left side of engine compt)
Электросхема внешнего освещения для Ford Contour SE 1996
Электросхема внешнего освещения для Ford Contour SE 1996 - Список элементов:
- (behind left headlamp)
- (behind right headlamp)
- (left rear of trunk)
- (not used)
- Backup lamps fuse 15a
- Brake on/off (boo) switch (top of brake pedal)
- C136
- C137
- C201
- C2013
- C262
- C276
- C277
- C282
- C283
- C288
- C298
- Combination switch
- Cruise control system
- Door locks system (remote keyless entry)
- Engine compartment fuse box (left front corner of engine compt.)
- Flasher module
- Front park lamp
- Front turn lamp
- G106
- G107
- G203 (right kick panel)
- G404
- Hazard switch
- Head
- Headlamp switch
- Hi mount stop lamp
- Horn/ hazard fuse 15a
- Hot at all times
- Hot in start or run
- Ignition fuse 20a
- Illumination fuse 7.5a
- Instrument cluster
- Instrument cluster system
- Interior fuse panel (under left side of i/p)
- Left front park/ turn lamp
- Left license lamp
- Left rear combi- nation lamp
- Left turn indi- cator
- Main light switch
- Nca
- Off
- Park
- Rear park lamp
- Rear turn/ stop lamp
- Red
- Right front park/ turn lamp
- Right license lamp
- Right rear combi- nation lamp
- Right turn indi- cator
- Side lights (left) fuse 7.5a
- Side lights (right) fuse 7.5a
- Stop lamps fuse 15a
- Turn signal switch
