ВНЕШНЕЕ ОСВЕЩЕНИЕ
Электросхема заднего хода для Mercury Cougar 1999
Электросхема заднего хода для Mercury Cougar 1999 - Список элементов:
- (left rear of vehicle) g404
- A/t
- Backup
- C369
- Central junction box (under left side of dash)
- Fuse 15a
- G405 (right rear of vehicle)
- Hot in start or run
- Left rear lamp assembly
- M/t
- Nca
- Park/neutral position switch (in left side of engine compt, on top of transaxle)
- Right rear lamp assembly
- S136
- S354
- S355
- S375 (center console)
- Transmission range sensor (on transmission, at rear of engine)

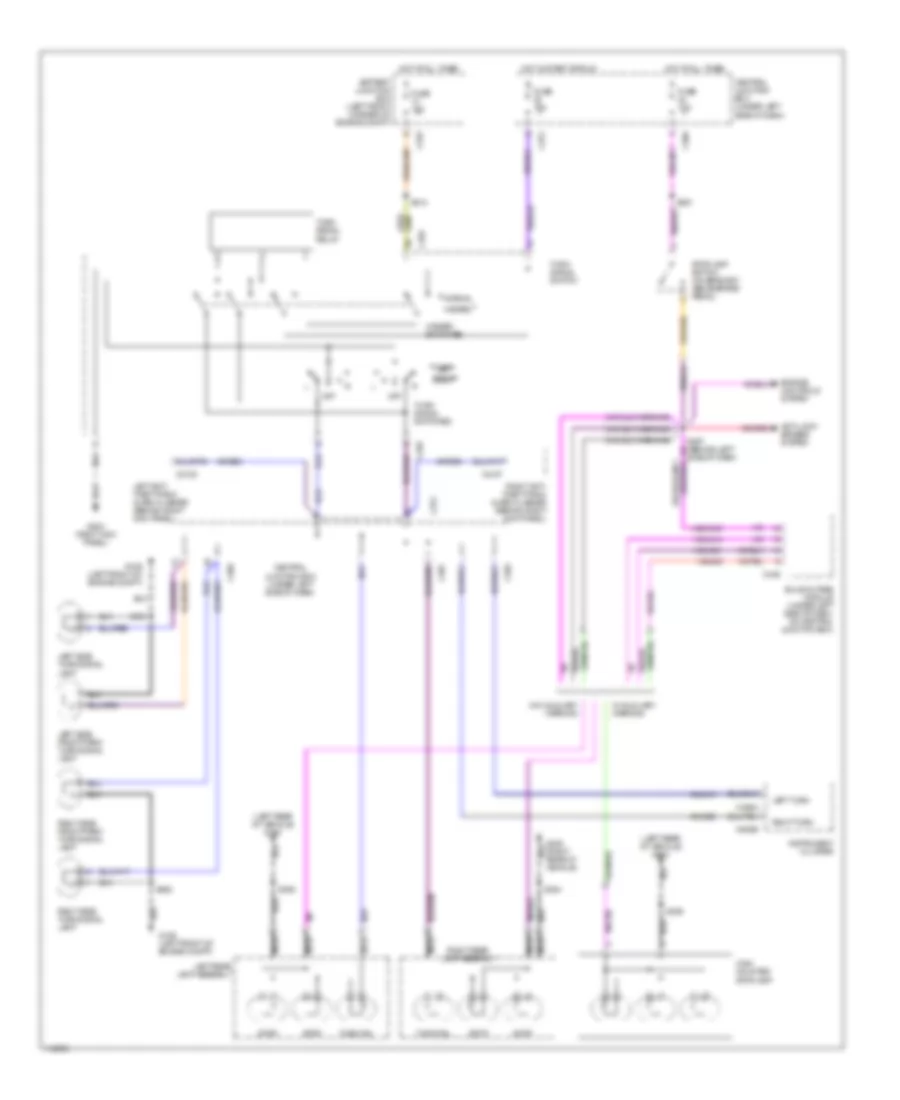

парк и схема ламп лицензии, высокое содержание выбора С вспомогательное предупреждение для Mercury Cougar 1999
парк и схема ламп лицензии, высокое содержание выбора С вспомогательное предупреждение для Mercury Cougar 1999 - Список элементов:
- (behind left side of dash) s342
- (left rear of vehicle) g404
- (on upper left side of dash) drl parking lamp diode
- (these connectors present but not used w/o drl)
- 29slf11
- 29slf16
- 29slf20
- 29slf7
- 29swc35
- 29swc37
- 29swc39
- 30swc38
- Battery junction box (left front corner of engine compt)
- Bulb outage module (under left side of dash, on central junction box)
- C2102
- C334
- C361
- C367
- C369
- C466
- Central junction box (under left side of dash)
- Central timer module
- Daytime running lamps relay (this position empty w/o drl)
- Drl and license plate lamp diode (on upper left side of dash)
- Fuse 20a
- Fuse 7.5a
- G106 (left front of engine compt)
- G405 (right rear of vehicle)
- Head
- Headlamp switch
- Hot at all times
- Hot in start or run
- Left front side marker lamp
- Left license plate lamp
- Left rear lamp assembly
- Left side front park/ turn signal lamp
- Main light switch
- Nca
- Off
- Park
- Red
- Right front side marker lamp
- Right license plate lamp
- Right rear lamp assembly
- Right side front park/ turn signal lamp
- S343 (behind left side of dash)
- S344 (behind left side of dash)
- S354
- S355
- S361
- S362
- S372 (behind left side of dash)
- S373 (behind left side of dash)
- S421
- Tail
- Turn/tail

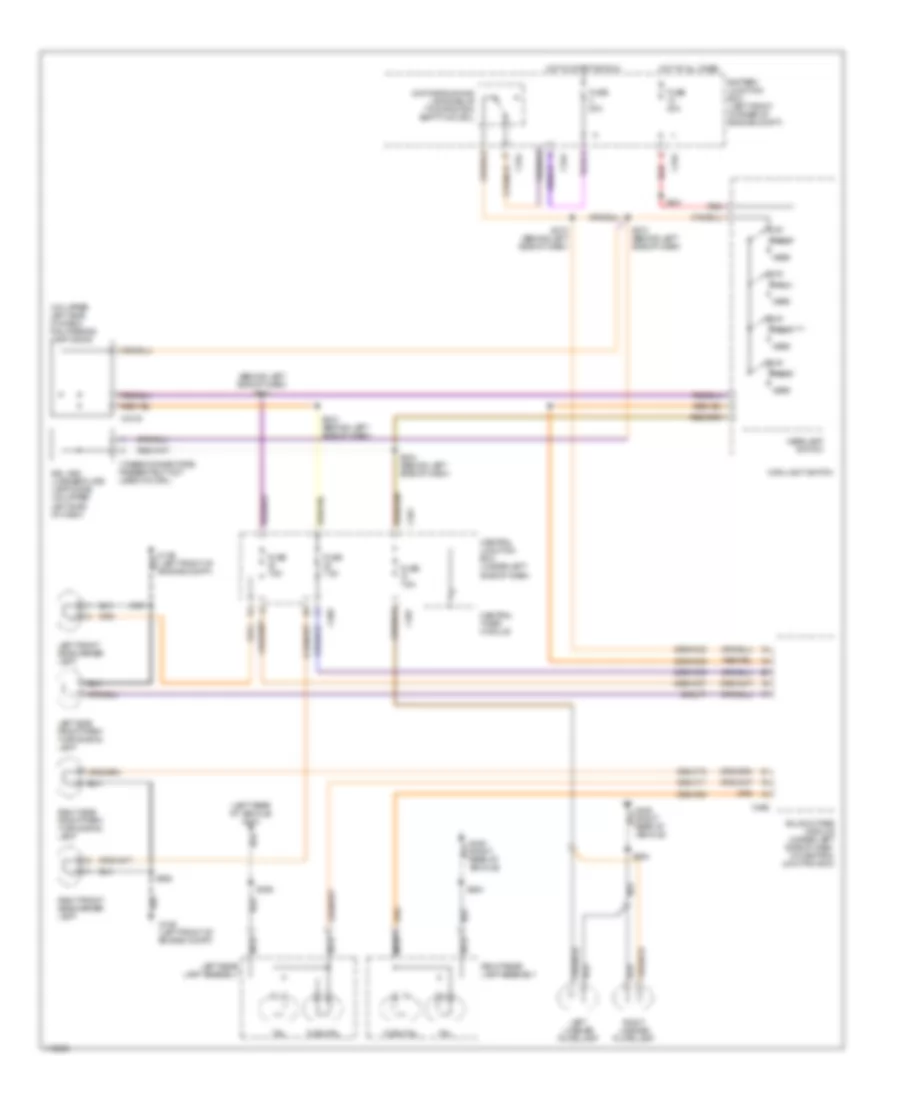

парк и схема ламп лицензии, высокое содержание выбора без вспомогательное предупреждение для Mercury Cougar 1999
парк и схема ламп лицензии, высокое содержание выбора без вспомогательное предупреждение для Mercury Cougar 1999 - Список элементов:
- (behind left side of dash) s342
- (left rear of vehicle) g404
- (on upper left side of dash) drl parking lamp diode
- (these connectors present but not used w/o drl)
- Battery junction box (left front corner of engine compt)
- C2102
- C334
- C361
- C367
- C369
- Central junction box (under left side of dash)
- Central timer module
- Daytime running lamps relay (this position empty w/o drl)
- Drl and license plate lamp diode (on upper left side of dash)
- Fuse 20a
- Fuse 7.5a
- G106 (left front of engine compt)
- G405 (right rear of vehicle)
- Head
- Headlamp switch
- Hot at all times
- Hot in start or run
- Left front side marker lamp
- Left license plate lamp
- Left rear lamp assembly
- Left side front park/ turn signal lamp
- Main light switch
- Nca
- Off
- Park
- Red
- Right front side marker lamp
- Right license plate lamp
- Right rear lamp assembly
- Right side front park/ turn signal lamp
- S343 (behind left side of dash)
- S344 (behind left side of dash)
- S352 (left front of engine compt)
- S353 (right front of engine compt)
- S354
- S355
- S361
- S362
- S372 (behind left side of dash)
- S421
- Tail
- Turn/tail

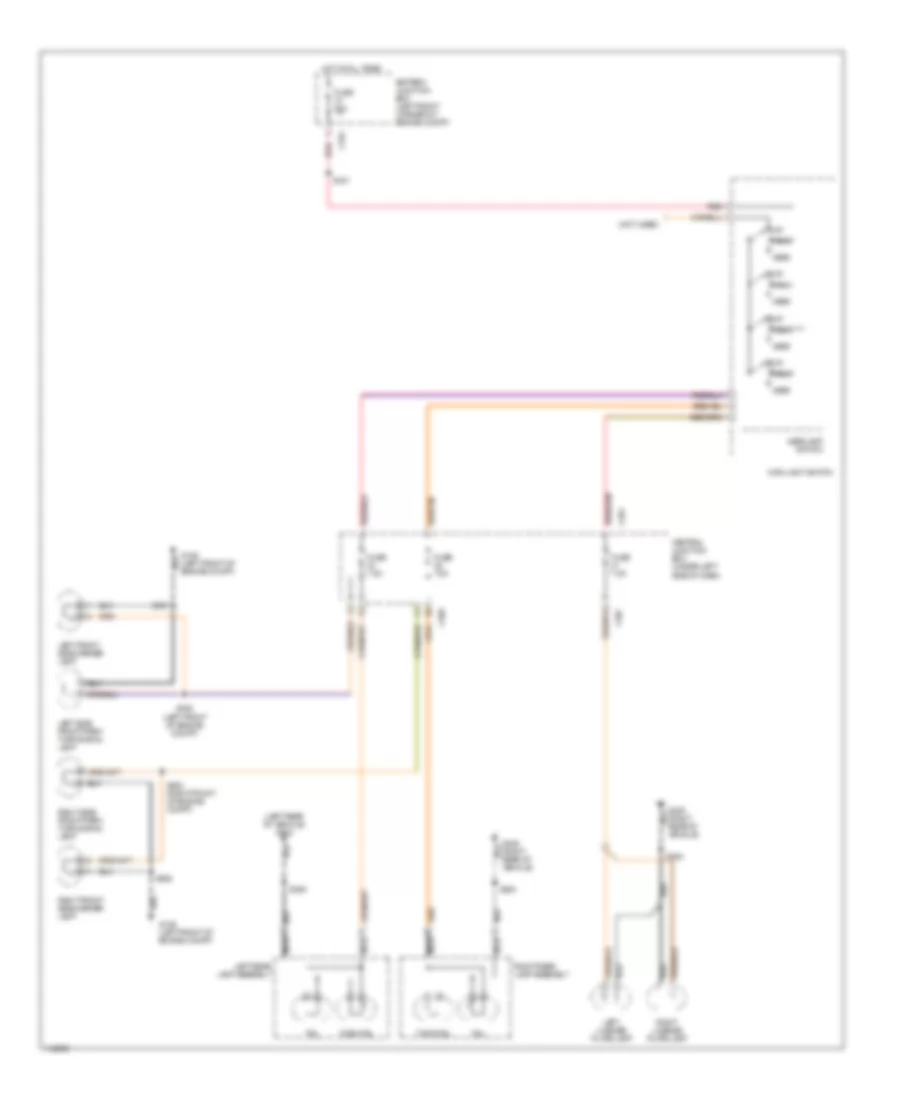

парк и схема ламп лицензии, низкое содержание выбора для Mercury Cougar 1999
парк и схема ламп лицензии, низкое содержание выбора для Mercury Cougar 1999 - Список элементов:
- (left rear of vehicle) g404
- (not used)
- Battery junction box (left front corner of engine compt)
- C334
- C361
- C367
- C369
- Central junction box (under left side of dash)
- Fuse 20a
- Fuse 7.5a
- G106 (left front of engine compt)
- G405 (right rear of vehicle)
- Head
- Headlamp switch
- Hot at all times
- Left front side marker lamp
- Left license plate lamp
- Left rear lamp assembly
- Left side front park/ turn signal lamp
- Main light switch
- Nca
- Off
- Park
- Red
- Right front side marker lamp
- Right license plate lamp
- Right rear lamp assembly
- Right side front park/ turn signal lamp
- S352 (left front of engine compt)
- S353 (right front of engine compt)
- S354
- S355
- S361
- S362
- S421
- Tail
- Turn/tail
поворот и опасность и схема ламп остановки для Mercury Cougar 1999
поворот и опасность и схема ламп остановки для Mercury Cougar 1999 - Список элементов:
- (left rear of vehicle) g404
- (w/o aux warning)
- 14slg14
- 14slg21
- 14slg6
- 14swc40
- 49lg15
- 49lg22
- 49mb23
- 49mb25
- Anti-lock brakes system
- Battery junction box (left front corner of engine compt)
- Bulb outage module (under left side of dash, on central junction box)
- C2107
- C2108
- C333
- C362
- C367
- C369
- C372
- C446
- C459
- C808a
- C808b
- Central junction box (under left side of dash)
- Engine controls system
- Fuse 15a
- G106 (left front of engine compt)
- G203 (right kick panel)
- G405 (right rear of vehicle)
- Hazard
- Hazard switches
- High mounted stoplamp
- Hot at all times
- Hot in start or run
- Instrument cluster
- Left
- Left anti- theft panic alarm flasher (behind right kick panel)
- Left rear lamp assembly
- Left side front park/ turn signal lamp
- Left side turn signal lamp
- Left turn
- Nca
- Normal
- Off
- Right
- Right anti- theft panic alarm flasher (behind right kick panel)
- Right rear lamp assembly
- Right side front park/ turn signal lamp
- Right side turn signal lamp
- Right turn
- S312
- S351
- S354
- S355
- S361
- S362
- S367 (behind left side of dash)
- Stop
- Stoplamp switch (on bracket, above brake pedal)
- Turn signal relay
- Turn signal switch
- Turn signal switches
- Turn/tail
- W/ auxiliary warning
- W/o auxiliary warning
- Warning) (w/ auxiliary
