Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ Ford Club Wagon E150 1996

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

Электросхема подсветки (1 из 3) для Ford Club Wagon E150 1996

Электросхема подсветки (1 из 3) для Ford Club Wagon E150 1996 - Список элементов:

• (left rear corner of vehicle, near left stop/park/ turn lamp) g999
• (not used)
• Battery
• Ctsy lp ctrl
• Cutaway models
• Cutaway only
• Dome
• Dome/map switch & lamp
• Door sw input
• Exterior lights system (trailer/ camper adapter)
• Fuse 15a
• Fuse 20a
• G200 (behind left cowl)
• Ground
• High mounted stop/ cargo lamp
• High mounted stop/cargo lamp & rear courtesy lamp switch
• Hinge door
• Hot at all times
• Hot in accy or run
• Ignition
• Illuminated entry module (cutaways: behind left side of i/p) (all other: behind left 'b' pillar)
• Interior fuse panel (behind left side of i/p)
• Left
• Left courtesy lamp switch
• Left door handle switch
• Left front courtesy lamp
• Main light switch
• Red/ pnk
• Right
• Right courtesy lamp switch
• Right door handle switch
• Right front courtesy lamp
• Side door courtesy lamp switch
• Sliding door
• Vans/ wagons only
• Vans/wagons only
• W/ cut- away
• W/ full headliner
• W/illuminated entry vans/wagons & cutaways
• W/o full headliner
• Warning systems (warning buzzer module)

Электросхема подсветки (2 из 3) для Ford Club Wagon E150 1996

Электросхема подсветки (2 из 3) для Ford Club Wagon E150 1996 - Список элементов:

• (not used)
• Anti- theft system
• Battery
• C333
• C334
• Dome
• Dome/map switch & lamp
• Door hndle sw
• Fuse 15a
• G200 (behind left cowl)
• G999 (left rear corner of vehicle, near left taillamp)
• Ground
• High mounted stop/ cargo lamp
• High mounted stop/cargo lamp & rear courtesy lamp switch
• Hinge door
• Hot at all times
• Int lps out
• Interior fuse panel (behind left side of i/p)
• Left
• Left courtesy lamp switch
• Left door handle switch
• Left front courtesy lamp
• Main light switch
• Red/ pnk
• Remote keyless entry module (behind left "b" pillar)
• Right
• Right courtesy lamp switch
• Right door handle switch
• Right front courtesy lamp
• Side door courtesy lamp switch
• Side door ctsy sw
• Sliding door
• W/full headliner
• W/keyless entry vans & wagons
• W/o full headliner
• Warning systems (warning buzzer module)

Электросхема подсветки (3 из 3) для Ford Club Wagon E150 1996

Электросхема подсветки (3 из 3) для Ford Club Wagon E150 1996 - Список элементов:

• All chateau wagons
• All regular or extended vans & wagons
• All rv vans w/auxiliary a/c
• All vehicles except rv van, rv cutaway, chateau wagon
• Anti-theft system
• Cargo lamp
• Chateau wagon
• Dome switch/ lamp
• Dome/map switch & lamp
• From courtesy lights control circuit (courtesy lights w/illuminated entry) or (courtesy lights w/keyless entry)
• G999 (left rear corner of vehicle, near left/stop/park turn lamp)
• High mounted stop/ cargo lamp
• Left
• Left visor lamp
• Off
• Rear courtesy lamp switch
• Right
• Right visor lamp
• Vans/ wagons only

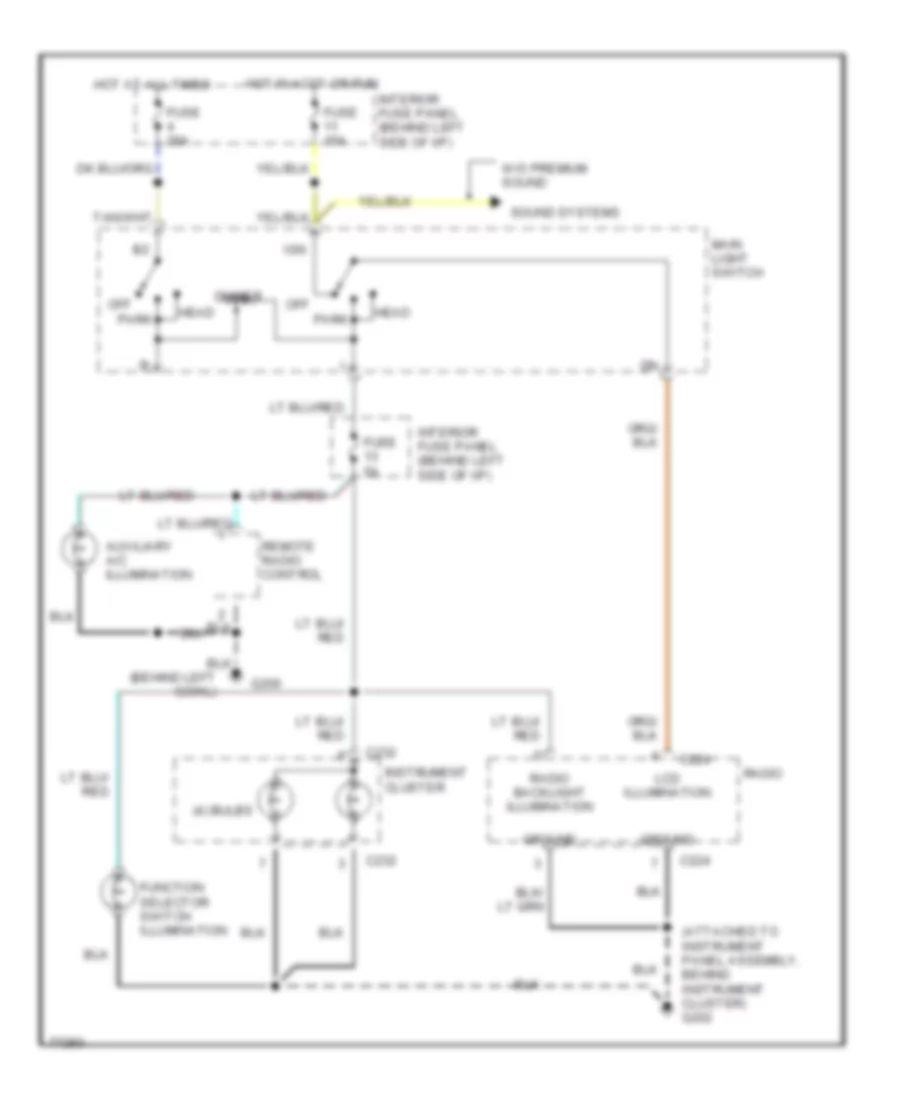

Электросхема подсветки приборов для Ford Club Wagon E150 1996

Электросхема подсветки приборов для Ford Club Wagon E150 1996 - Список элементов:

• (4) bulbs
• (attached to instrument panel assembly, behind instrument cluster) g202
• (behind left cowl)
• Auxiliary a/c illumination
• C224
• C232
• Dimmer
• Function selector switch illumination
• Fuse 15a
• Fuse 20a
• Fuse 5a
• G200
• Ground
• Head
• Hot at all times
• Hot in accy or run
• Ign
• Instrument cluster
• Interior fuse panel (behind left side of i/p)
• Lcd illumination
• Main light switch
• Off
• Park
• Radio
• Radio backlight illumination
• Remote radio control
• Sound systems
• W/o premium sound
