ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

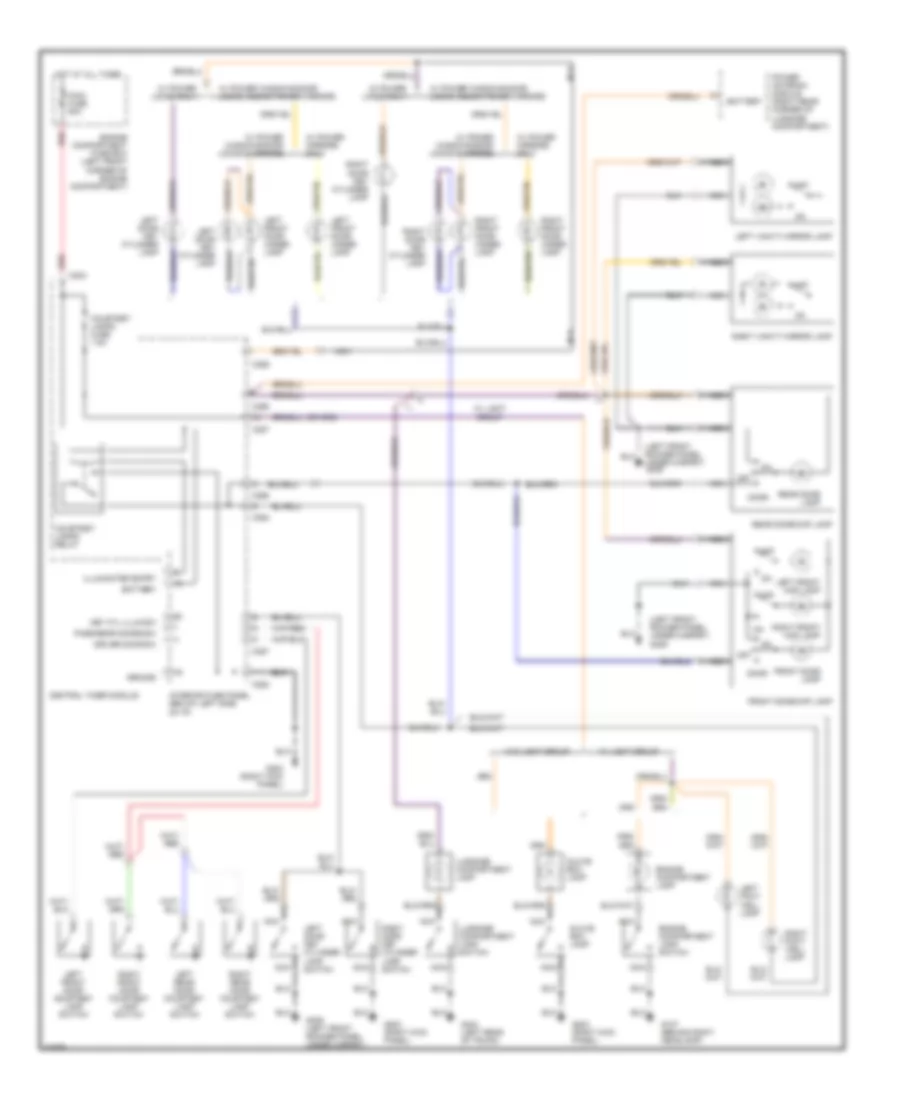

Электросхема подсветки для Ford Contour SE 1996

Электросхема подсветки для Ford Contour SE 1996 - Список элементов:

• (left front rocker panel, under carpet)
• (left front rocker panel, under carpet) g309
• Battery
• C203
• C282
• C286
• C287
• C298
• Central timer module
• Courtesy lamps fuse 7.5a
• Courtesy lamps relay
• Door
• Driver door sw
• Engine compartment fuse box (left front corner of engine compartment)
• Engine compartment lamp
• Engine compartment lamp switch
• Front dome lamp
• Front dome/map lamp
• G107 (behind right headlamp)
• G203 (right kick panel)
• G309
• G309 (left front rocker panel, under carpet)
• G404 (left rear of trunk)
• Glove box lamp
• Ground
• Hot at all times
• Illuminated entry
• Interior fuse panel (below left side of i/p)
• Key cyl illum sw
• Left door key cylinder lamp
• Left door key cylinder lamp switch
• Left foot- well lamp
• Left front door courtesy lamp switch
• Left front door under lamp
• Left front map lamp
• Left rear door courtesy lamp switch
• Left vanity mirror lamp
• Luggage compartment lamp
• Luggage compartment lamp switch
• Main fuse 80a
• Nca
• Off
• Pass/rear doors sw
• Power antenna module (right rear corner of luggage compartment)
• Rear dome lamp
• Rear dome/map lamp
• Red
• Right door key cylinder lamp
• Right door key cylinder lamp switch
• Right foot- well lamp
• Right front door courtesy lamp switch
• Right front door under lamp
• Right front map lamp
• Right rear door courtesy lamp switch
• Right vanity mirror lamp
• W/ light group
• W/ power locks only
• W/ power mirrors only
• W/ power windows/door locks & mirrors
• W/ power windows/door locks and/or power mirrors
• W/o light group

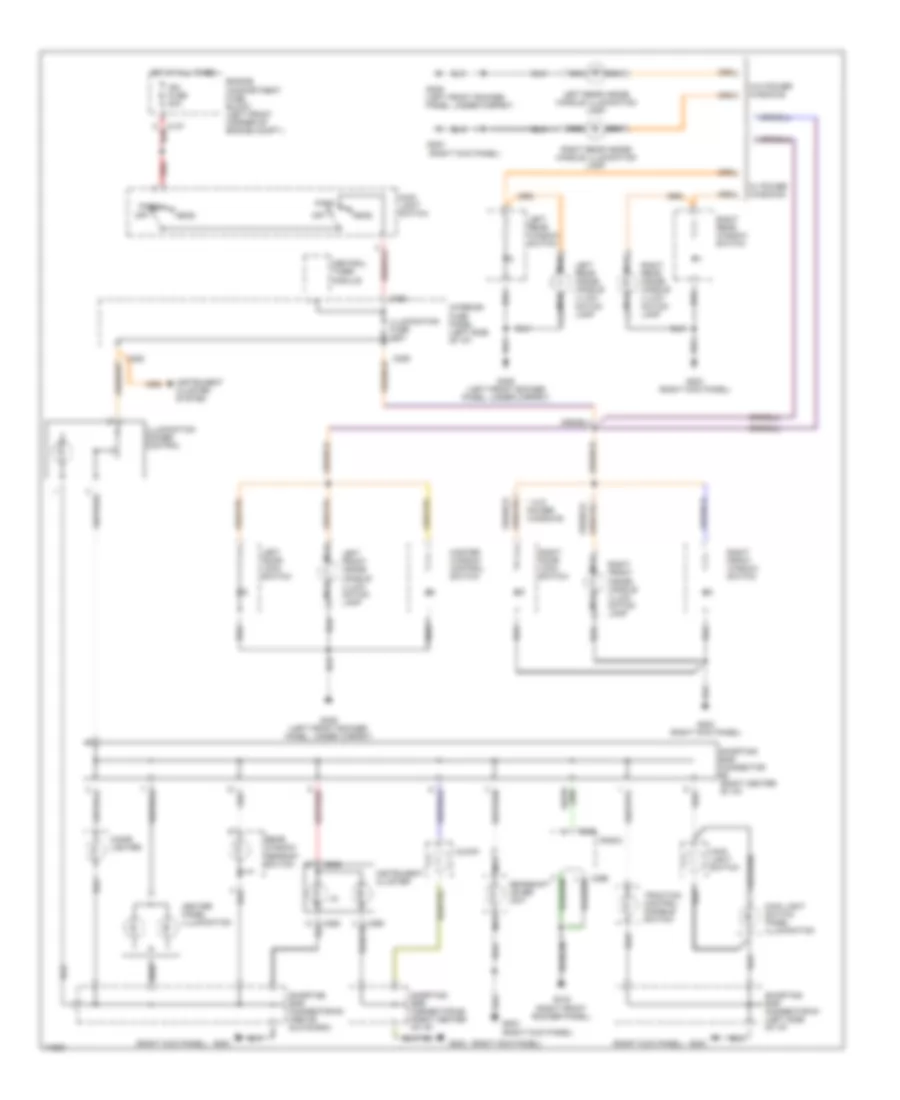

Электросхема подсветки приборов для Ford Contour SE 1996

Электросхема подсветки приборов для Ford Contour SE 1996 - Список элементов:

• (4)
• (right kick panel)
• * w/o power windows
• C137
• C262
• C282
• C285
• C290
• C296
• Central timer module
• Cigar lighter
• Clock
• Engine compartment fuse block (left front corner of engine compt.)
• G203
• G203 (right kick panel)
• G309 (left front rocker panel, under carpet)
• G316 (right front rocker panel)
• Gearshift lever unit
• Head
• Heater panel illumination
• Hot at all times
• Ign fuse 20a
• Illumination dimmer control
• Illumination fuse 7.5a
• Instrument cluster
• Instrument cluster system
• Interior fuse panel (left side of i/p)
• Left door lock switch
• Left front inside handle illumi- nation lamp
• Left rear inside handle illumi- nation lamp
• Left rear inside handle illumination lamp
• Left rear window switch
• Main light switch
• Main light switch panel illumination
• Master window control switch
• Nca
• Off
• Park
• Radio
• Rear window defrost switch
• Red
• Right door lock switch
• Right front inside handle illumi- nation lamp
• Right front window switch
• Right rear inside handle illumi- nation lamp
• Right rear inside handle illumination lamp
• Right rear window switch
• Shorting bar connector #1 (left side of i/p)
• Shorting bar connector #2 (right center of i/p)
• Shorting bar connector #3 (above glove box)
• Shorting bar connector #5 (right center of i/p)
• Traction control disable switch
• W/ power windows
• W/o power windows
