Электросхемы Звуковой сигнал Гудок Ford Crown Victoria Police Interceptor 2005

Звуковой сигнал Гудок

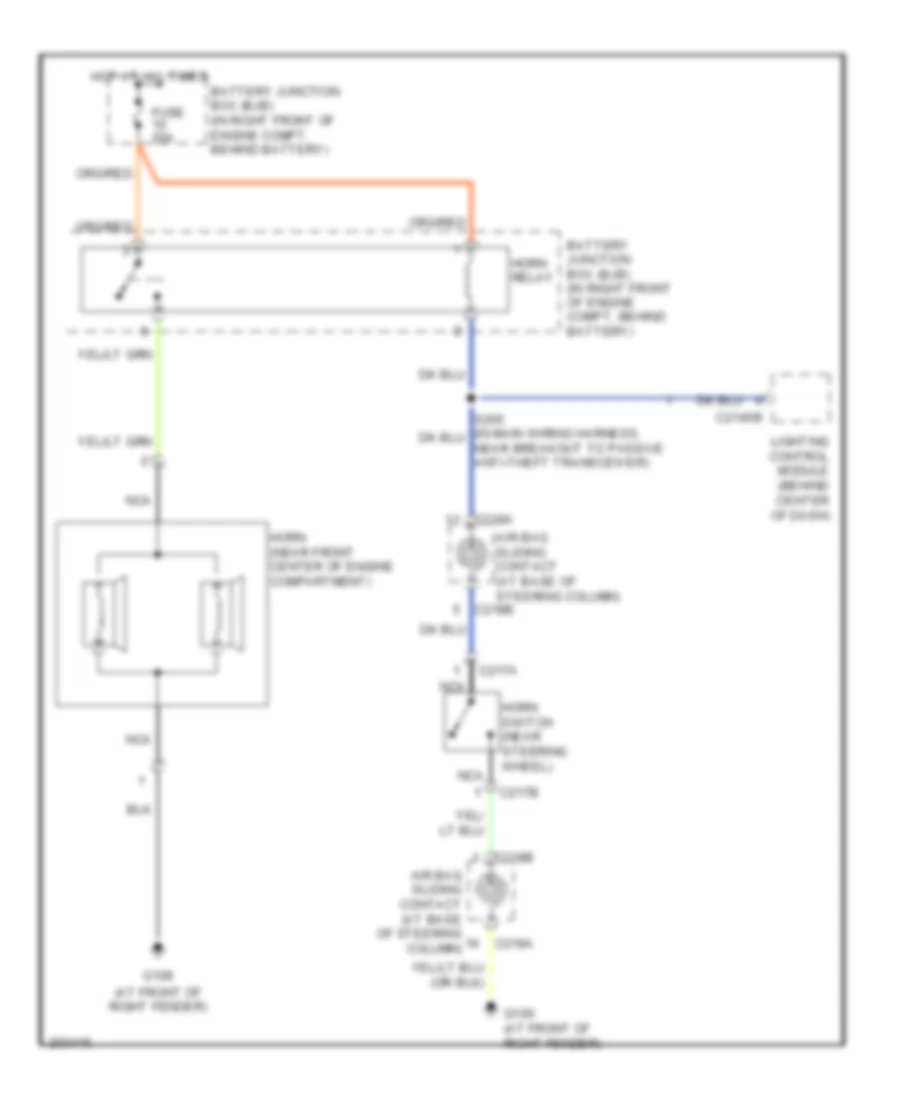

Электросхема звукового сигнал Гудка для Ford Crown Victoria Police Interceptor 2005

Электросхема звукового сигнал Гудка для Ford Crown Victoria Police Interceptor 2005 - Список элементов:

• (at front of right fender)
• Air bag sliding contact (at base of steering column)
• Battery junction box (bjb) (in right front of engine compt, behind battery)
• C2145b
• C217a
• C217b
• C218a
• C218b
• Fuse 20a
• G108
• G109 (at front of right fender)
• Horn (near front center of engine compartment)
• Horn relay
• Horn switch (near steering wheel)
• Hot at all times
• Lighting control module (behind center of dash)
• Nca

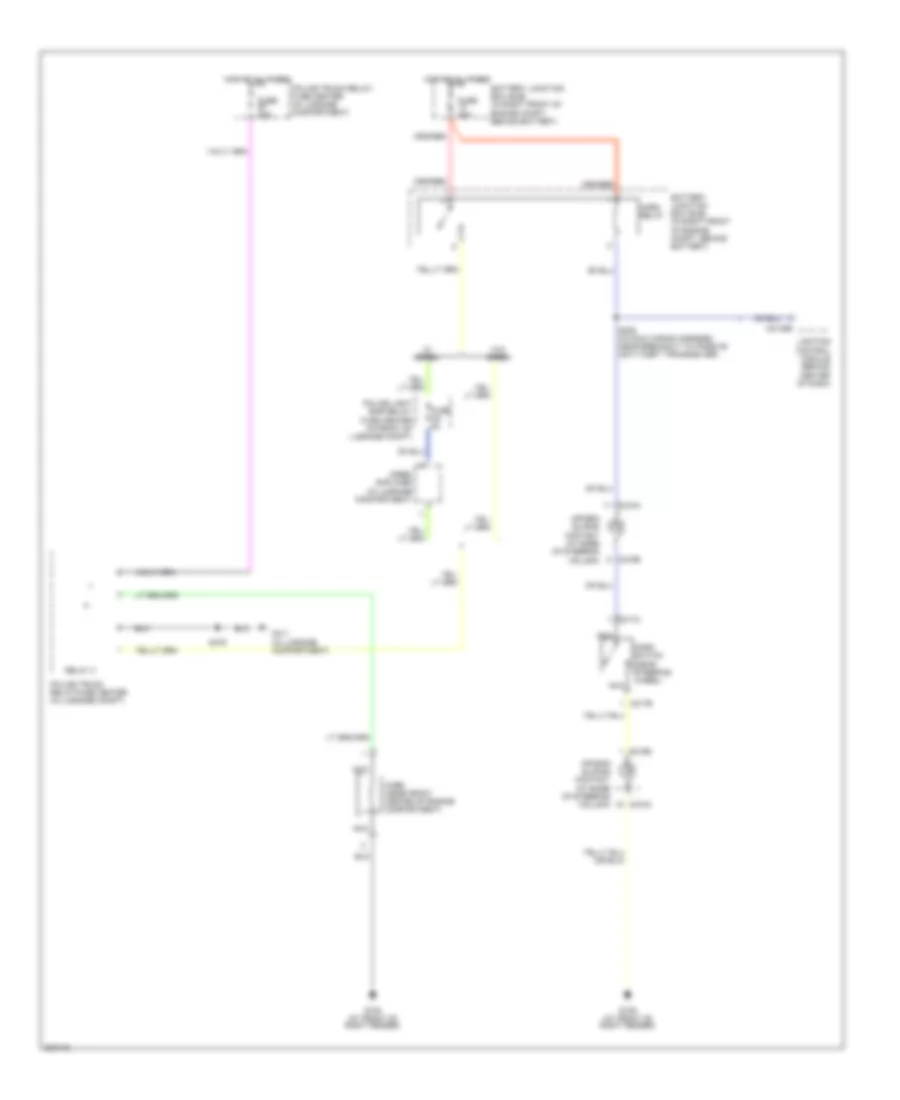

Электросхема звукового сигнал Гудка, полиция короны для Ford Crown Victoria Police Interceptor 2005

Электросхема звукового сигнал Гудка, полиция короны для Ford Crown Victoria Police Interceptor 2005 - Список элементов:

• Air bag sliding contact (at base of steering column)
• Battery junction box (bjb) (in right front of engine compt, behind battery)
• C2145b
• C217a
• C217b
• C218a
• C218b
• Fuse 20a
• Fuse b7 20a
• Fuse c9 5a
• G108 (at front of right fender)
• G109 (at front of right fender)
• G411 (in luggage compartment)
• Horn (near front center of engine compartment)
• Horn relay
• Horn switch (near steering wheel)
• Hot at all times
• Lighting control module (behind center of dash)
• Nca
• Police light bar relay/ fuse center (in front of luggage compt)
• Police trunk relay/ fuse center (in luggage compartment)
• Police trunk relay/fuse center (in luggage compt)
• Relay 3
• S205 (in main wiring harness, near breakout to passive anti-theft transceiver)
• S476
• Siren amplifier (in luggage compartment)
• W/ siren
• W/o siren
