Звуковой сигнал Гудок

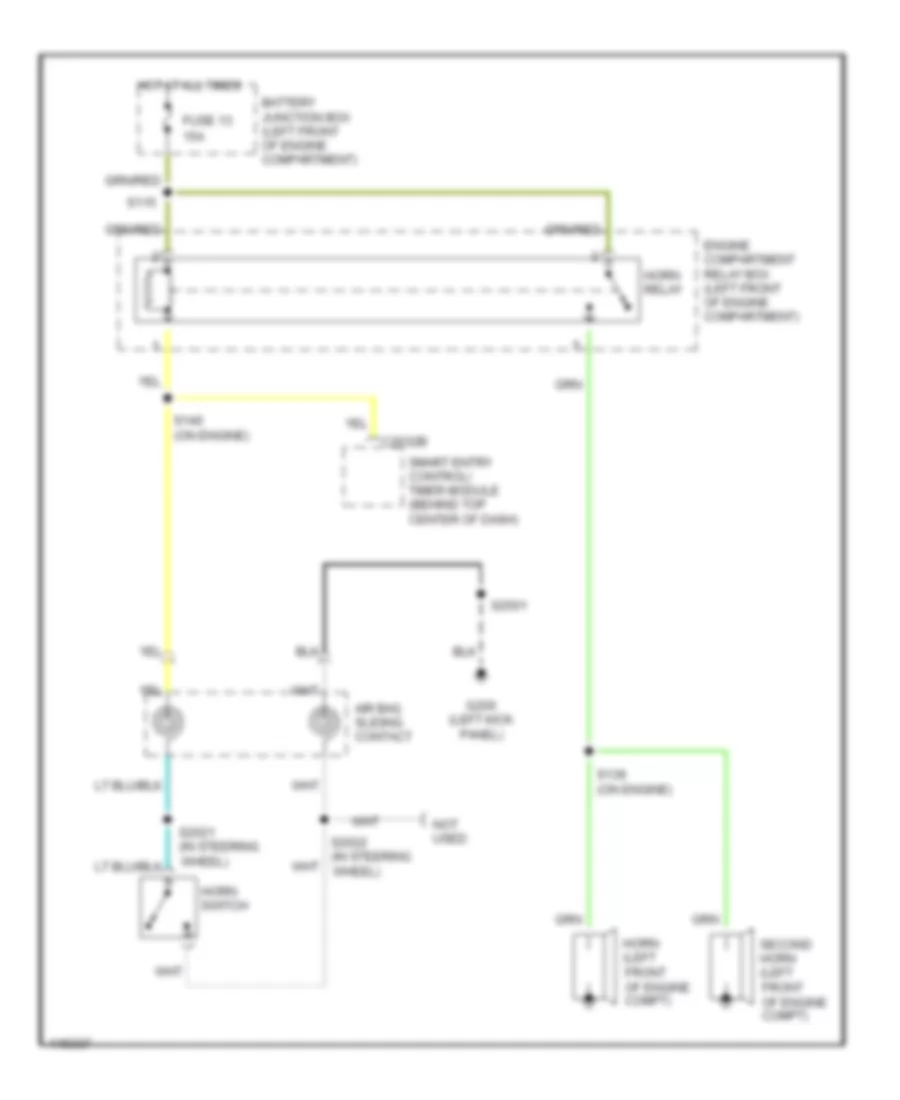

Электросхема звукового сигнал Гудка для Mercury Villager Estate 2000

Электросхема звукового сигнал Гудка для Mercury Villager Estate 2000 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема звукового сигнал Гудка для Mercury Villager Estate 2000 - Список элементов:

  • 15a
  • Air bag sliding contact
  • Battery junction box (left front of engine compartment)
  • C2032b
  • Engine compartment relay box (left front of engine compartment)
  • Fuse 13
  • G200 (left kick panel)
  • Horn (left front of engine compt)
  • Horn relay
  • Horn switch
  • Hot at all times
  • Not used
  • S115
  • S139 (on engine)
  • S140 (on engine)
  • S2021 (in steering wheel)
  • S2022 (in steering wheel)
  • S2501
  • Second horn (left front of engine compt)
  • Smart entry control/ timer module (behind top center of dash)
