Электросхемы Навигация GPS Парктроники Porsche Boxster 2004

Навигация GPS Парктроники

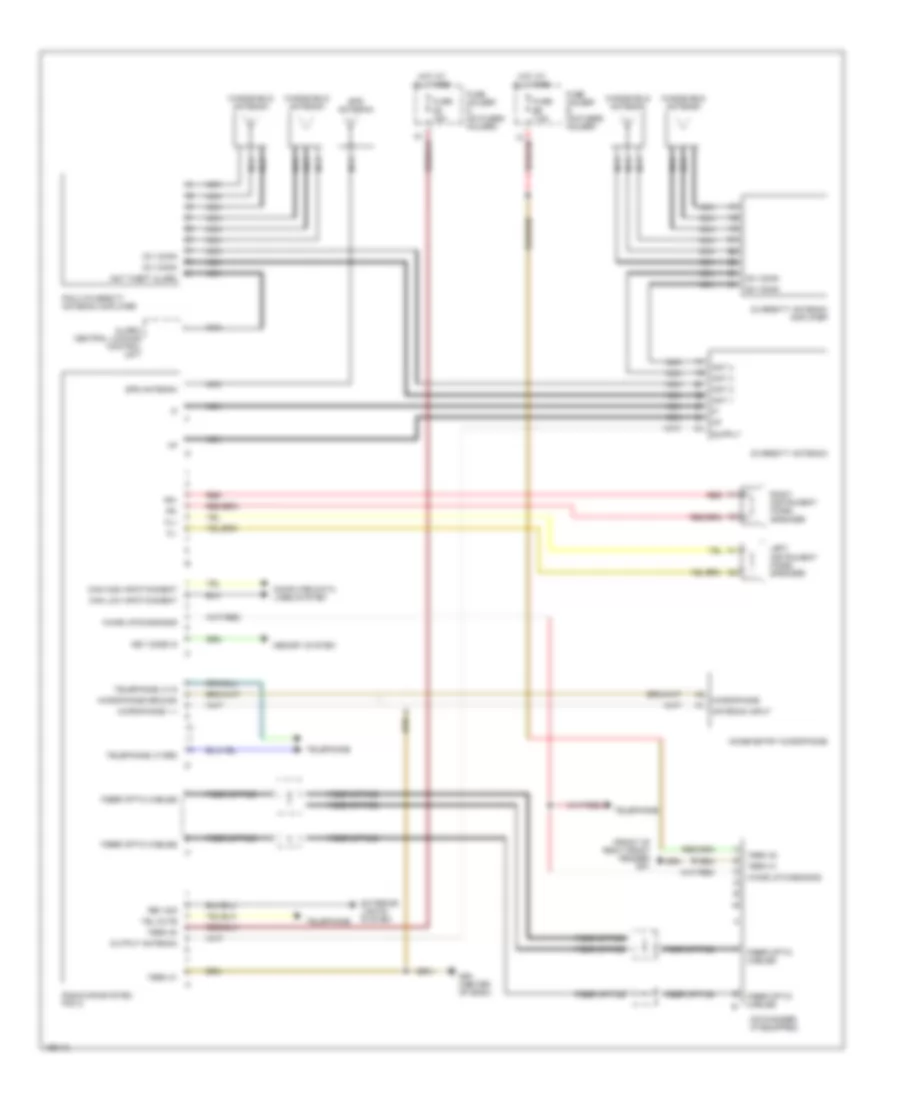

Электросхема навигации GPS, С Bose (1 из 2) для Porsche Boxster 2004

Электросхема навигации GPS, С Bose (1 из 2) для Porsche Boxster 2004 - Список элементов:

• Alarm/ central locking control unit
• Ant 1
• Ant 2
• Ant 3
• Ant 4
• Ant theft alarm
• Antenna input
• Can high infotainment
• Can low infotainment
• Computer data lines system
• Div conn
• Diversity antenna
• Diversity antenna amplifier
• Exterior lights system
• Fiber optic cables
• Fiber optics
• Fuse d8 15a
• Fuse holder d (on fuses holder)
• Gp4 (center of dash)
• Gps antenna
• Hot at all times
• Key code in
• Memory system
• Microphone
• Microphone 1 +
• Microphone ground
• Nca
• Noise entry microphone
• Output antenna
• Pcm 2 diversity antenna amplifier
• Radio/infosystem pcm 2
• Red
• Rev sig
• Tel mute
• Telephone
• Telephone lf grd
• Telephone lf in
• Term 30
• Term 31
• Vnc +
• Vnc -
• Wake up/diagnosis
• Windshield antenna

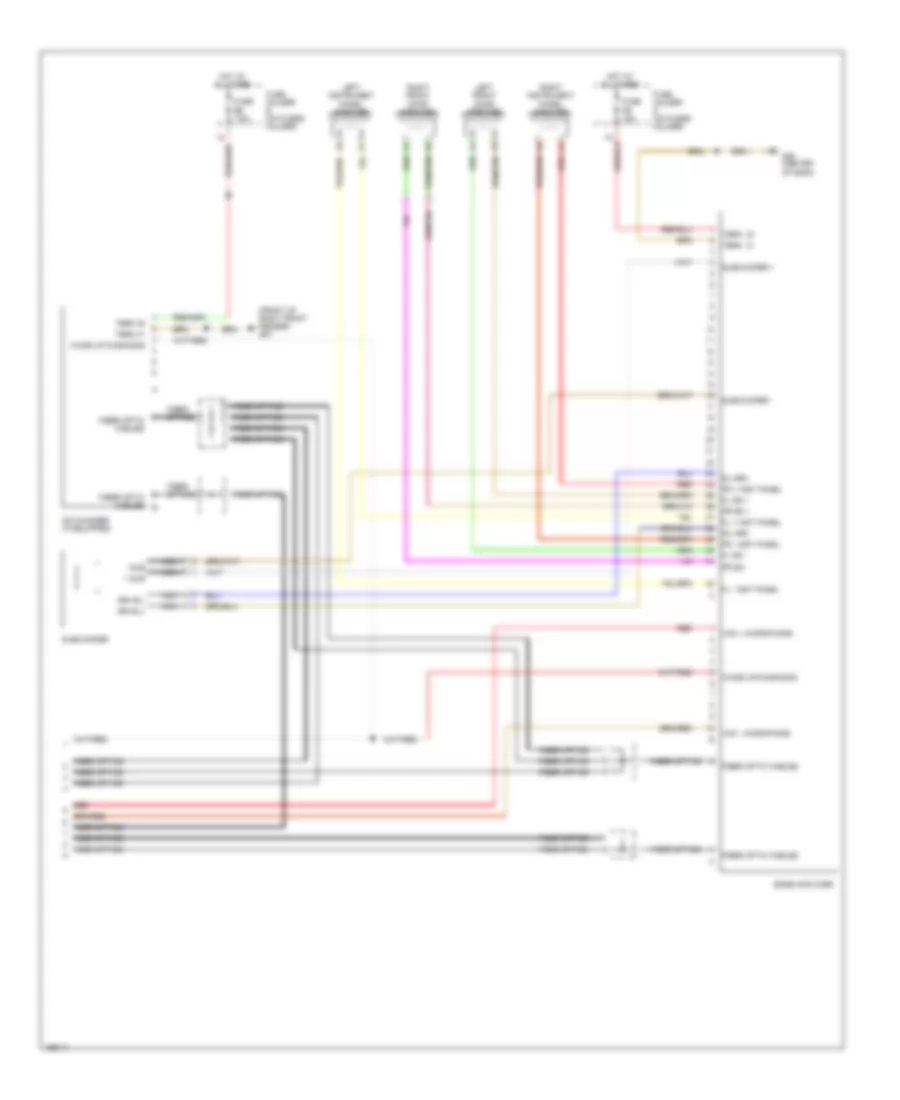

Электросхема навигации GPS, С Bose (2 из 2) для Porsche Boxster 2004

Электросхема навигации GPS, С Bose (2 из 2) для Porsche Boxster 2004 - Список элементов:

• (front of right front fender) gp1
• + sub
• - sub
• Bose amplifier
• Cd changer (if equipped)
• Fiber optic cables
• Fiber optic cables b
• Fiber optics
• Fl + inst panel
• Fl - inst panel
• Fl dr +
• Fl dr -
• Fr + inst panel
• Fr - inst panel
• Fr dr +
• Fr dr -
• Fuse d9 15a
• Fuse e6 7.5a
• Fuse holder d (on fuses holder)
• Fuse holder e (on fuses holder)
• Gp4 (center of dash)
• Hot at all times
• Left front door speaker
• Left instrument panel speaker
• Nca
• Red
• Right front door speaker
• Right instrument panel speaker
• Rl+/rr-
• Rl-/rr+
• Rr+/rl-
• Rr-/rl+
• Subwoofer
• Subwoofer +
• Subwoofer -
• Term 30
• Term 31
• Term 30
• Term 31
• Vnc + microphone
• Vnc - microphone
• Wake up diagnosis
• Wake up/diagnosis

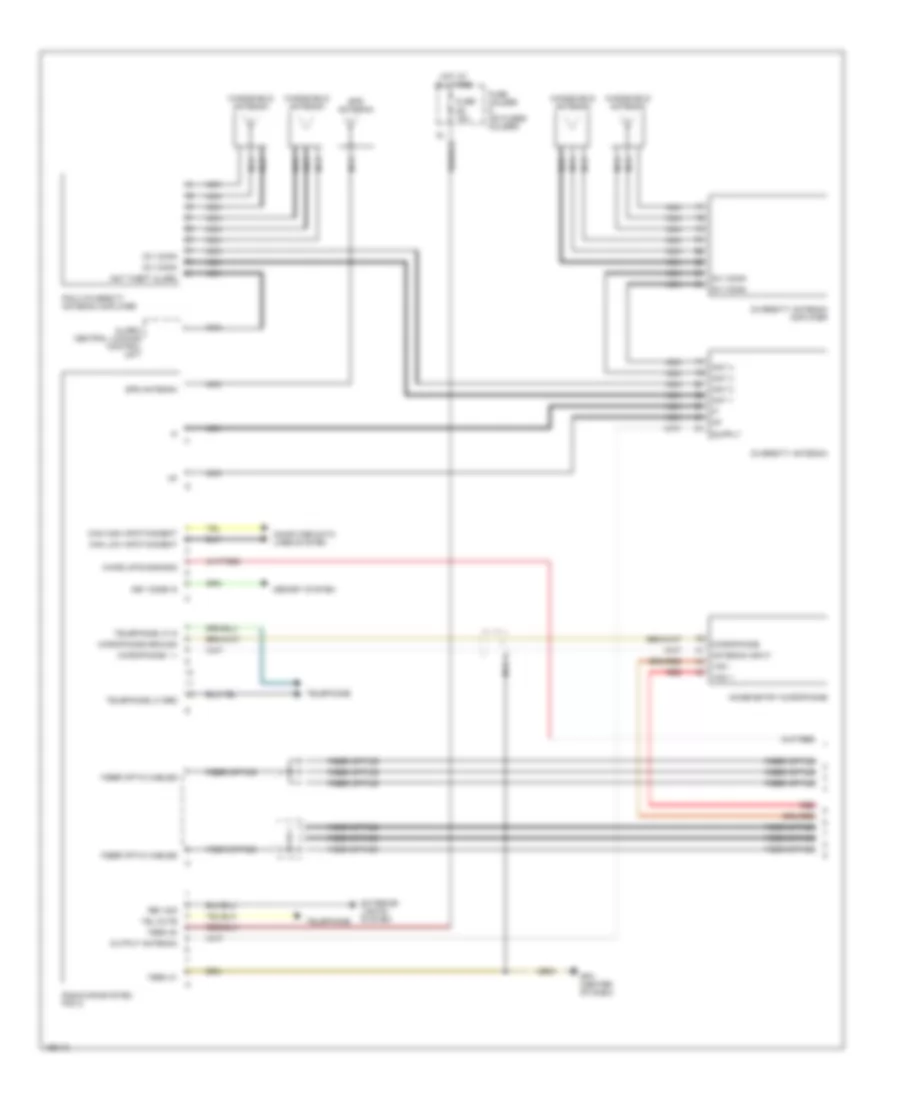

Электросхема навигации GPS, без BOSE для Porsche Boxster 2004

Электросхема навигации GPS, без BOSE для Porsche Boxster 2004 - Список элементов:

• (front of right front fender) gp1
• Alarm/ central locking control unit
• Ant 1
• Ant 2
• Ant 3
• Ant 4
• Ant theft alarm
• Antenna input
• Can high infotainment
• Can low infotainment
• Cd changer (if equipped)
• Computer data lines system
• Div conn
• Diversity antenna
• Diversity antenna amplifier
• Exterior lights system
• Fiber optic cables
• Fiber optics
• Fl+
• Fl-
• Fr+
• Fr-
• Fuse d8 15a
• Fuse e6 7.5a
• Fuse holder d (on fuses holder)
• Fuse holder e (on fuses holder)
• Gp4 (center of dash)
• Gps antenna
• Hot at all times
• Key code in
• Left instrument panel speaker
• Memory system
• Microphone
• Microphone 1 +
• Microphone ground
• Nca
• Noise entry microphone
• Output antenna
• Pcm 2 diversity antenna amplifier
• Radio/infosystem pcm 2
• Red
• Rev sig
• Right instrument panel speaker
• Tel mute
• Telephone
• Telephone lf grd
• Telephone lf in
• Term 30
• Term 31
• Wake up diagnosis
• Wake up/diagnosis
• Windshield antenna

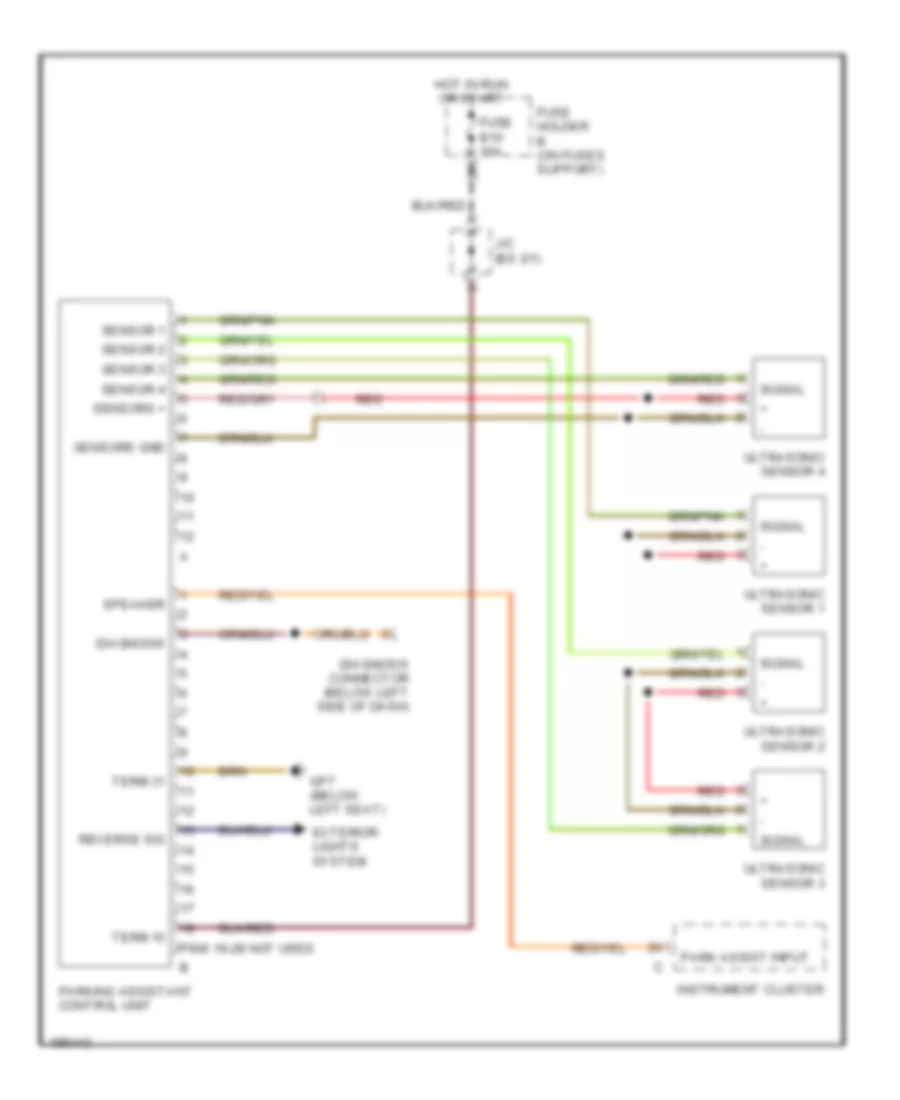

Электросхема парктроников для Porsche Boxster 2004

Электросхема парктроников для Porsche Boxster 2004 - Список элементов:

• Diagnosis
• Diagnosis connector (below left side of dash)
• Exterior lights system
• Fuse b10 15a
• Fuse holder b (on fuses support)
• Gp7 (below left seat)
• Hot in run or start
• Instrument cluster
• J/c (bs 2/1)
• Park assist input
• Parking assistant control unit
• Pins 19-28 not used
• Red
• Reverse sig
• Sensor 1
• Sensor 2
• Sensor 3
• Sensor 4
• Sensors +
• Sensors gnd
• Signal
• Speaker
• Term 15
• Term 31
• Ultrasonic sensor 1
• Ultrasonic sensor 2
• Ultrasonic sensor 3
• Ultrasonic sensor 4
