Электросхемы Противоугонная система Сигнализация Porsche 911 Carrera 4 1998

Противоугонная система Сигнализация

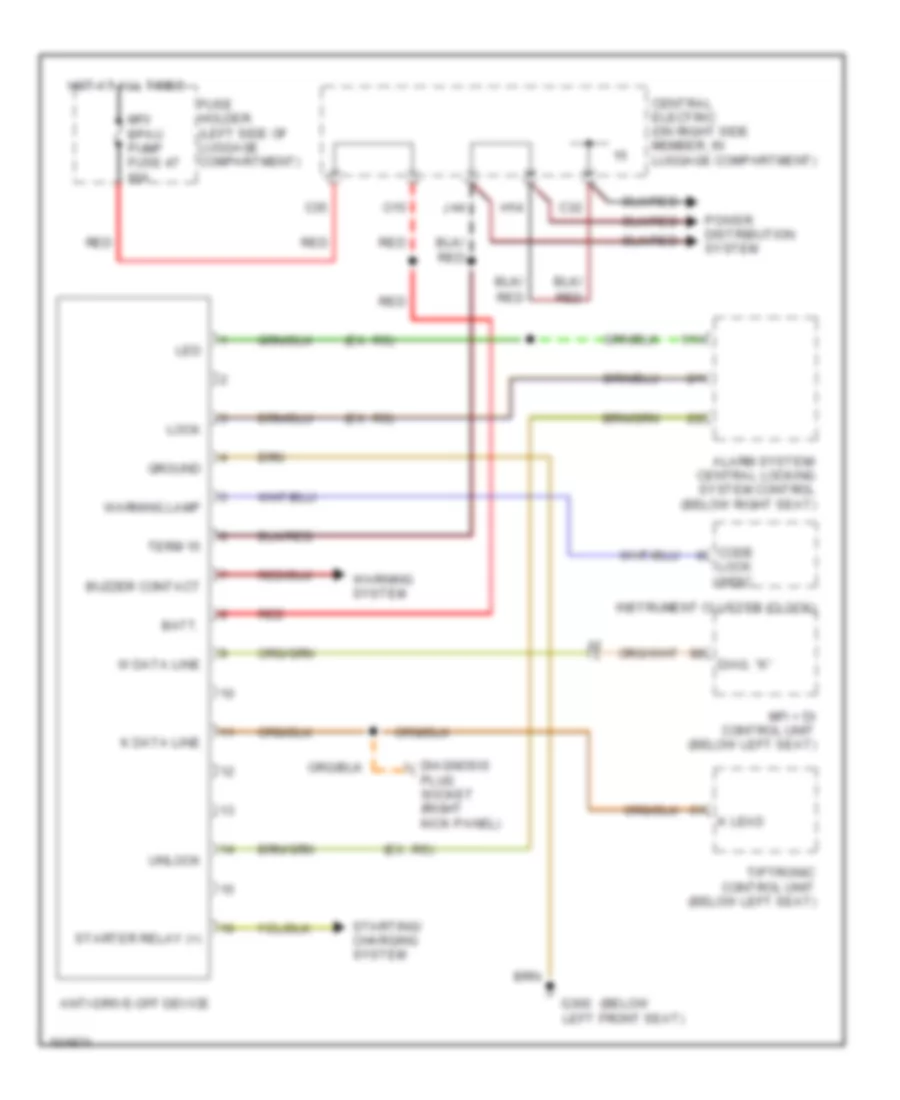

схема Анти-Драйв-Офф для Porsche 911 Carrera 4 1998

схема Анти-Драйв-Офф для Porsche 911 Carrera 4 1998 - Список элементов:

• (below
• (ex. rs)
• 1/14
• 2/1
• 2/2
• Alarm system/ central locking system control (below right seat)
• Anti-drive-off device
• Batt.
• Buzzer contact
• C32
• C35
• Central electric (on right side member, in luggage compartment)
• Code
• Diag. "k"
• Diagnosis
• Fuse holder (left side of luggage compartment)
• G300 left front seat)
• Ground
• H14
• Hot at all times
• Instrument cluster (clock)
• J44
• K data line
• K lead
• Led
• Lock
• Lock indic.
• Mfi + di control unit (below left seat)
• Mfi/ bpau pump fuse 47 60a
• O15
• Plug socket (right kick panel)
• Power distribution system
• Red
• Starter relay (+)
• Starting/ charging system
• Term 15
• Tiptronic control unit (below left seat)
• Unlock
• W data line
• Warning lamp
• Warning system

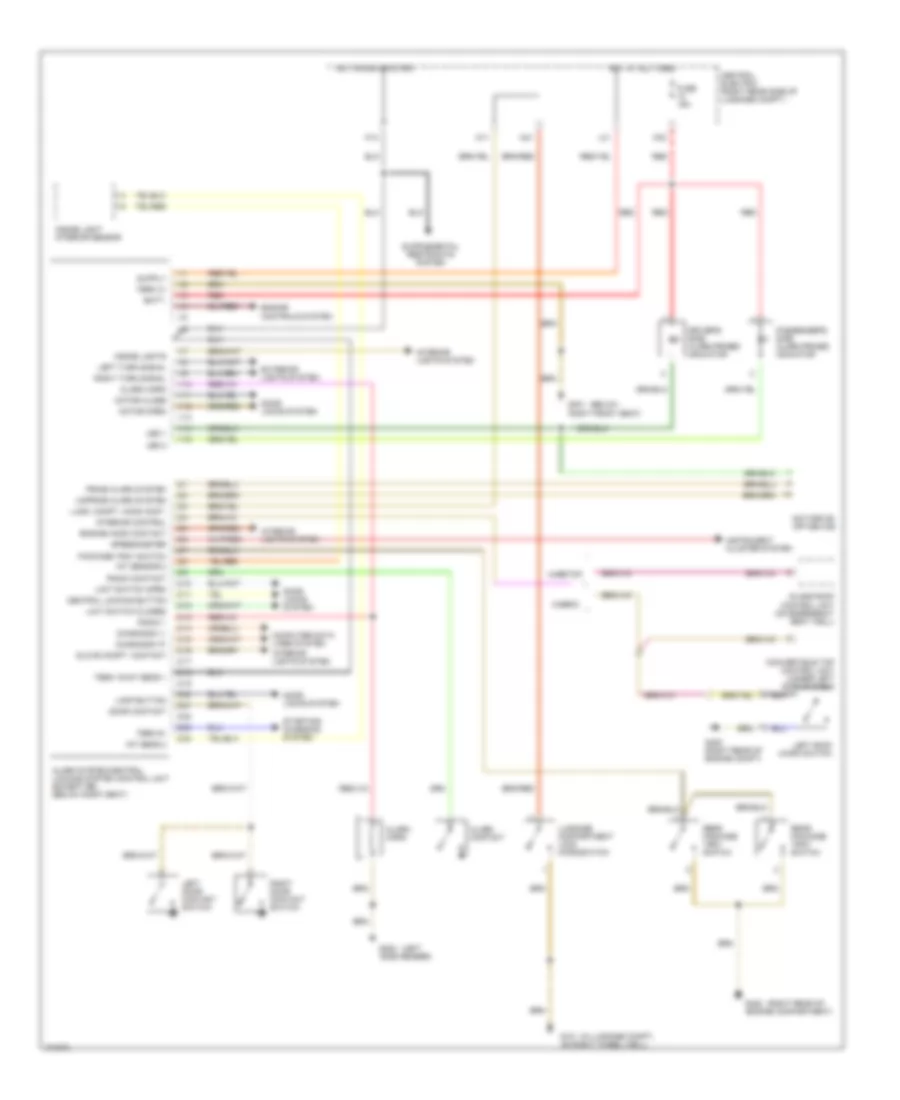

Электросхема открывания авто для Porsche 911 Carrera 4 1998

Электросхема открывания авто для Porsche 911 Carrera 4 1998 - Список элементов:

• (below
• (in luggage compt.,
• (left
• (right rear of
• 1/1
• 1/10
• 1/11
• 1/12
• 1/13
• 1/14
• 1/15
• 1/2
• 1/3
• 1/4
• 1/5
• 1/6
• 1/7
• 1/8
• 1/9
• 2/1
• 2/10
• 2/11
• 2/12
• 2/13
• 2/14
• 2/15
• 2/16
• 2/17
• 2/18
• 2/19
• 2/2
• 2/20
• 2/21
• 2/22
• 2/23
• 2/24
• 2/3
• 2/4
• 2/5
• 2/6
• 2/7
• 2/8
• 2/9
• Alarm contact
• Alarm horn
• Alarm system/central locking system control unit (except rs) (below right seat)
• Anti-drive- off device
• Batt.
• Cabrio
• Central electric (right rear side of luggage compt.)
• Central locking button
• Computer data lines system
• Convertible top control unit (under left side of dash)
• Diagnosis "k"
• Diagnosis "l"
• Door contact
• Door locks system
• Driver's side alarm-primed indicator
• Engine controls system
• Engine hood contact
• Exterior lights system
• Fuse 15a
• G101 on right wheel well)
• G202 side member)
• G301 right front seat)
• G405 (right rear of engine compt)
• G405 engine compartment)
• Glass roof control unit (on emergency seat well)
• Glove compt. contact
• Hardtop
• Hot at all times
• Hot in run or start
• Inside light interior sensor
• Inside lights
• Instrument cluster system
• Int sens 2
• Int sensor 2
• Interior control
• Interior lights system
• K14
• K32
• L41
• Lamp button
• Led 1
• Led 2
• Left door contact switch
• Left roof micro switch
• Left turn signal
• Limit switch closed
• Limit switch open
• Lugg. compt. hood cont.
• Luggage compartment lock microswitch
• M11
• Motor close
• Motor open
• N41
• Package tray switch
• Passenger's side alarm-primed indicator
• Prime alarm system
• Radio 1
• Radio contact
• Rear package tray switch
• Red
• Right door contact switch
• Right turn signal
• Speedometer
• Starting/ charging system
• Term 15/int sens 1
• Term 31
• Term 61
• Unprime alarm system
