Электросхемы СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS Porsche 911 Carrera 4 1998

СИСТЕМА АНТИБЛОКИРОВОЧНОЙ ТОРМОЗНОЙ СИСТЕМЫ ABS

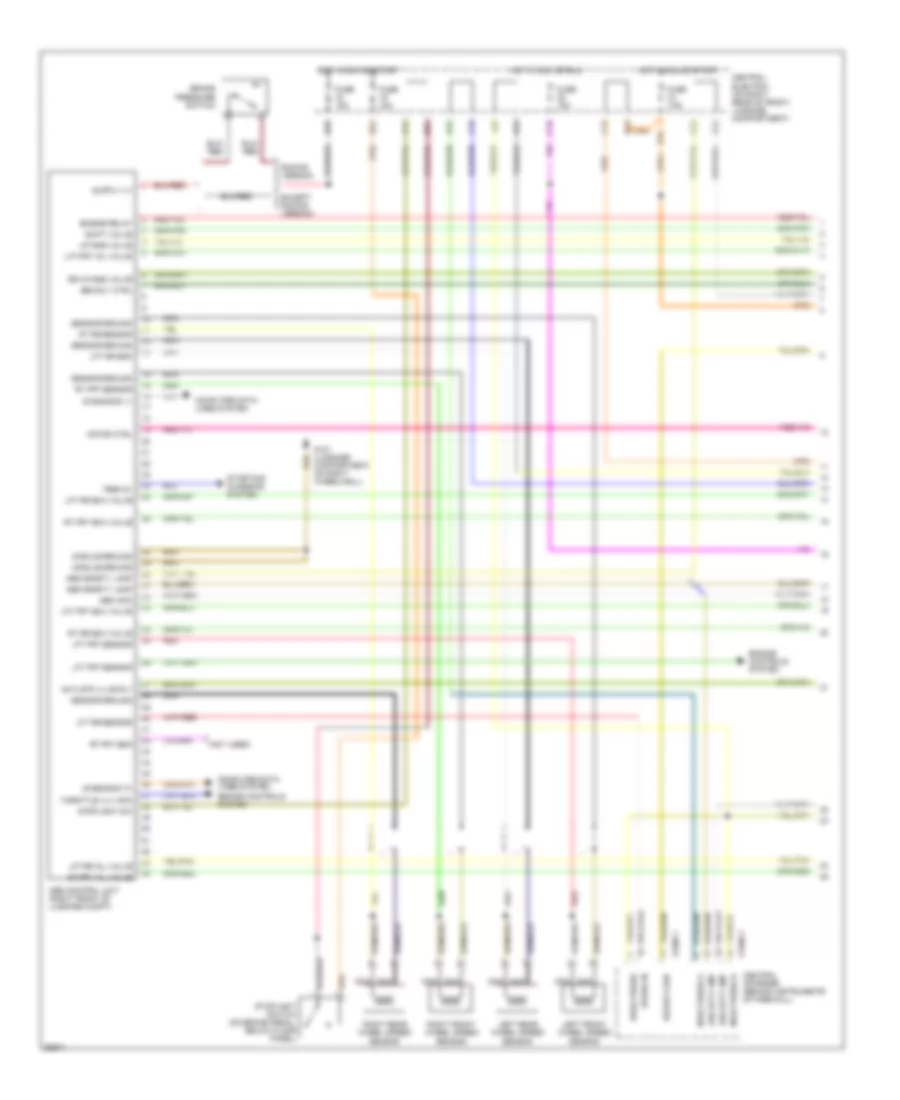

Электросхема антиблокировочной тормозной системы АБС (ABS), кроме США (1 из 2) для Porsche 911 Carrera 4 1998

Электросхема антиблокировочной тормозной системы АБС (ABS), кроме США (1 из 2) для Porsche 911 Carrera 4 1998 - Список элементов:

• (not used)
• Abd info
• Abd safety lamp
• Abd sfty lmp
• Abs control unit (right front of luggage compt)
• Abs safety lamp
• Abs sfty lmp
• Actuatn vlve rly
• B15
• B24
• B43
• B45
• Brake fluid
• Brake pressure switch
• Brke press
• Brke press a
• Brke press b
• C13
• C15
• Central electric (on right rear of front, luggage compartment)
• Central informer (behind instruments of firewall)
• Computer data lines system
• Conn 1
• Conn 2
• D42
• Diagnosis "k"
• Diagnosis "l"
• E12
• Eng rly ctrl
• Engine controls system
• Engine relay
• Except racing version
• Fuse 15a
• Fuse 7.5a
• G101 (luggage compartment, on right wheelwell)
• H12
• H23
• Hot in acc or run
• Hot in run or start
• Intake valve
• J42
• K15
• Left front wheel speed sensor
• Left rear wheel speed sensor
• Lft frt exh valve
• Lft frt inl valve
• Lft frt sensor
• Lft rr eso
• Lft rr exh valve
• Lft rr inl valve
• Lft rr sensor
• M15
• Module ground
• Motor ctrl
• N45
• Nca
• Racing version
• Red
• Right front wheel speed sensor
• Right rear wheel speed sensor
• Rr intake valve
• Rt frt eso
• Rt frt exh valve
• Rt frt inl valve
• Rt frt sensor
• Rt rr exh valve
• Rt rr sensor
• Sensor ground
• Shift valve
• Speed in
• Starting/ charging system
• Stoplight sw
• Stoplight switch (on brake pedal, below floor panel)
• Term 61
• Throttle vlv info

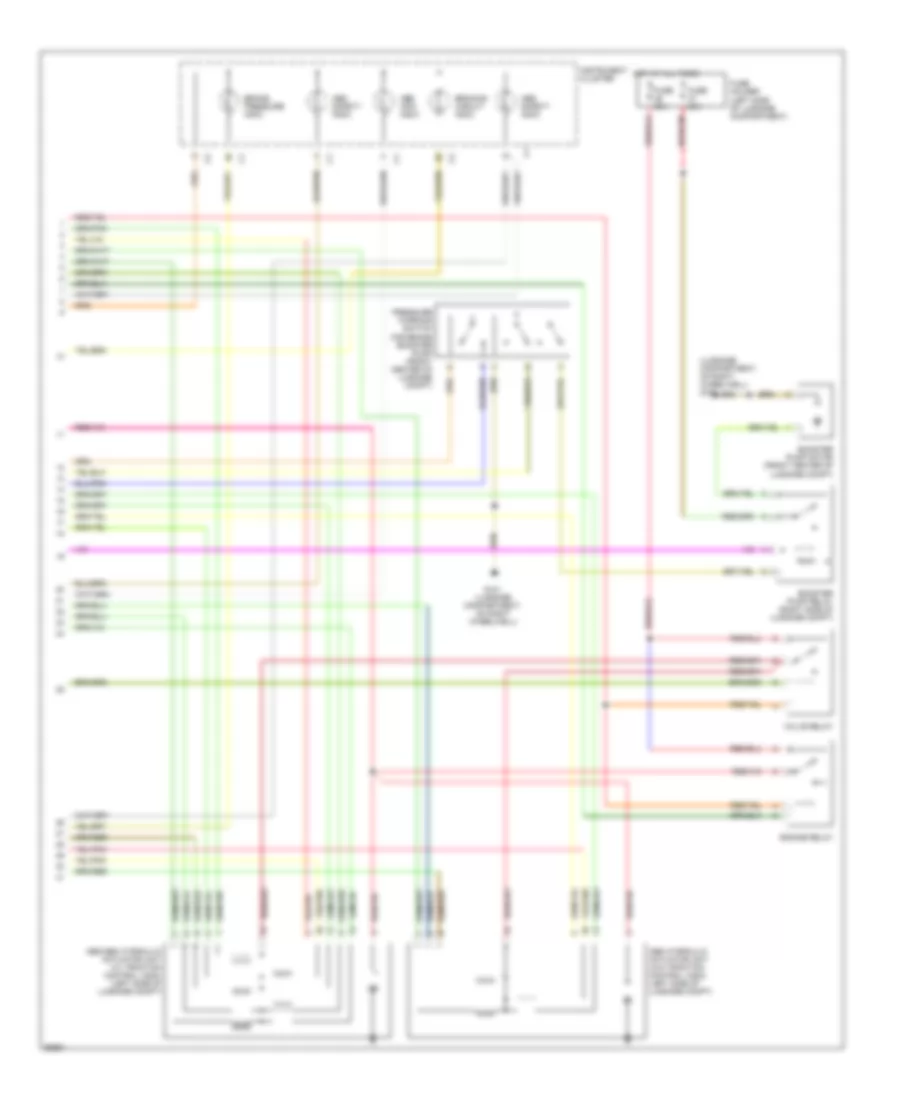

Электросхема антиблокировочной тормозной системы АБС (ABS), кроме США (2 из 2) для Porsche 911 Carrera 4 1998

Электросхема антиблокировочной тормозной системы АБС (ABS), кроме США (2 из 2) для Porsche 911 Carrera 4 1998 - Список элементов:

• (luggage compartment, on right wheelwell) g101
• Abd info indic
• Abd safety indic
• Abs safety indic
• Abs/abd hydraulic actuator unit (left side of luggage compt)
• Booster pump motor (front center of luggage compt)
• Booster pump relay (right side of luggage compt)
• Brake pressure indic
• Braking circuit indic
• Engine relay
• Fuse 60a
• Fuse holder (left side of luggage compartment)
• G101 (luggage compartment, on right wheelwell)
• Hot at all times
• Instrument cluster
• Pressure warning switch for brake booster pump (front center of luggage compt)
• Valve relay

Электросхема антиблокировочной тормозной системы АБС (ABS), США (1 из 2) для Porsche 911 Carrera 4 1998

Электросхема антиблокировочной тормозной системы АБС (ABS), США (1 из 2) для Porsche 911 Carrera 4 1998 - Список элементов:

• (m224)
• (m339)
• (not m224)
• (not m339)
• Abd info
• Abd safety lamp
• Abd sfty lmp
• Abs control unit (right front of luggage compt)
• Abs safety lamp
• Abs sfty lmp
• Actuatn vlve rly
• B15
• B24
• B43
• B45
• Brake fluid
• Brke press
• Brke press a
• Brke press b
• C13
• C15
• Central electric (on right rear of front, luggage compartment)
• Central informer (behind instruments of firewall)
• Computer data lines system
• Computer data lines system engine controls system
• Conn 1
• Conn 2
• D42
• Diagnosis "k"
• Diagnosis "l"
• E12
• Eng rly ctrl
• Engine controls system
• Engine relay
• Eso rr
• Fuse 15a
• Fuse 7.5a
• G101 (luggage compartment, on right wheelwell)
• H12
• H23
• Hot in acc or run
• Hot in run or start
• Intake valve
• J42
• K15
• Left front wheel speed sensor
• Left rear wheel speed sensor
• Lft frt exh valve
• Lft frt inl valve
• Lft frt sensor
• Lft rr eso
• Lft rr exh valve
• Lft rr inl valve
• Lft rr sensor
• Lt frt eso
• M15
• Module ground
• Motor ctrl
• N45
• Nca
• Red
• Right front wheel speed sensor
• Right rear wheel speed sensor
• Rr intake valve
• Rt frt eso
• Rt frt exh valve
• Rt frt inl valve
• Rt frt sensor
• Rt rr exh valve
• Rt rr sensor
• Sensor ground
• Shift valve
• Speed in
• Starting/ charging system
• Stoplight sw
• Stoplight switch (on brake bedal, below floor panel)
• Term 61
• Throttle vlv info
• Transmissions system
• Transmissions system (tiptronic control module)

Электросхема антиблокировочной тормозной системы АБС (ABS), США (2 из 2) для Porsche 911 Carrera 4 1998

Электросхема антиблокировочной тормозной системы АБС (ABS), США (2 из 2) для Porsche 911 Carrera 4 1998 - Список элементов:

• (luggage compartment, on right wheelwell) g101
• Abd info indic
• Abd safety indic
• Abs hydraulic actuator unit (w/o traction control: m224) (left side of luggage compt)
• Abs safety indic
• Abs/abd hydraulic actuator unit (w/ traction control: m224) (left side of luggage compt)
• Booster pump motor (front center of luggage compt)
• Booster pump relay (right side of luggage compt)
• Brake pressure indic
• Braking circuit indic
• Engine relay
• Fuse 60a
• Fuse holder (left side of luggage compartment)
• G101 (luggage compartment, on right wheelwell)
• Hot at all times
• Instrument cluster
• Pressure warning switch for brake booster pump (front center of luggage compt)
• Valve relay
