Электросхемы СИСТЕМА КРУИЗКОНТРОЛЯ GMC Cab amp; Chassis Sierra 3500 HD 2009

СИСТЕМА КРУИЗКОНТРОЛЯ

6.0L ВИН К.

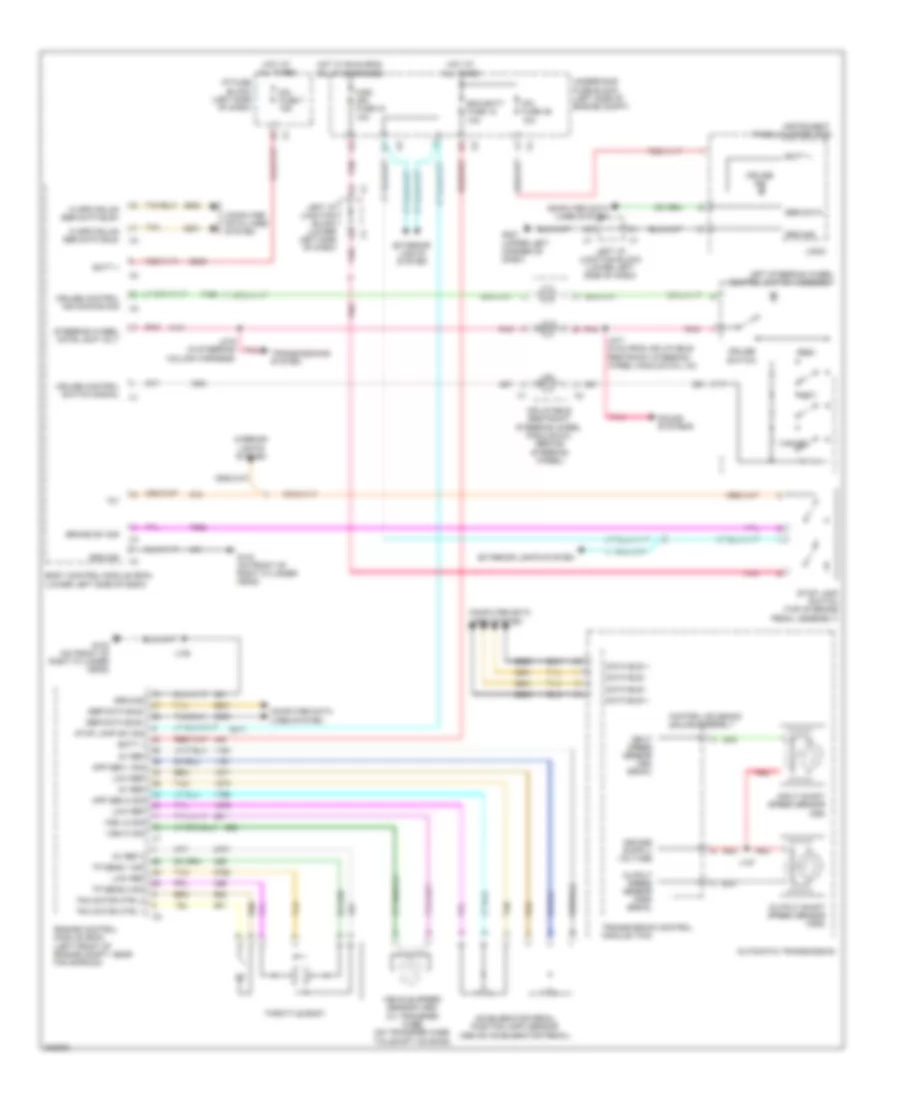

6.0L ВИН К, Электросхема системы круизконтроля для GMC Cab amp; Chassis Sierra 3500 HD 2009

6.0L ВИН К, Электросхема системы круизконтроля для GMC Cab amp; Chassis Sierra 3500 HD 2009 - Список элементов:

• 12v
• 5v ref
• 5v ref 2
• Accelerator pedal position (app) sensor (above accelerator pedal)
• App sen 1 sig
• App sen 2 sig
• Automatic transmission
• Batt +
• Body control module (bcm) (lower left side of dash)
• Brake sw sig
• Cancel
• Column harness)
• Computer data lines system
• Control solenoid valve assembly
• Cruise control ind dimming sig
• Cruise control switch signal
• Cruise ind
• Cruise switch
• Data bus +
• Data bus -
• Dim fuse 7 15a
• Ecm batt fuse 12 10a
• Engine control module (ecm) (left front of engine compt, near fan shroud)
• Exterior lights system
• G103 (on front of right cylinder head)
• G201 (upper left corner of dash)
• Ground
• Hi spd gmlan ser data bus+
• Hi spd gmlan ser data bus-
• Hot at all times
• Hot w/ run/crnk relay energized
• I/p fuse block (left side of dash)
• Inflatable restraint steering wheel module coil (behind steering wheel)
• Input shaft speed sensor (iss)
• Input speed sensor (iss) signal
• Instrument panel cluster (ipc)
• Interior lights system
• Ipc fuse 46 10a
• J106
• J127
• J216 (in steering pnk
• J217 (9 cm from inflatable restraint steering wheel module coil x2)
• Left i/p junction block (lower left side of dash)
• Left steering wheel control switch assembly
• Logic
• Low ref
• Misc ign fuse 43 10a
• Output shaft speed sensor (oss)
• Output speed sensor (oss) signal
• Pnk
• Red
• Res+
• Ser data
• Ser data bus+
• Ser data bus-
• Set-
• Sound systems
• Steering wheel cntrl sup volt
• Stop lamp sw sig
• Stop lamp switch (top of brake pedal assembly)
• Tac motor ctrl 1
• Tac motor ctrl 2
• Tan
• Throttle body
• Tp sens 1 sig
• Tp sens 2 sig
• Transmission control module (tcm)
• Transmissions system
• Underhood fuse block (left side of engine compt)
• Vehicle speed sensor (vss) (w/ transfer case) (on transfer case tailshaft housing)
• Vss hi sig
• Vss lo sig

6.6L VIN 6

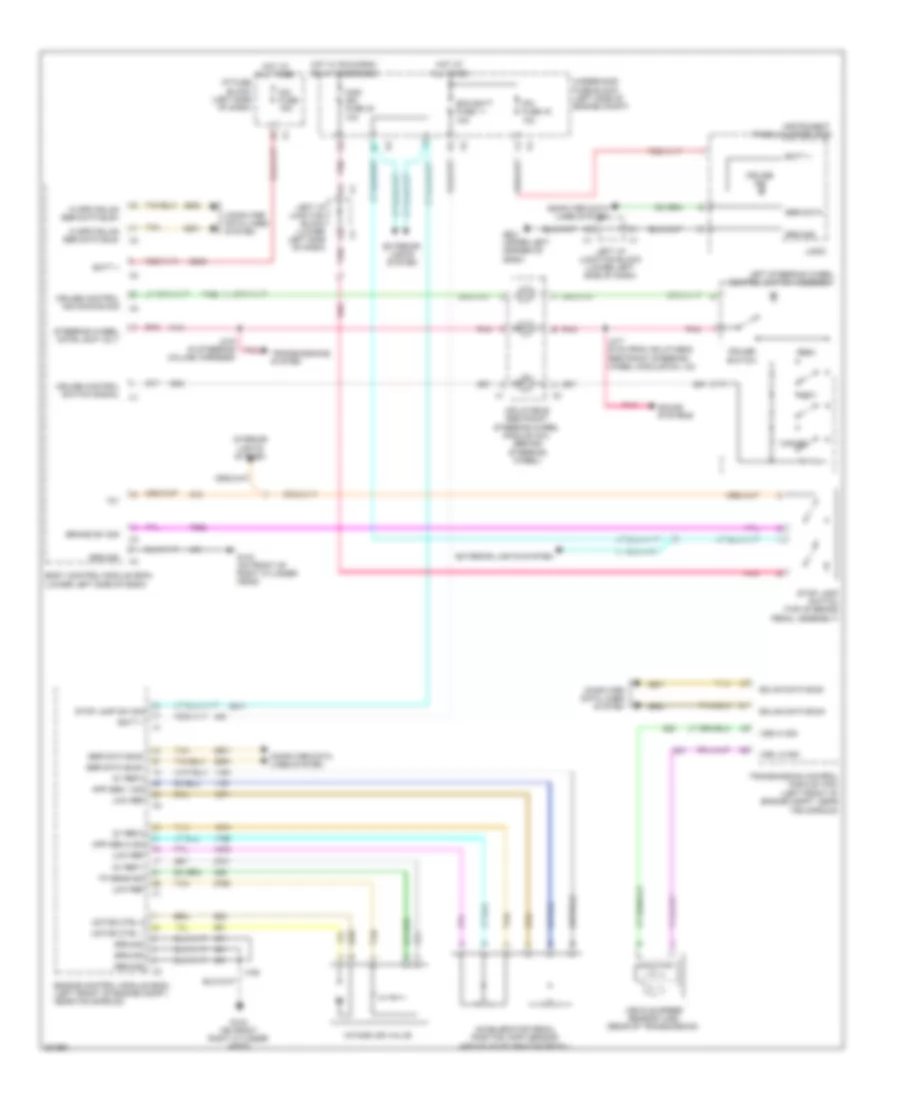

6.6L VIN 6, Электросхема системы круизконтроля для GMC Cab amp; Chassis Sierra 3500 HD 2009

6.6L VIN 6, Электросхема системы круизконтроля для GMC Cab amp; Chassis Sierra 3500 HD 2009 - Список элементов:

• (left front of engine compt, near fan shroud)
• 12v
• 5v ref-1
• 5v ref-2
• 5v ref-3
• Accelerator pedal position (app) sensor (above accelerator pedal)
• App sen 1 sig
• App sen 2 sig
• Batt +
• Body control module (bcm) (lower left side of dash)
• Brake sw sig
• Cancel
• Column harness)
• Computer data lines system
• Cruise control ind dimming sig
• Cruise control switch signal
• Cruise ind
• Cruise switch
• Dim fuse 15a
• Ecm batt fuse 11 10a
• Engine control module (ecm) (left front of engine compt, near fan shroud)
• Exterior lights system
• G103 (on front of right cylinder head)
• G103 (on front right cylinder head)
• G201 (upper left corner of dash)
• Gmlan data bus+
• Gmlan data bus-
• Ground
• Hi spd gmlan ser data bus+
• Hi spd gmlan ser data bus-
• Hot at all times
• Hot w/ run/crnk relay energized
• I/p fuse block (left side of dash)
• Inflatable restraint steering wheel module coil (behind steering wheel)
• Instrument panel cluster (ipc)
• Intake air valve
• Interior lights system
• Ipc fuse 43 10a
• J106
• J216 (in steering pnk
• J217 (9 cm from inflatable restraint steering wheel module coil x2)
• Left i/p junction block (lower left side of dash)
• Left steering wheel control switch assembly
• Logic
• Low ref
• Misc ign fuse 40 10a
• Motor ctrl 1
• Motor ctrl 2
• Pnk
• Res+
• Ser data
• Ser data bus+
• Ser data bus-
• Set-
• Sound systems
• Steering wheel cntrl sup volt
• Stop lamp sw sig
• Stop lamp switch (top of brake pedal assembly)
• Tan
• Tp sens sig
• Transmission control module (tcm)
• Transmissions system
• Underhood fuse block (left side of engine compt)
• Vehicle speed sensor (vss) (rear of transmission)
• Vss hi sig
• Vss lo sig
