Электросхемы СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ Porsche 911 Carrera 4 1998

СИСТЕМА УПРАВЛЕНИЯ ДВИГАТЕЛЯ

3.6L

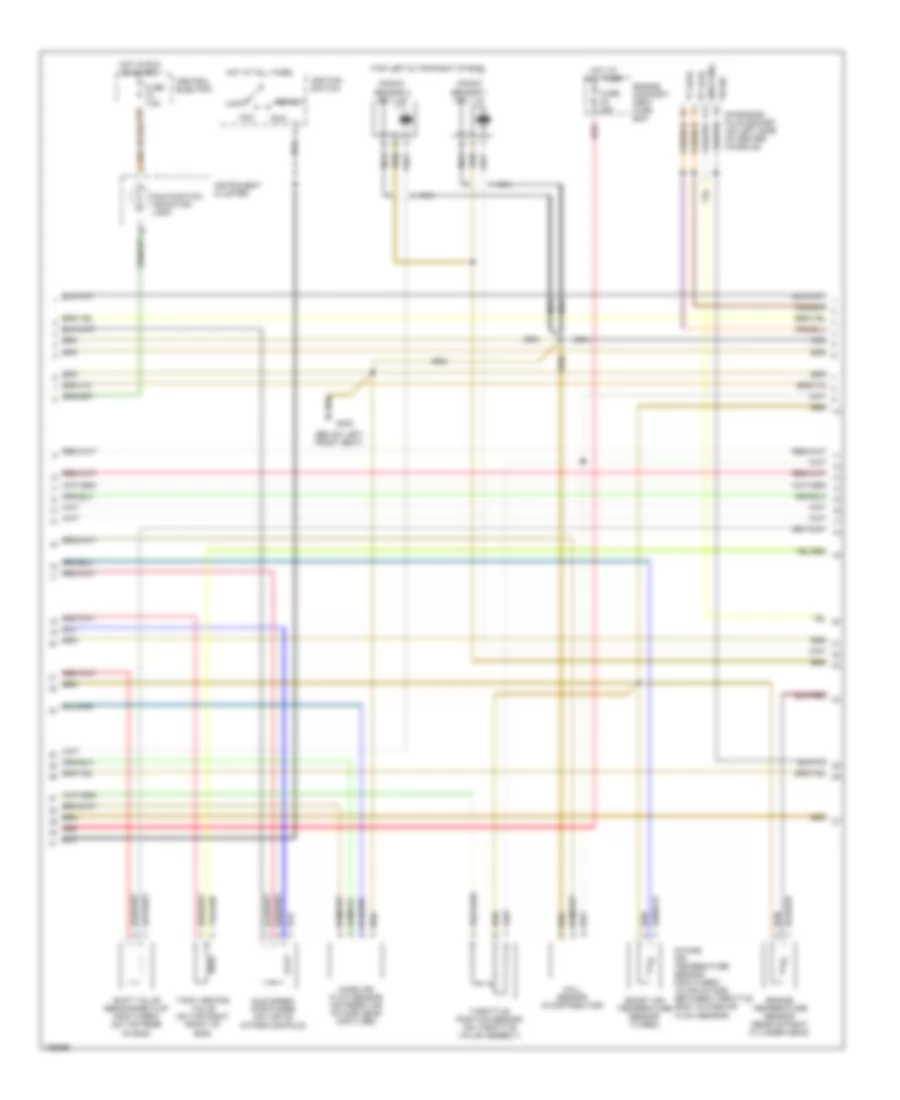

3.6L, Электросхема системы управления двигателя (1 из 3) для Porsche 911 Carrera 4 1998

3.6L, Электросхема системы управления двигателя (1 из 3) для Porsche 911 Carrera 4 1998 - Список элементов:

• (left front of eng) timing valve
• (not-turbo)
• (on right front of eng)
• (turbo only)
• Air conditioning system
• Anti-lock brakes system
• Bat (+)
• C35
• C45
• Ccsv
• Central electric
• Compressor on info
• Compressor switch
• D11
• D15
• Distributor
• Ess connection b
• Fuel injectors
• Fuel level ind
• Fuel pump (lower left rear of eng compt)
• Fuse 25a
• Fuse holder (left side of eng compt)
• G103 (right front wheel carrier)
• G133 (on camshaft casing, cylinder 3)
• Gnd
• Hall sens
• Ho2s 1 sign (bef cat)
• Ho2s 2 sign (bef cat)
• Ho2s gnd
• Ho2s htg (bef cat)
• Hot at all times
• Idle sd pos close
• Idle sp pos open
• Ignition coil 1
• Ignition coil 2
• Ignition coil i
• Ignition coil ii (non-turbo)
• Inj 1
• Inj 2
• Inj 3
• Inj 4
• Inj 5
• Inj 6
• Instrument cluster system
• Intake pipe sw over
• Intake pipe switch over shift valve (non-turbo)
• Knock sens cyl 4-6
• Maf sign
• Malfunction ind lamp
• Mfi + di relay
• Mfi+di rly ctrl
• Mfi-di control unit (under driver's seat)
• Mfi/bpau fuse 60a
• Ml-r switch
• Nca
• O15
• O24
• O25
• O35
• Red
• Second air pump rly
• Secondary air pump (on left side of eng)
• Secondary air pump relay (on carrier, left side of eng compt)
• Secondary air pump shift valve
• Sens gnd
• Temp sens
• To spark plugs
• To spark plugs (non-turbo)
• Transmission input
• Transmissions system
• Tvs
• Vac coasting shutoff

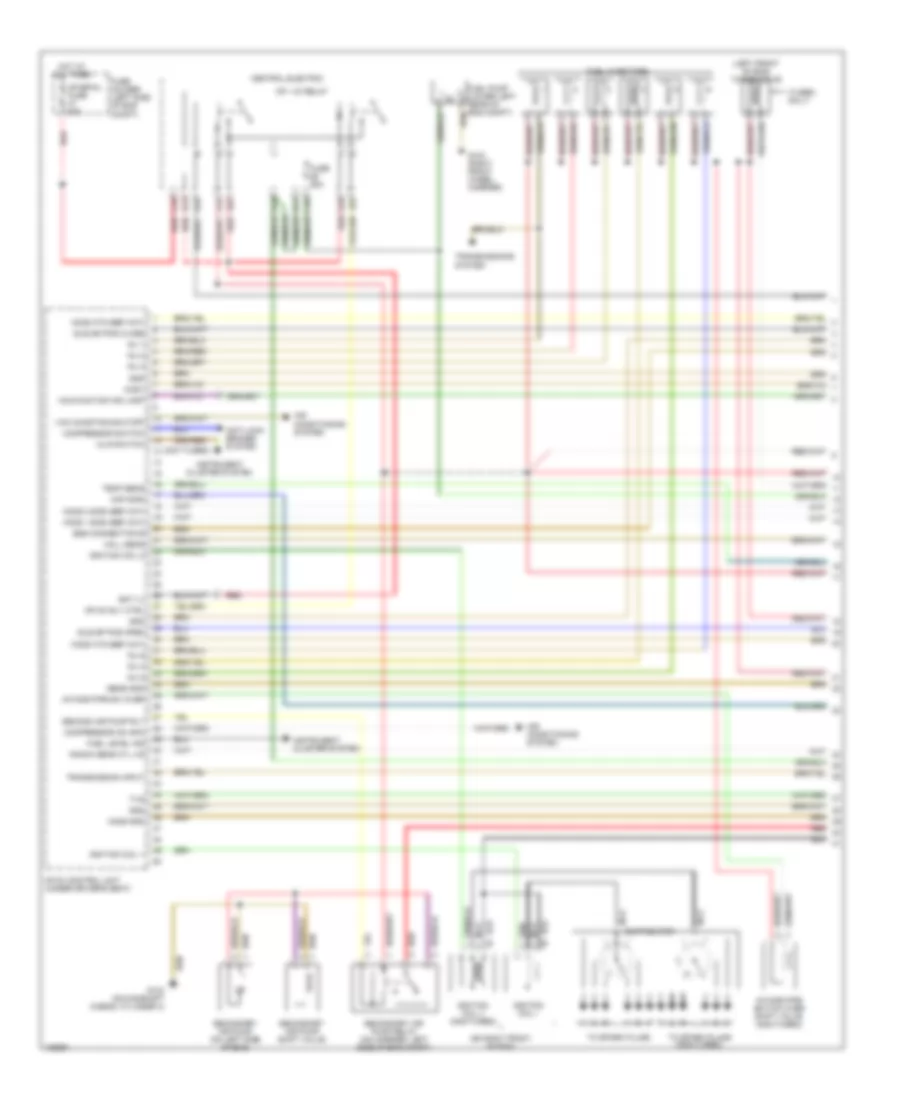

3.6L, Электросхема системы управления двигателя (2 из 3) для Porsche 911 Carrera 4 1998

3.6L, Электросхема системы управления двигателя (2 из 3) для Porsche 911 Carrera 4 1998 - Список элементов:

• "k" lead
• "l" lead
• (below left front seat)
• (top left & top right of eng)
• Acc
• B15
• Boost air temperature sensor (turbo)
• Central electric
• Diagnosis plug socket (on left side of center console)
• Engine compart- ment fuse box
• Engine temperature sensor (rear of right cylinder head)
• Fuse 40a
• Fuse 7.5a
• G300
• Hall sensor (in distributor)
• Hot at all times
• Hot in run or start
• Idle speed positioner (on top of intake manifold)
• Ignition switch
• Instrument cluster
• Intake air temperature sensor (non-turbo) (in air intake, between throttle body & mass air flow sensor)
• Knock sensor 1 (cyl 1-3)
• Knock sensor 2 (cyl 4-6)
• Knocking
• Lock
• Malfunction indicator lamp
• Mass air flow sensor (on fresh air intake, near air filter)
• Nca
• Red
• Run
• Shift valve resonance flap (non-turbo) (on top rear of eng)
• Start
• Tank venting valve (on top right front of eng)
• Throttle position sensor (on throttle valve assebly)
• Tn sig

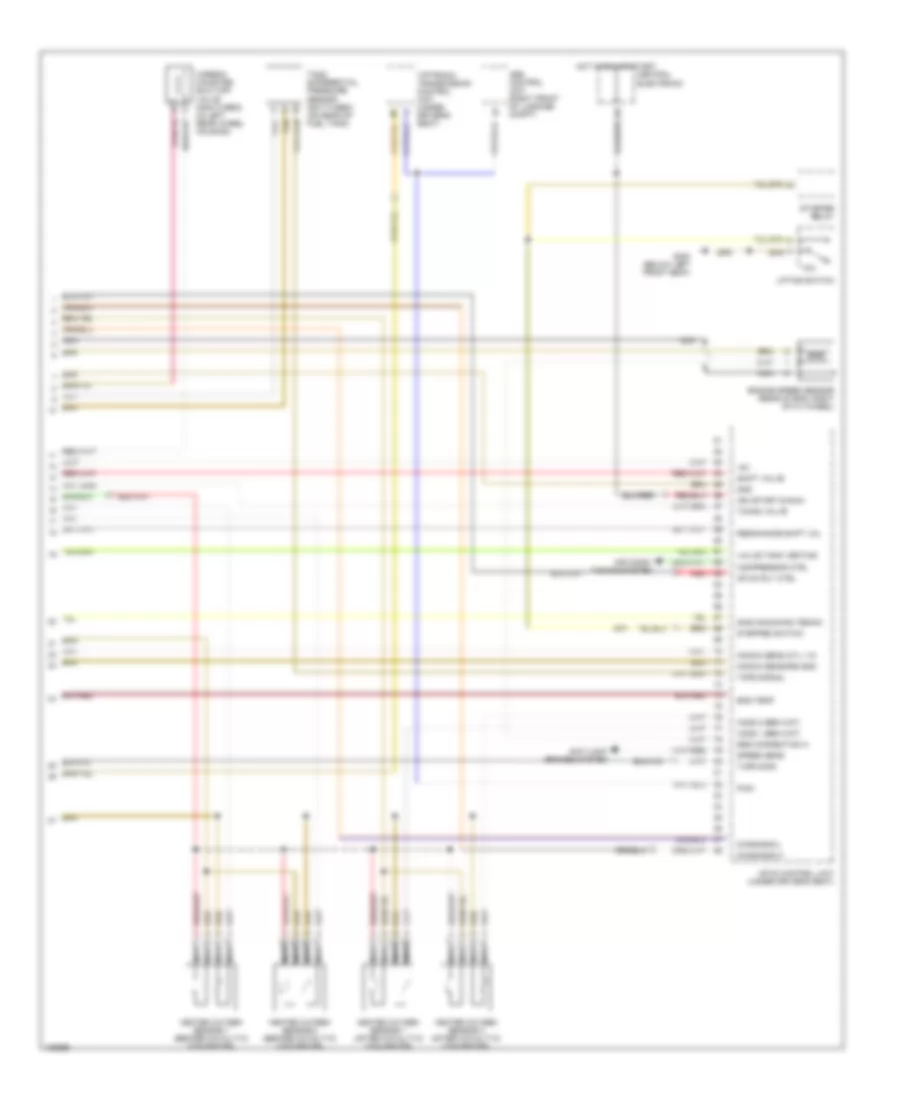

3.6L, Электросхема системы управления двигателя (3 из 3) для Porsche 911 Carrera 4 1998

3.6L, Электросхема системы управления двигателя (3 из 3) для Porsche 911 Carrera 4 1998 - Список элементов:

• (a/t)
• +5v
• Abs control unit (right front of luggage compt)
• Air condi- tioning system
• Anti-lock brakes system
• Carbon canister shut-off valve (non-turbo) (in left rear wheel housing)
• Central electronic
• Compressor ctrl
• Diagnosis k
• Diagnosis l
• Eng temp
• Engine speed sensor (rear of eng, right of flywheel)
• Ess connection a
• G300 (below left front seat)
• Gnd
• Heated oxygen sensor 1 (after catalytic converter)
• Heated oxygen sensor 1 (before catalytic converter)
• Heated oxygen sensor 2 (after catalytic converter)
• Heated oxygen sensor 2 (before catalytic converter)
• Ho2s 1 (beh cat)
• Ho2s 2 (beh cat)
• Hot in run or start
• Ign (start & run)
• J44
• Knock sens (cyl 1-3)
• Knock sensors gnd
• Lifting switch
• Mfi+di rly ctrl
• Mfi-di control unit (under driver's seat)
• Nca
• P/n
• Pwm
• Red
• Resonance shift val
• Shift valve
• Sign knocking yes/no
• Speed sens
• Starter relay
• Stepped switch
• Tank differential pressure sensor (not-turbo) (on rear of fuel tank)
• Timing valve
• Tiptronic transmission control unit (under driver's seat)
• Tops signal
• Turn sign
• Valve tank venting
