Электросхемы Стартер Генератор GMC Forward Control P3500 1997

Стартер Генератор

Электросхема Генератора для GMC Forward Control P3500 1997

Электросхема Генератора для GMC Forward Control P3500 1997 - Список элементов:

• (commercial) s112 (motor home) s125
• (commercial-rear of right cylinder head, motor home-left frame rail)
• Battery
• Fusible link (10 ga-rust)
• G120 (commercial) g113 (motor home)
• Gauges fuse 20a
• Generator
• Hot in run and start
• I/p fuse block
• Pnk
• Power distribution system
• Red
• S207 (commercial) s154 (motor home)
• Secondary battery (diesel)
• Starter solenoid

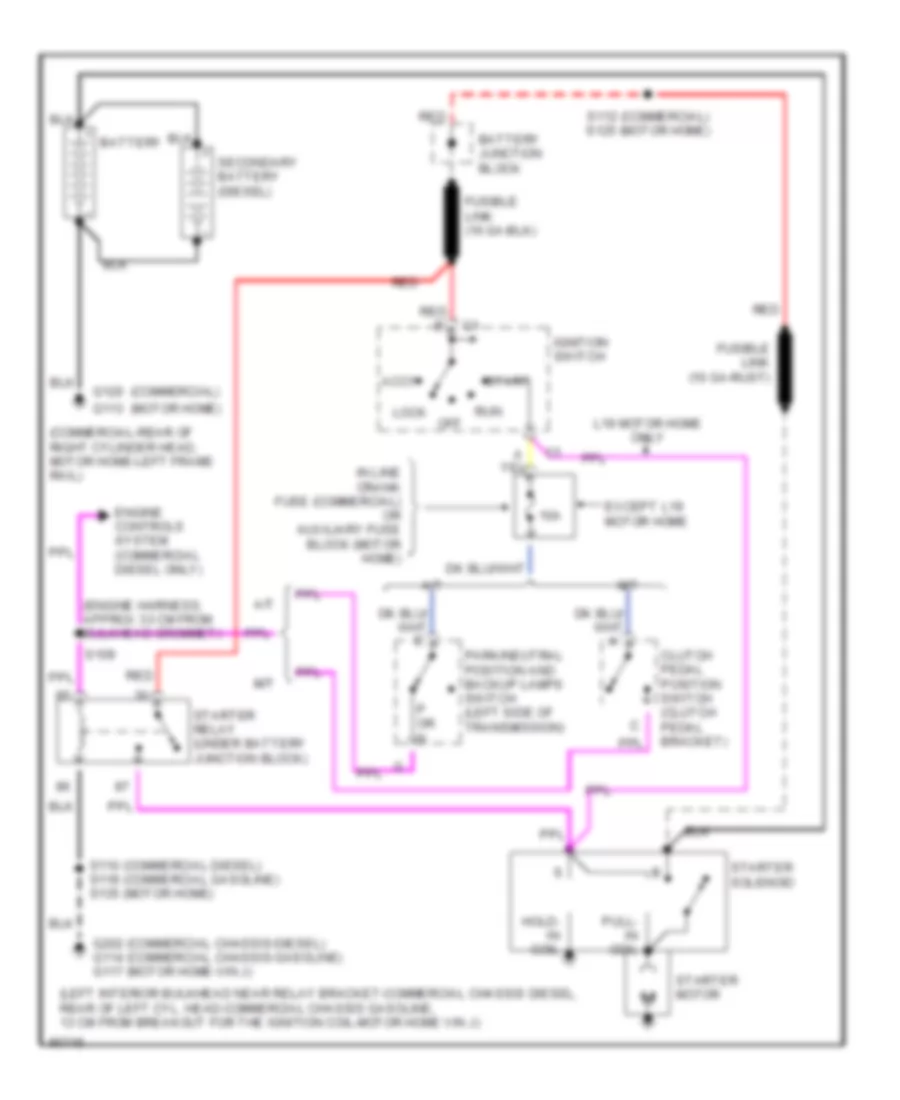

Электросхема стартера для GMC Forward Control P3500 1997

Электросхема стартера для GMC Forward Control P3500 1997 - Список элементов:

• (commercial)
• (commercial-rear of right cylinder head, motor home-left frame rail)
• (engine harness, approx 33 cm from bulkhead grommet)
• (left interior bulkhead near relay bracket-commercial chassis diesel, rear of left cyl. head-commercial chassis gasoline, 13 cm from breakout for the ignition coil-motor home vin j)
• (motor home)
• 10a
• A/t
• Accy
• Battery
• Battery junction block
• Clutch pedal position switch (clutch pedal bracket)
• Engine controls system (commercial diesel only)
• Except l19 motor home
• Fusible link (10 ga-rust)
• G113
• G120
• G202 (commercial chassis-diesel) g114 (commercial chassis-gasoline) g117 (motor home-vin j)
• Hold- in coil
• Ignition switch
• In line crank fuse (commercial) or auxiliary fuse block (motor home)
• L19 motor home only
• Lock
• M/t
• Off
• P or n
• Park/neutral position and backup lamps switch (left side of transmission)
• Pull- in coil
• Red
• Red b
• Run
• S109
• S110 (commercial diesel) s118 (commercial gasoline) s135 (motor home)
• S112 (commercial) s125 (motor home)
• Secondary battery (diesel)
• Start
• Starter motor
• Starter relay (under battery junction block)
• Starter solenoid
