Электросхемы ВНЕШНЕЕ ОСВЕЩЕНИЕ GMC Savana G2500 1998

ВНЕШНЕЕ ОСВЕЩЕНИЕ

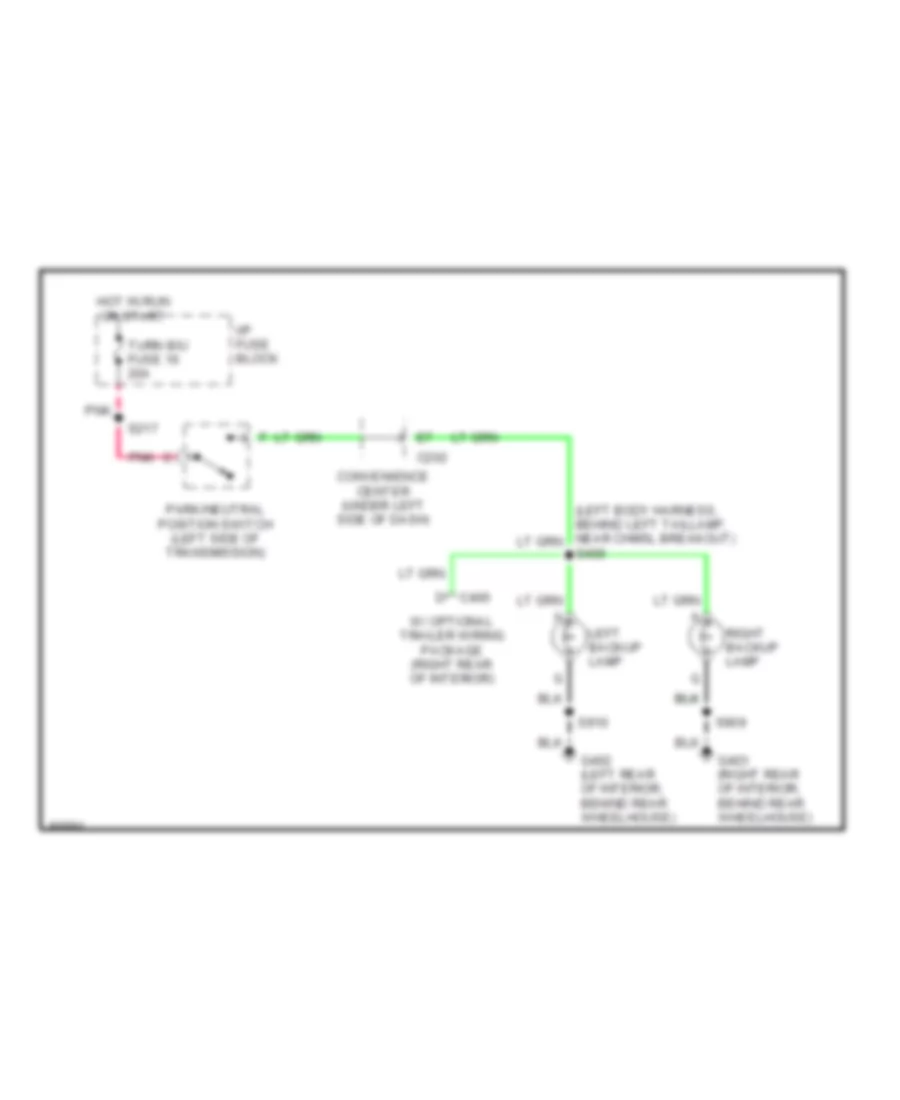

Электросхема заднего хода для GMC Savana G2500 1998

Электросхема заднего хода для GMC Savana G2500 1998 - Список элементов:

• C202
• Convenience center (under left side of dash)
• D c406
• G402 (left rear of interior, behind rear wheelhouse)
• G403 (right rear of interior, behind rear wheelhouse)
• Hot in run or start
• I/p fuse block
• Left backup lamp
• Park/neutral position switch (left side of transmission)
• Pnk
• Right backup lamp
• S217
• S409
• S909
• S910
• Turn b/u fuse 16 20a
• W/ optional trailer wiring package (right rear of interior)

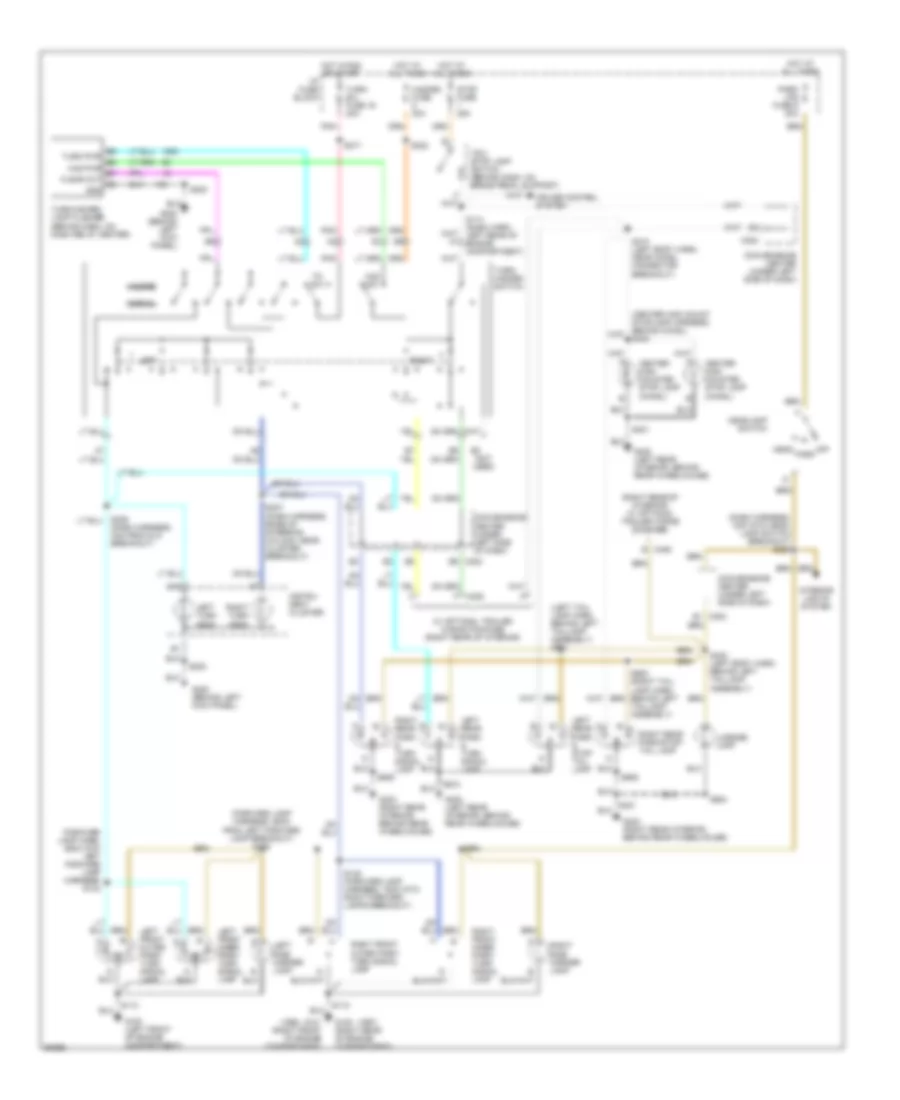

Электросхема внешнего освещения, С Сложные Фары для GMC Savana G2500 1998

Электросхема внешнего освещения, С Сложные Фары для GMC Savana G2500 1998 - Список элементов:

• (1997)
• (1998)
• (center high mount stoplamp harness, behind chmsl) s422
• (dash harness, 4cm into head- lamp switch breakout) s225
• (forward lamp harn, 26cm into left forward lamp harness) s142
• (forward lamp harness, 26cm from left forward lamp breakout) s135
• (left tail- lamp harn, behind left taillamp assembly) s901
• (not used)
• (right rear of interior) w/ optional trailer wiring package)
• A10
• B c406
• B9 turn pwr b8 haz pwr b7 flshr out c8 gnd
• C202
• Center high mounted stop lamp (chmsl)
• Convenience center (under left side of dash)
• Cruise control system
• E1 c202
• E6 c202
• F c406
• G100 (left front of engine compartment)
• G101 (right front of engine compartment)
• G105 (right rear of engine compartment)
• G200 (behind left kick panel)
• G402 (left rear interior, behind rear wheelhouse)
• G403 (right rear interior, behind rear wheelhouse)
• Haz sw
• Hazard
• Hazard fuse 20a
• Head
• Headlamp switch
• Hot at all times
• Hot in run or start
• I/p fuse block
• Instru- ment cluster
• Interior lights system
• Left
• Left front inner park/ turn signal lamp
• Left front outer park/ turn signal lamp
• Left rear park & stop tail lamp
• Left rear park & turn signal lamp
• Left side marker lamp
• Left turn indic
• License lamp
• Normal
• Off
• Park
• Park lps fuse 9 20a
• Pnk
• Right
• Right front inner park/ turn signal lamp
• Right front outer park/ turn signal lamp
• Right rear park & turn signal lamp
• Right rear park/stop/ tail lamp
• Right side marker lamp
• Right turn indic
• S110
• S114 (dash harn, left rear of engine compartment)
• S118
• S145 (forward lamp harness, 15cm into right forward lamps breakout)
• S202
• S217
• S222
• S236 (dash harness, 4cm from dlc breakout)
• S237 (dash harness, base of steering column, near cluster breakout)
• S402 (left body harn, behind left taillamp assembly)
• S410 (left body harn, near chmsl connector breakout)
• S421
• S904
• S909
• S910
• Stop fuse 25a
• Taillamp assembly)
• Tcc/ stop lamp switch (behind dash, on brake pedal support)
• Tn sw
• Turn- b/u fuse 16 20a
• Turn/ hazard switch
• Turn/hazard lamp flasher (behind dash, on dash relay center)
• W/ optional trailer wiring package (right rear of interior)

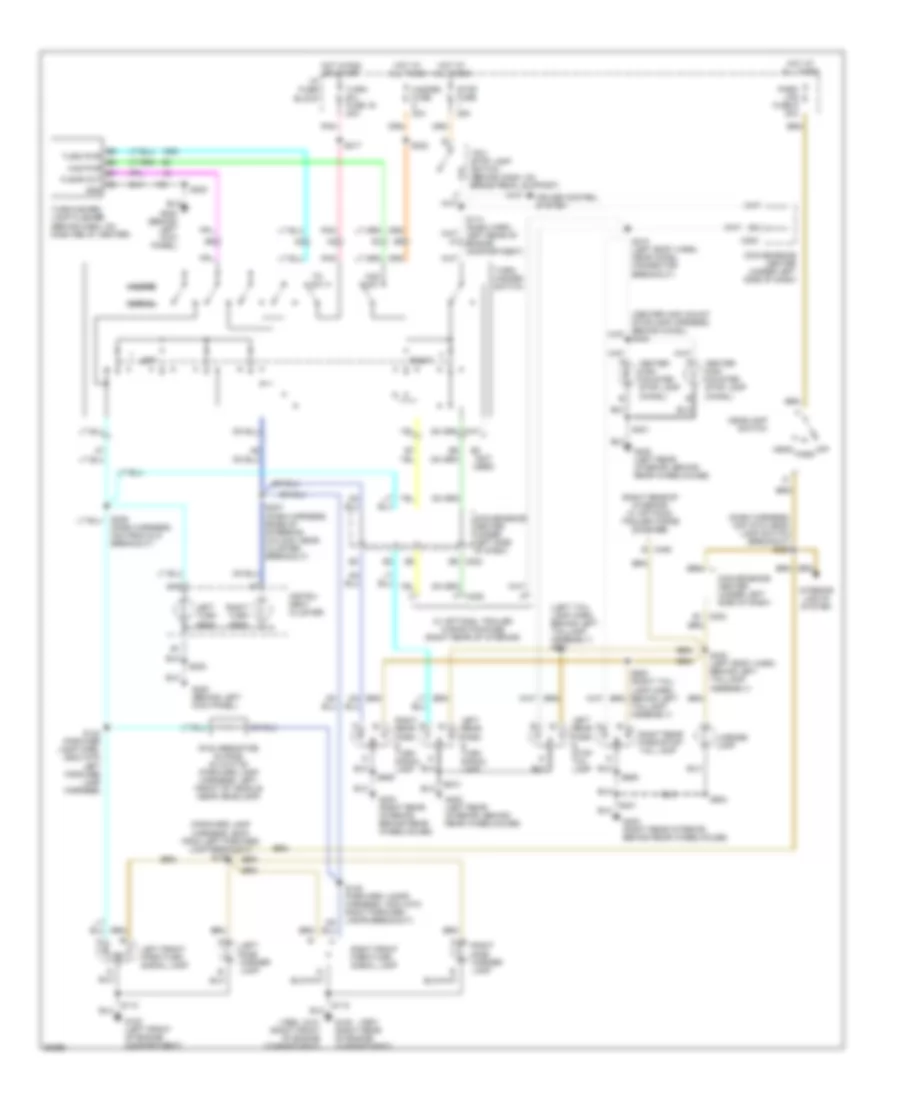

Электросхема внешнего освещения, С Изолированные Фары Луча для GMC Savana G2500 1998

Электросхема внешнего освещения, С Изолированные Фары Луча для GMC Savana G2500 1998 - Список элементов:

• (1997)
• (1998)
• (center high mount stoplamp harness, behind chmsl) s422
• (dash harness, 4cm into head- lamp switch breakout) s225
• (forward lamp harness, 26cm from left forward lamp breakout) s135
• (left tail- lamp harn, behind left taillamp assembly) s901
• (not used)
• (right rear of interior) w/ optional trailer wiring package)
• A10
• B c406
• B9 turn pwr b8 haz pwr b7 flshr out c8 gnd
• C202
• Center high mounted stop lamp (chmsl)
• Convenience center (under left side of dash)
• Cruise control system
• E1 c202
• E6 c202
• F c406
• G100 (left front of engine compartment)
• G101 (right front of engine compartment)
• G105 (right rear of engine compartment)
• G200 (behind left kick panel)
• G402 (left rear interior, behind rear wheelhouse)
• G403 (right rear interior, behind rear wheelhouse)
• Haz sw
• Hazard
• Hazard fuse 20a
• Head
• Headlamp switch
• Hot at all times
• Hot in run or start
• I/p fuse block
• Instru- ment cluster
• Interior lights system
• Left
• Left front park/turn signal lamp
• Left rear park & stop tail lamp
• Left rear park & turn signal lamp
• Left side marker lamp
• Left turn indic
• License lamp
• Normal
• Off
• Park
• Park lps fuse 9 20a
• Pnk
• R100 (resistor) (6 ohms, 30 watts) (forward lamp harness, left front of vehicle near headlamp)
• Right
• Right front park/turn signal lamp
• Right rear park & turn signal lamp
• Right rear park/stop/ tail lamp
• Right side marker lamp
• Right turn indic
• S110
• S114 (dash harn, left rear of engine compartment)
• S118
• S142 (forward lamp harn, 26cm into left forward lamp harness)
• S202
• S217
• S222
• S236 (dash harness, 4cm from dlc breakout)
• S237 (dash harness, base of steering column, near cluster breakout)
• S402 (left body harn, behind left taillamp assembly)
• S410 (left body harn, near chmsl connector breakout)
• S421
• S904
• S909
• S910
• Stop fuse 25a
• Taillamp assembly)
• Tcc/ stop lamp switch (behind dash, on brake pedal support)
• Tn sw
• Turn- b/u fuse 16 20a
• Turn/ hazard switch
• Turn/hazard lamp flasher (behind dash, on dash relay center)
• W/ optional trailer wiring package (right rear of interior)
