Электросхемы ВНУТРЕННЕЕ ОСВЕЩЕНИЕ GMC Cab amp; Chassis Sierra 3500 2007

ВНУТРЕННЕЕ ОСВЕЩЕНИЕ

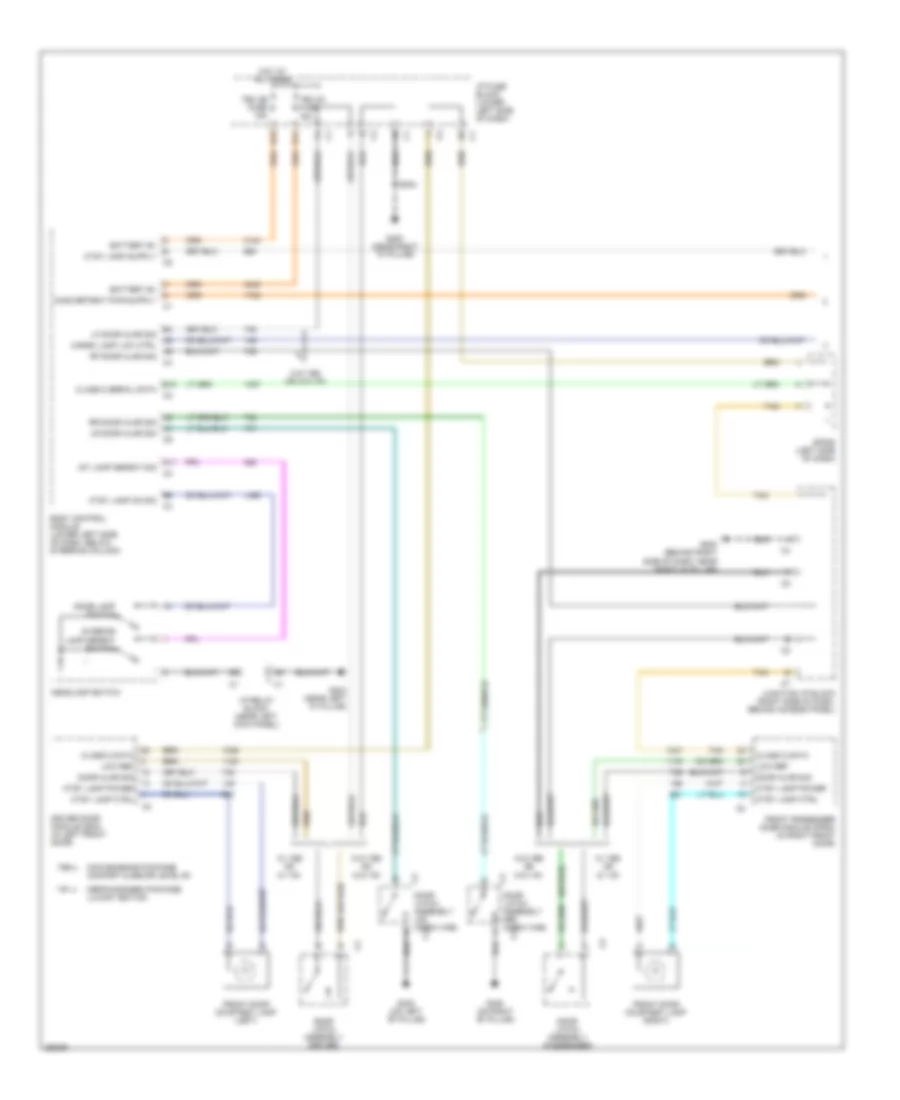

Электросхема подсветки (1 из 2) для GMC Cab amp; Chassis Sierra 3500 2007

Электросхема подсветки (1 из 2) для GMC Cab amp; Chassis Sierra 3500 2007 - Список элементов:

• A11
• B12
• Battery b+
• Body control module (lower left side of dash, below steering column)
• Cargo lamp low ctrl
• Class 2 data
• Class 2 serial data
• Convenience package comfort & decor level #3
• Ctsy lamp ctrl
• Ctsy lamp on sig
• Ctsy lamp power
• Dome lamp switch
• Door ajar sig
• Door latch assembly (driver)
• Door latch assembly (lr) (crew cab)
• Door latch assembly (passenger)
• Door latch assembly (rr) (crew cab)
• Driver door module (ddm) (in left front door)
• E11
• Front door courtesy lamp (left)
• Front door courtesy lamp (right)
• Front passenger door module (fpdm) (in right front door)
• G200 (behind right side of dash, near right "a" pillar)
• G200 (near right "a" pillar)
• G203 (near left "a" pillar)
• G305 (on left "b" pillar)
• G306 (on right "b" pillar)
• Headlamp switch
• Hot at all times
• I/p fuse block (lower left side of dash)
• I/p relay block (near left kick panel)
• Int lamp defeat sig
• Interior lamp defeat switch
• Junction i/p block (right side of dash, behind access panel)
• Lf door ajar sig
• Low ref
• Lr door ajar sig
• Merchandised package luxury edition
• Rf door ajar sig
• Rr door ajar sig
• S202
• Sp205 (left side of dash)
• Tan
• Tbc 2b fuse 15a
• Tbc 2c fuse 15a
• W/ ye9 or w/ y91
• W/o ye9 or w/o y91
• Y91 =
• Ye9 =

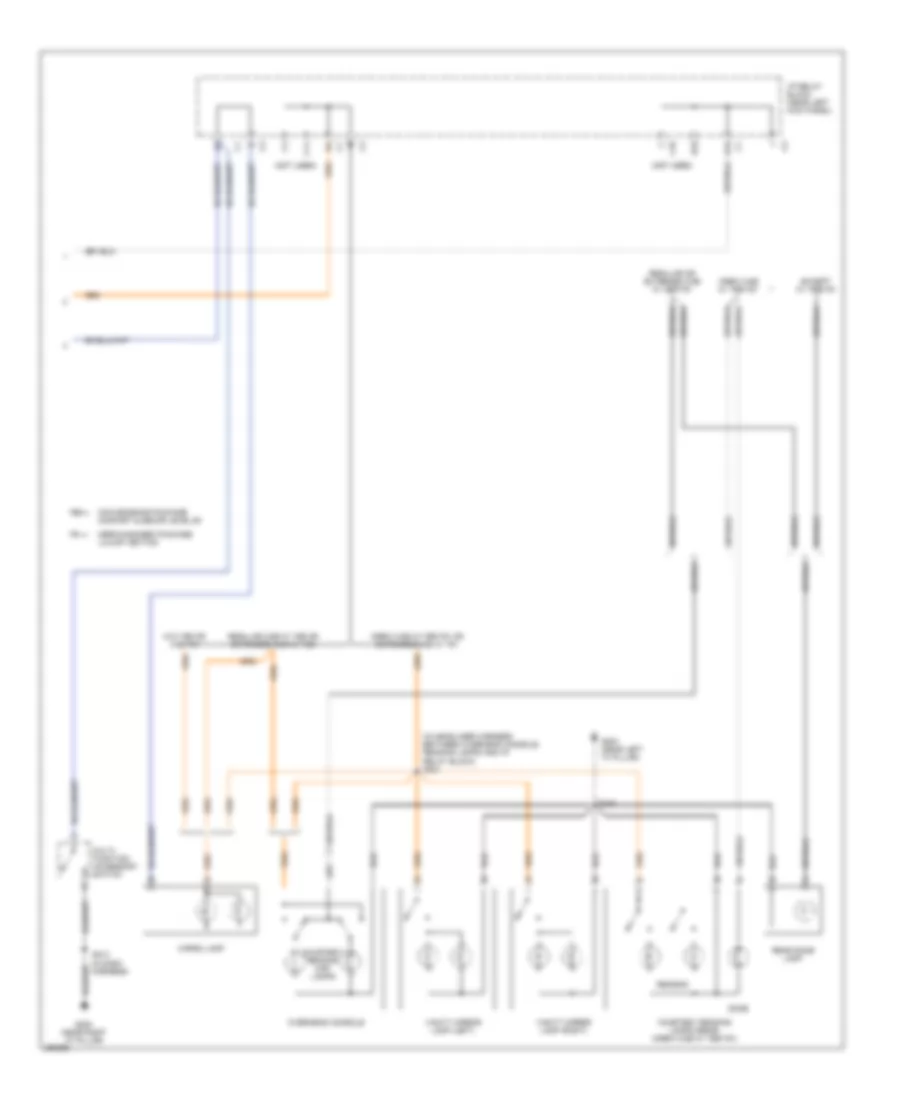

Электросхема подсветки (2 из 2) для GMC Cab amp; Chassis Sierra 3500 2007

Электросхема подсветки (2 из 2) для GMC Cab amp; Chassis Sierra 3500 2007 - Список элементов:

• (in dash harness)
• (in headliner harness between overhead console reading lamps and i/p relay block) s321
• (not used)
• A12
• B10
• C10
• C11
• Cargo lamp
• Convenience package comfort & decor level #3
• Courtesy reading lamps (rear) (crew cab w/ ye9/y91)
• Courtesy/ reading map lamps
• Crew cab w/ ye9/y91
• Crew cab w/ ye9/y91 or extended cab w/ y91
• Dome
• Except w/ ye9/y91
• G200 (near right "a" pillar)
• G203 (near left "a" pillar)
• I/p relay block (near left kick panel)
• Merchandised package luxury edition
• Multi- function accessory switch
• Overhead console
• Reading
• Rear dome lamp
• Regular cab w/ ye9 or extended cab w/ ye9
• Regular or extended cab w/ ye9/y91
• S213
• S345
• Vanity mirror lamp (left)
• Vanity mirror lamp (right)
• W/o ye9 or w/o y91
• Y91 =
• Ye9 =

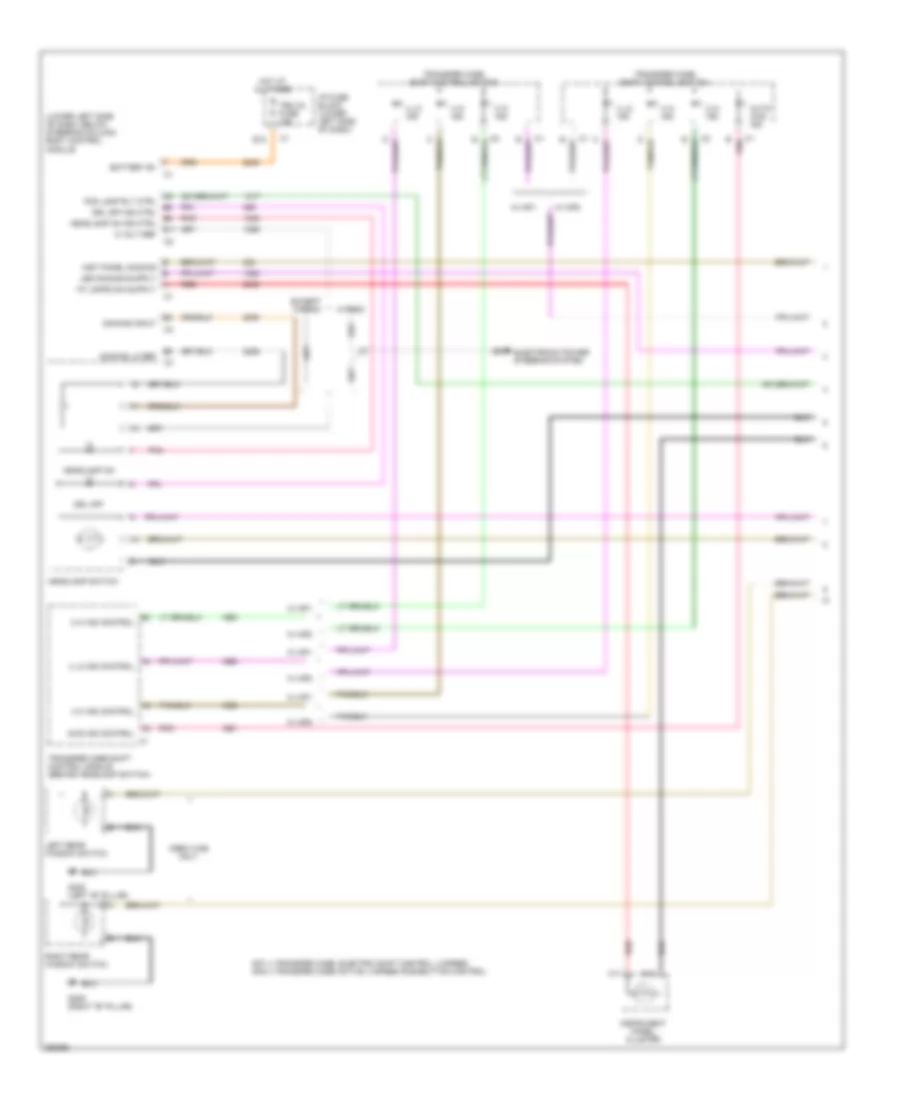

Электросхема подсветки приборов (1 из 3) для GMC Cab amp; Chassis Sierra 3500 2007

Электросхема подсветки приборов (1 из 3) для GMC Cab amp; Chassis Sierra 3500 2007 - Список элементов:

• (lower left side of dash, below steering column) body control module
• 2 hi ind
• 2 hi ind control
• 4 hi ind
• 4 hi ind control
• 4 lo ind
• 4 lo ind control
• 5 volt ref
• A11
• A12
• Auto 4wd ind
• Awd ind control
• B pnk
• B11
• Battery b+
• Crew cab only
• Dimming input
• Dimming lo ref
• Drl off
• Drl off ind ctrl
• E12
• Electronic power steering system
• Except hybrid
• Fog lamp rly ctrl
• G305 (left "b" pillar)
• G306 (right "b" pillar)
• Headlamp on
• Headlamp on ind ctrl
• Headlamp switch
• Hot at all times
• Hybrid
• I/p fuse block (lower left side of dash)
• Inst panel dimming
• Instrument panel cluster
• Left rear window switch
• Np1 = transfer case, electric shift control, 2 speed np8 = transfer case active, 2 speed pushbutton control
• Pnk
• Red
• Right rear window switch
• Tbc 2a fuse 15a
• Transfer case shift control module (behind headlamp switch)
• Transfer case shift control switch
• W/ np1
• W/ np8

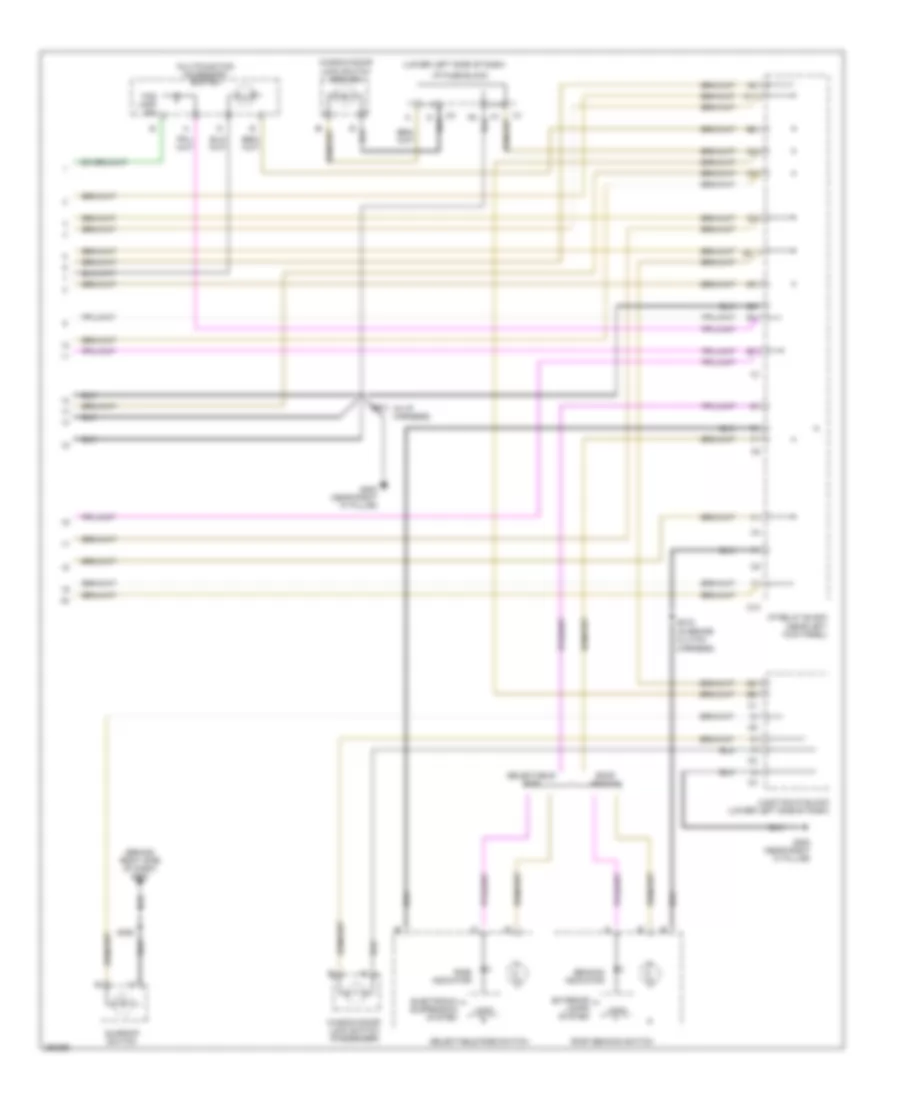

Электросхема подсветки приборов (2 из 3) для GMC Cab amp; Chassis Sierra 3500 2007

Электросхема подсветки приборов (2 из 3) для GMC Cab amp; Chassis Sierra 3500 2007 - Список элементов:

• (hybrid) (pto)
• (in console harness)
• (in steering wheel controls harness)
• (left side of engine compt, near battery) underhood fuse block
• (near left "a" pillar)
• (near right "a" pillar)
• B f
• E c
• Except 10 series or crew cab
• G200
• G200 (near right "a" pillar)
• G203
• Garage door opener
• Headlights system
• Hvac control module
• Inflatable restraint i/p module disable switch
• Inflatable restraint steering wheel module coil
• Logic
• Lower left
• Lower right
• Nca
• Overhead console
• Power take off (pto) switch or auxiliary power outlet switch (hybrid)
• Remote playback device-cd player
• S205 (in i/p harness)
• S213 (in i/p harness)
• S260
• S276
• S333
• S345
• Steering column fuse holder
• Steering wheel
• Traction control switch
• Transfer case shift control switch
• Upper left
• Upper right

Электросхема подсветки приборов (3 из 3) для GMC Cab amp; Chassis Sierra 3500 2007

Электросхема подсветки приборов (3 из 3) для GMC Cab amp; Chassis Sierra 3500 2007 - Список элементов:

• i/p fuse block
• (behind right side of dash) g200
• (in brake clutch harness)
• (in i/p harness)
• (lower left side of dash)
• A11
• Beacon indicator
• C10
• Electronic suspension system
• Exterior lamps system
• Fog lamp ind
• G200 (near right "a" pillar)
• I/p relay block (near left kick panel)
• Junction i/p block (lower left side of dash)
• Lock switch (driver)
• Logic
• Multifunction accessory switch
• Ride indicator
• Roof beacon
• Roof beacon switch
• S202
• S215
• S352
• Selectable ride
• Selectable ride switch
• Sunroof switch
• Window/door
• Window/door lock switch (passenger)
