ЗАЗЕМЛЕНИЕ ПОДКЛЮЧЕНИЕ МАССЫ

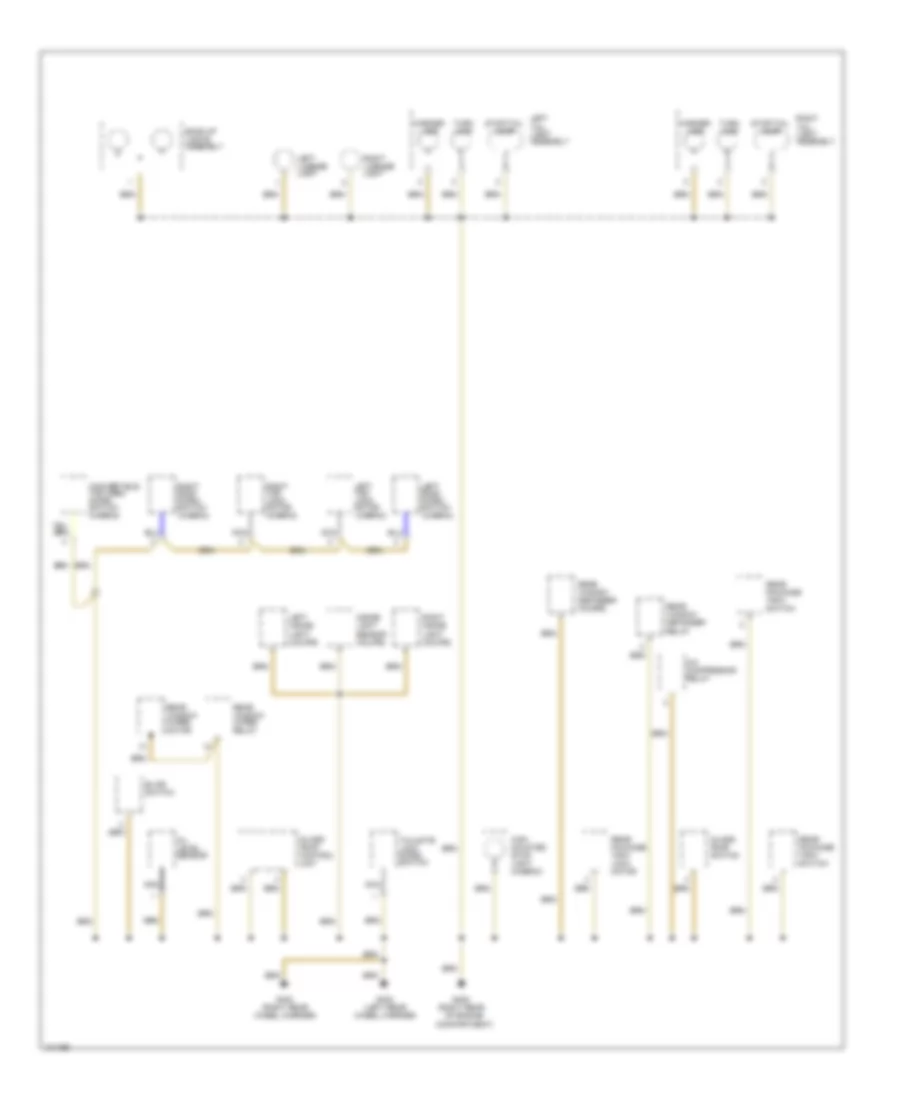

Электросхема подключение массы заземления (1 из 5) для Porsche 911 Carrera 4 1998

Электросхема подключение массы заземления (1 из 5) для Porsche 911 Carrera 4 1998 - Список элементов:

• (or 6)
• A23
• Ac/heater control unit
• Ashtray light
• Blower final stage
• C43
• Central electric
• Cigar lighter
• D32
• Daytime running light control relay
• Driver's side power window switch (for right window)
• Fog light switch
• Front fog light relay
• G105 (on right side member, in luggage compartment)
• Glove box contact
• Headlight washer relay
• Inter- mittent wiper control relay
• J12
• J22
• K/1
• L45
• Left front fog light
• Left front turn signals
• Left side marker light
• Level pressure switch
• M45
• Mirror heating switch (cabrio)
• Oil cooler blower
• Passenger's side door lock motor
• Passenger's side mirror heater
• Power window regulator relay
• Rear fog light/back- up light relay
• Rear window defogger switch (coupe)
• Right front fog light
• Right front turn signals
• Right headlight
• Right litronic control unit
• Right side marker light
• Sun- roof relay
• Terminal 15e relay
• Terminal x relay
• Two- tone horn 1
• Two- tone horn 2

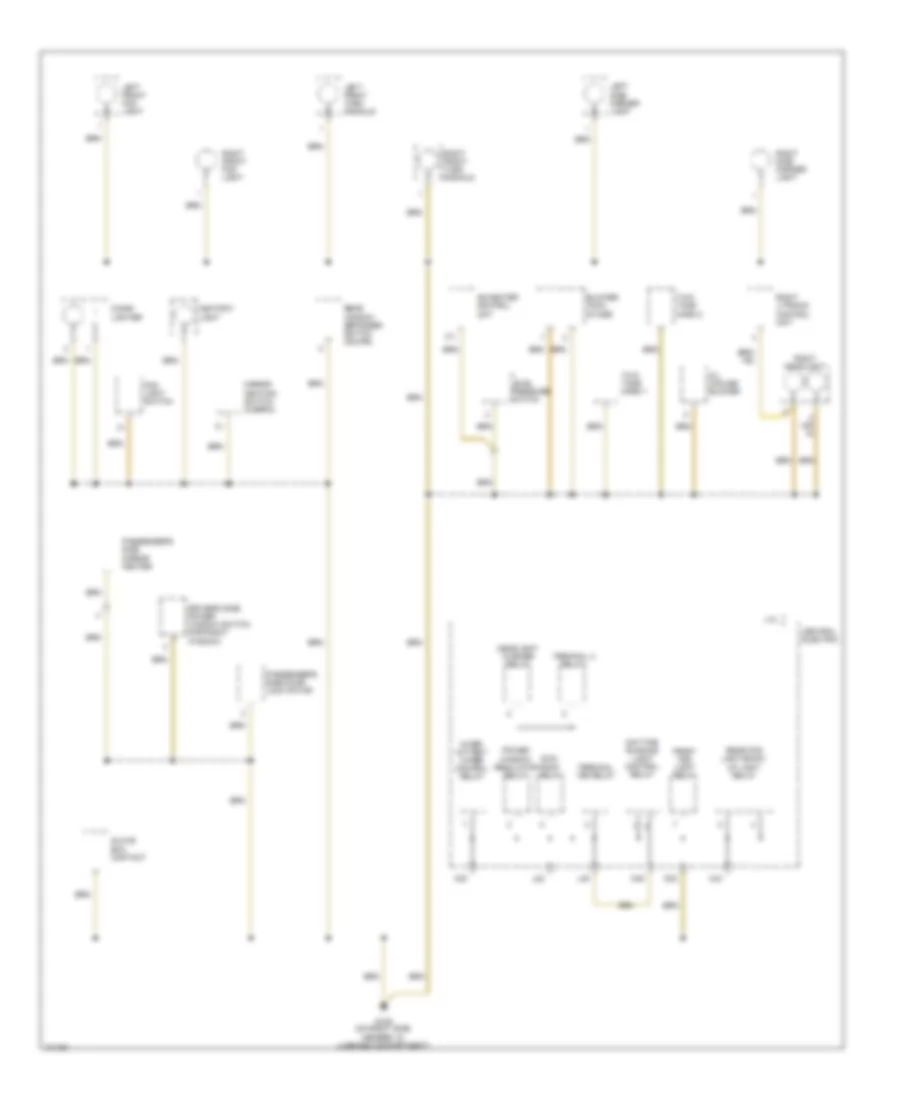

Электросхема подключение массы заземления (2 из 5) для Porsche 911 Carrera 4 1998

Электросхема подключение массы заземления (2 из 5) для Porsche 911 Carrera 4 1998 - Список элементов:

• (or 6)
• Abs control unit
• Amplifier
• Anti- drive off control unit
• Battery
• Booster pump motor
• Brake fluid level control switch
• Brake pressure warning switch
• Central electric
• Clutch interlock switch
• Clutch switch
• Comfort seat
• Condenser blower
• D44
• D45
• E15
• Engine speed sensor shield
• Fuel pump
• Fuel tank filler neck
• G100 (in luggage compartment, on left wheelwell)
• G101 (in luggage compartment, on right wheelwell)
• G102 (left front wheel carrier)
• G103 (right front wheel carrier)
• G104 (battery, on left side of luggage compartment)
• G300 (below left front seat)
• Hall sensor
• Headlight washer fluid pump
• Ignition control unit
• Kick- down switch
• Knock sensor 1-3 shield
• Knock sensor 4-6 shield
• Left 2-way seat switch
• Left 2-way seat switch 2
• Left 4-way lumbar seat switch 3 (comfort seat)
• Left 4-way seat switch
• Left delaying relay (seat heater control unit)
• Left headlight
• Left litronic control unit
• Left seat cushion heating element
• Left seat heater switch
• Lifting switch
• Luggage compartment lock microswitch
• Mass air flow sensor
• Mfi+ dfi control unit
• Radio
• Safety belt switch
• Selector lever switch
• Sport seat
• Tiptronic control unit
• Washer fluid level switch
• Windshield washer fluid pump

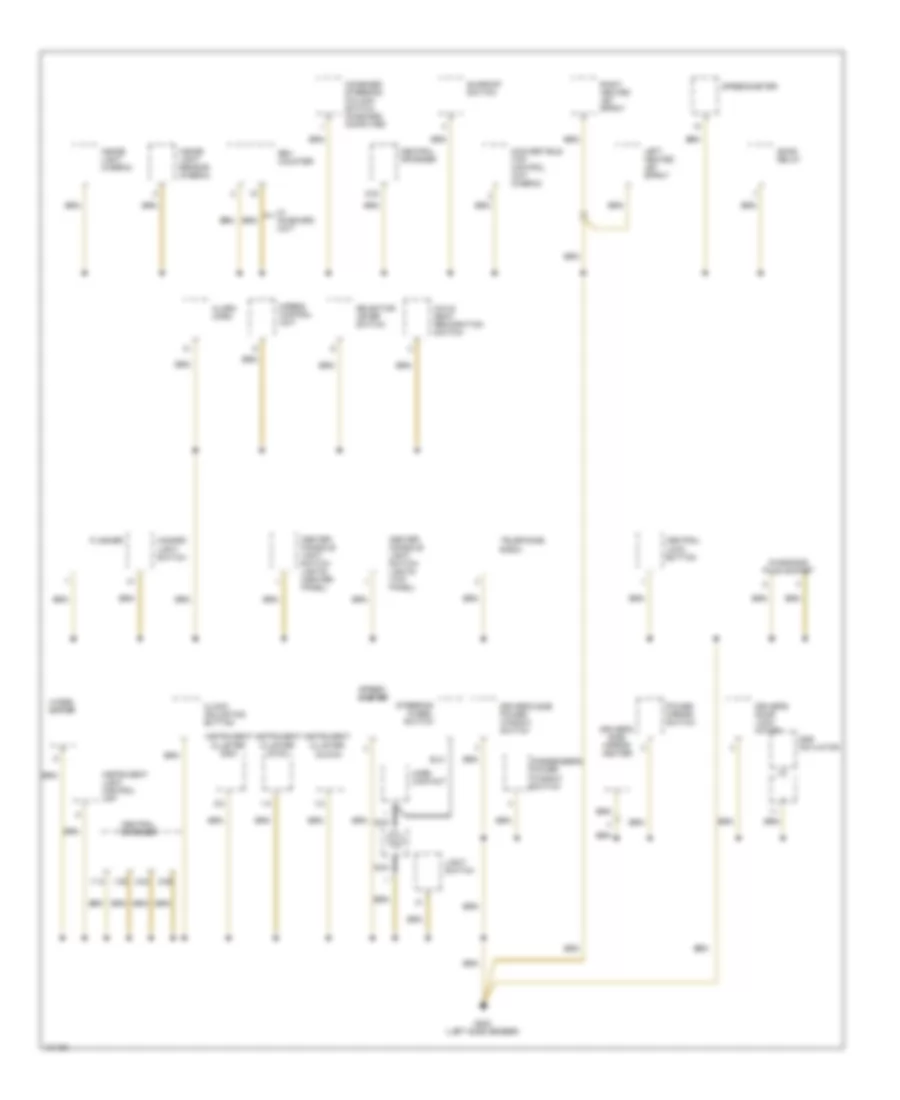

Электросхема подключение массы заземления (3 из 5) для Porsche 911 Carrera 4 1998

Электросхема подключение массы заземления (3 из 5) для Porsche 911 Carrera 4 1998 - Список элементов:

• (clock)
• 1/13
• 1/2
• 1/25
• 1/4
• 2/2
• 2/24
• 2/26
• Airbag control unit
• Alarm horn
• Center console light switch lights (center panel)
• Center console light switch lights (top panel)
• Central informer
• Central lock button
• Child seat recognition switch
• Clock adjusting button
• Combined steering column switch on-board computer
• Convertible top control unit (cabrio)
• Diagnosis plug socket
• Driver's door lock motor
• Driver's side mirror heater
• Driver's side power window switch
• Dsp actuator
• Flasher
• G202 (left side member)
• Gong relay
• Hazard light switch
• Horn contact
• Inside light (cabrio)
• Inside light sensor (cabrio)
• Instrument cluster
• Instrument cluster (d100)
• Instrument cluster (d80)
• Instrument light control unit
• Left heated jet spray
• Light switch
• Nca
• Passenger's power window switch
• Power mirror switch
• Rev counter
• Right heated jet spray
• Selector lever switch
• Speed- ometer
• Speedometer
• Steering wheel switch
• Sunroof switch
• Telephone e-box
• W/ on-board unit
• Wiper motor

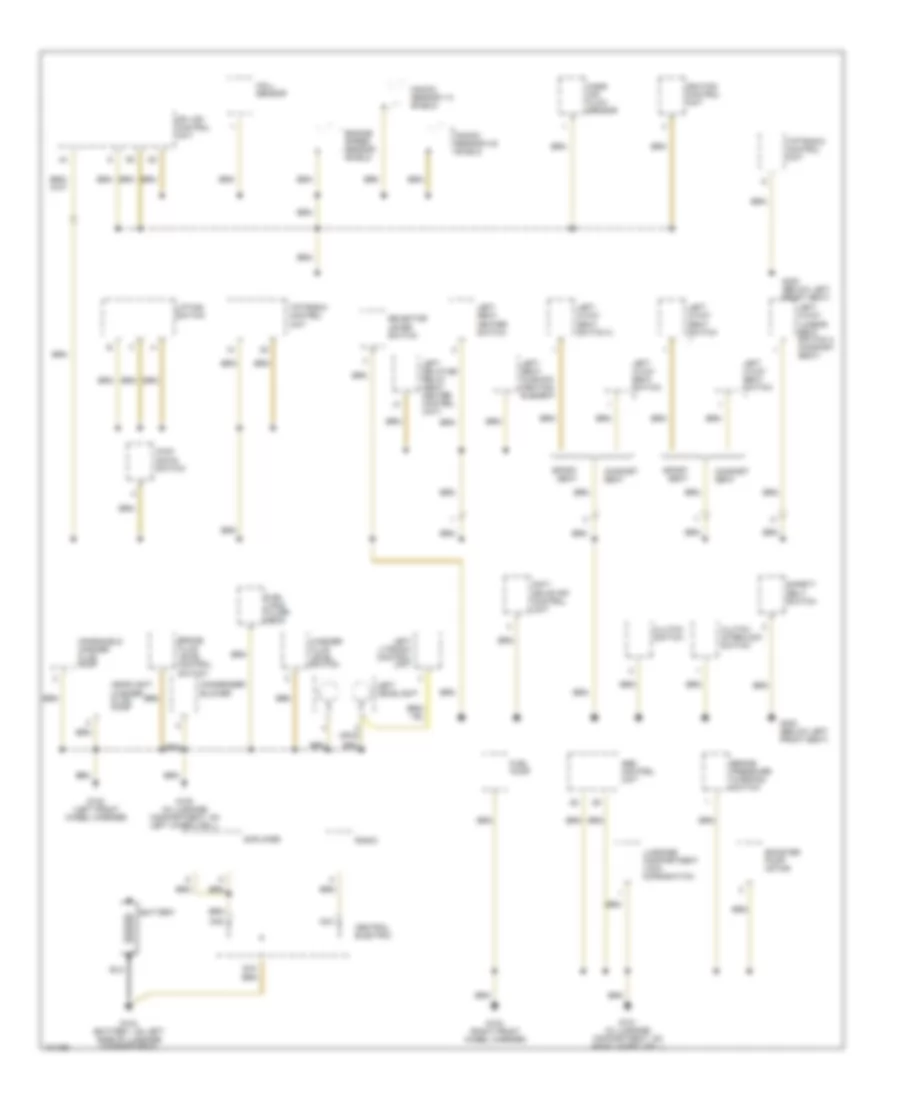

Электросхема подключение массы заземления (4 из 5) для Porsche 911 Carrera 4 1998

Электросхема подключение массы заземления (4 из 5) для Porsche 911 Carrera 4 1998 - Список элементов:

• (on camshaft casing, cylinder 3)
• (on right
• (right side of engine compartment)
• 1/2
• Alarm system/ central locking system control unit
• Antenna amplifier
• Comfort seat
• Cruise control control unit
• Cruise control drive
• Engine compartment blower
• G105
• G133
• G301 (below right front seat)
• G403
• Generator
• Nca
• Rear spoiler control unit
• Rear spoiler extended micro- switch
• Rear spoiler retracted micro- switch
• Right 2-way seat switch 1
• Right 2-way seat switch 2
• Right 4-way seat switch 1
• Right 4-way seat switch 2
• Right 4-way seat switch 3 (comfort seat)
• Right delaying relay (seat heater control unit)
• Right seat cushion heating element
• Right seat heater switch
• Secondary air pump
• Secondary air pump shift valve
• Side member)
• Sport seat
• Starter
• Suppressor capacitor

Электросхема подключение массы заземления (5 из 5) для Porsche 911 Carrera 4 1998

Электросхема подключение массы заземления (5 из 5) для Porsche 911 Carrera 4 1998 - Список элементов:

• (right rear
• A/c compressor relay
• Back-up lights assembly
• Blind switch
• Compartment)
• Convertible top open micro- switch (cabrio)
• G402 (left rear wheel carrier)
• G403 (right rear wheel carrier)
• G405
• Glass roof control unit
• Glass roof switch
• High mounted stop light (cabrio)
• Inside light sensor (coupe)
• Left inside light (coupe)
• Left license light
• Left roof micro- switch (cabrio)
• Left tail light assembly
• Left top lock motor (cabrio)
• Marker lamp
• Nca
• Of engine
• Oil level sensor
• Rear package tray lock motor
• Rear package tray switch
• Rear window defogger (coupe)
• Rear window defogger relay
• Rear window wiper motor
• Rear window wiper relay
• Right inside light (coupe)
• Right license light
• Right roof micro- switch (cabrio)
• Right tail light assembly
• Right top lock motor (cabrio)
• Stop/tail lamp
• Tailgate lock micro- switch
• Turn lamp
