Электросхемы БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ BMW 330i 2004

БЛОК ПРЕДОХРАНИТЕЛЕЙ И РЕЛЕ

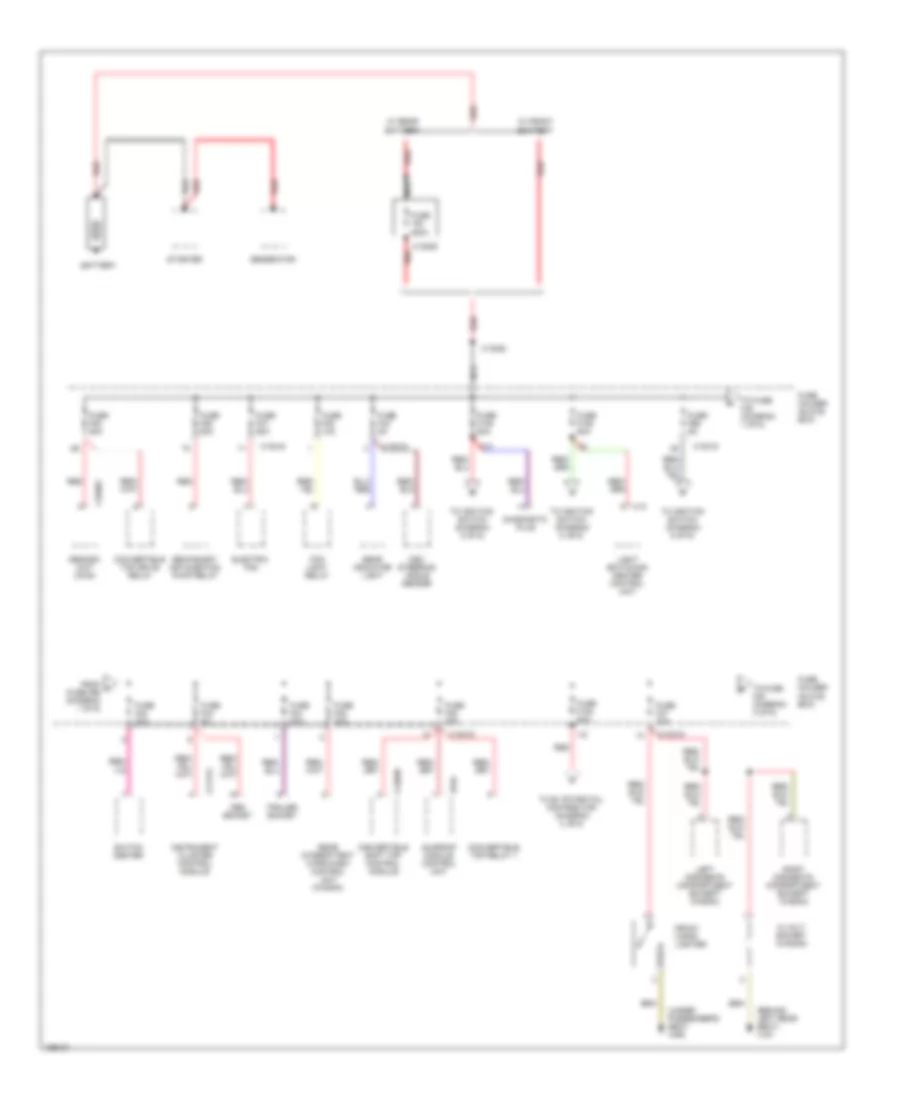

Электросхема блока предохранителей и реле (1 из 6) для BMW 330i 2004

Электросхема блока предохранителей и реле (1 из 6) для BMW 330i 2004 - Список элементов:

• (behind left rear seat) x151
• (under passenger's seat x490
• 12 volt socket (wagon)
• Abs/dsc unit (awd)
• Battery
• Convertible soft top control module
• Convertible top drive relay
• Convertible top relay 1
• Diagnostic plug
• Dsc steering angle sensor
• Electric fan
• Fog light relay
• From a fuse f66 (diagram 1 of 6)
• Front cigar lighter
• Fuse 200a
• Fuse f102 80a
• Fuse f105 50a
• Fuse f106 50a
• Fuse f35 50a
• Fuse f36 50a
• Fuse f37 50a
• Fuse f38 10a
• Fuse f40 5a
• Fuse f42 30a
• Fuse f43 5a
• Fuse f44 20a
• Fuse f45 20a
• Fuse f46 20a
• Fuse f47 20a
• Fuse f66 5a
• Fuse holder (glove box)
• Gear indicator light
• Generator
• Instrument cluster control module
• Left oddments compartment (except wagon)
• Light switching center control unit
• Nca
• Obd socket
• Rear intermittent wipe/wash control unit (wagon)
• Red
• Right oddments compartment (except wagon)
• Secondary air injection pump relay
• Starter
• Sunroof module control unit
• Switch center
• To b+ potential distributor (diagram 2 of 6)
• To fuse f42 (diagram 1 of 6)
• To fuse f48 (diagram 3 of 6)
• To ignition switch (diagram 5 of 6)
• Trailer socket
• W/ front battery
• W/ rear battery
• X10
• X10015
• X10016
• X10209
• X11175
• X12
• X13020
• X13038
• X18303
• X916

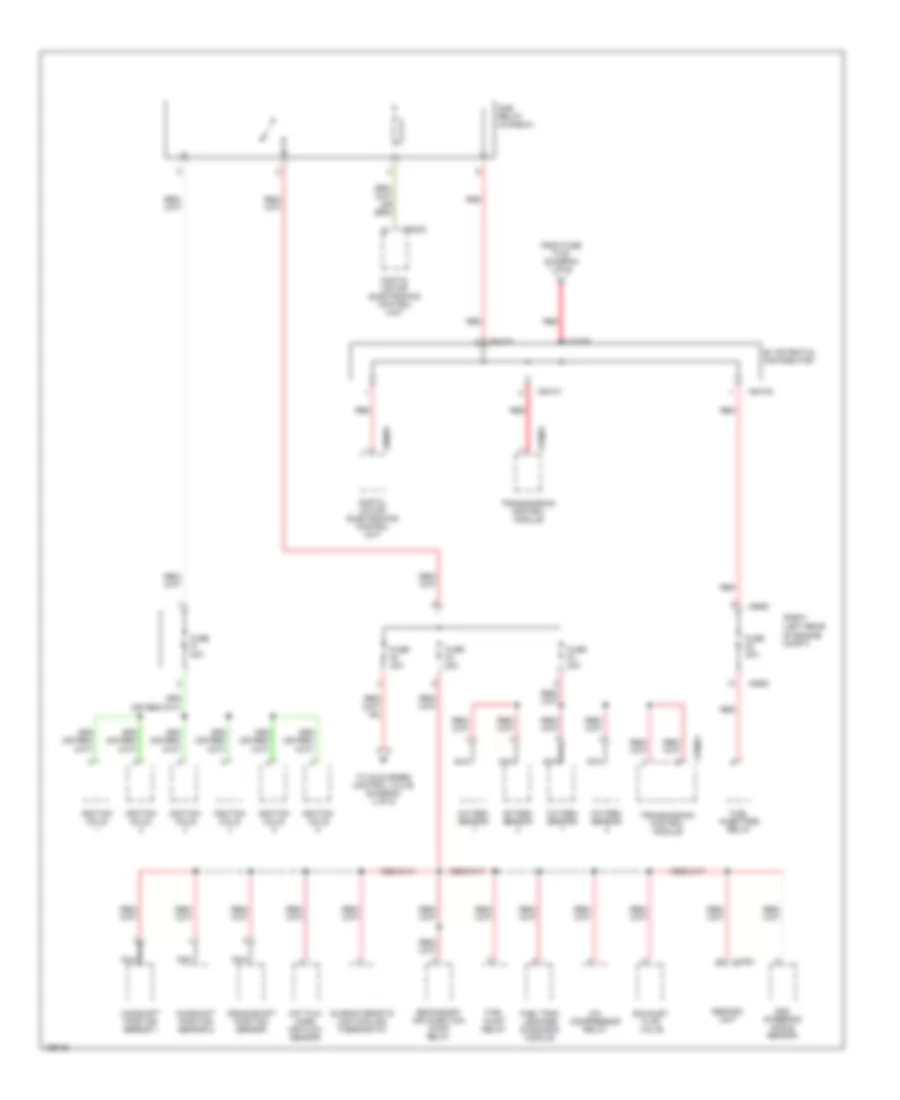

Электросхема блока предохранителей и реле (2 из 6) для BMW 330i 2004

Электросхема блока предохранителей и реле (2 из 6) для BMW 330i 2004 - Список элементов:

• (left rear of engine compt)
• A/c compressor relay
• Abs/dsc unit
• B+ potential distributor
• Camshaft position sensor 1
• Camshaft position sensor 2
• Characteristic map cooling thermostat
• Crankshaft position sensor
• Digital motor electronics control unit
• Dme relay (in e-box)
• Dsc steering angle sensor
• E-box
• Exhaust flap valve
• From fuse f102 (diagram 1 of 6)
• Fuel injectors relay
• Fuel pump relay
• Fuel tank leakage diagnosis module
• Fuse f1 30a
• Fuse f2 30a
• Fuse f3 20a
• Fuse f4 30a
• Fuse f5 30a
• Hot film mass air flow sensor
• Ignition coils
• Nca
• Oxygen sensor
• Red
• Secondary air injection pump relay
• To idle speed control valve (diagram 4 of 6)
• Transmission control module
• X1803
• X18326
• X60001
• X60002
• X64101
• X64102
• X70001
• X8680

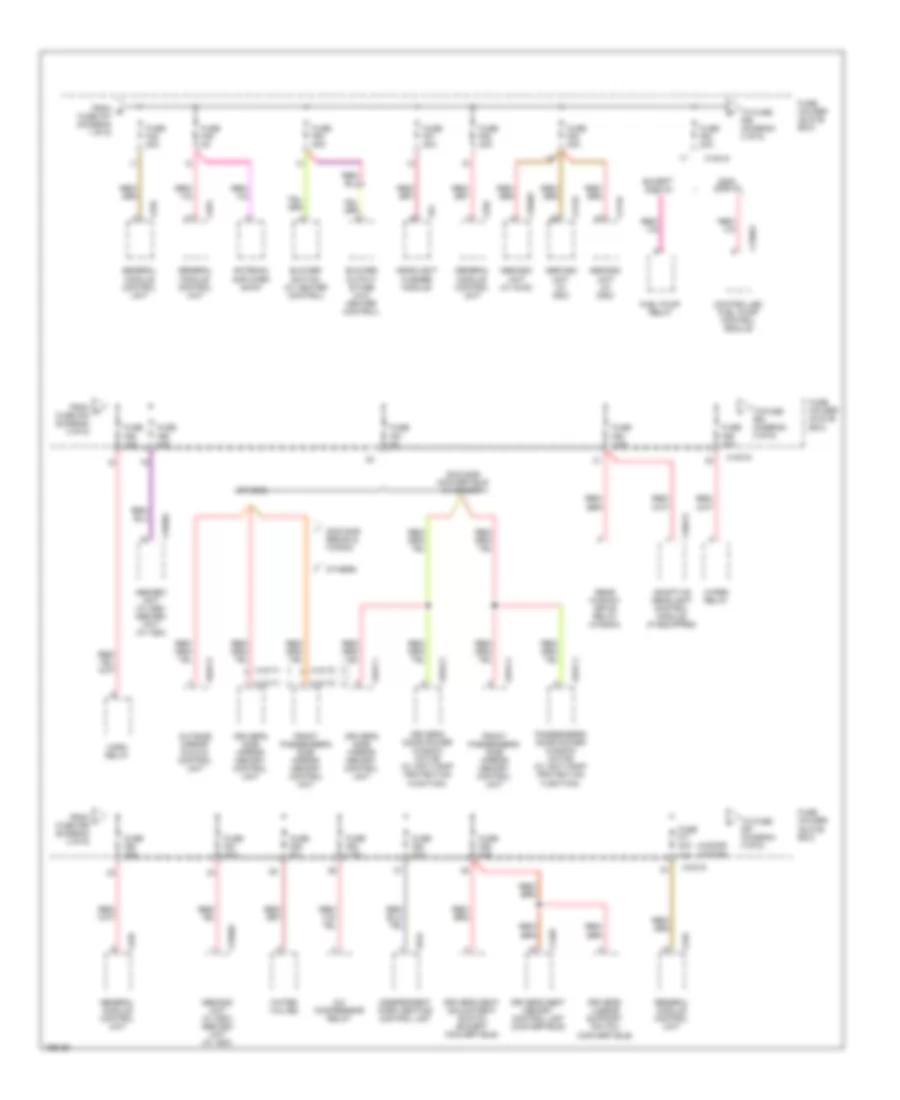

Электросхема блока предохранителей и реле (3 из 6) для BMW 330i 2004

Электросхема блока предохранителей и реле (3 из 6) для BMW 330i 2004 - Список элементов:

• (2-door)
• (4-door)
• 10a
• 2003-2006 convertible w/ memory
• 2003-2006 sedan & wagon
• 2005- 2006 m3
• A/c compressor relay
• Abs/asc unit (w/ asc)
• Abs/dsc unit (w/ awd)
• Abs/dsc unit (w/ dsc)
• Abs/dsc unit (w/ dsc) abs/asc unit (w/ asc)
• Adaptive headlight control module (if equipped)
• Antenna amplifier am/fm
• Blower output stage (w/o heater control)
• Blower switch (w/ heater control)
• Controlled fuel pump control module
• Driver's door power window motor (w/ anti-trap protection function)
• Driver's lumbar support switch (convertible)
• Driver's seat adjustment switch (except convertible)
• Driver's seat memory control unit (convertible)
• Driver's side mirror memory control unit
• Except 2005 m3
• From e fuse f47 (diagram 1 of 6)
• From h fuse f54 (diagram 3 of 6)
• From i fuse f59 (diagram 3 of 6)
• Front passenger's side mirror memory control unit
• Fuel pump relay
• Fuse f48 30a
• Fuse f49 5a
• Fuse f50 40a
• Fuse f51 30a
• Fuse f52 30a
• Fuse f53 30a
• Fuse f54 30a
• Fuse f55 15a
• Fuse f56 30a
• Fuse f57 5a
• Fuse f58 7.5a
• Fuse f59 30a
• Fuse f60 25a
• Fuse f61 30a
• Fuse f62 5a
• Fuse f63 7.5a
• Fuse f64 20a
• Fuse f65 30a
• Fuse f71 30a
• Fuse holder (glove box)
• General module control unit
• Headlight washer module
• Horn relay
• Independent park heating control unit
• Others
• Outside mirror fold-in control unit
• Passenger's door power window motor (w/ anti-trap protection function)
• Rear window drive relay (wagon)
• To fuse f55 (diagram 3 of 6)
• To fuse f60 (diagram 3 of 6)
• To fuse f67 (diagram 4 of 6)
• Water valves
• Wiper relay
• X10015
• X10313
• X10513
• X1170
• X13663
• X1465
• X1746
• X18171
• X18172
• X18303
• X18313
• X253
• X332
• X61
• X642

Электросхема блока предохранителей и реле (4 из 6) для BMW 330i 2004

Электросхема блока предохранителей и реле (4 из 6) для BMW 330i 2004 - Список элементов:

• (except w/ hifi radio or b
• (if equipped)
• (w/ hifi radio or a
• Anti-theft alarm system horn
• Cd changer
• Convertible
• Coupe
• Digital motor electronics control unit
• Electro- chromic interior rear-view mirror
• Electronic immobilizer control unit
• Evaporative emission valve
• From fuse f2 (diagram 2 of 6)
• From j fuse f71 (diagram 3 of 6)
• From k fuse f70 (diagram 4 of 6)
• Front passenger's seat adjustment switch
• Front passenger's seat control memory unit
• Fuse f41 30a
• Fuse f67 5a
• Fuse f68 30a
• Fuse f69 5a
• Fuse f70 30a
• Fuse holder (glove box)
• Gps receiver (if equipped)
• Hifi amplifier
• Idle speed control valve
• Individual control intake system valve
• Interior protection 1 control module
• Interior protection 2 control module (convertible)
• Navigation computer
• Nca
• On-board monitor control unit (if equipped)
• Passenger's lumbar support switch
• Radio control unit
• Rear window defogger relay
• Secondary air injection pump valve
• Sedan or wagon w/ memory
• Sedan or wagon w/o memory
• Sub- woofer
• Tilt monitoring
• Tire pressure control system control unit
• To fuse f41 (diagram 4 of 6)
• Top hifi radio, w/ monitor)
• Vanos inlet valve
• Vanos outlet valve
• X10015
• X1313
• X13646
• X1582
• X1644
• X1659
• X18034
• X18126
• X18180
• X18774
• X18801
• X3372
• X60001
• X604
• X605

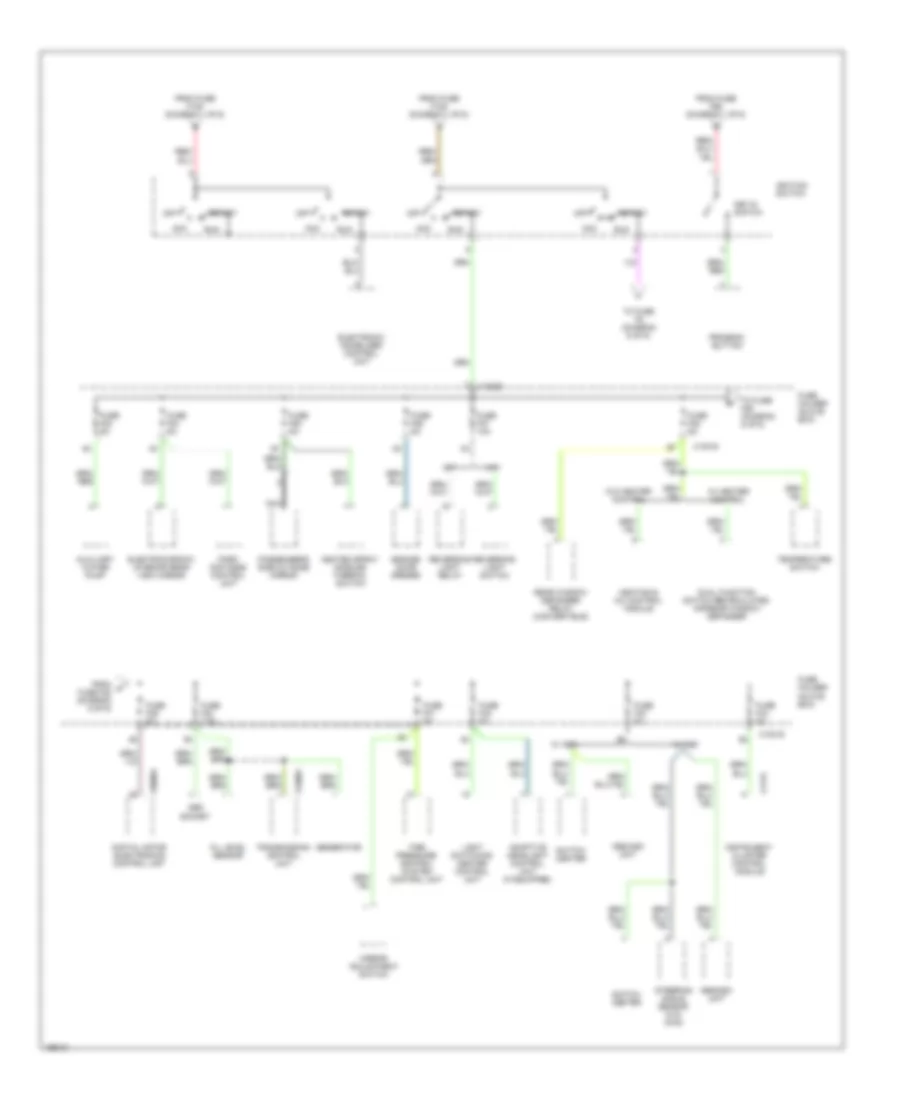

Электросхема блока предохранителей и реле (5 из 6) для BMW 330i 2004

Электросхема блока предохранителей и реле (5 из 6) для BMW 330i 2004 - Список элементов:

• A/t
• Abs/asc unit
• Abs/dsc unit
• Acc
• Adaptive headlight control unit (if equipped)
• Auxiliary water pump
• Digital motor electronics control unit
• Dual function switch recirculated air/rear window defogger
• Electrochromic interior rear view mirror
• Electronic immoblizer control unit
• From fuse f105 (diagram 1 of 6)
• From fuse f106 (diagram 1 of 6)
• From fuse f66 (diagram 1 of 6)
• From m fuse f28 (diagram 5 of 6)
• Fuse f23 5a
• Fuse f24 5a
• Fuse f25 5a
• Fuse f26 5a
• Fuse f27 10a
• Fuse f28 5a
• Fuse f29 5a
• Fuse f30 7.5a
• Fuse f31 5a
• Fuse f32 5a
• Fuse f33 5a
• Fuse f34 5a
• Fuse holder (glove box)
• Garage door opener
• Generator
• Heated spray nozzles thermal switch
• Heating & a/c control module
• Ignition switch
• Instrument cluster control module
• Key-in switch
• Light switching center control unit
• M/t
• Mirror adjustment switch
• Nca
• Obd socket
• Off
• Oil level sensor
• Park distance control unit
• Passenger's side outside mirror
• Program button
• Rear window defogger relay (convertible)
• Reversing light relay
• Reversing light switch
• Run
• Start
• Steering angle sensor (w/o awd)
• Switch center
• Temperature switch
• Tire pressure control system control unit
• To fuse f29 (diagram 5 of 6)
• To fuse f5 (diagram 6 of 6)
• Transmission control unit
• W/ asc
• W/ dsc
• W/ heater control
• W/o heater control
• X10016
• X10200
• X1175
• X60004
• X70001

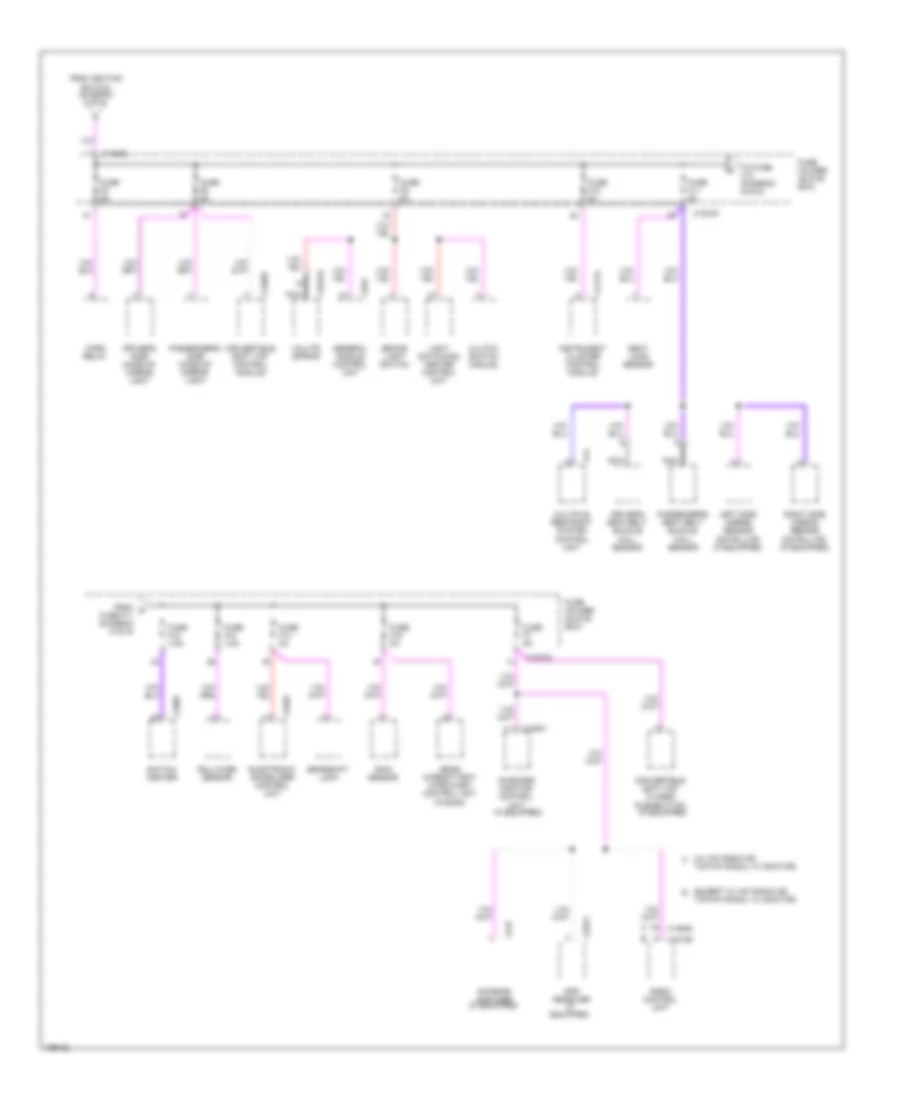

Электросхема блока предохранителей и реле (6 из 6) для BMW 330i 2004

Электросхема блока предохранителей и реле (6 из 6) для BMW 330i 2004 - Список элементов:

• (except w/ hifi radio or b
• (w/ hifi radio or a
• Antenna amplifier (if equipped)
• Brake light switch
• Clutch switch module
• Convertible soft top closed pushbutton (if equipped)
• Convertible soft top control module
• Driver's seat belt buckle hall sensor
• Driver's side make-up mirror light
• Electronic immobilizer control unit
• From ignition switch (diagram 5 of 6)
• From n fuse f11 (diagram 6 of 6)
• Fuse f10 5a
• Fuse f11 5a
• Fuse f12 7.5a
• Fuse f13 7.5a
• Fuse f14 5a
• Fuse f15 5a
• Fuse f5 5a
• Fuse f6 5a
• Fuse f7 5a
• Fuse f9 5a
• Fuse holder (glove box)
• Gearshift lock
• General module control unit
• Gps receiver (if equipped)
• Horn relay
• Instrument cluster control module
• Left side airbag sensor (satellite) (if equipped)
• Light switching center control unit
• Multiple restraint system control unit
• Nca
• On-board monitor control unit (if equipped)
• Passenger's seat belt buckle hall sensor
• Passenger's side make-up mirror light
• Radio control unit
• Rain sensor
• Rear intermittent wipe/wash control unit (wagon)
• Right side airbag sensor (satellite) (if equipped)
• Rollover sensor
• Seat load sensor
• Switch center
• To fuse f12 (diagram 6 of 6)
• Top hifi radio, w/ monitor)
• Volute spring
• X10016
• X10170
• X10202
• X11175
• X13037
• X13646
• X1659
• X18126
• X1869
• X18801
• X253
• X3372
• X424
• X74
