Электросхемы БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ BMW 528i 2008

БЛОКИРОВКИ СЕЛЕКТОРА СТОЯНОЧНЫЙ ТОРМОЗ

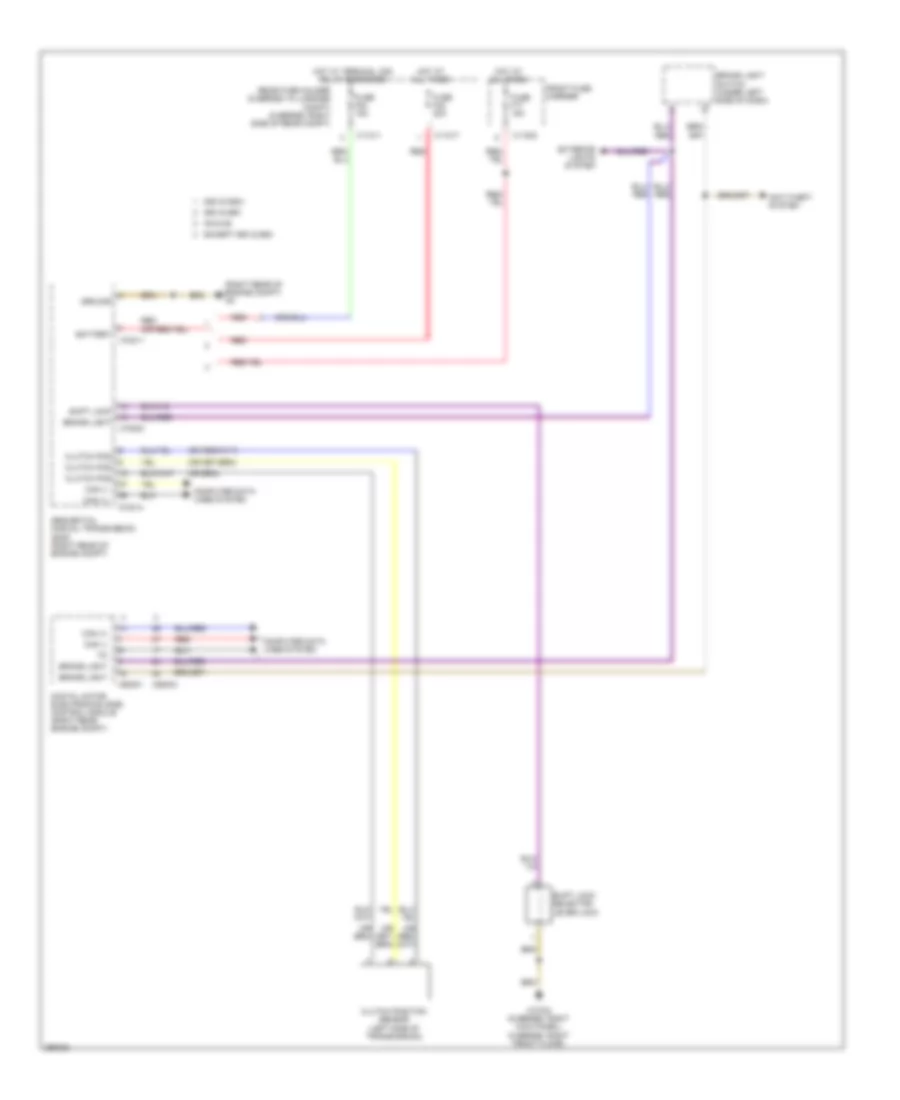

схема SMG с 6 скоростями для BMW 528i 2008

схема SMG с 6 скоростями для BMW 528i 2008 - Список элементов:

• (right rear of engine compt) x6
• 528i & 528xi
• 550i & 650i
• Anti-theft system
• Battery
• Brake light
• Brake light switch (under left side of dash)
• Can (+)
• Can (-)
• Clutch pos
• Clutch position sensor (left side of transmission)
• Computer data lines system
• Digital motor electronics (dme) control module (right rear engine compt)
• Except 550i & 650i
• Exterior lights system
• Front fuse carrier
• Fuse f17 15a
• Fuse f42 20a
• Fuse f84 15a
• Ground
• Hot at all times
• Hot w/ terminal 30g relay energized
• M5 & m6
• Rear fuse holder (6 series: in luggage compt) (5 series: right side of rear compt)
• Red
• Sequential manual transmission (smg) (right rear of engine compt)
• Shift lock
• Shift lock selector lever lock
• X11003
• X11011
• X11017
• X13784 (6 series: right kick panel) (5 series: right front floor)
• X60001
• X60004
• X70003
• X70011
• X70014

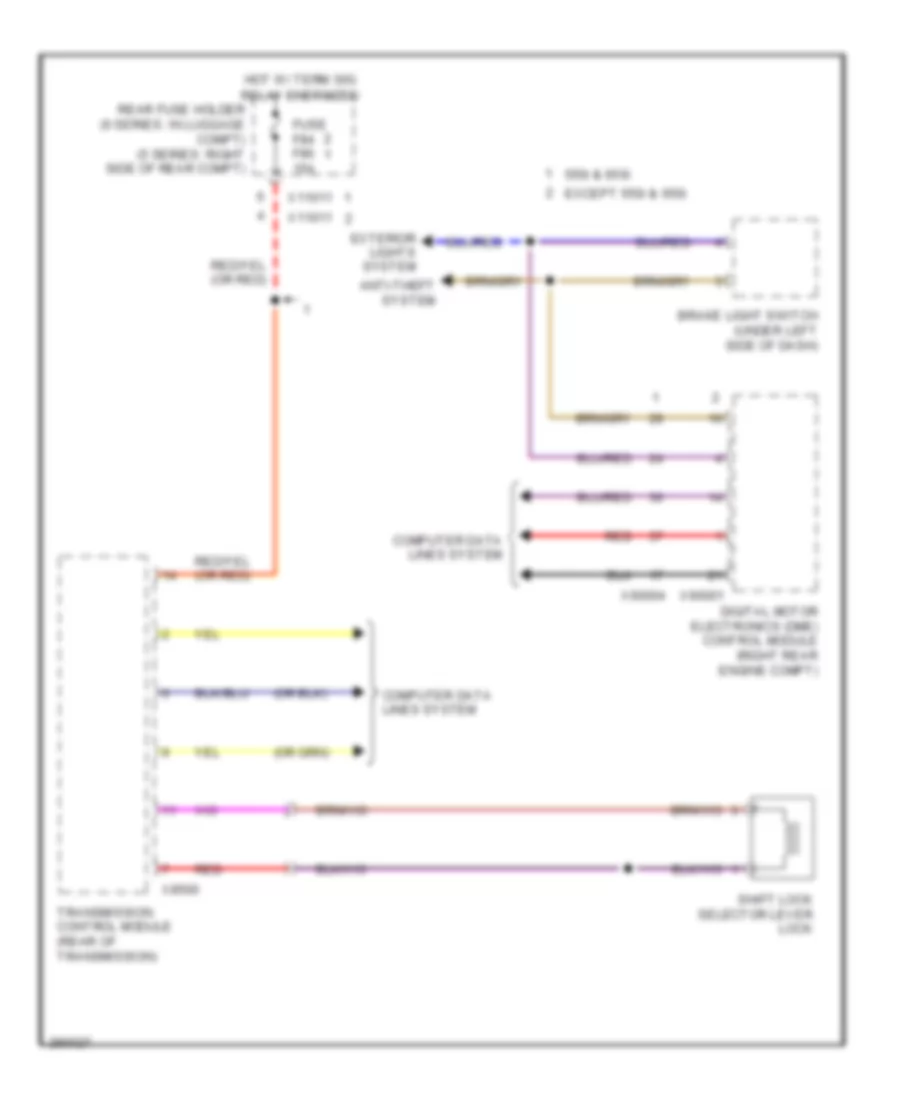

Электросхема автоматической коробки передач АКПП для BMW 528i 2008

Электросхема автоматической коробки передач АКПП для BMW 528i 2008 - Список элементов:

• 550i & 650i
• Anti-theft system
• Brake light switch (under left side of dash)
• Computer data lines system
• Digital motor electronics (dme) control module (right rear engine compt)
• Except 550i & 650i
• Exterior lights system
• Fuse f84 f86 15a
• Hot w/ term 30g relay energized
• Rear fuse holder (6 series: in luggage compt) (5 series: right side of rear compt)
• Red
• Shift lock selector lever lock
• Transmission control module (rear of transmission)
• X11011
• X60001
• X60004
• X8500
