Электросхемы ЦЕНТРАЛЬНЫЙ ЗАМОК BMW 528i 2008

ЦЕНТРАЛЬНЫЙ ЗАМОК

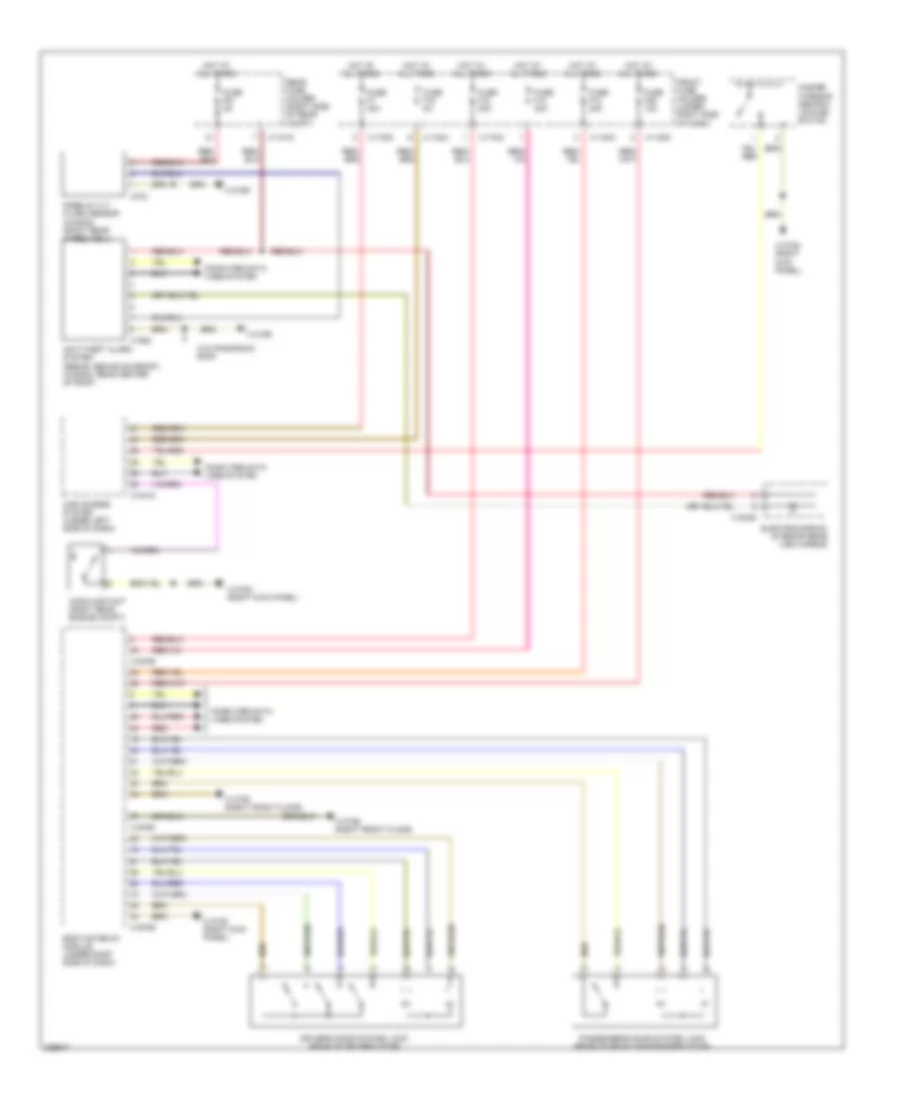

Электросхема центрального замка (1 из 2) для BMW 528i 2008

Электросхема центрального замка (1 из 2) для BMW 528i 2008 - Список элементов:

• Anti-theft alarm system (sedan: behind sunroof) (wagon: rear center of roof)
• Body-gateway module (under right side of dash)
• Car access system (under left side of dash)
• Computer data lines system
• Driver's door system lock (rear of driver's door)
• Electrochromic interior rear view mirror
• Front fuse holder (under right side of dash)
• Fuse f10 30a
• Fuse f12 30a
• Fuse f15 5a
• Fuse f18 30a
• Fuse f29 10a
• Fuse f51 5a
• Fuse f7 30a
• Hazard warning/ central locking switch
• Hood contact (right rear engine compt)
• Hot at all times
• Passenger's door system lock (rear of front passenger's door)
• Rear fuse holder (right side of rear compt)
• Red
• Siren & tilt alarm sensor (wagon) (right rear wheelwell)
• W/o panoramic roof
• X10318
• X11002
• X11003
• X11004
• X11005
• X11015
• X13782 (right kick panel)
• X13786 (right front floor)
• X13788 (right front floor)
• X13790
• X1582
• X16759
• X16760
• X18246
• X372

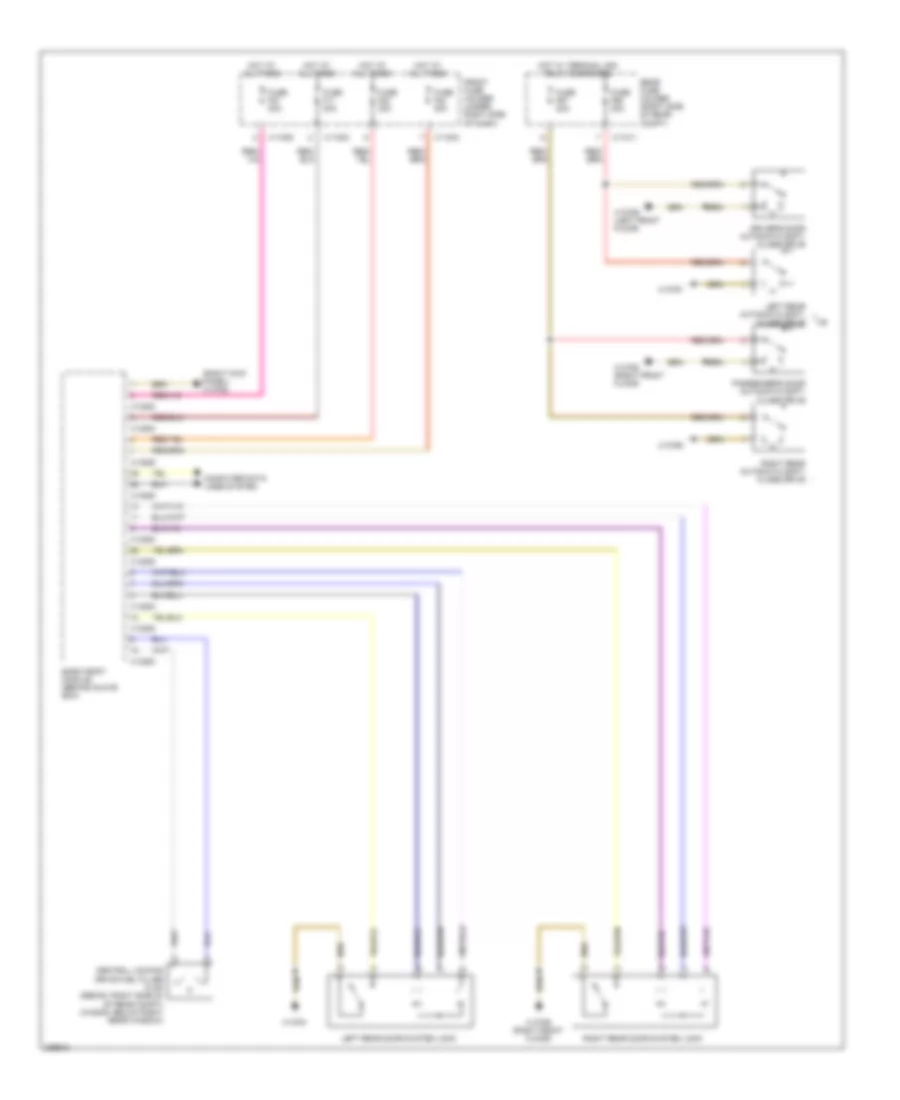

Электросхема центрального замка (2 из 2) для BMW 528i 2008

Электросхема центрального замка (2 из 2) для BMW 528i 2008 - Список элементов:

• (right kick panel) x13782
• Basic body module (behind glove box)
• Central locking drive fuel filler flap (sedan: right side of of rear compt) (wagon: below right rear window)
• Computer data lines system
• Driver's door automatic soft- close drive
• Front fuse holder (under right side of dash)
• Fuse f11 30a
• Fuse f22 30a
• Fuse f24 30a
• Fuse f27 30a
• Fuse f67 20a
• Fuse f68 20a
• Hot at all times
• Hot w/ terminal 30g relay energized
• Left rear automatic soft- close drive
• Left rear door system lock
• Passenger's door automatic soft- close drive
• Rear fuse holder (right side of rear compt)
• Right rear automatic soft- close drive
• Right rear door system lock
• X11003
• X11004
• X11005
• X11011
• X13252
• X13253
• X13254
• X13255
• X13788 (right front floor)
• X13789 (left front floor)
• X13790
• X13791
