Электросхемы Магнитола Мультимедия BMW i3 2014

Магнитола Мультимедия

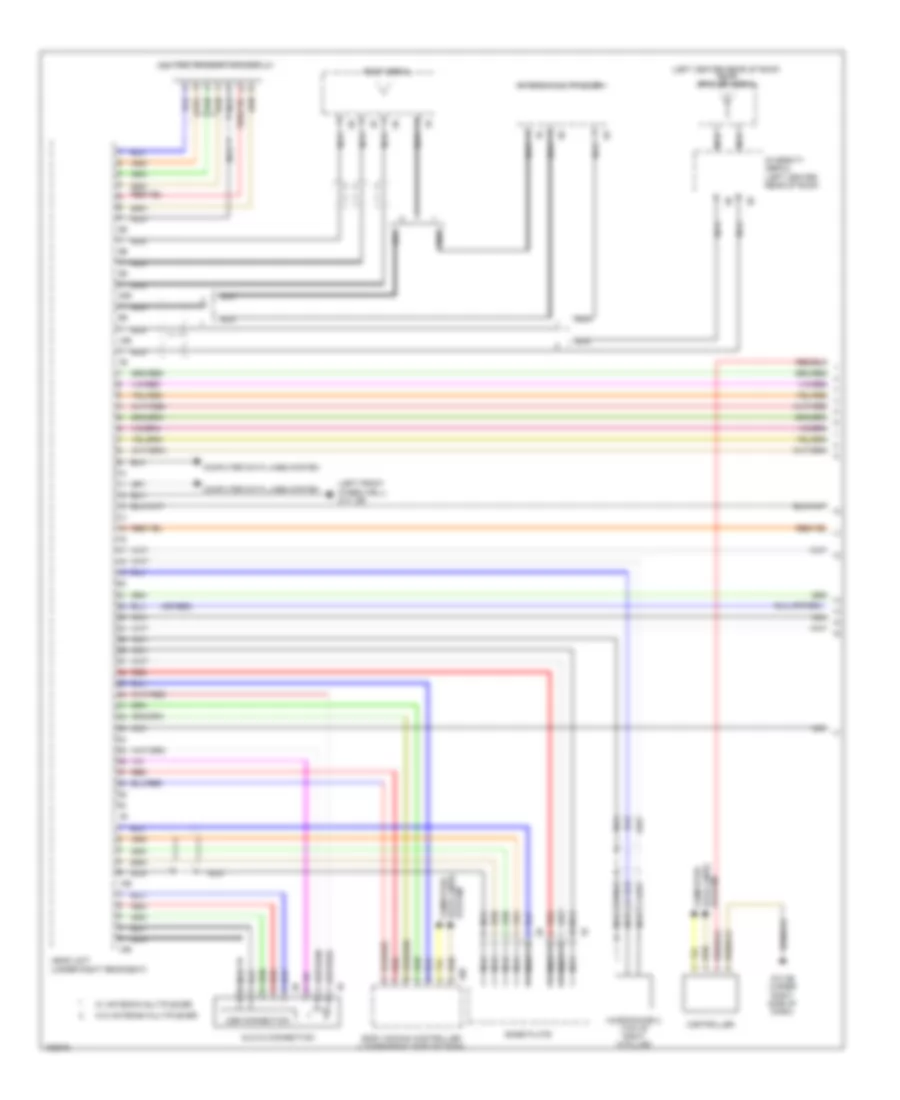

Эдектросхема магнитолы. Базовая комплектация. (1 из 2) для BMW i3 2014

Эдектросхема магнитолы. Базовая комплектация. (1 из 2) для BMW i3 2014 - Список элементов:

• (left center rear of roof) rear spoiler aerial
• (left front wheelwell) z10 13b
• (or red)
• 10b
• 13b
• 18b
• 20b
• Antenna multiplexer
• Aux-in connection
• Base plate
• Body domain controller (lower right side of dash)
• Central information display
• Computer data lines system
• Controller
• Diversity aerial (left center rear of roof)
• Fuse 20a
• Fuse 5a
• Head unit (under right rear seat)
• Hot w/ terminal 30b relay energized
• Microphone 2 (top of right 'a' pillar)
• Nca
• Power distribution box life module (right side of dash)
• Red
• Reversing camera (behind center of rear bumper)
• Roof aerial
• Usb connection
• W/ antenna multiplexer
• W/o antenna multiplexer
• Z10 3b (under right side of dash)

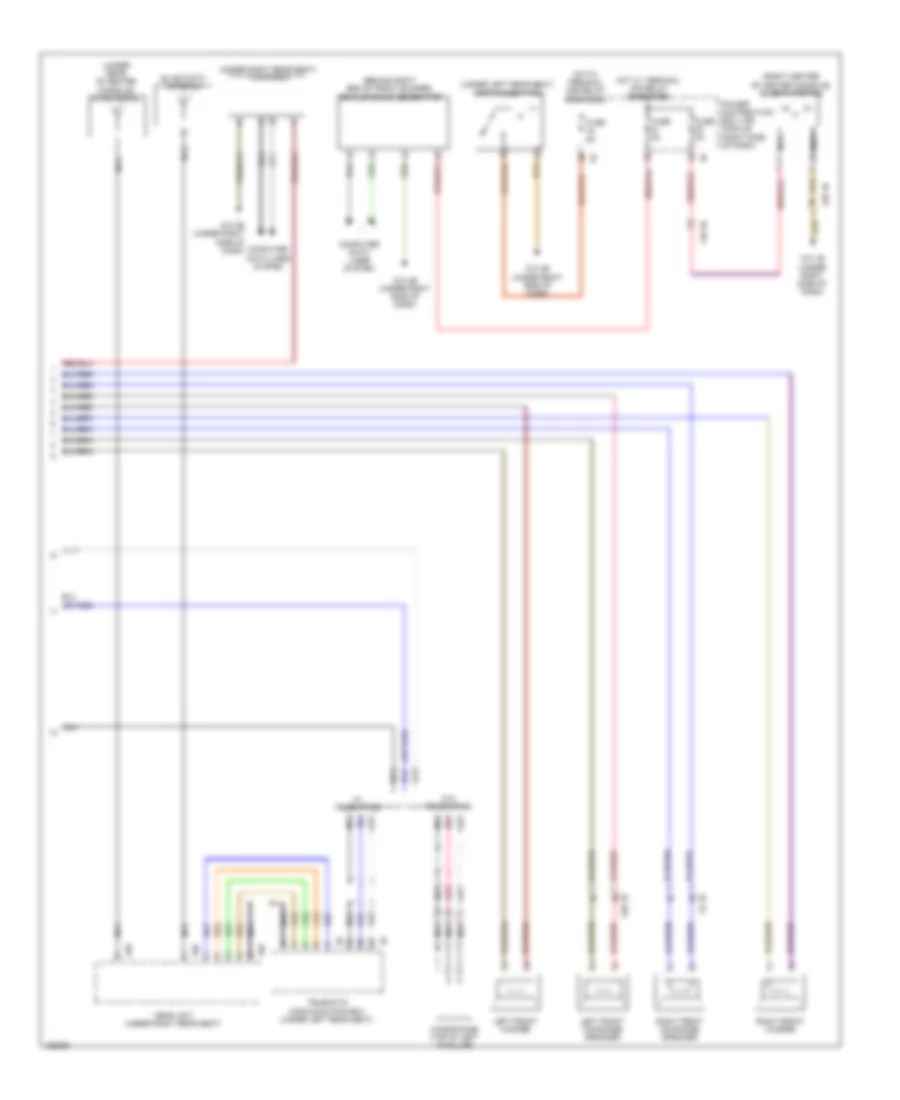

Эдектросхема магнитолы. Базовая комплектация. (2 из 2) для BMW i3 2014

Эдектросхема магнитолы. Базовая комплектация. (2 из 2) для BMW i3 2014 - Список элементов:

• (behind right end of front bumper) vehicle sound generator
• (or red)
• (right center of center console) base plate fan
• (under left rear seat)
• (under rear of center console) wlan aerial
• (under right rear seat) touch box
• 15b
• 16b
• 22b
• Computer data lines system
• Fuse 5a
• Head unit (under right rear seat)
• Hot w/ terminal 15n relay energized
• Hot w/ terminal 30b relay energized
• Infotainment fan
• Left front mid-range speaker
• Left front woofer
• Microphone (top of left "a" pillar)
• Nca
• Power distribution box life module (right side of dash)
• Red
• Right front mid-range speaker
• Right front woofer
• Telematic communication box (under left rear seat)
• W/ telematics
• W/o telematics
• X28 1b
• X29 1b
• X5 1b
• Z10 1b (under right side of dash)
• Z10 3b (under right side of dash)
• Z10 4b (under right side of dash)

высококачественная Электросхема магнитолы (1 из 3) для BMW i3 2014

высококачественная Электросхема магнитолы (1 из 3) для BMW i3 2014 - Список элементов:

• (left center rear of roof) rear spoiler aerial
• (left front wheelwell) z10 13b
• (or red)
• 10b
• 13b
• 18b
• 20b
• Antenna multiplexer
• Aux-in connection
• Base plate
• Body domain controller (lower right side of dash)
• Central information display
• Computer data lines system
• Controller
• Diversity aerial (left center rear of roof)
• Head unit (under right rear seat)
• Microphone 2 (top of right 'a' pillar)
• Nca
• Red
• Roof aerial
• Usb connection
• W/ antenna multiplexer
• W/o antenna multiplexer
• Z10 3b (under right side of dash)

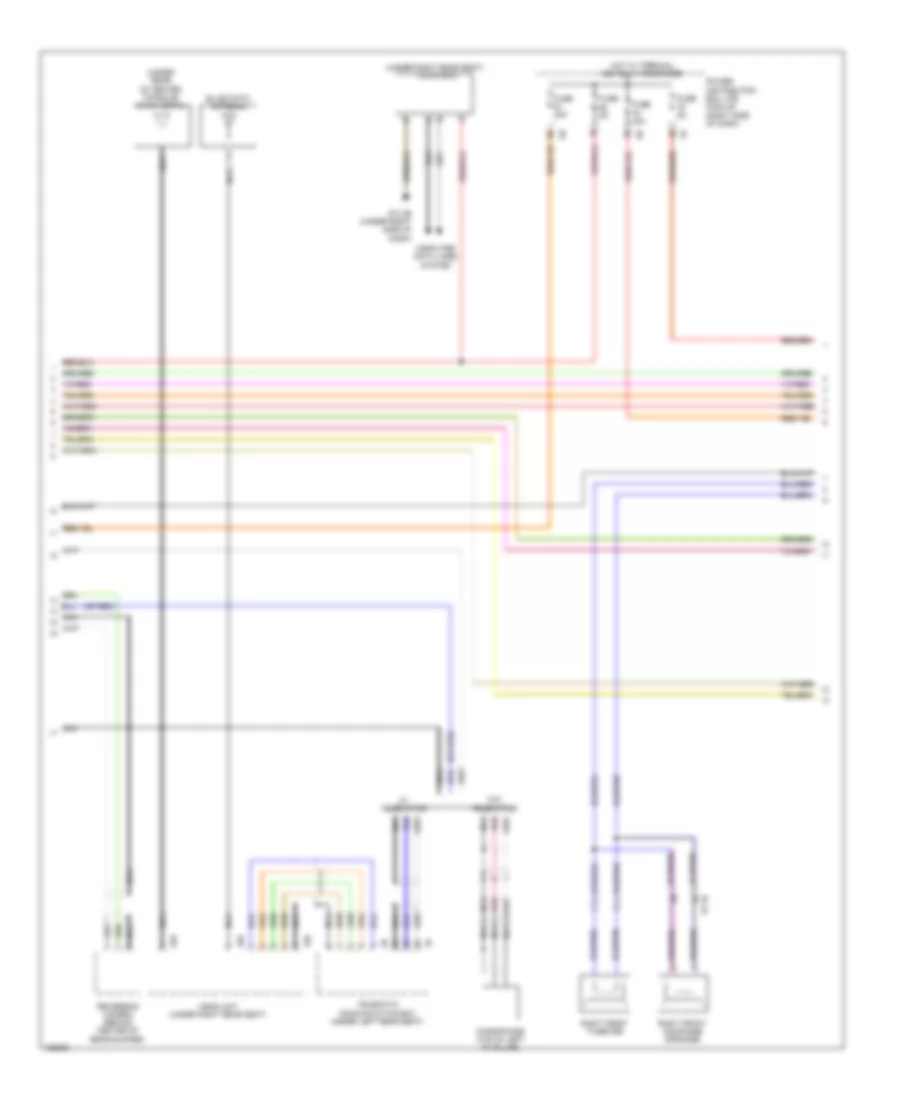

высококачественная Электросхема магнитолы (2 из 3) для BMW i3 2014

высококачественная Электросхема магнитолы (2 из 3) для BMW i3 2014 - Список элементов:

• (or red)
• (under rear of center console) wlan aerial
• (under right rear seat) touch box
• 15b
• 16b
• 22b
• Computer data lines system
• Fuse 20a
• Fuse 40a
• Fuse 5a
• Head unit (under right rear seat)
• Hot w/ terminal 30b relay energized
• Microphone (top of left "a" pillar)
• Nca
• Power distribution box life module (right side of dash)
• Red
• Reversing camera (behind center of rear bumper)
• Right front mid-range speaker
• Right front tweeter
• Telematic communication box (under left rear seat)
• W/ telematics
• W/o telematics
• X5 1b
• Z10 3b (under right side of dash)

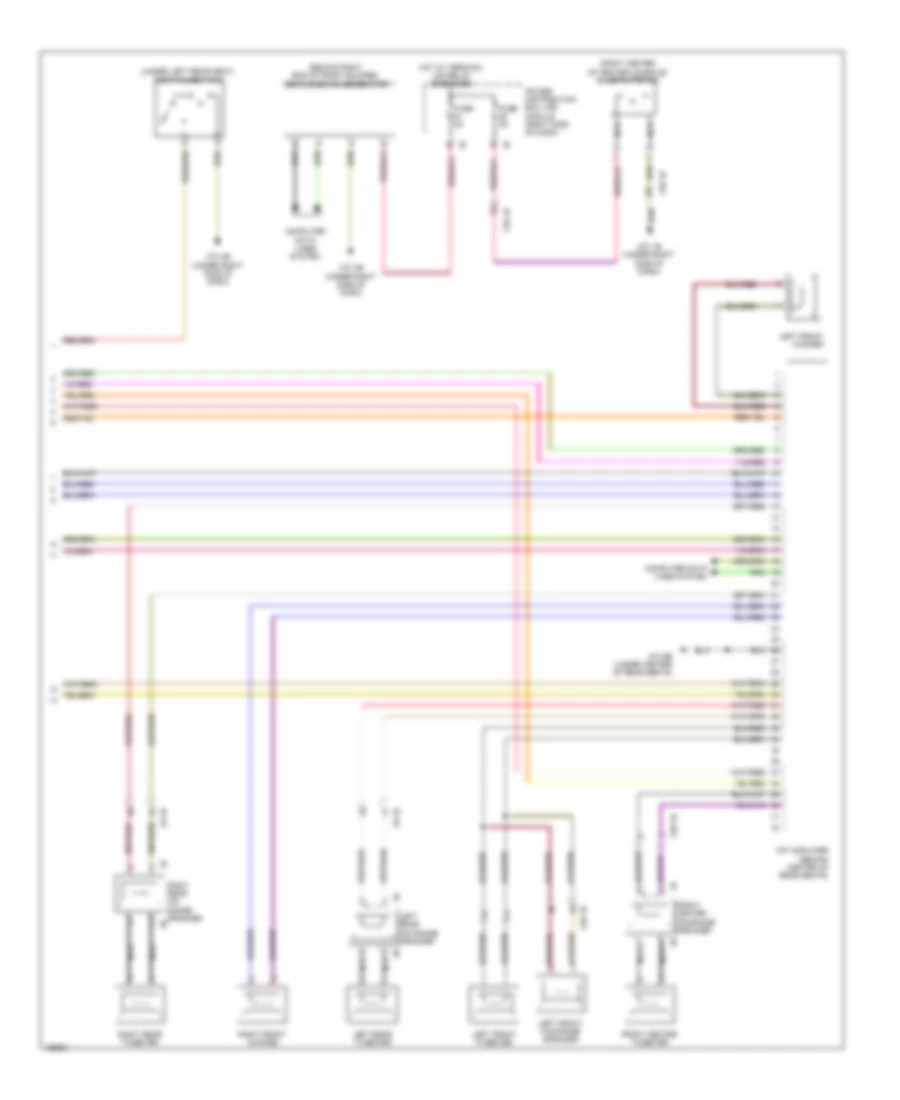

высококачественная Электросхема магнитолы (3 из 3) для BMW i3 2014

высококачественная Электросхема магнитолы (3 из 3) для BMW i3 2014 - Список элементов:

• (behind right end of front bumper) vehicle sound generator
• (right center of center console) base plate fan
• (under left rear seat)
• Computer data lines system
• Front center mid-range speaker
• Front center tweeter
• Fuse 5a
• Hifi amplifier (behind center of rear seats)
• Hot w/ terminal 15n relay energized
• Infotainment fan
• Left front mid-range speaker
• Left front tweeter
• Left front woofer
• Left rear mid range speaker
• Left rear tweeter
• Nca
• Power distribution box life module (right side of dash)
• Right front woofer
• Right rear mid range speaker 2b
• Right rear tweeter
• X20 1b
• X28 1b
• X29 1b
• X8 1b
• X9 1b
• Z10 1b (under right side of dash)
• Z10 4b (under right side of dash)
• Z10 6b (under center of rear seats)
