ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG

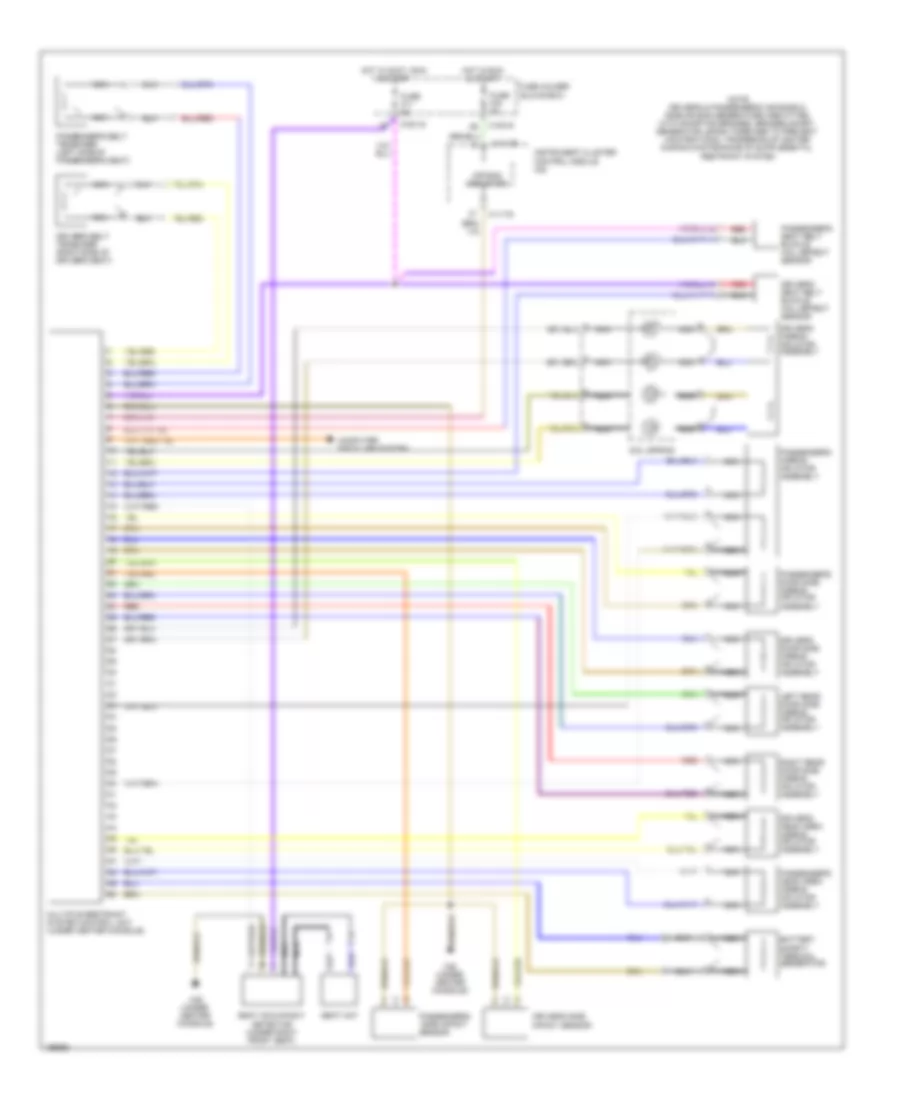

Электросхема подушек безопасности SRS AirBag для BMW 330i 2004

Электросхема подушек безопасности SRS AirBag для BMW 330i 2004 https://portal-diagnostov.com/license.html
https://portal-diagnostov.com/license.html Automotive Electricians Portal FZCO Automotive Electricians Portal FZCO
Получить доступ ко всем электросхемам автомобиляDownload PDF file

Электросхема подушек безопасности SRS AirBag для BMW 330i 2004 - Список элементов:

  • Air bag indicator
  • Battery safety terminal generator
  • Coil spring
  • Computer data line system
  • Driver's airbag inflator assembly
  • Driver's belt tensioner (right side of driver's seat)
  • Driver's door side airbag inflator assembly
  • Driver's head area airbag inflator assembly
  • Driver's seat belt buckle hall-effect sensor
  • Driver's side
  • Fuse f11 5a
  • Fuse f34 5a
  • Fuse holder (glove box)
  • Hot in accy, run & start
  • Hot in run & start
  • Impact sensor
  • Instrument cluster control module (a2)
  • Left rear door side airbag inflator assembly
  • Multiple restraint system control unit (under center console)
  • Nca
  • Passenger's airbag inflator assembly
  • Passenger's belt tensioner (left side of passenger's seat)
  • Passenger's door side airbag inflator assembly
  • Passenger's head area airbag inflator assembly
  • Passenger's seat belt buckle hall-effect sensor
  • Passenger's side impact
  • Red
  • Right rear door side airbag inflator assembly
  • Seat mat
  • Seat occupancy detector (under right front seat)
  • Sensor
  • X10016
  • X11175
  • X46 (under center console)
