Электросхемы ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG BMW 528i 2008

ПОДУШКИ БЕЗОПАСНОСТИ AIR BAG

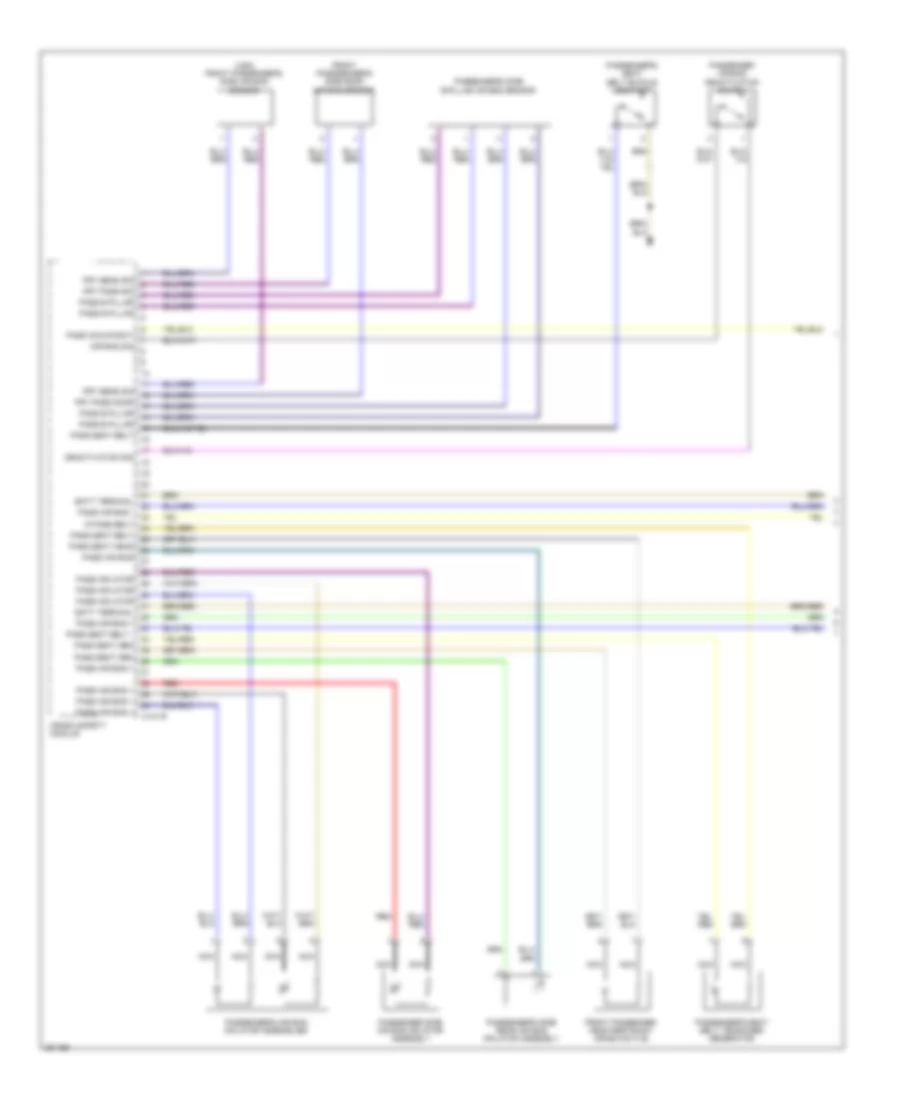

Электросхема подушек безопасности SRS AirBag (1 из 3) для BMW 528i 2008

Электросхема подушек безопасности SRS AirBag (1 из 3) для BMW 528i 2008 - Список элементов:

• (usa) front passenger's side air bag sensor
• Air bag sig
• Batt terminal
• Crash safety module
• Deactivation sig
• Front passenger head restraint crash-active
• Front passsenger's side door air bag sensor
• Frt pass door
• Frt pass sig
• Frt sens sig
• Nca
• Pass air bag
• Pass air bag +
• Pass air bag -
• Pass b pillar
• Pass inflator
• Pass occupancy
• Pass seat belt
• Pass seat belt -
• Pass seat gen
• Pass seat head
• Passenger air bag deactivation switch
• Passenger side air bag inflator assembly
• Passenger's air bag inflator assemblies
• Passenger's seat belt buckle contact
• Passenger's seat belt tensioner generator
• Passenger's side b-pillar air bag sensor
• Passenger's side rear air bag inflator assembly
• R pass belt
• Red
• X10179

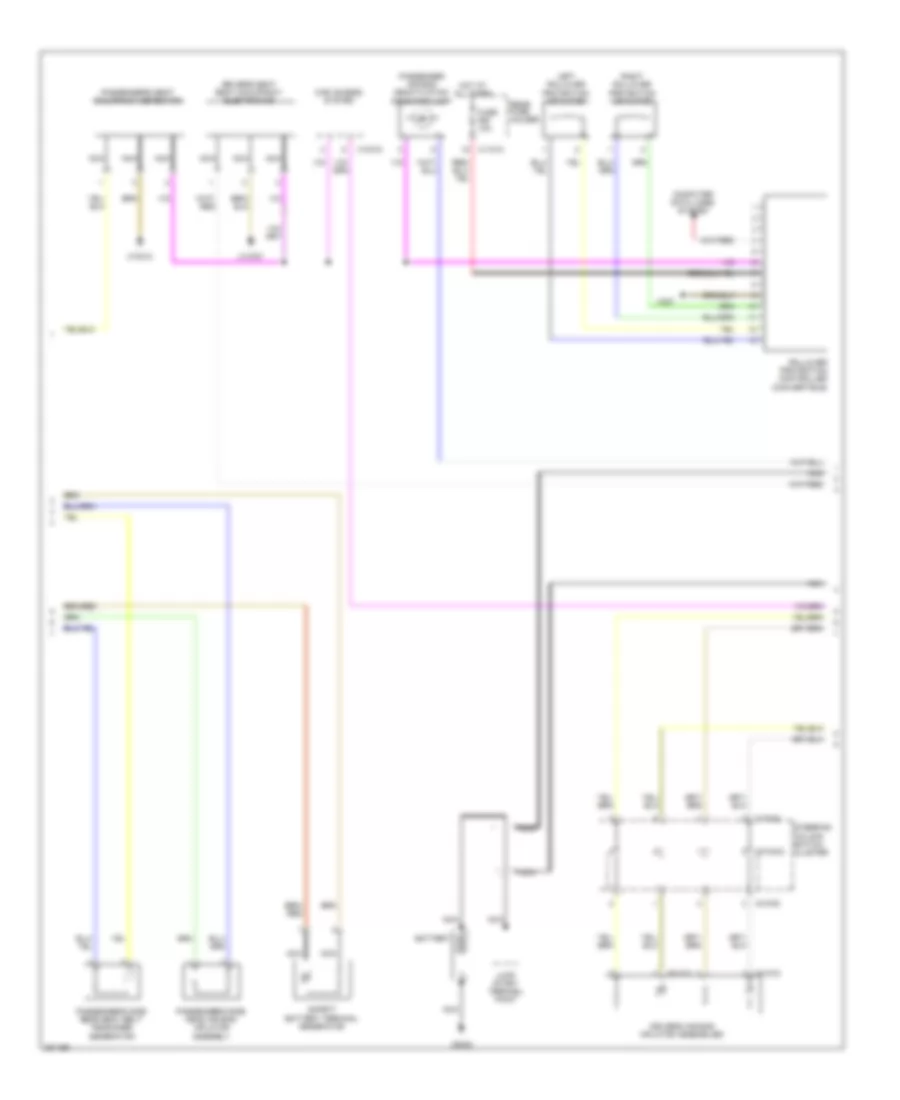

Электросхема подушек безопасности SRS AirBag (2 из 3) для BMW 528i 2008

Электросхема подушек безопасности SRS AirBag (2 из 3) для BMW 528i 2008 - Список элементов:

• Battery
• Car access system
• Computer data lines system
• Driver's air bag inflator assemblies
• Driver's seat seat occupancy electronics
• Fuse f60 10a
• Hot at all times
• Jump start terminal point
• Left rollover protection actuator
• Nca
• Passenger air bag deactivation indicator lamp
• Passenger's seat occupancy detection
• Passenger's side head air bag inflator assembly
• Passenger's side rear seat belt tensioner generator
• Rear fuse holder
• Right rollover protection actuator
• Rollover protection controller (convertible)
• Safety battery terminal generator
• Steering column switch cluster
• X01003
• X010334
• X01071
• X01072
• X10012
• X10318
• X10334
• X11012
• X13787
• X327
• X6402

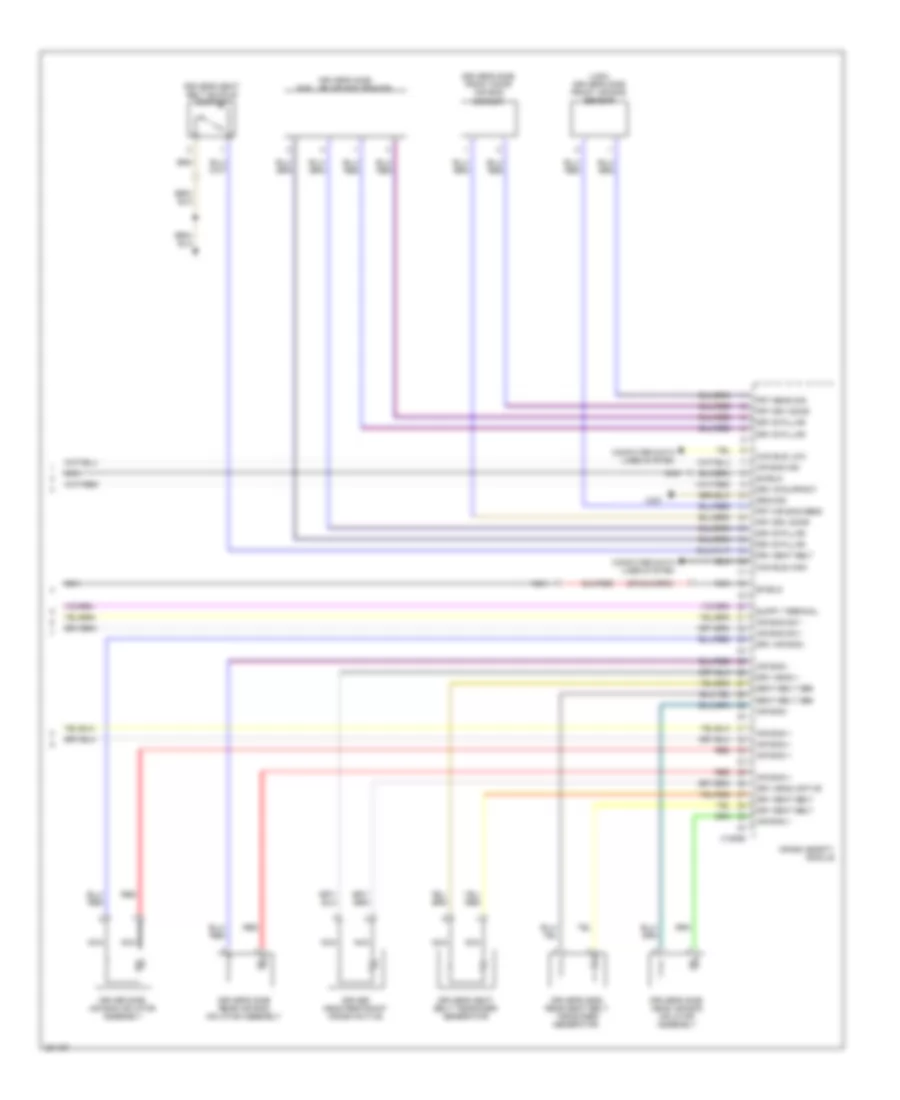

Электросхема подушек безопасности SRS AirBag (3 из 3) для BMW 528i 2008

Электросхема подушек безопасности SRS AirBag (3 из 3) для BMW 528i 2008 - Список элементов:

• (usa) driver's side front air bag sensor
• Air bag +
• Air bag -
• Air bag ind
• Air bag sw -
• Can bus high
• Can bus low
• Computer data lines system
• Crash safety module
• Driver head restraint crash-active
• Driver side air bag inflator assembly
• Driver's seat belt buckle contact
• Driver's seat belt tensioner generator
• Driver's side b-pillar air bag sensor
• Driver's side front door air bag sensor
• Driver's side head air bag inflator assembly
• Driver's side rear air bag inflator assembly
• Driver's side rear seat belt tensioner generator
• Drv air bag -
• Drv b pillar
• Drv head +
• Drv head active
• Drv occupancy
• Drv seat belt
• Frt air bag sens
• Frt drv door
• Frt sens sig
• Ground
• Nca
• Red
• Seat belt gen
• Shield
• Suppy terminal
• X18069
• X327
